Architectural Wire Mesh for Interiors - METART-WW09E

Specification

Pattern Code: METART-WW09E

Materials: SSS304/SS316/SS201, copper, brass, bronze and other metal alloys

Type: Rigid Architectural Wire Mesh

Opening rate: 49%

Weight: Approx 3.6KG per square meter

Sheet Width: Within 3M( for mill finish )

Sheet Length: Within 4M ( for mill finish)

GET A QUOTE

Introduction

The METART-WW09E is an economical option within the WW09 architectural wire mesh series, designed for interior cladding.

Positioned between the WW09 and WW09mini in terms of strength, this pattern maintains a similar opening size as the WW09mini but offers significantly enhanced rigidity and strength.

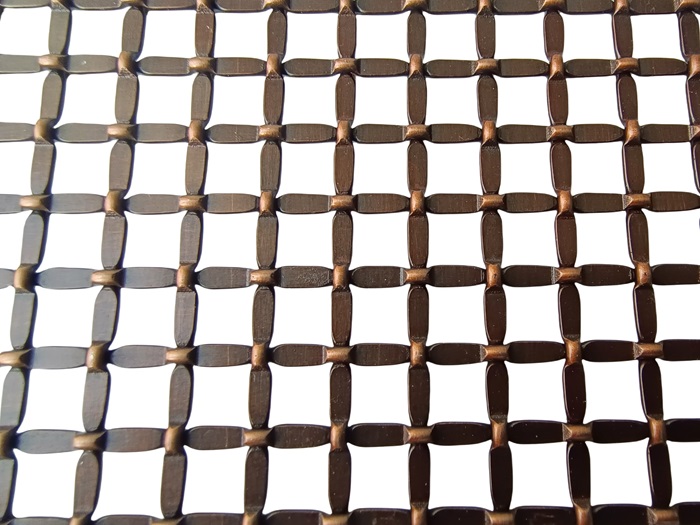

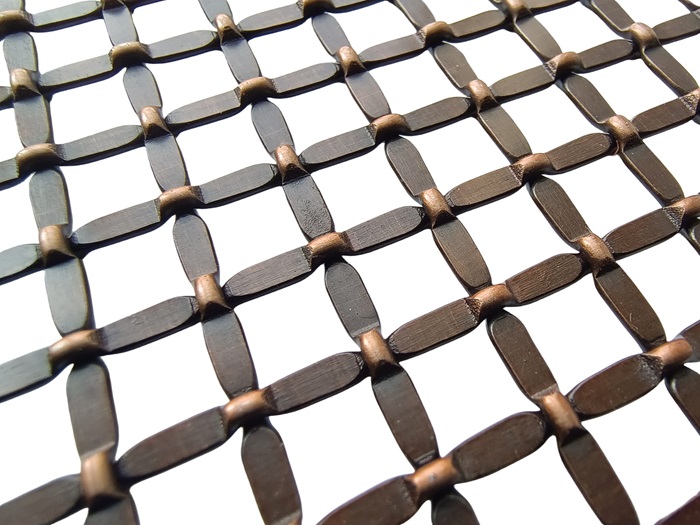

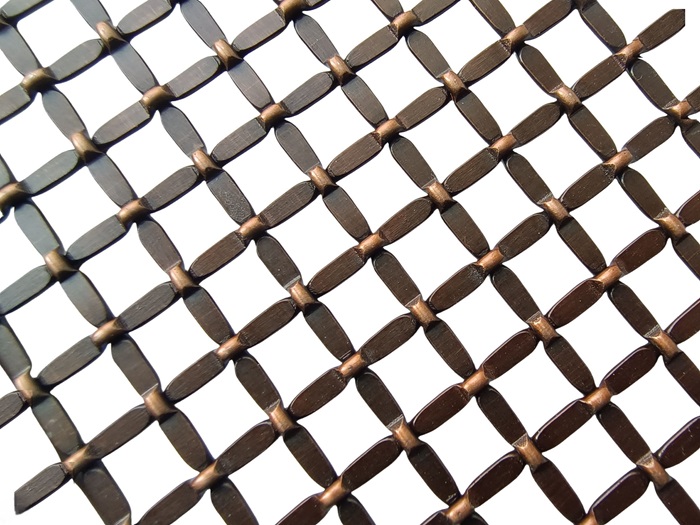

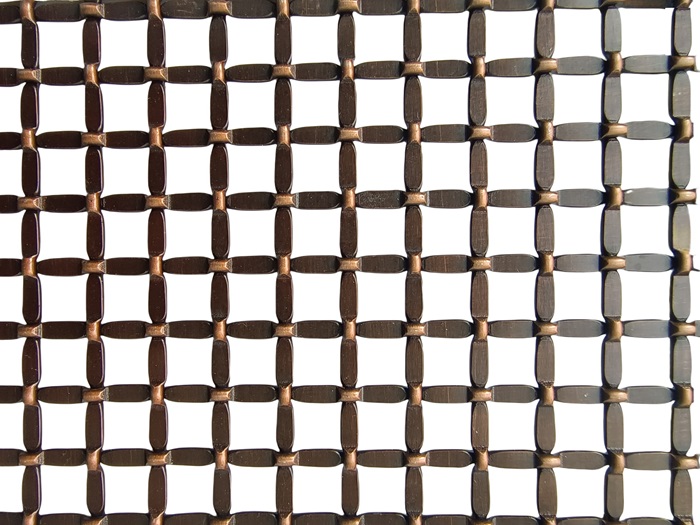

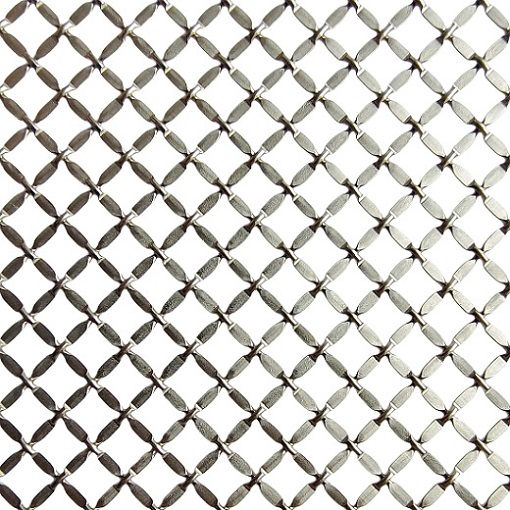

Constructed from 1.55mm decorative crimped wires, this architectural mesh panel is milled to a wider surface and features a 2.4mm wide leaf-like design.

The milling process not only enhances the decorative appeal for interior architecture but also improves the mesh's strength and durability.

Specification Overview

Raw Material	Stainless Steel 201, Stainless Steel 304, SS316, true copper, brass, bronze, etc.
Type	Rigid Architectural Wire Mesh
Wire Diameter Before Flattened	1.55mm
Clear Hole Size	5.6mm
The overall thickness of the wire mesh	3mm
Opening Area	49%
Privacy Rate	51%
Weight	3.6kg/Square Meter

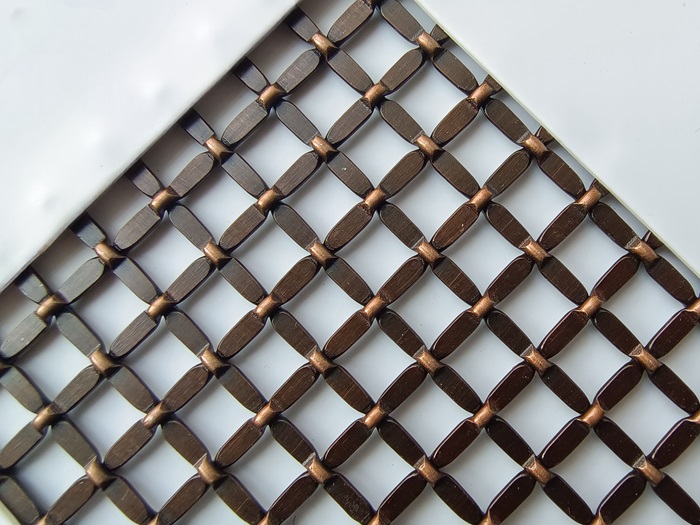

Finish	Antique Copper Plated Finish
All optional ways of cutting	Straight Cut, Diamond Cut
All optional Finish	Mill Finish ( Original stainless steel finish）, Brass Plated, Copper Plated, Antique Bronze plated, Antique Copper plated, Antique brass plated, PVD titanium plated (gold, rose gold, Grey, Black), Common Baking Painted to any custom-made RAL color PVDF Painted

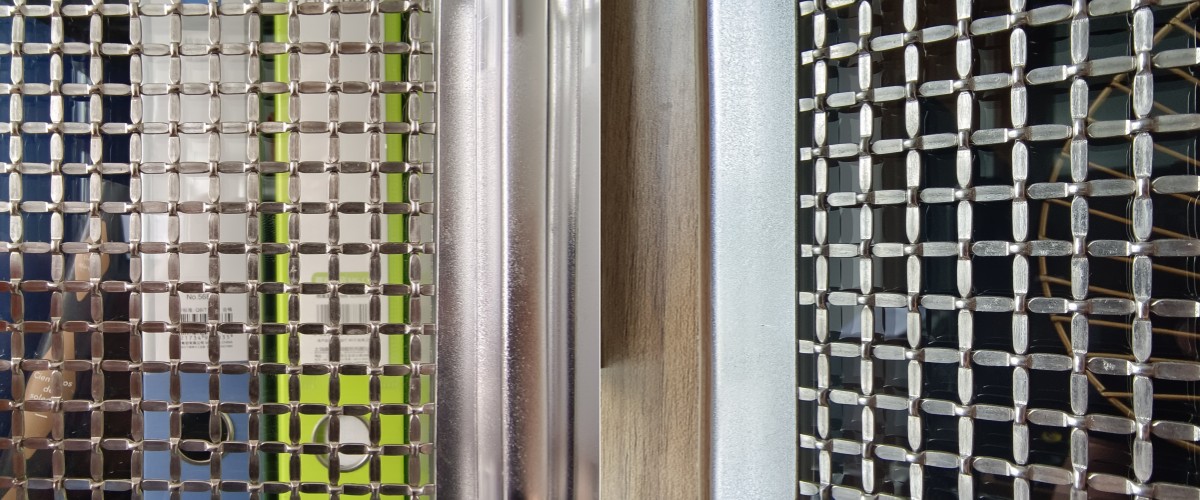

Application
