Copper Decorative Wire Mesh For Interiors

Specification

Pattern Code: METART-WW53

Type: Rigid Architectural Wire Mesh

Raw Material: Pure Copper Wire + Stainless Steel Wires

Opening Rate: 46%

Finish: Mill Finish Only

Screen Width: Within 4000MM

Screen Width: Within 30 Meters roll, or flat sheet within in 5M

GET A QUOTE

Introduction

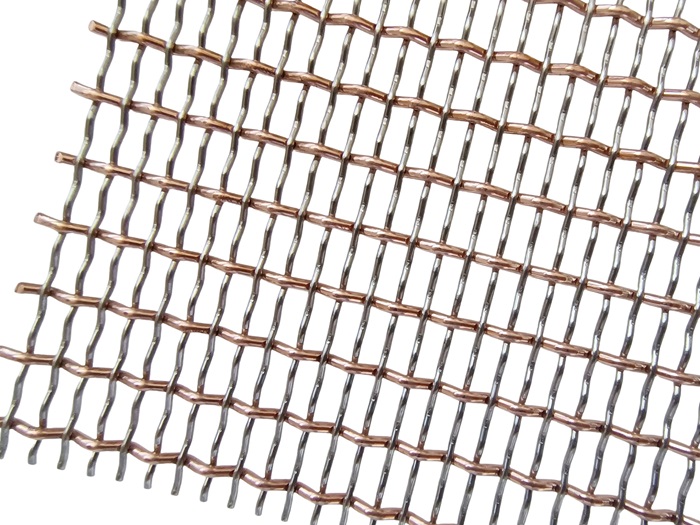

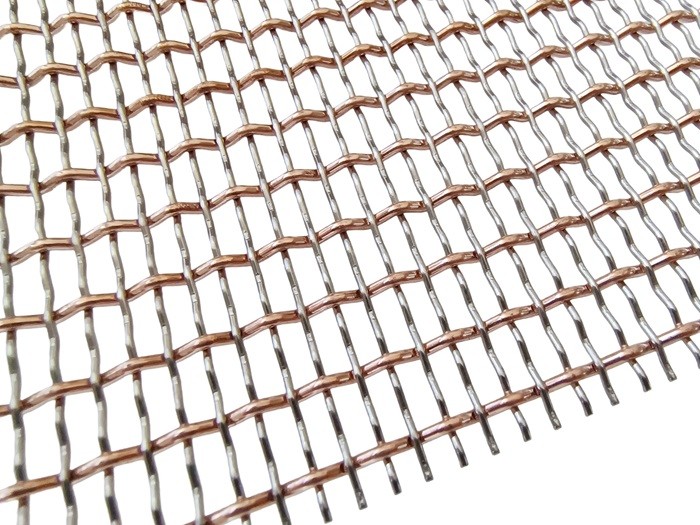

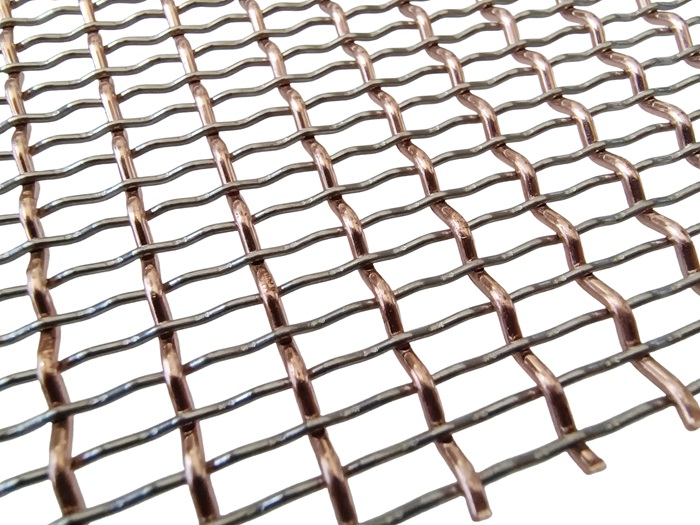

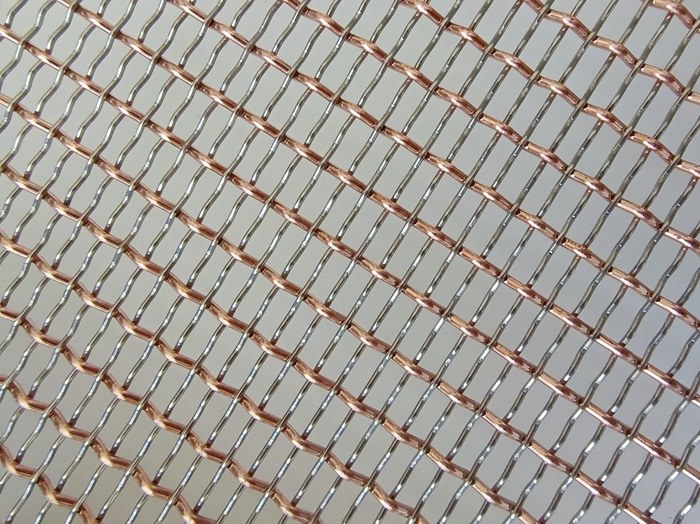

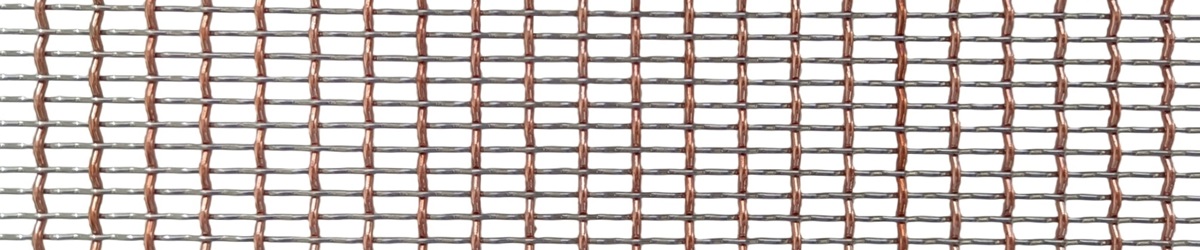

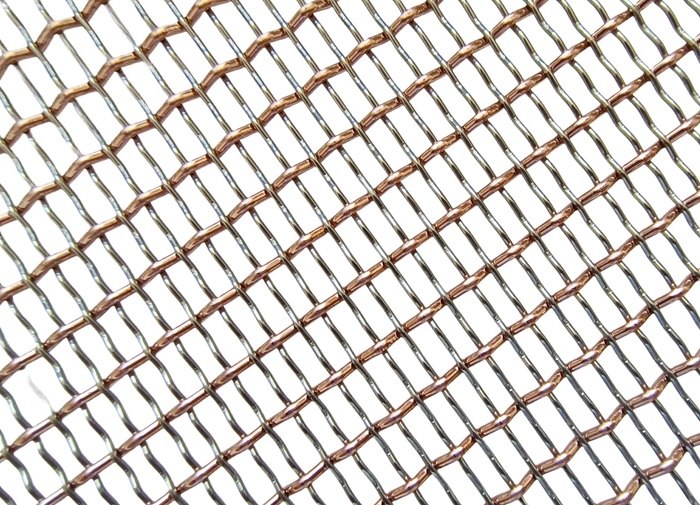

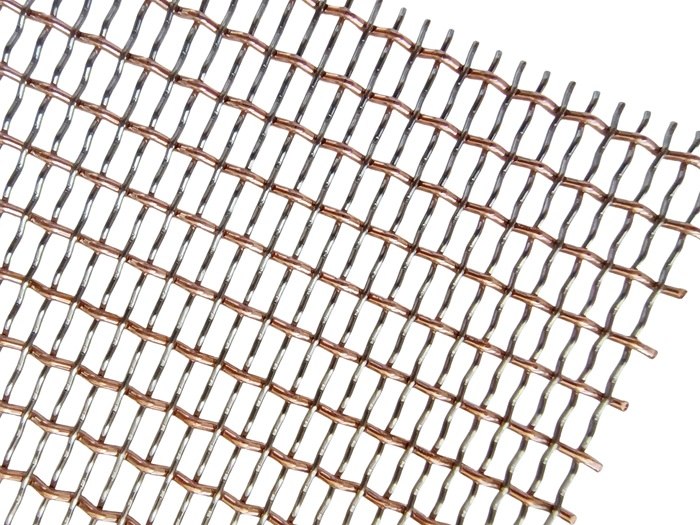

METART-WW53 is a lightweight hybrid copper decorative wire mesh mixed with stainless steel wires.

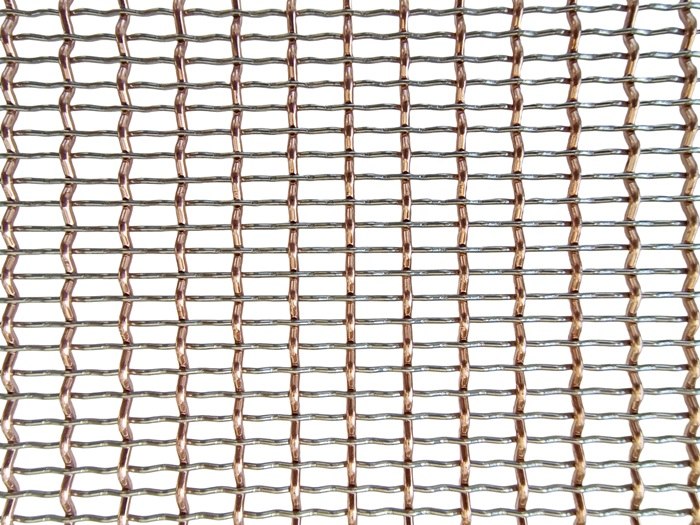

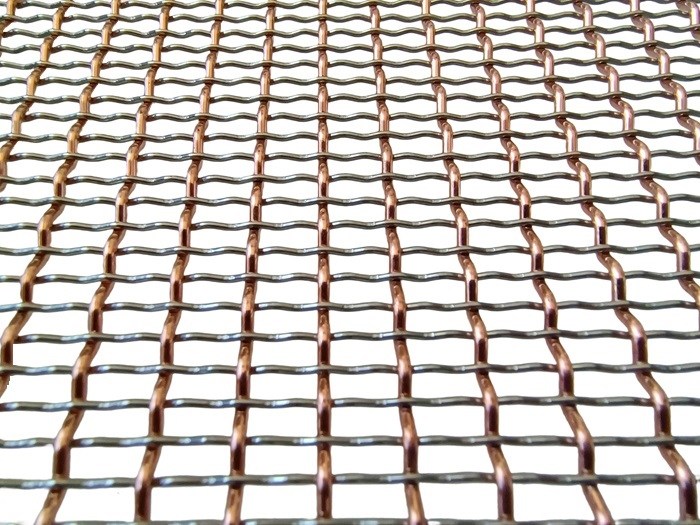

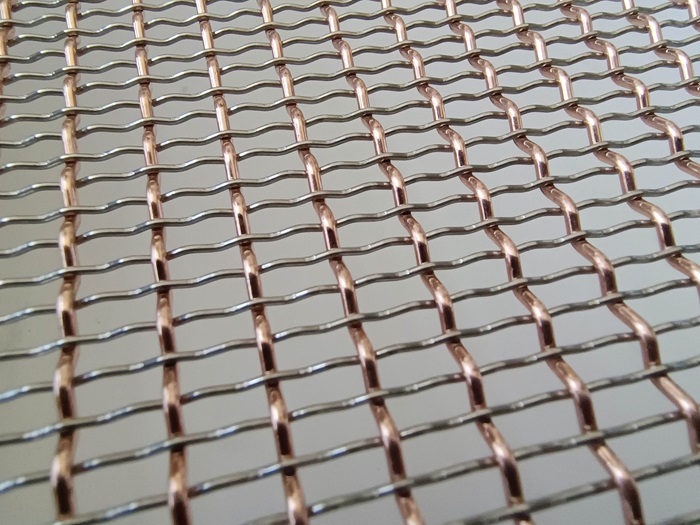

The warp wire is made of a nominal 0.85mm stainless steel pre-crimped wire with an actual measurement of 0.83mm. The weft wires adopt 1.4mm (1.37-1.38mm) pure copper wires to create a color variation for this simple slot woven wire pattern.

Specification overview

Pattern Code	METART-WW53
Hybrid Raw Materials	Pure Copper Wires + Stainless Steel Wires
Type	Rigid Decorative Wire Mesh
SS x Copper Wire Diameter：	0.83MM x 1.38MM
Clear Hole Size	2.5MM x 6.5MM
Wire Pitch	3.3MM x 7.9MM
The overall thickness of the fabric	2.5mm
Opening Area	62%
Privacy Rate	38%
Weight	3.2kg/Square Meter
Finish	Mill Finish Only
All optional ways of cut	Straight Cut, Diamond Cut

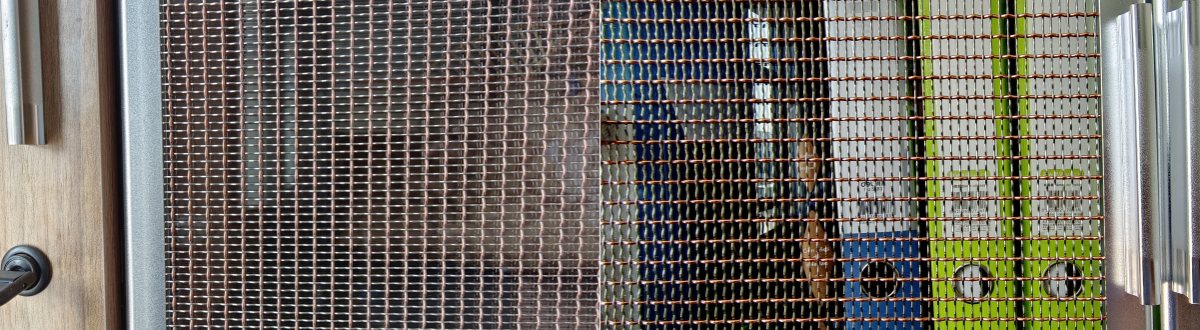

Application
