Specification

Material: SS304 / SS316 / SS201

Type: Rigid Architectural Wire Mesh

Opening Area: 37%

Weight: Approx 4kg/Square Meter

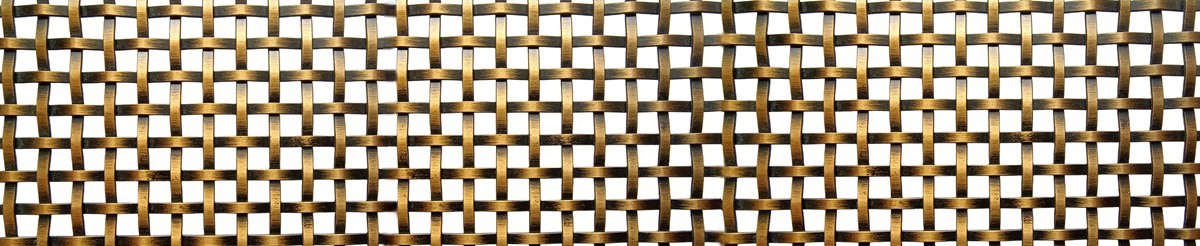

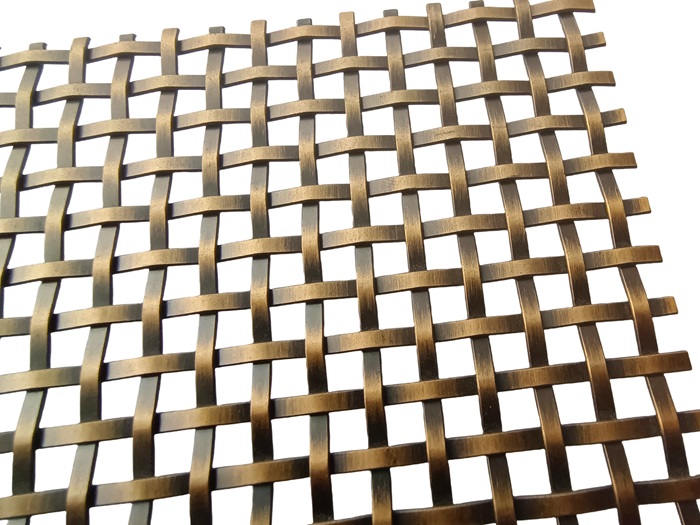

Finish: Antique Brass Plated Finish

Screen Sheet: Within 4M

GET A QUOTE

Introduction

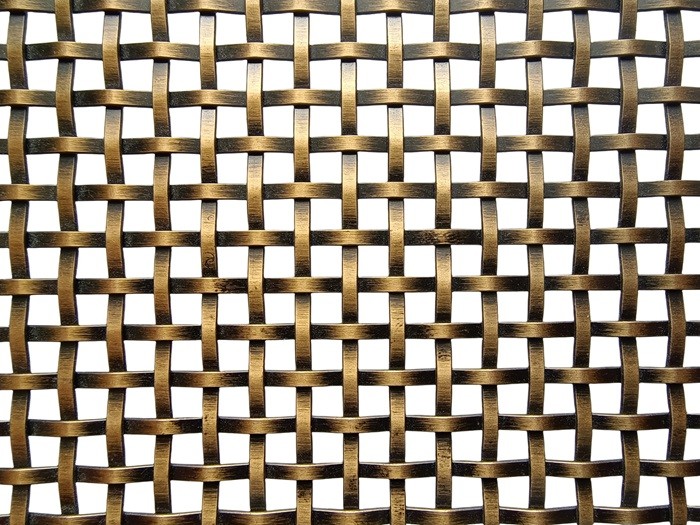

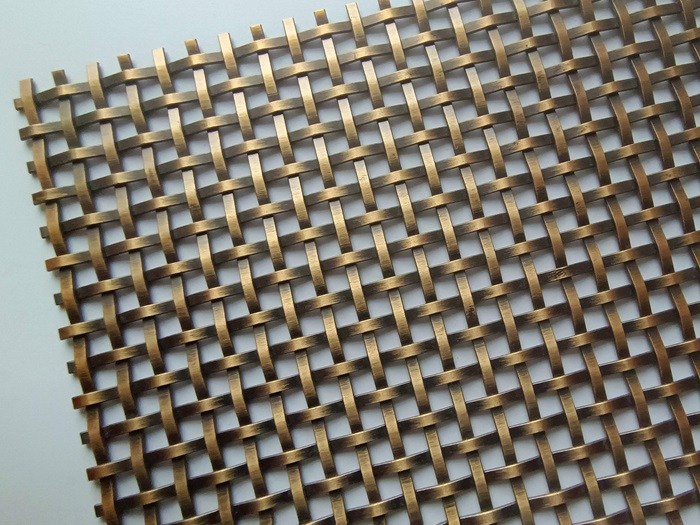

METART-WW05-22084 is a cost-effective architectural wire mesh option made of flat metal strips.

This is a popular wire mesh for architecture and cabinetry due to its small openings and light weight property.

#22084 represents wire mesh with a 2.2mm wire diameter and 0.8mm wire thickness and with a 4x4mm aperture size.

As it is made of stainless steel, it can be used without any finish which is generally called mill-finished mesh.

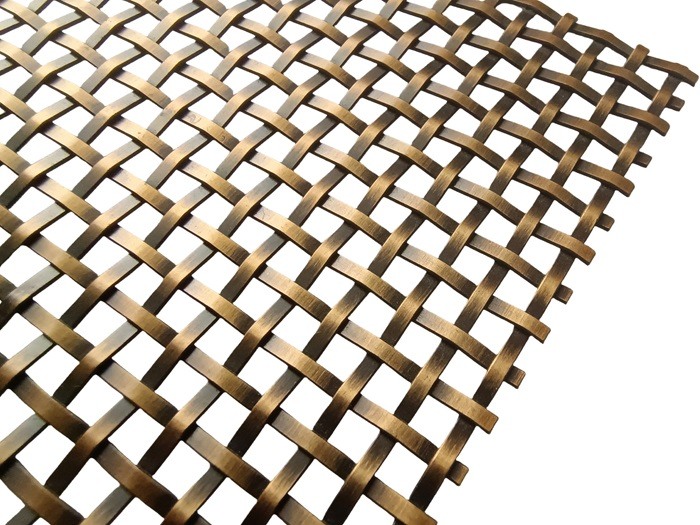

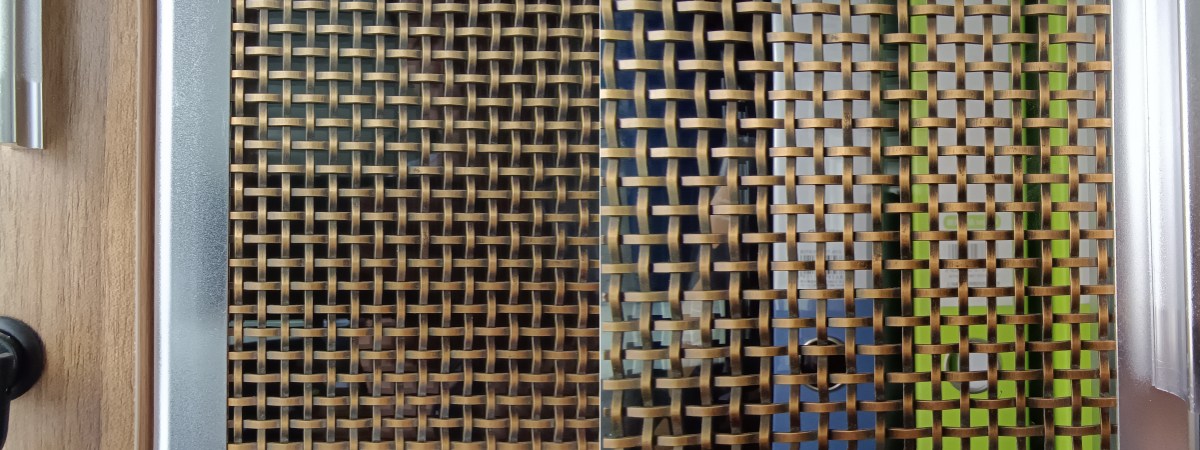

But it is preferred to be used after being copper plated, PVD plated, or at least commonly painted for cabinet door infill mesh or vent covers.

Please check the production process of this pattern in the following video.

You will get colorful options for your projects. Please refer to the following specifications

Material	Stainless Steel 304,316,201, optional
Type	Rigid Architectural Mesh
Flat Wire Strip:	2.2x0.8mm
Clear Hole Size	4mm
The total thickness of the fabric	1.6mm
Opening Area	37%
Block out	63%
Privacy Rate	63%
Weight	4kg/Square Meter
The way of cutting	Straight Cut

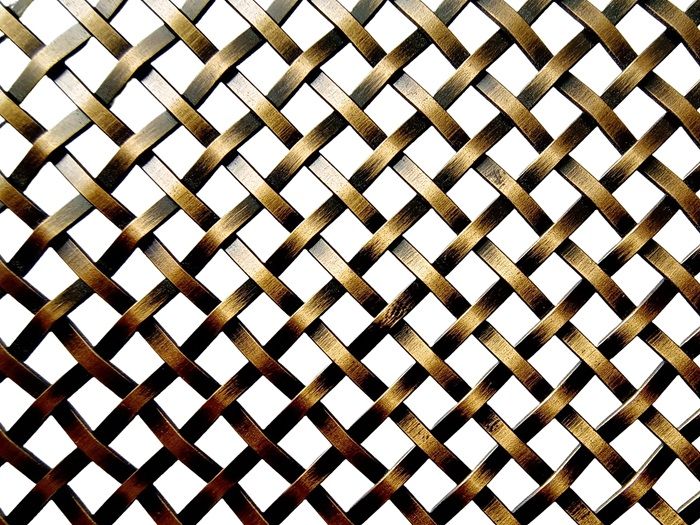

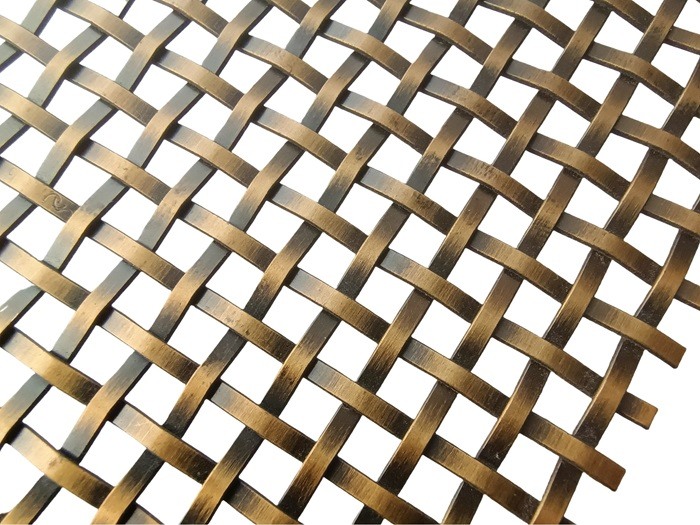

All optional ways of cut	Straight Cut, Diamond Cut
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, Vacuum titanium plated,Painted, PVDF Coated,

Please refer to the following table for all the specifications of METART-WW05 archietctural mesh selection.

Item #	Flat Strip	Clear Hole Dia. mm	Opening Area	Privacy Rate	Weight	Overall Thickness
METART 05-61585	6x1.5mm	8.5x8.5mm	34%	66%	9.5KG / Square Meter	3.4mm
METART 05-41022	4x1mm	2.2x2.2mm	11%	89%	9.2KG / Square Meter	3.2mm
METART 05-31507	3x1.5mm	7x7mm	49%	51%	7.0 KG / Square Meter	3.0mm
METART 05-31005	3x1.0mm	5x5mm	39%	61%	5.8 KG / Square Meter	2.0mm
METART 05-31204	3x1.2mm	4x4mm	33%	67%	7.6KG / Square Meter	2.5mm
METART 05-31205	3x1.2mm	5x5mm	39%	61%	7.0 KG / Square Meter	2.4mm
METART 05-31207	3x1.2mm	7x7mm	49%	51%	5.6 KG / Square Meter	2.4mm
METART 05-31210	3x1.2mm	10x10mm	59%	41%	4.3 KG / Square Meter	2.4mm
METART 05-31510	3x1.5mm	10x10mm	59%	41%	5.4 KG / Square Meter	3.0mm
METART 05-25103	2.5x1.0mm	3x3mm	29.7%	70.3%	7.1 KG / Square Meter	2.0mm
METART 05-22134	2.2x1.0mm	3.4x3.4mm	36.8%	63.2%	6.1 KG / Square Meter	2.0mm
METART 05-22834	2.2x0.8mm	3.4x3.4mm	36.8%	63.2%	4.9 KG / Square Meter	1.6mm
METART 05-22084	2.2x0.8mm	4x4mm	37%	63%	4.0kg / Square Meter	1.6mmm
METART 05-18186	1.8x1.8mm	6.2x6.2mm	60%	40%	6.4KG / Square Meter	3.6mm
