METART-WW16 Gold Painted Double Wire Decor Mesh

Specification

Material: Stainless Steel 304, Stainless Steel 316, or SS201

Type: Rigid Decorative Wire Mesh

Opening Area: 42%

Weight: Approx 8.2kg/Square Meter

Finish: Gold Color Painted

Screen Width: Within 3000MM

Screen Length: Within 4000MM

GET A QUOTE

Introduction

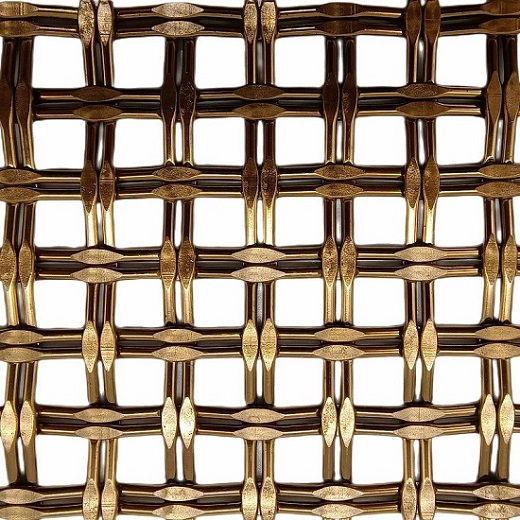

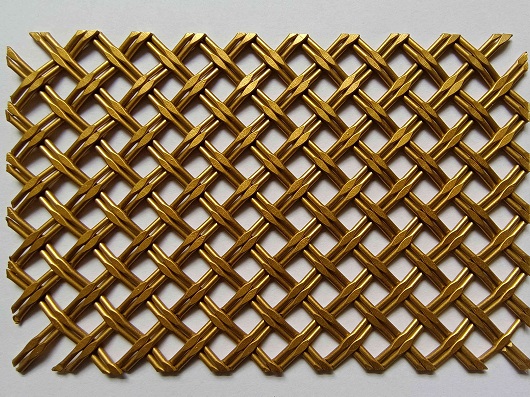

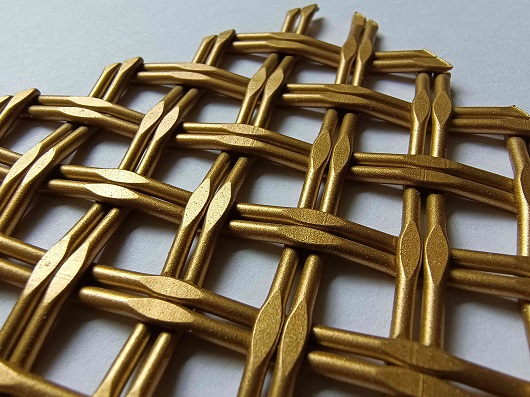

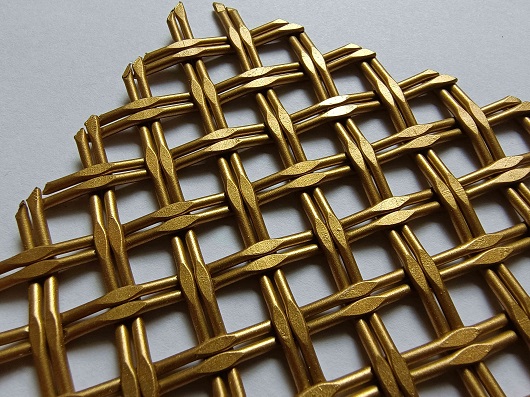

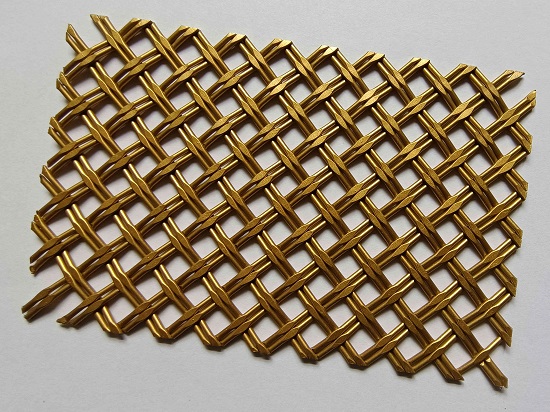

This is a gold color painted version of the decorative mesh pattern METART-WW16.

For this architectural wire mesh, the diameter of the single wire was kept the same as in WW15, but the hole diameter is much smaller.

In this case, this wire mesh pattern is more rigid than WW15. Thus, this stainless steel creative mesh is even more popular as balustrade infill mesh panels, balcony fencing mesh, commercial railing wire mesh, building facade cladding mesh, wall cladding metal mesh, security door decorative grilles, fancy wine cabinets door mesh inserts, etc.
Please refer to the following specification.

Material

Stainless Steel 201, 304 or 316, optional

Type

Rigid mesh

Wire Diameter (Single wire)

2mm

Clear Hole Size

7.4mm

The total thickness of the fabric

2.8mm

Opening Area

42%

Block out

58%

Privacy Rate

58%

Weight

8.2kg/Square Meter

Finish

Gold color painted.

The way of cutting

Diamont Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
