METART-WW34MSS Antique Copper Finish Decor Metal Screen

Specification

Material: Stainless Steel 304 or Stainless Steel 316

Type: Rigid Wire Mesh

Opening Area: 10% | Approx 15.8kg/Square Meter

Finish: Antique copper plated color

Screen Width: Customized. within 3M (10') for mill finish only

Screen Length: maxiumum within 4M (13 feet), Mill Finish

GET A QUOTE

Introduction

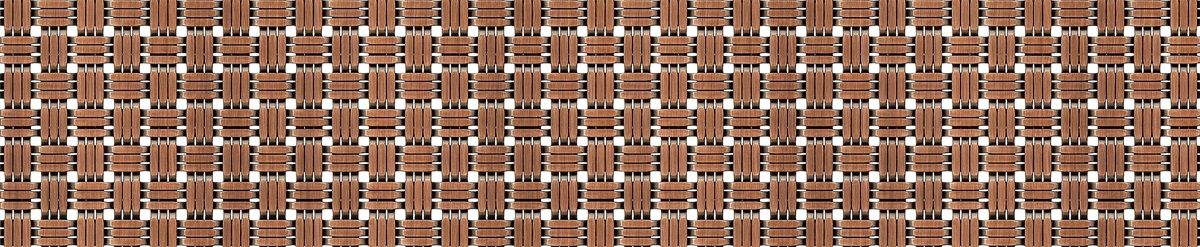

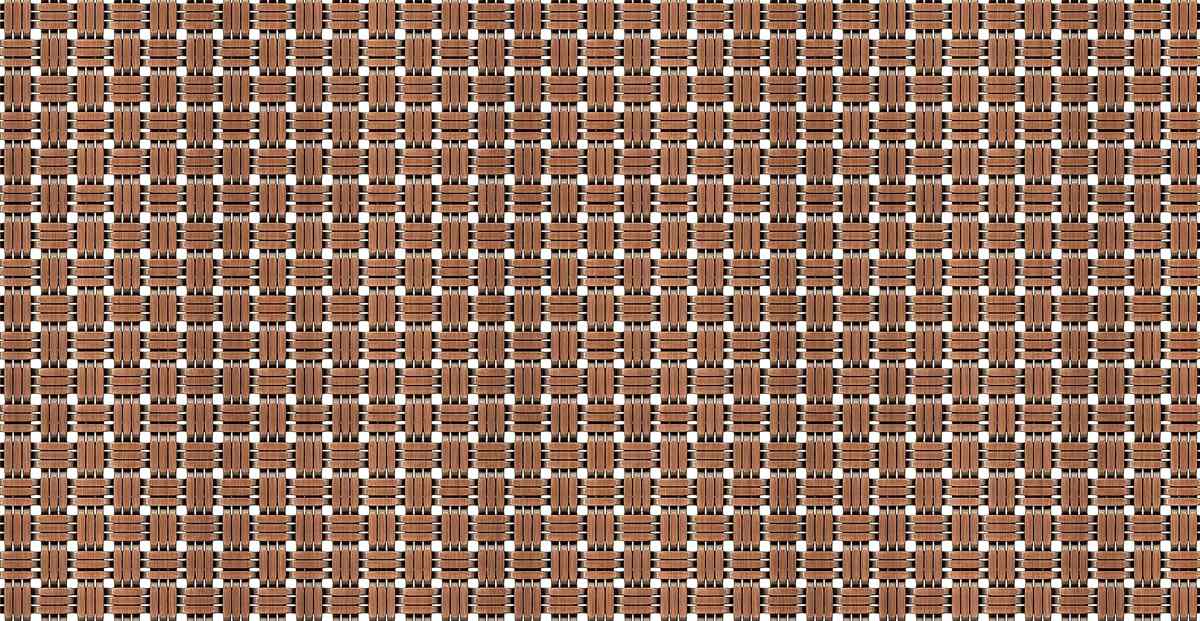

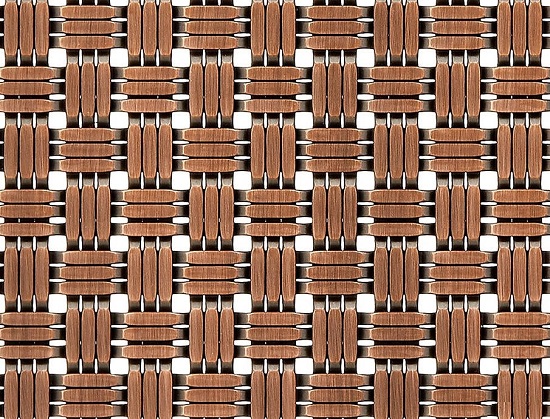

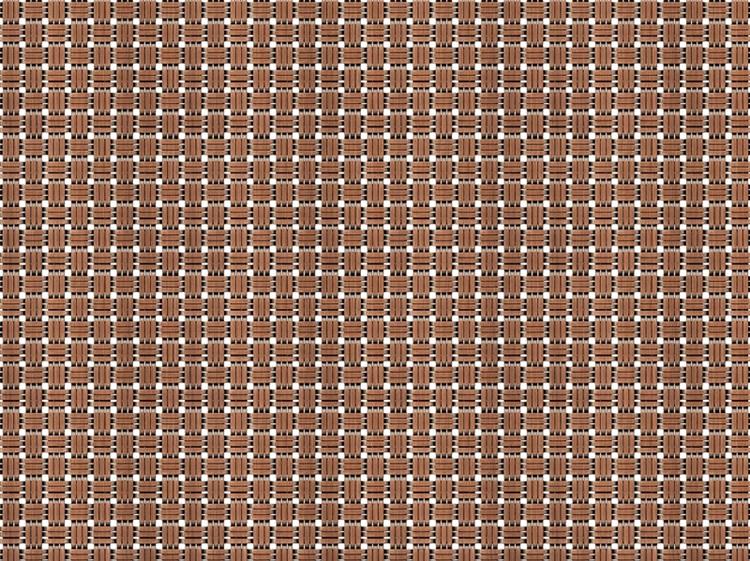

This is the antique copper-plated version of the ss wire mesh pattern METAR WW34MSS.

It is a medium-sized version compared to its smaller variant version WW34SSS.

Please refer to the following specifications.

Material	Stainless Steel 304 or 316, optional
Type	Rigid mesh
Single Wire Strip	2.7x1.4mm
Strip Group Width (3 wires)	9.1mm
Clear Hole Size	4x4mm
The total thickness of the fabric	2.8mm
Opening Area	10%
Block out	10%
Privacy Rate	90%
Weight	15.8kg/Square Meter
Finish	Antique Copper Plated Color
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated
Custom specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
