METART-WW34MSSRB-Hybrid Woven Creative Metal Mesh

Specification

Material: Stainless Steel 304 or SS316 Wires + Real Brass Wires

Type: Rigid Wire Mesh

Opening Area: 10%

Weight: Approx 16.3kg/Square Meter

Finish: Mill Finish (original stainless steel + brass color)

Screen Width: Customized,within 3000MM (10')

Screen Length: Customized, maxiumum within 4000MM (13')

GET A QUOTE

Introduction

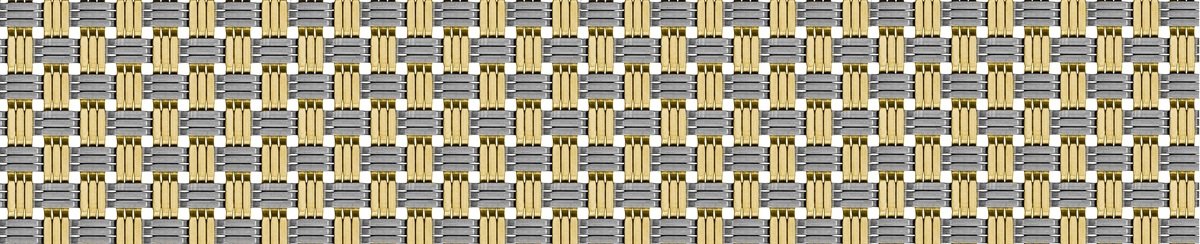

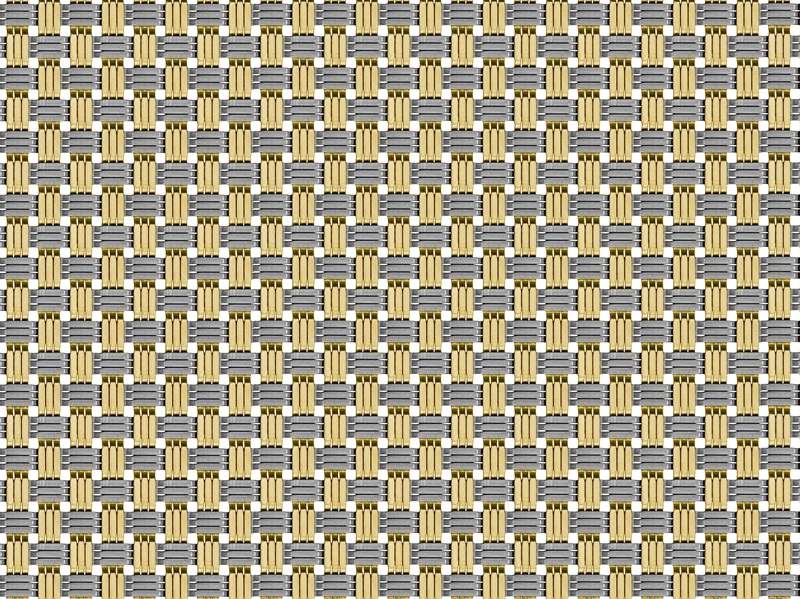

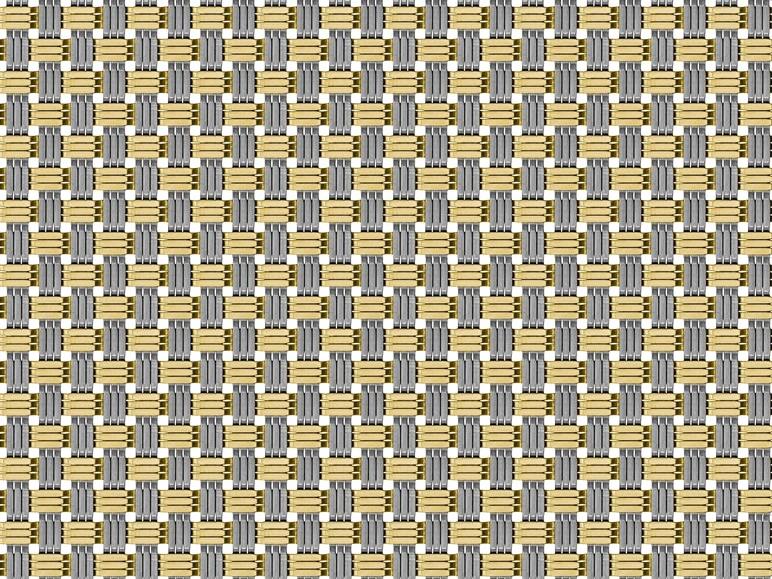

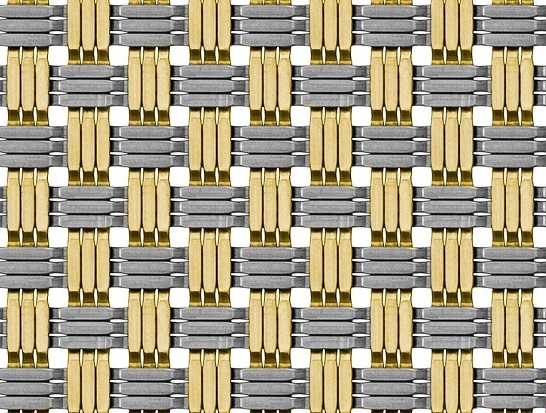

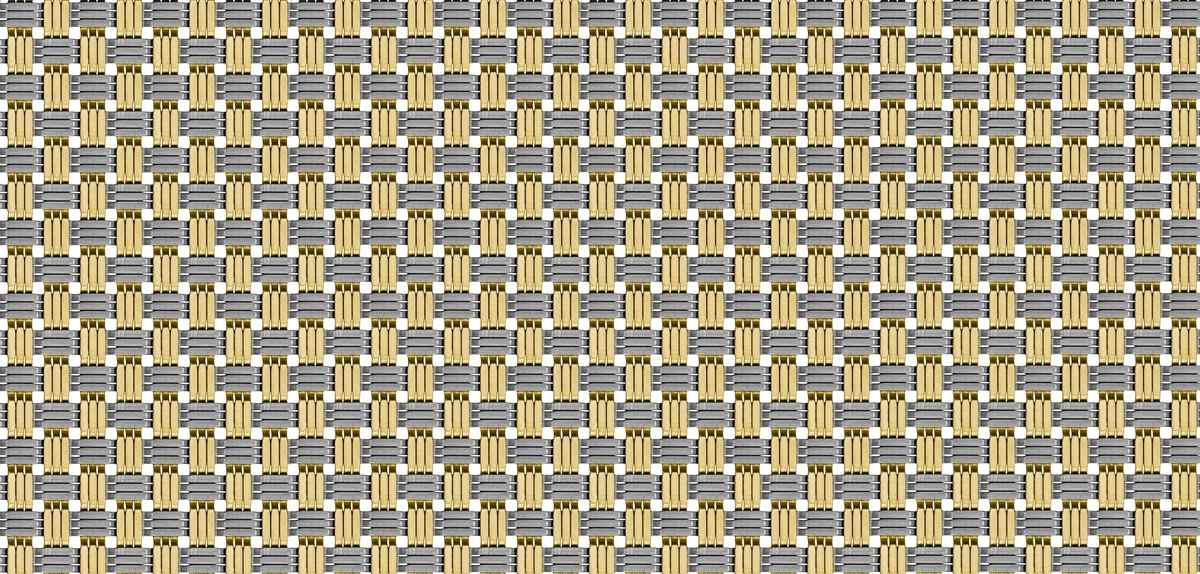

METART-WW34MSSRB is the medium-sized version of the woven wire pattern series WW34.

Made of a hybrid of stainless steel wires and real brass wires in different directions, this architectural woven wire pattern has a stunning feature that is suitable to be the cladding material or partition screen infills for the decoration or furnishing of those high-end commercial sites or spaces.

Please refer to the following specifications.

Material

Stainless Steel 304 or 316 + Real Brass Wires

Type

Rigid mesh

Single Wire Strip

2.7x1.4mm

Strip Group Width (3 wires)

9.1mm

Clear Hole Size

4x4mm

The total thickness of the fabric

2.8mm

Opening Area

10%

Block out

10%

Privacy Rate

90%

Weight

16.3kg/Square Meter

Finish

Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Custom specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
