Twill Dutch Weave Stainless Steel Wire Mesh
Material: SS304, 304L. 316,316L,310S
Type: Industrial Woven Wire Mesh
Weave Pattern: Twill Dutch Weave
Mesh Count: According to customer's requirement.
Wire Diameter: 0.025mm-0.25mm
Standard Width: 914mm, 1000mm, 1220mm and Custom sizes
Standard Length: 30M. (custom length accepted)

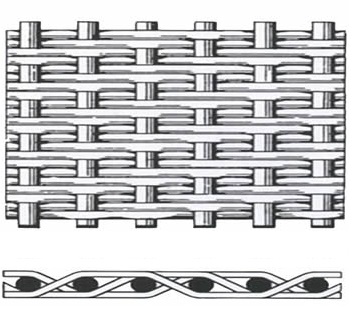

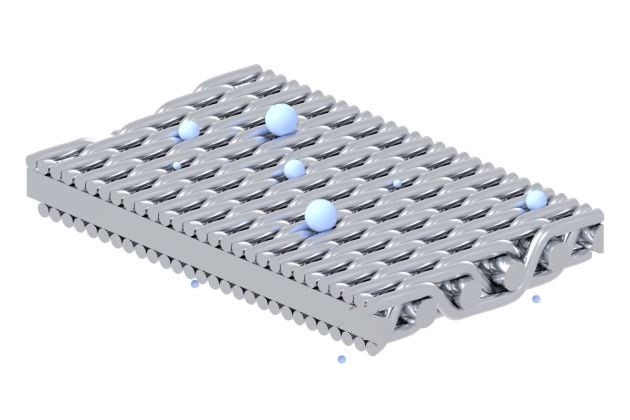

GET A QUOTETwill Dutch weave wire mesh pattern is a combination of twill weave and Dutch weave. Twill Dutch Weave wire mesh pattern doesn’t make a big difference compared to Plain Dutch Weave. It is knitted with the weft wires packed together in the same way as the plain dutch weave but with double wires woven in and over two warp wires and then down through another two warp wires alternatively. The weft wires overlie each other creating a sinuous path for filtrations. Weaving in this way, this stainless fabric becomes a very robust wire mesh with a smooth surface, finer weft wires, and smaller pore sizes, which makes Twill Dutch Weave an ideal pattern to carry on heavy-duty filtration tasks.
Due to its complicated weaving pattern, production of this stainless steel woven fabric is a very slow process which takes much longer time than other weaving patterns. METART regularly holds some items in stock our this pattern, please inquiry us for availability. We also accept customized specifications and alloys according to customers’ requirements.
Packing: Inner kraft paper, outside plastic film, and then plywood case.
Applications: Sand control screens, Nutsche filters, Precoat filter systems, Cartridge filters
Lead time: 5 Days for items in stock. Custom-made items need to be negotiated.
Specification List.
Mesh Count |
Wire Diameter (In.) |
Absolute Filtration Fineness (μm) |
Nominal Filtration Fineness (μm) |
20 x 250 |
.0098 x .0079 |
110-120 |
98-105 |
30 x 360 |
.0098 x .0060 |
90-100 |
80-84 |
40 x 560 |
.0070 x .0040 |
70-75 |
47-52 |
120 x 400 |
.0040 x .0025 |
50-55 |
37-43 |
120 x 160 |
.0040 x .0025 |
40-45 |
28-32 |
80 x 700 |
.0040 x .0030 |
35-40 |
24-26 |
200 x 600 |
.0024 x .0018 |
28-32 |
19-21 |
165 x 800 |
.0028 x .0020 |
24-26 |
14-16 |
165 x 1400 |
.0028 x .0016 |
16-18 |
9-11 |
200 x 1400 |
.0028 x .0016 |
12-14 |
5-6 |
250 x 1400 |
.0022 x .0016 |
11-12 |
3-4 |
325 x 2300 |
.0015 x .0010 |
8-9 |
2-3 |
•Sand control screens
•Nutsche filters
•Precoat filter systems
•Cartridge filters
