Introduction

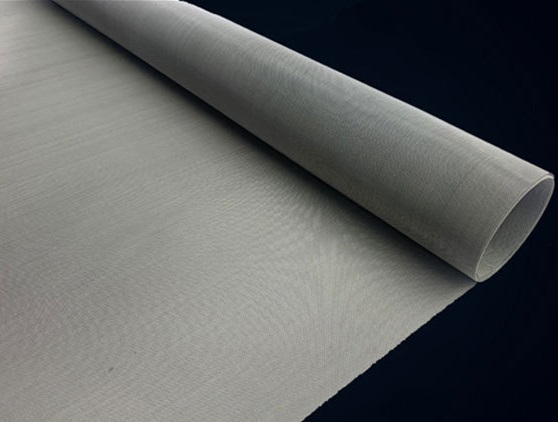

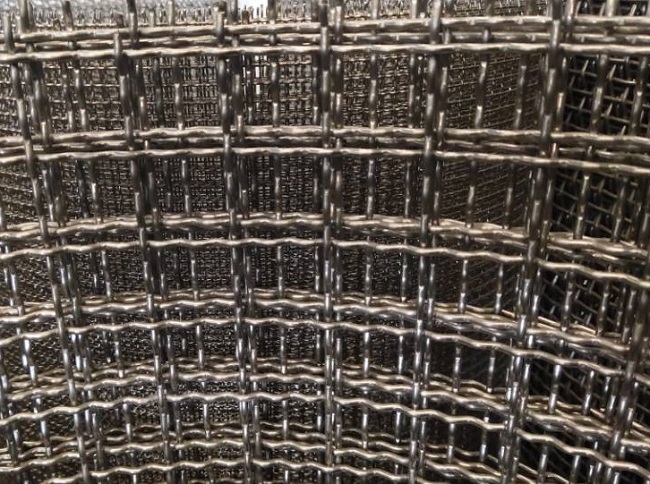

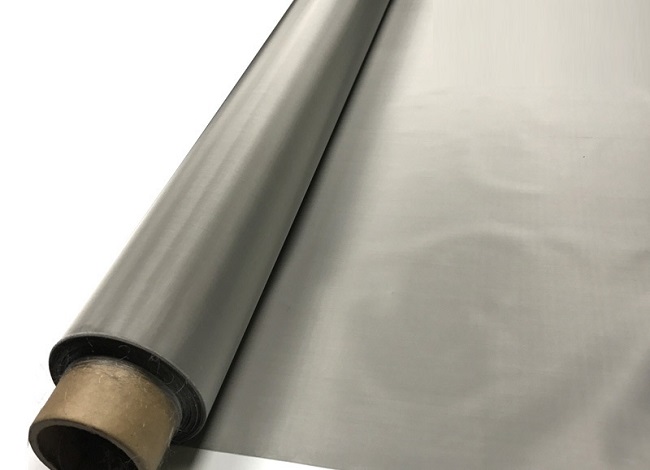

UNS S31803 wire mesh is also known as Duplex stainless 2205 wire mesh and W.Nr 1.4462 wire mesh, which is made of a duplex grade stainless steel wire with a ferritic-austenitic microstructure.
This duplex microstructure ensures that stainless steel 2205 / UNS S31803 is much more resistant to crevice corrosion, chloride pitting and stress corrosion cracking as compared to SS304, SS316L and 317L, due to its high chromium and molybdenum content.
This alloy consists of around 40%-50% ferrite in the annealed condition, which ensures the material a high strength whilst retaining the corrosion resistance of the austenitic grades, hence the 'duplex' description.
This alloy has outstanding corrosion resistance to seawater and most concentrations of sulphuric acid. In addition, it is also resistant to sulphide stress corrosion cracking.
As a cost-effective duplex stainless steel wire mesh, UNS S31803/2205 stainless steel mesh is used for a wide range of applications.

Features of UNS.31803 Stainless Steel Wire Mesh

-High resistance to chloride stress corrosion cracking
-Resistance to chloride pitting and crevice corrosion
-Good general corrosion resistance
-Good sulfide stress corrosion resistance
-High Strength
-Good weldability and workability

EQUIVALENT STANDARDS
INDUSTEEL TRADEMARKS	UNS	UNS	EURONORMS EN	SUS
…	S31803	S32205	1.4462 X2CrNiMoN22-5-3	SUS 329J3L

Chemical Properties of Duplex 2205 Wire Mesh:

	C	Mn	Si	P	S	Cr	Mo	Ni	N
2205 (S31803)	0.03	2	1	0.03	0.02	min21.0	min2.5	min4.5	min0.08
2205 (S31803)	max	max	max	max	max	max23.0	max3.5	max6.5	max0.20
2205 (S32205)	0.03	2	1	0.03	0.02	min22.0	min3.0	min4.5	min0.14
2205 (S32205)	max	max	max	max	max	max23.0	max3.5	max6.5	max0.20

Mechanical Properties:

Grade	Tensile Strength ksi (min)	Yield Strength 0.2% ksi (min)	Elongation %	Hardness (HB) MAX
2205	90	65	25	217

Physical Properties:

Condition	Density lbm/in3	Electrical Resistivity mW•in	Thermal Conductivity (BTU/hr•ft•°F)	Heat Capacity BTU/lbm•°F	Electrical Resistivity (in x 10-6)
at 68°F	0.278	27.6	8.7	0.112	33.5
at 212°F		26.1	9.2	0.119	35.4
at 392°F		25.4	9.8	0.127	37.4
at 572°F		24.9	10.4	0.134	39.4

Specification List:

Mesh Count /Inch	Wire Diameter		Aperture		Open Area %	Weight (LB) /100 Square Foot
Mesh Count /Inch	Inch	MM	Inch	MM	Open Area %	Weight (LB) /100 Square Foot
1 × 1	.080	2.03	.920	23.37	84.6	41.1
2 × 2	.063	1.60	.437	11.10	76.4	51.2
3 × 3	.054	1.37	.279	7.09	70.1	56.7
4 × 4	.063	1.60	.187	4.75	56.0	104.8
4 × 4	.047	1.19	.203	5.16	65.9	57.6
5 × 5	.041	1.04	.159	4.04	63.2	54.9
6 × 6	.035	.89	.132	3.35	62.7	48.1
8 × 8	.028	.71	.097	2.46	60.2	41.1
10 × 10	.025	.64	.075	1.91	56.3	41.2
10 × 10	.020	.51	.080	2.03	64.0	26.1
12 × 12	.023	.584	.060	1.52	51.8	42.2
12 × 12	.020	.508	.063	1.60	57.2	31.6
14 × 14	.023	.584	.048	1.22	45.2	49.8
14 × 14	.020	.508	.051	1.30	51.0	37.2
16 × 16	.018	.457	.0445	1.13	50.7	34.5
18 × 18	.017	.432	.0386	.98	48.3	34.8
20 × 20	.020	.508	.0300	.76	36.0	55.2
20 × 20	.016	.406	.0340	.86	46.2	34.4
24 × 24	.014	.356	.0277	.70	44.2	31.8
30 × 30	.013	.330	.0203	.52	37.1	34.8
30 × 30	.012	.305	.0213	.54	40.8	29.4
30 × 30	.009	.229	.0243	.62	53.1	16.1
35 × 35	.011	.279	.0176	.45	37.9	29.0
40 × 40	.010	.254	.0150	.38	36.0	27.6
50 × 50	.009	.229	.0110	.28	30.3	28.4
50 × 50	.008	.203	.0120	.31	36.0	22.1
60 × 60	.0075	.191	.0092	.23	30.5	23.7
60 × 60	.007	.178	.0097	.25	33.9	20.4
70 × 70	.0065	.165	.0078	.20	29.8	20.8
80 × 80	.0065	.165	.0060	.15	23.0	23.2
80 × 80	.0055	.140	.0070	.18	31.4	16.9
80 × 80	.0047	.119	.0078	.198	39	11.39
90 × 90	.005	.127	.0061	.16	30.1	15.8
100 × 100	.0045	.114	.0055	.14	30.3	14.2
100 × 100	.004	.102	.0060	.15	36.0	11.0
100 × 100	.0035	.089	.0065	.17	42.3	8.3

Mesh Count/ Inch	Wire Diameter				Type of Weave
	Warp wire dia.		Weft wire dia.
	inch	mm	inch	mm
12x64	0.023	0.58	0.0165	0.42	Plain
14x88	0.019	0.48	0.012	0.30	Plain
14x110	0.016	0.40	0.011	0.28	Plain
24x110	0.014	0.355	0.010	0.25	Plain

Application

-Seawater systems, marine and other high chloride environments.
-Chemical process vessels, Chemical processing, transport and storage.
-Food process equipment
-Oil field piping, Oil and gas exploration and processing equipment.
-Chemical processing, transport and storage.

GET A QUOTE

Known widely in the engineering sector, Inconel wire mesh shows excellent strength, resistance to oxidation, corrosion and even extreme foehn winds. It is used for aerospace, marine, chemical processing and power generation industries, allowing for efficacy and reliability in the most ghastly conditions. This article focuses on issues, purposes, and pros of Inconel wire mesh, while also stating Metart Building Tech as one of the leading suppliers of the product.

Inconel is designed nickel-chromium based superalloy that best operates in extreme conditions. Compared to other materials, Inconel wire mesh provides superior capabilities it does not get stressed or corroded and oxidation becomes several times easier. It is a requisite for sectors that require great filtering, structural soundness and durability.

Inconel Wire Mesh's crucial attributes.

1. High Temperature Sustainability to Function

It is able to withstand greater than 1000 degree celcius without fainting making it ideal for industrial and high heat purposes.

2. Corrosion Resistance of the Greatest Level

Incredibly resistant to oxidation, acidic environments, and chemicals in seawater making it extremely favourable in marine and chemical arenas.

3. Greater Toughness and Sturdiness

Extracts from the surface microclimate have been presented as markers which help indicate the stresses and temperatures under which crystals interact.

4. Flexible Weaving Patterns

These patterns can be supplied in basic, twill or Dutch style weaves to suit particular industrial needs.

Applications of Inconel Wire Mesh In The Industry

1. Aerospace Industry

Jet engines, turbines, exhaust parts and heat shields must withstand tremendous thermal stresses, which make this material essential.

2. Chemical Processing

Used for filtering, supporting catalysts, and heat exchangers in strong corrosive environments.

3. Marine and Offshore Operations

It has excellent resistance to saltwater which is useful in oil rigs, desalination stations, and other underwater constructions.

4. Power Generation

High performance Inconel 625 is widely used in nuclear reactors and steam generators, where high operational temperatures are normal.

5. Automotive And Gas Turbines

Inconel parts can be used in manifolds turbocharger turbines and other highly stressed and heated mobile components.

Why Metart Building Tech is the Best For Inconel Wire Mesh?

Metart Building Tech is one of the best manufacturers of Inconel wire mesh of any type, for practically any industry. Their Inconel wire mesh products made with Nickel Alloy 600 (Inconel 600) Wire Mesh is specially manufactured with great care and accuracy which makes them stand out from the rest of the market.

Benefits of Metart Building Tech’s Inconel Wire Mesh

Metart Being the Industry Leader, the weave patterns on their Inconel wire mesh products do not suffer from loosening or wearing off due to the use of more advanced weaving machinery.

• Custom Fabrication - Different sizes of the mesh, wire diameters, and weaving styles are available as per the needs of the application.

• Strict Quality Assurance - Compliance with international standards ensures superior performance and reliability.

• Industry Expertise – Many years of experience delivering specialized solutions for critical industries.

Conclusion

Inconel wire mesh is ideal for industries that need materials that can withstand very high temperatures, heat, and pressure. For extreme industrial applications where durability, heat resistance, and corrosion protection are of utmost importance, this is the most dependable option.

Metart Building Tech, as a manufacturer, provides the industry with the best Inconel 600 wire mesh that goes beyond set standards.

Check out Metart Building Tech’s collection of nickel alloy 600 wire mesh and find the perfect solution for your industrial application.
