Affordable Decorative Cabinet Grilles WW05-22084E Buget friendly architectural wire mesh for cabinets

Specification

Pattern code: METART-WW05-22084E

Type of Mesh: Rigid Cabinet Wire Grille

Raw Material: SS304, SS201, SS316

Opening rate: 49.5%

Square Meter Weight: 3.5KG

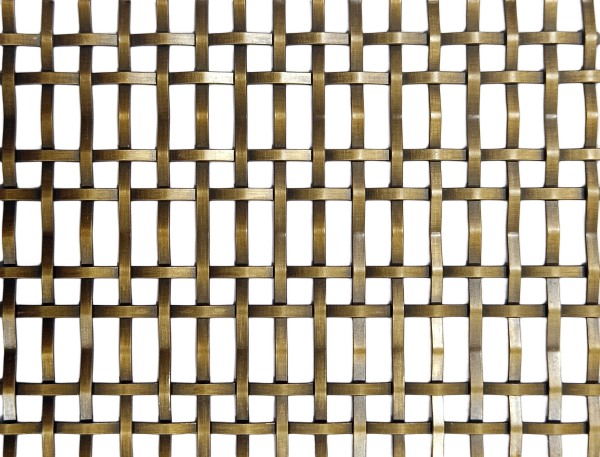

Finish: Antique Brass Plated Finish

Max Size: 3000mm x 4000MM

GET A QUOTE

Introduction

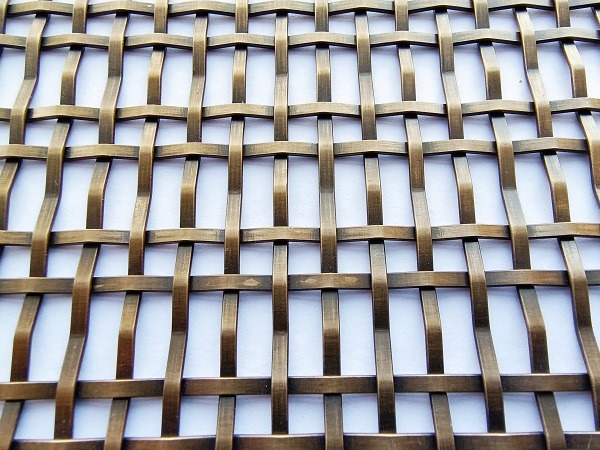

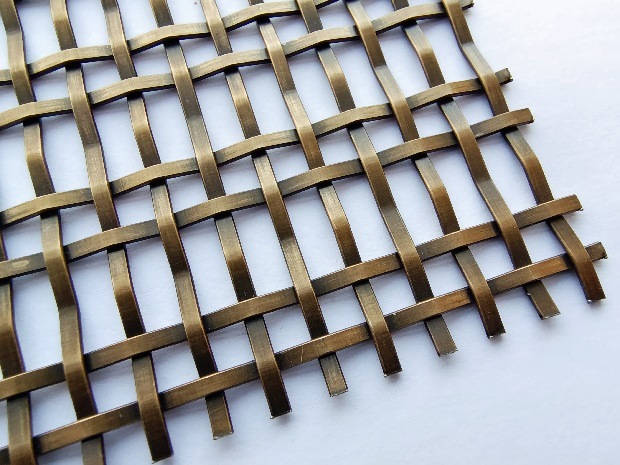

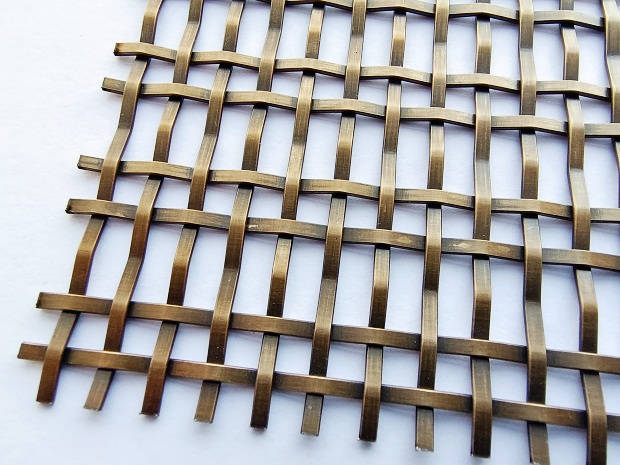

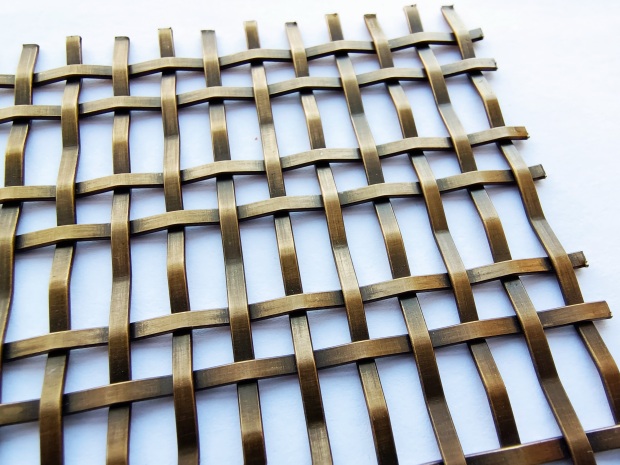

"METART-WW05-22084E" is an affordable cabinet decorative wire grille that is modified from the woven wire pattern "WW05-22084", which is made of a 2.2 wide x 0.8mm thick flat wire strip with an approximate 4mm hole size.

But the only difference is that we take off a piece of wire strip in one direction to create a slot for every two wires. On one hand, this creates a new pattern design; on the other hand, it reduces a little bit of the material cost.

With the removal of wires, the weight is becoming lighter. Then customers will benefit from international postage and air freight charges.

If you are looking for a cheap cabinet wire mesh exporter, this pattern is a good choice.

This is quite a simple and budget-friendly wire grille for cabinetry for both distributors and overseas residential users.

Here is the product specification overview.

Raw Material

SS201, SS304, SS316, Copper, Brass, and other alloy.

Type

Rigid Mesh

Flat Wire Strip:

2.2x0.8mm

Clear Hole Size

4mm

The total thickness of the fabric

1.6mm

Opening Area

49%

Privacy Rate

51%

Weight

3.5kg/Square Meter

All optional ways of cut

Straight cut only

All optional Finishes

Mill Finish ( Original stainless steel bright finish) ,
Antique Bronze Plated,
Antique Copper Plated, Antique Brass Plated,

PVD Titanium Plated

Regular Painted, PVDF Painted

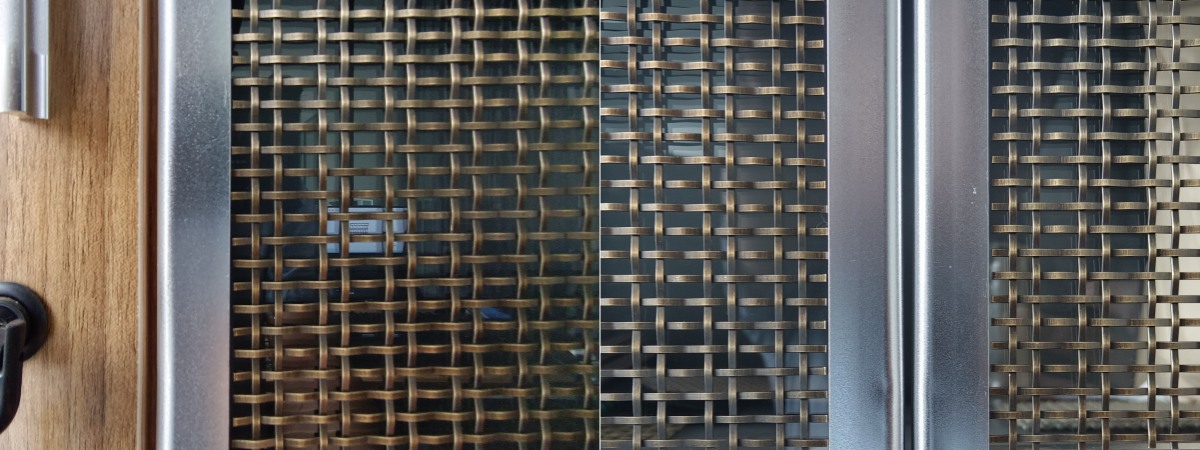

Application
