Cupboard Door Wire Mesh Inserts-WW06-31053-Affordable architectural wire mesh for cabinets

Specification

Material: SS304 / SS316 / SS201

Type: Rigid Achitectural Mesh

Opening Area: 41%

Weight: Approx 5.1kg/Square Meter

Finish: Antique Brasss Plated

Sheet Size: Within 4000MM

GET A QUOTE

Introduction

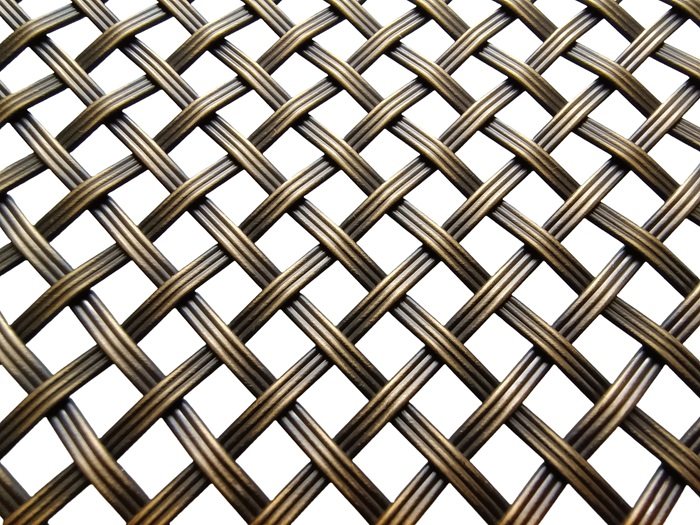

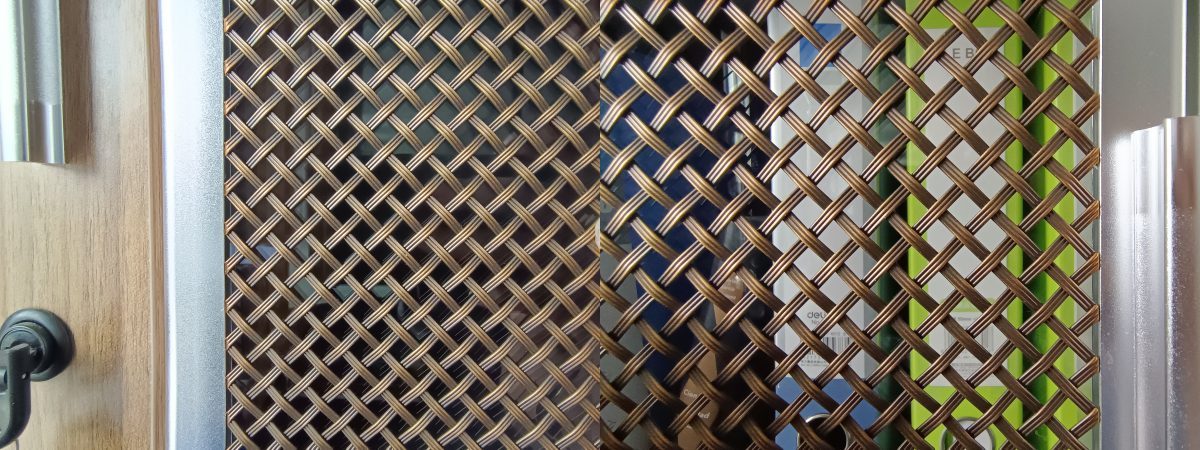

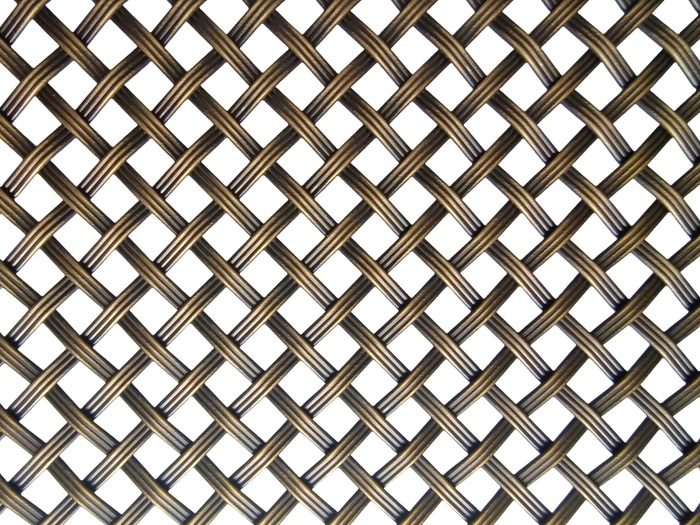

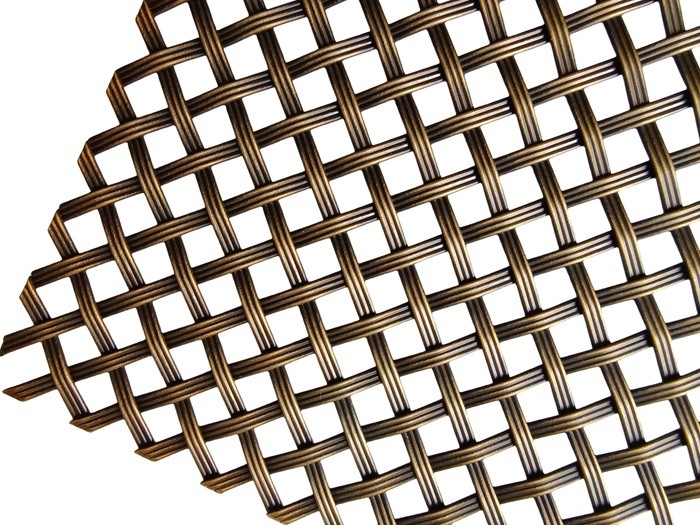

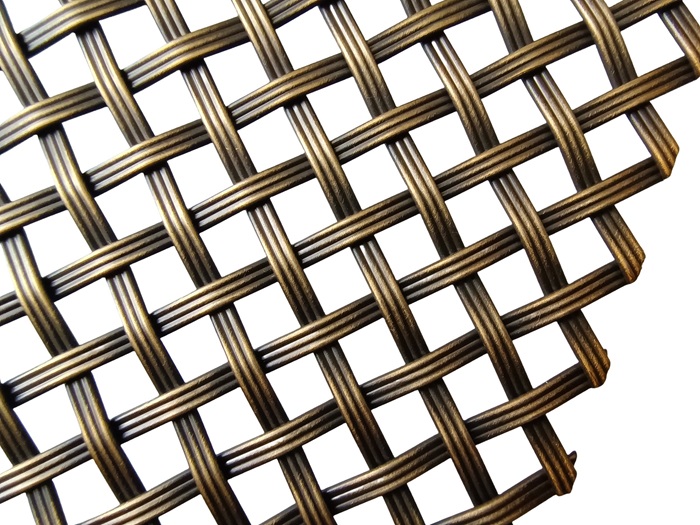

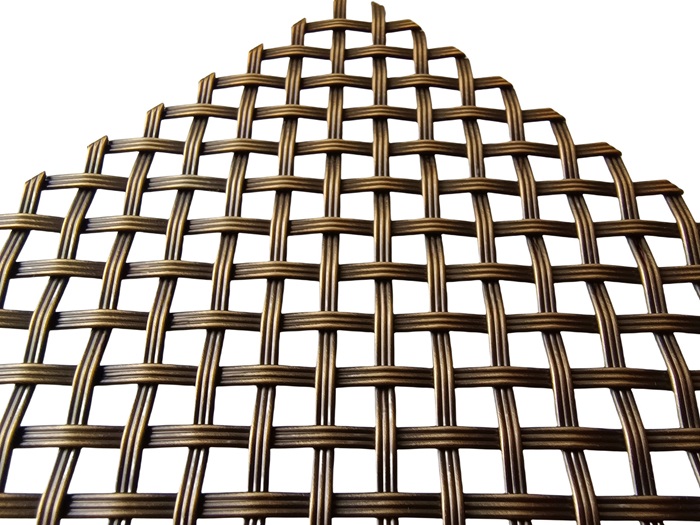

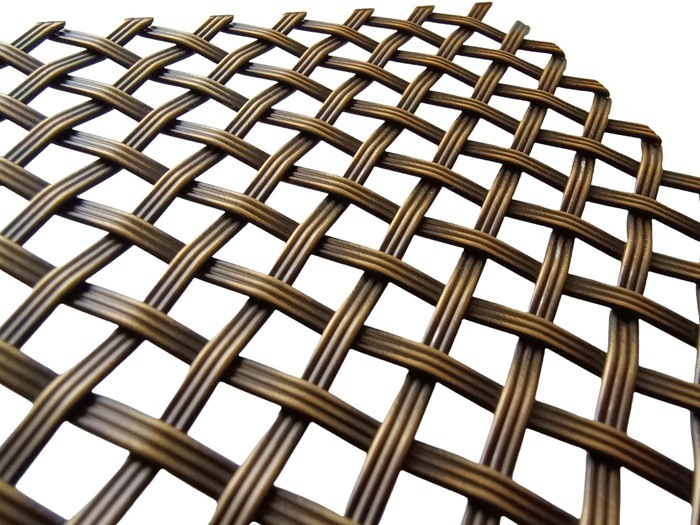

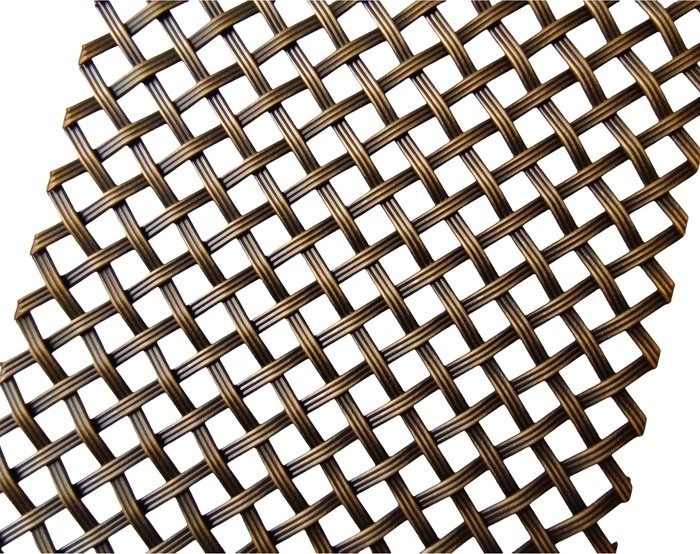

METART-WW06-31053 is an affordable architectural wire mesh design for most cupboards.

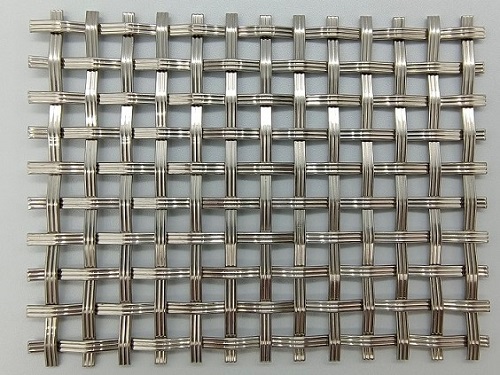

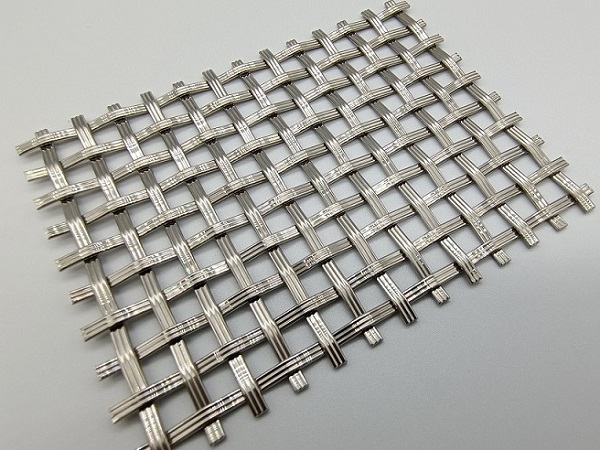

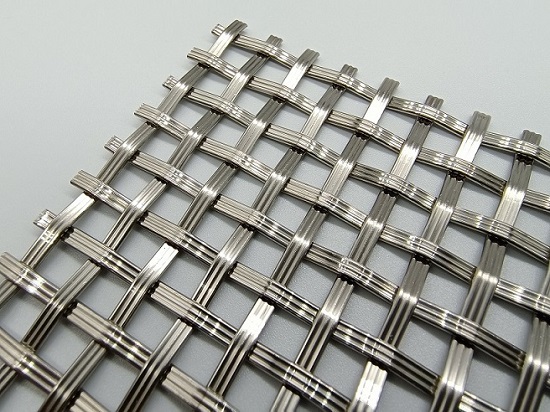

Using 2.9x1mm grooved decorative wire strips in both warp and weft directions, this architectural wire mesh pattern is suitable for many wall cladding decorations and cabinet infill wire mesh.

Other hole sizes and wire sizes can be customized based on customers' requirements.

You can choose different ways of surface treatments and colors.

Please refer to the following specifications

Material	Stainless Steel 304.316,201
Type	Rigid Architectural Wire Mesh
Flat Wire Strip:	2.9x1.0mm
Clear Hole Size	5.3mm
The total thickness of the fabric	2mm
Opening Area	41%
Block out	59%
Privacy Rate	59%
Weight	5.1kg/Square Meter
Finish	Antique Brass Plated Finish

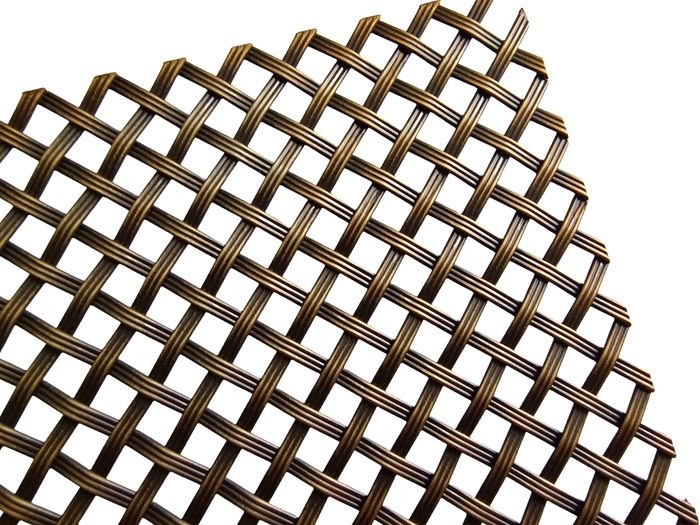

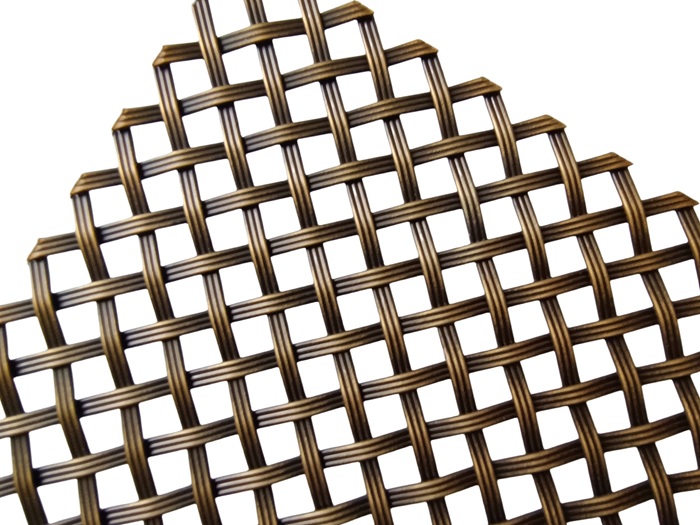

The way of cutting	Diamond Cut
All optional ways of cut	Straight Cut, Diamond Cut
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, Vacuum titanium plated, Painted, PVDF Coated,
