Decorative Wire Mesh Ceilings
Pattern Code: METART-WW50-315829
Material: SS304, SS316,SS201
Type of Mesh: Rigid Decorative Mesh
Opening Rate: 62%
Weight: Approx 3.7KG/ square meter
Finish: Antique Copper/Brass/Bronze plated finishes (other finishes available)
Sheet Sizes: Customizable, within 4M x 5M

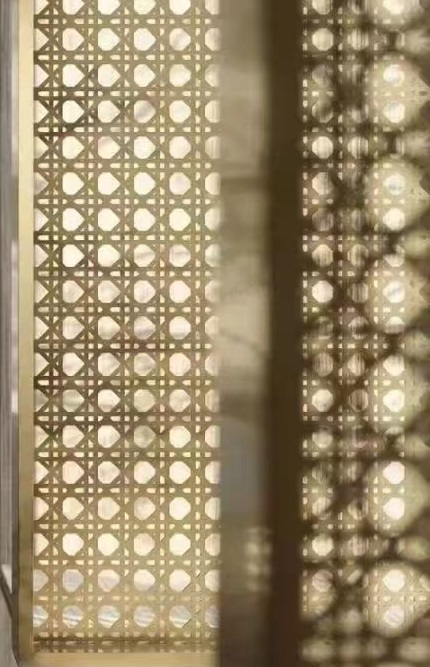

GET A QUOTEDecorative Wire Mesh Ceilings refer to those mesh screens that are ornamental for commercial ceilings with special features.
The most popular and budget wire mesh ceilings should be made of steel welded wire mesh, especially those cheap options made of mild steel.
Architectural expanded metal and perforated sheets are the most popular architectural mesh for ceilings in metal ceiling selections.

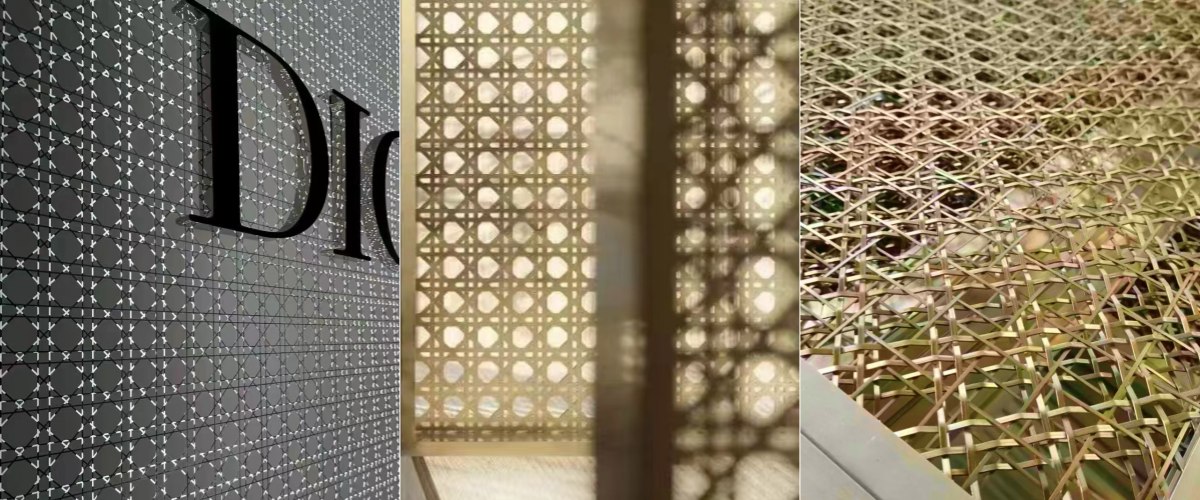

The decorative wire mesh in our factory is an innovative material for fancy commercial ceilings. Holding hundreds of patterns and variants in hand, METART decorative mesh is a bespoke metal ceiling choice for designers and architects.
INTRODUCTION OF DECORATIVE WIRE MESH CEILING PATTERN "METART-WW50-315829"

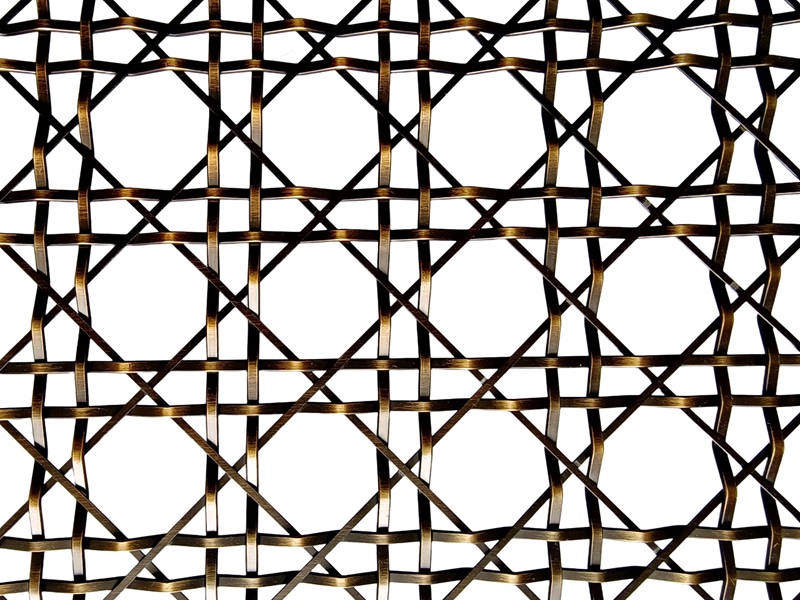

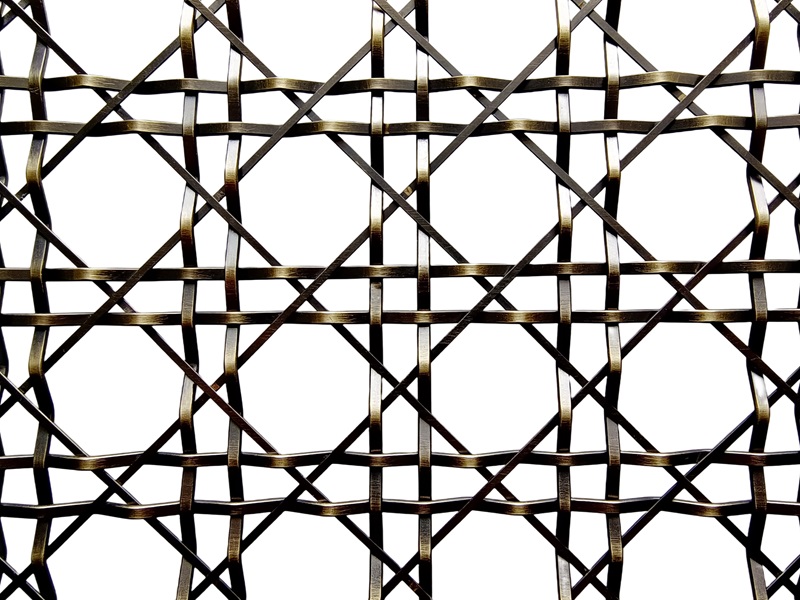

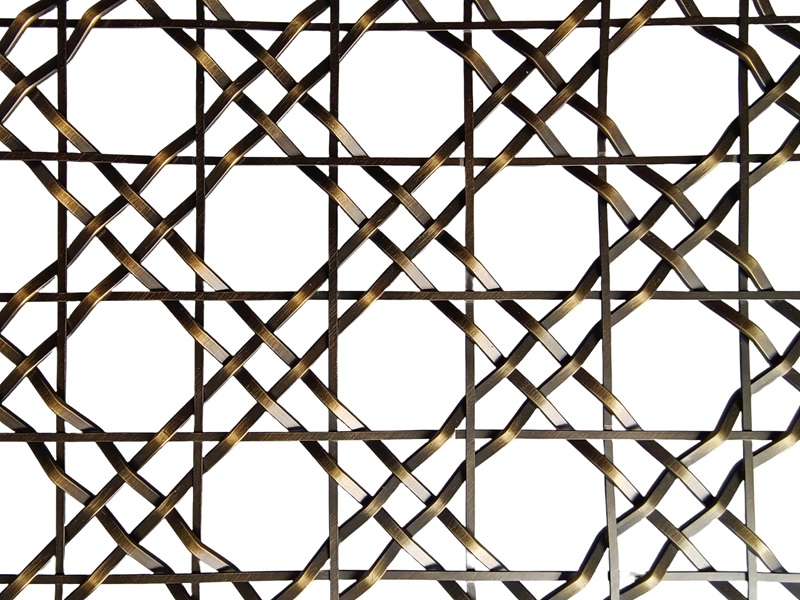

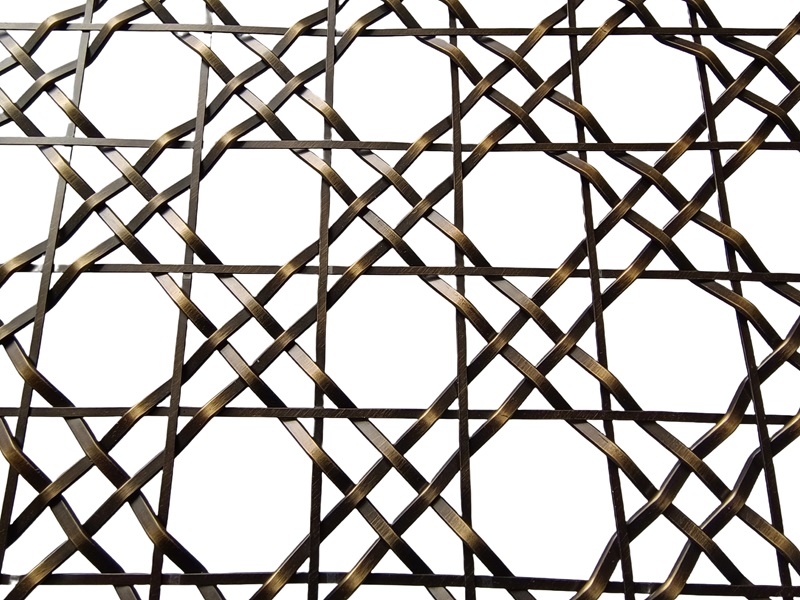

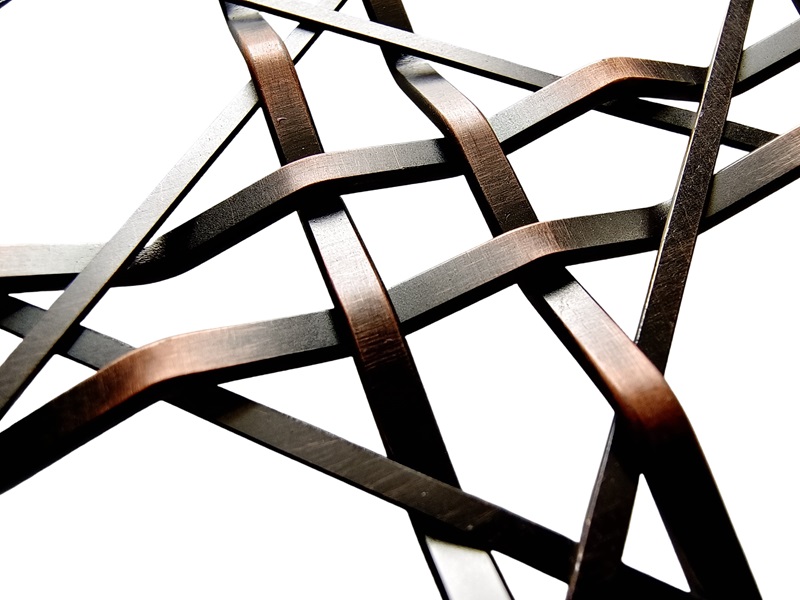

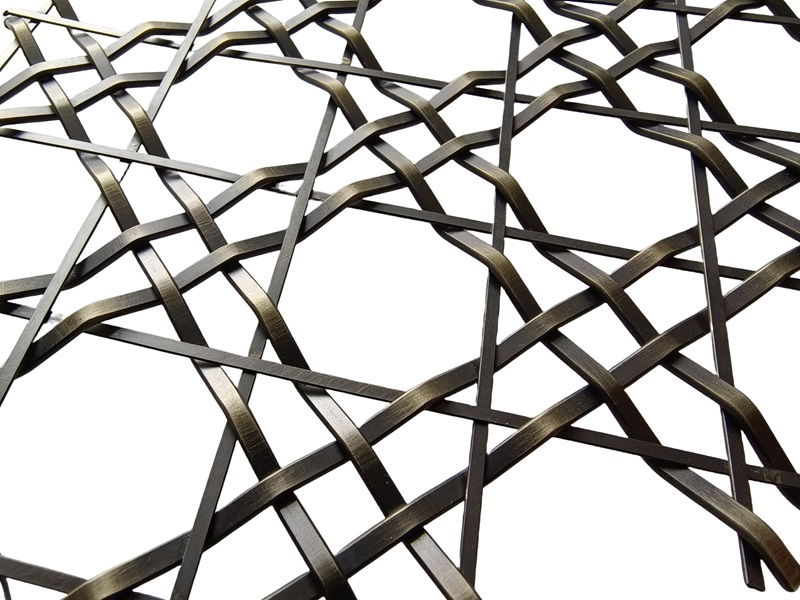

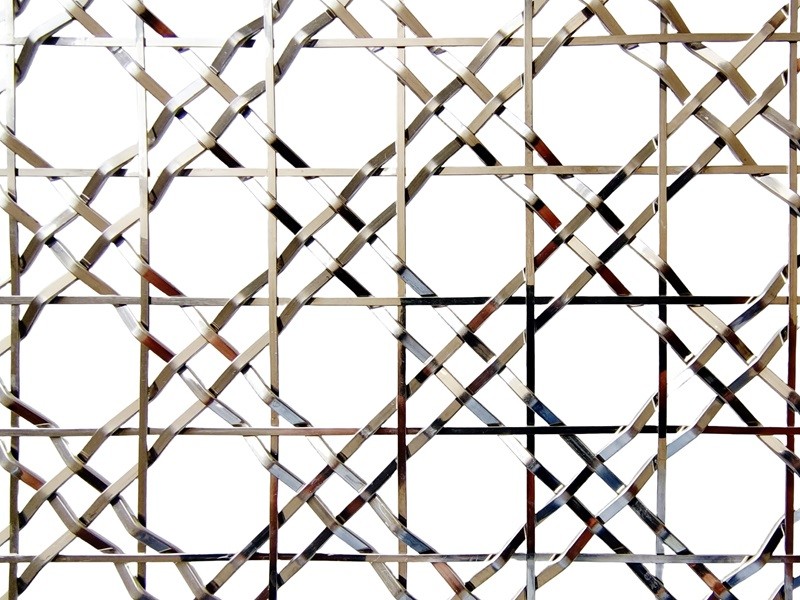

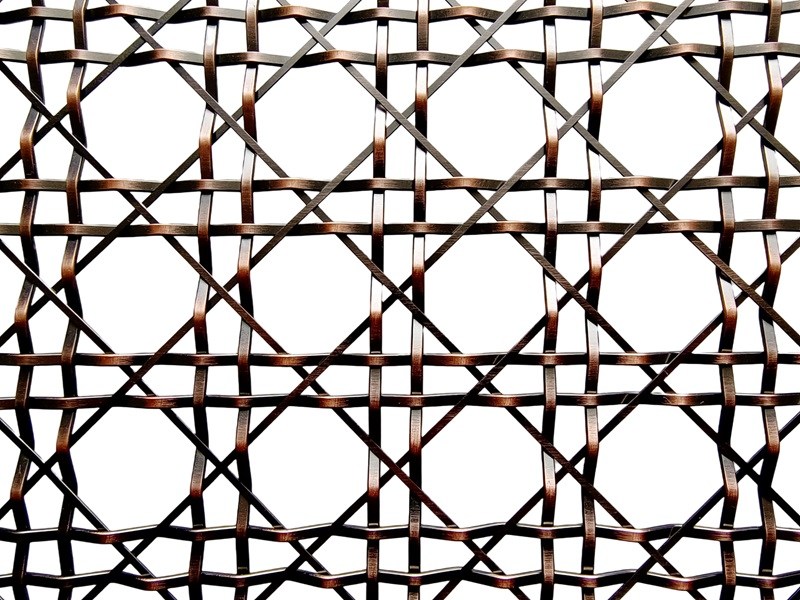

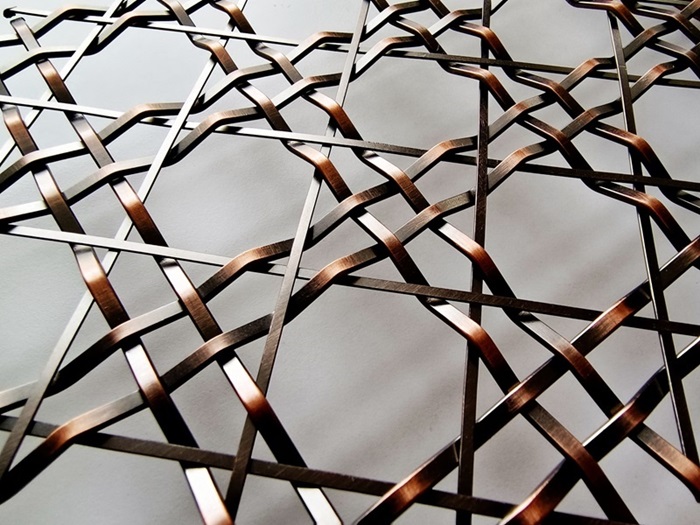

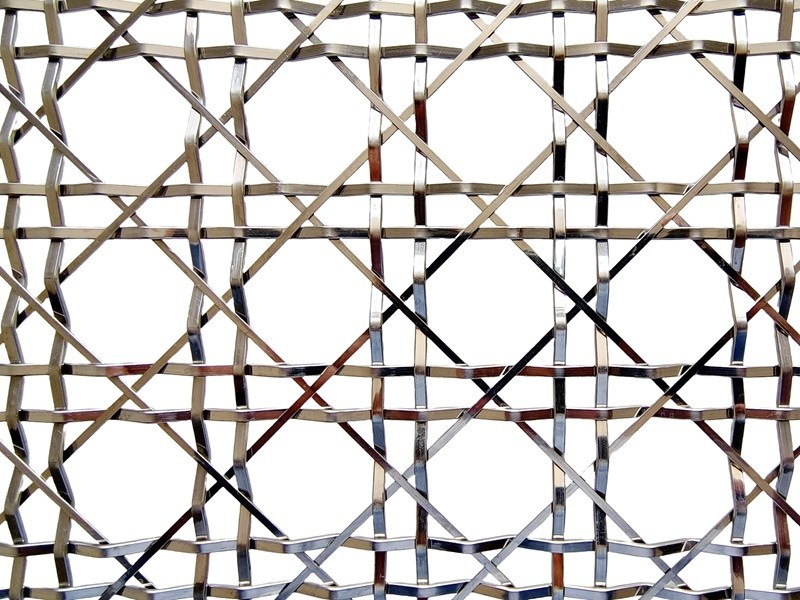

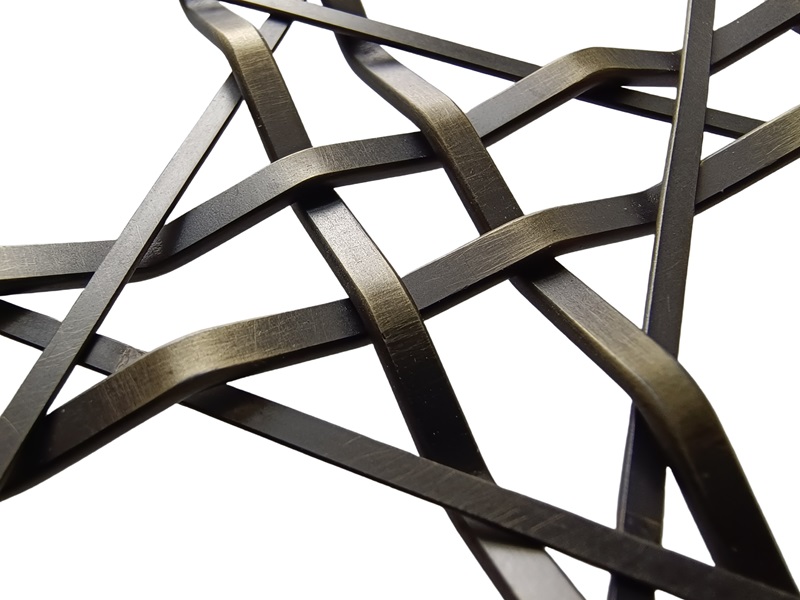

It is a stainless steel decorative woven wire mesh, with a woven wire pattern code number "WW50". It is made from 3x1.5mm stainless steel pre crimped flat wires and diagonally interserted and reinforced by 2x0.8mm straightened flat wires.

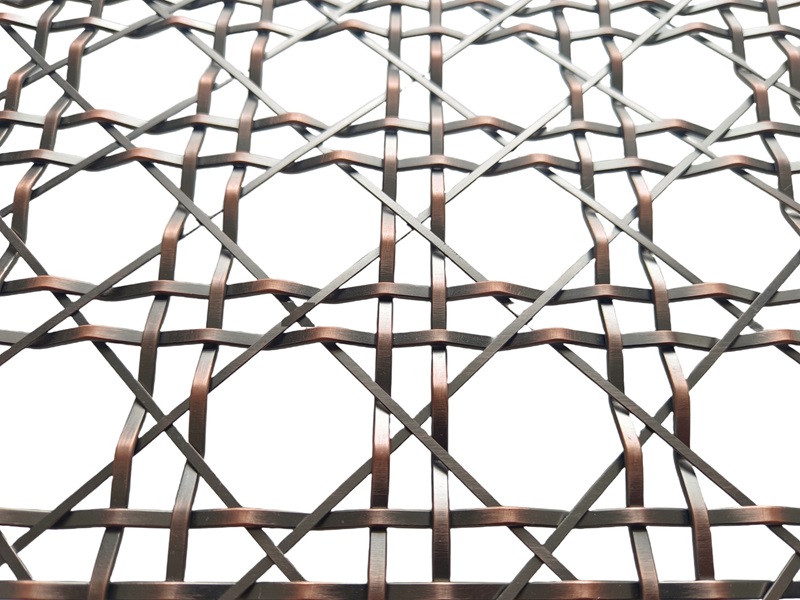

The number "315829" indicates the key specification of this architecture wire mesh.
“3” is 3mm, the width of the crimped wire strip.
"15" is the thickness of the crimped strips, 1.5MM.
"8" is the opening of the smaller square hole, 8x8mm
"29" is the big opening formed by the crimped wire strips.
Specification Overview
|
Pattern Code |
METART-WW50-315829 |
|
Optional raw materials |
SS304，SS316, SS201 |
|
Type of Screen |
Rigid Decorative Wire Mesh |
|
Crimped Wire Strips ( width x thickness) |
3 x 1.5mm |
|
Straight Flat Wire Size ( width x thickness) |
2 x 0.8mm |
|
Big Opening Size |
29x29mm |
|
Small Opening Size |
8x8mm |
|
Slot Hole Size |
8x29mm |
|
Overall thickness |
4.5mm |
|
Opening Area |
63% |
|
Privacy Rate |
37% |
|
Estimated Square Meter Weight |
3.7KG |
|
Optional ways of cut |
Straight Cut, Diamond Cut. |
|

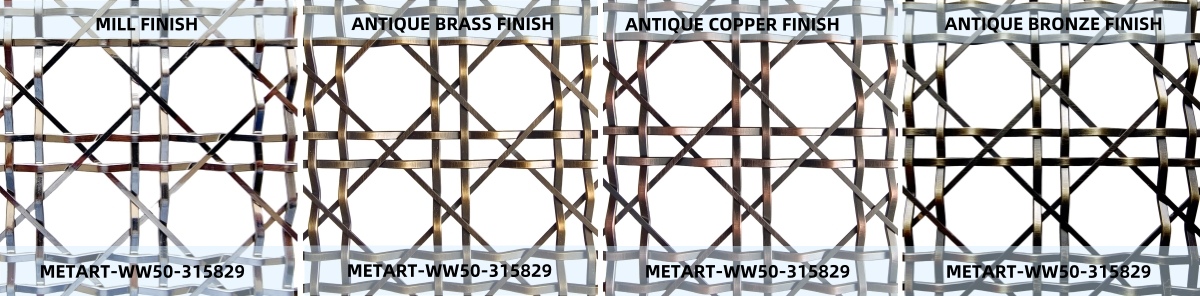

Optional Finishes |
Mill Finish ( Original stainless steel finish）, PVD Plated, Painted, PVDF Painted. |
DIFFERENCE BETWEEN "METART-WW50-315829" and "METART-WW50-31417"
"WW50-315829" is a budget decorative wire mesh pattern that is suitable for both architectural ceilings and commercial space dividers or cabinitry customers who don't mind the 29mm big openings. While it is way more difficult to produce "WW50-31417". The only advantage is the smaller opening size.
Please refer to the following comparison table between these two variants.
|
|
METART-WW50-315829 |
METART-WW50-31417 |
|
Price |
Much Cheaper |
Expensive |
|
Strength |
Bigger |
Smaller |
|
Rigidity |
More rigid |
softer |
|
Openings Rate |
63% |
51% |
|
Sqm Weight |
Approx. 3.7KG |
Approx. 3.7KG |
|
Opening Size |
29mm |
17mm |
