Wine Bar Decorative Metal Grilles crafted by architectural stainless steel wires

Specification

Pattern Code: METART-WW41D2H19

Material: Stainless Steel 304 / Stainless Steel 316 / Stainless Steel 201

Type: Rigid Decorative Metal Wire Grilles

Opening Area: 74%

Weight: Approx 3.4g/Square Meter

Finish: Antique Brass Finish ( other finishes available )

Screen Size: Maximum 4000x6000MM, mill finish only

GET A QUOTE

Introduction

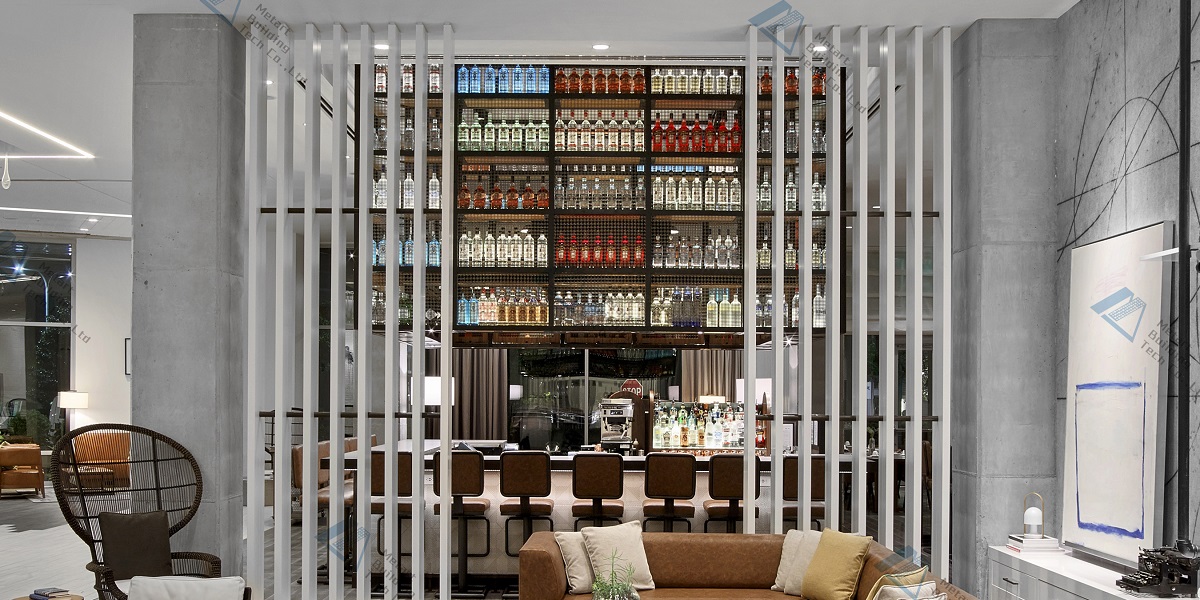

Decorative Metal Grilles is a popular material in shopfitting, especially for wine bar interior decoration. Our decorative architectural woven wire mesh is available in different patterns and designs. These decorative metal grilles are widely used for wine bar cabinet grilles. The big opening of the metal grilles offer a good seethrough rate, the bartender and customers can see the bottles clearly and the furnishing will look modern and fancy with the help of the lighting system.



ILLUSTRATION OF OUR DECORATIVE WIRE MESH PATTERN CODE "METART-WW41D2H19"



The pattern code is named with our brand name + woven wire series "ww41 with a nominal 2mm wire diameter and a roughly 19x19mm big opening.

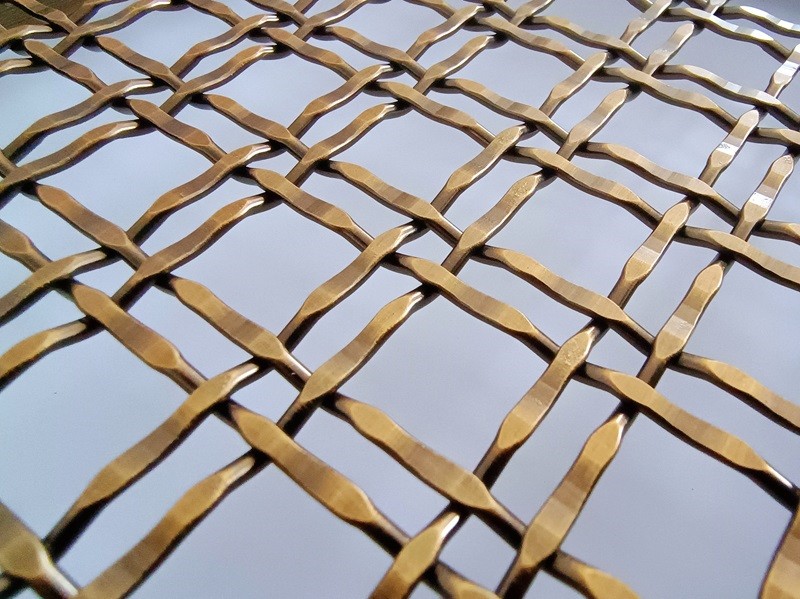

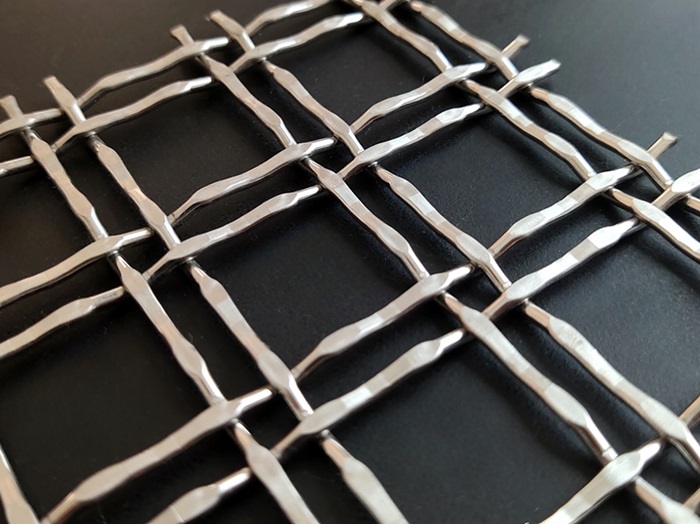

This material is mainly made from premium stainless steel wire conforming to AISI standards.  Both of the wires from vertical and horizontal directions are made from 2mm diameter wires. The wires need to go through a crimping procedure before weaving to achieve a ornamental purpose for decoration. The weaving will create approximately 19mm big square holes and 5mm small holes.

This design is not limited to this specification, If you are looking for smaller opening size, please choose its vibrant pattern METART-WW41D2H13

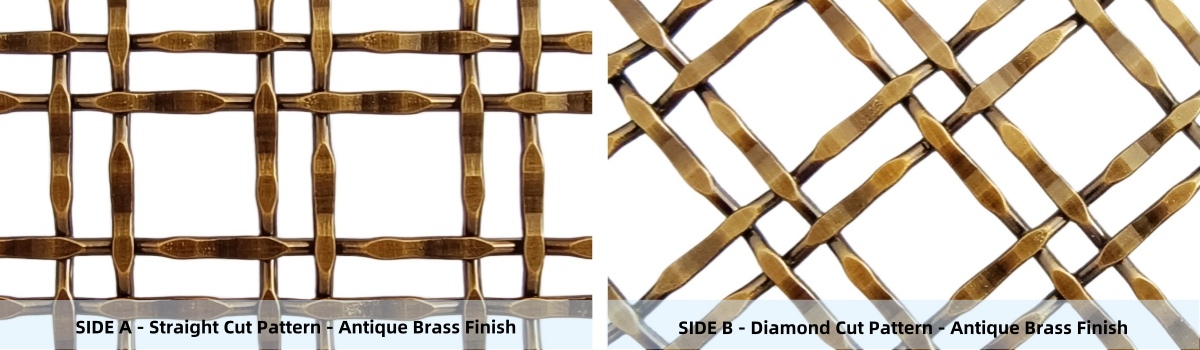

SHOWCASING THE DUAL-SIDED FEATURE AND DIFFERENT WAY OF CUTTING.

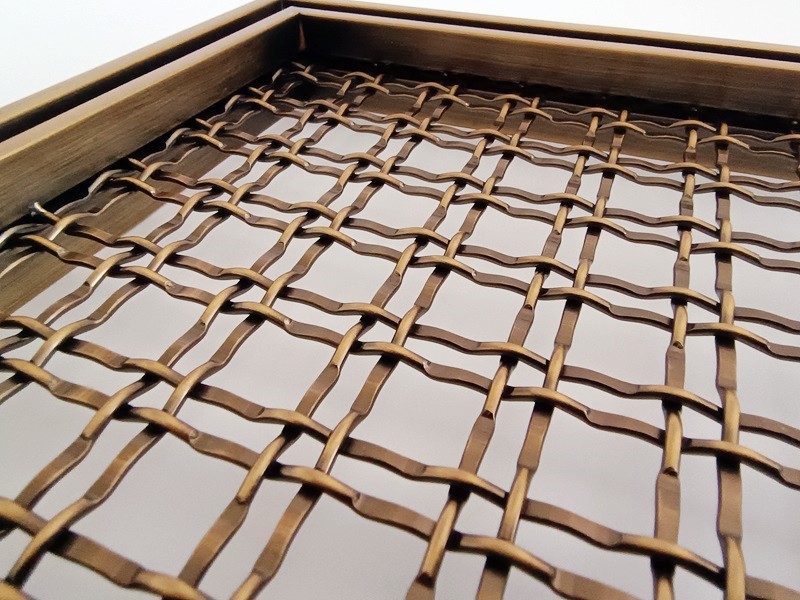

This is the side A of the sample, with an antique brass plated finish, made of AISI 304 stainless steel.

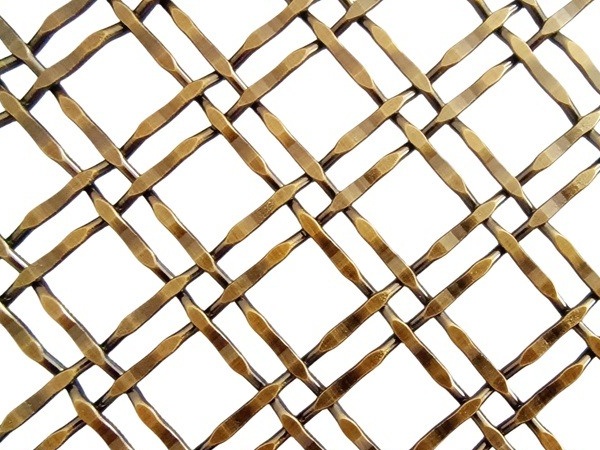

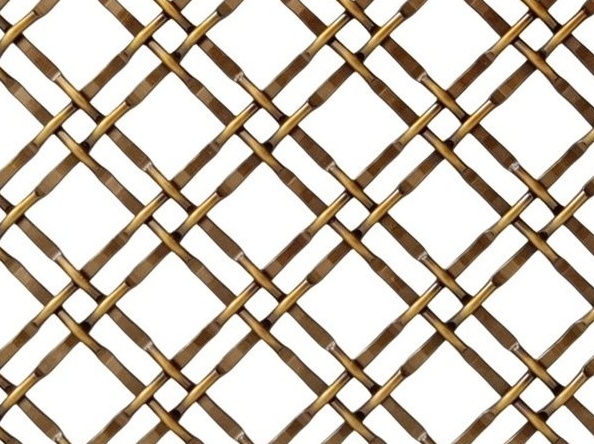

The left one is done by the regular straight cut. And the right one is cut into a diamond shape.

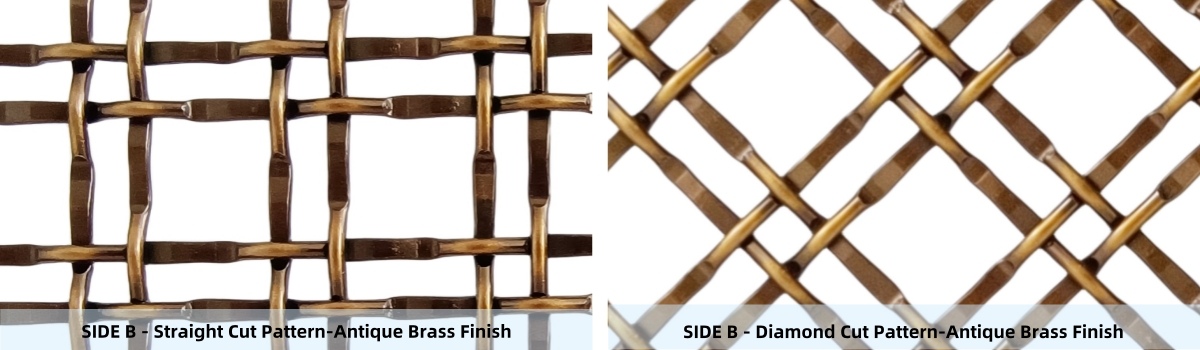

This is the side B of the sample, same antique brass finish, made of AISI 304 stainless steel wires.



COLORFUL FINISHES AND VASATILE APPLICATION



METART-WW41D2H19 decorative metal wire is available in different finishes to suit interiors and exterior applications. We can get it plated with copper and copper alloy including brass and bronze, either with a regular plated finish or an antique finish to increase spice to the design for interiors.

Meanwhile, we can do a regular painting on the wire grilles to make a lot of different color based on customers samples or RAL color chart.

For outdoor application, we can provide outdoor grade PVDF painting for these designer wire mesh panels or elegant PVD Electro Plating services.

You will find different available finishes in the following specification table.

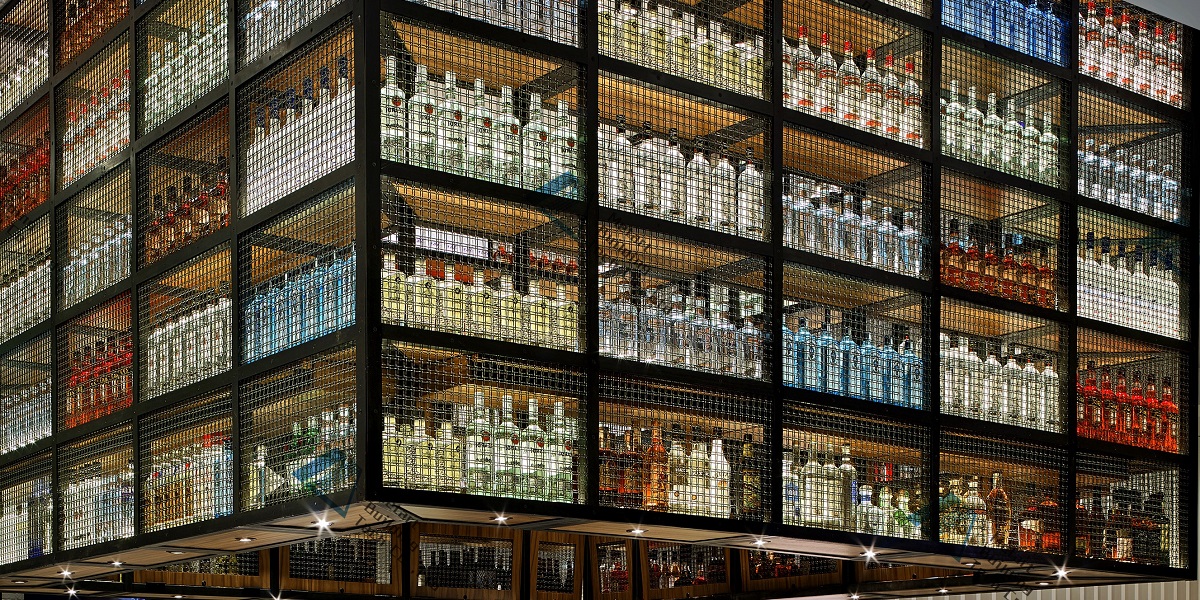

This pattern can be used as bottle shop cabinet decorative wire mesh grilles, balustrade infill mesh, fencing panels, room divider screen mesh, partition screen wire mesh and wall cladding mesh, etc.

Please refer to the following specifications.

Optional Raw Material Types

Stainless Steel 304,SS316,SS201

Type of Mesh

Rigid Decorative Mesh Grilles

Wire Diameter before flattened

2mm

Biggest Hole Size

Approx 19.3x19.3mm

Smallest Hole Size

Approx 5mm (4.8x4.8mm)

Slot Hole Size

4.8x19.3mm

The total thickness of the fabric

3.3mm

Opening Area

74%

Block out

26%

Privacy Rate

26%

Weight

3.4g/Square Meter

Finish

Antique Brass Finish

All optional ways of cut

Straight Cut, Diamond Cut.

All optional Finishes

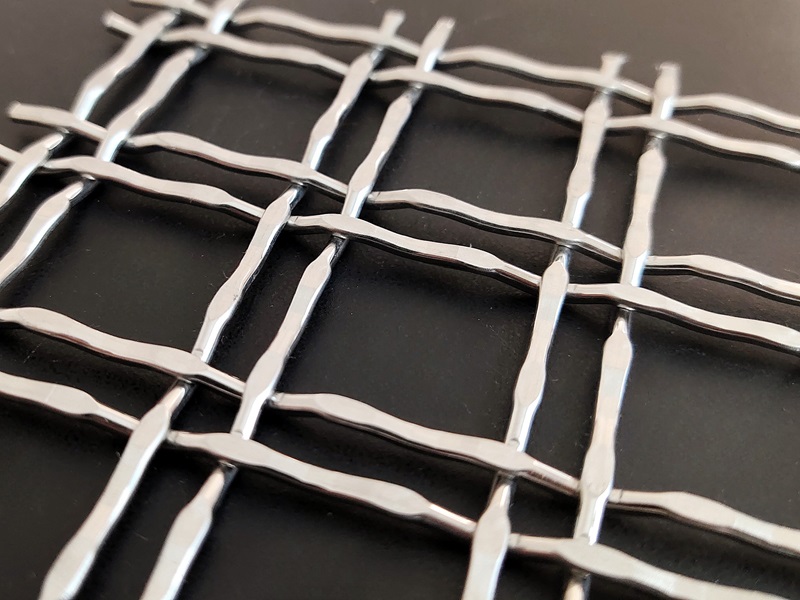

Mill Finish ( Original stainless steel finish),
Antique Bronze plated,
Antique Copper plated, Antique brass plated,

Brass Plated, Copper Plated.

PVD Plated Gold, PVD Plated Rose Gold, PVD Black, PVD Grey,

Regular Painted,
PVDF Painted

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
