Specification

Material: SS304 etching perforated plate, Marine grade 316L micro hole perforated sheet

Type: Fan-shaped-etched-filter-screen

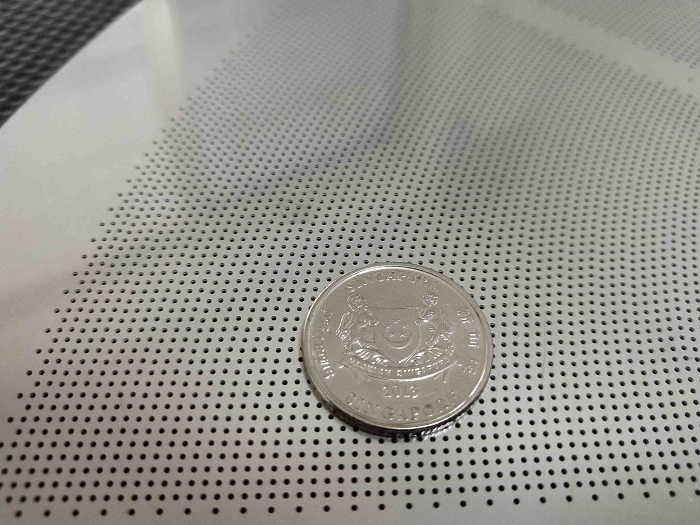

Regular Hole Diameter: 0.2mm to 2mm (and even bigger custom-made diameter)

Regular Thickness: 0.1mm to 0.9mm (up to 1.5mm)

Diameter: Based on cad drawing.

Finish: Mill finish

GET A QUOTE

Introduction

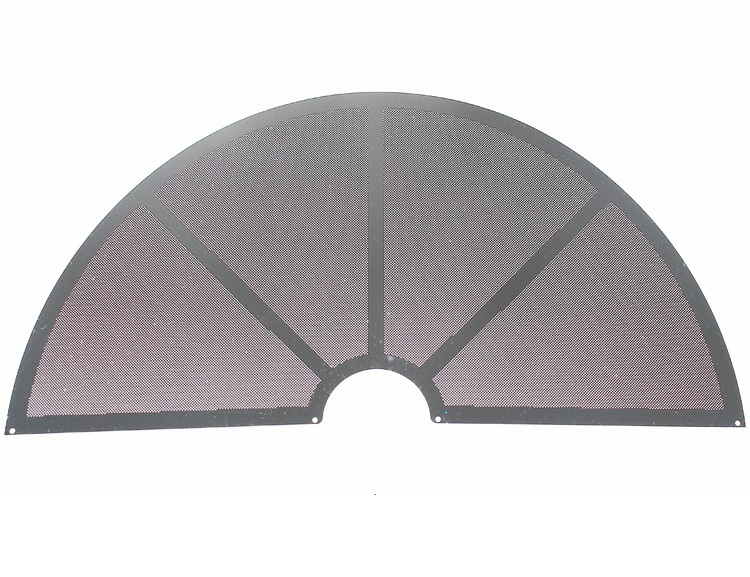

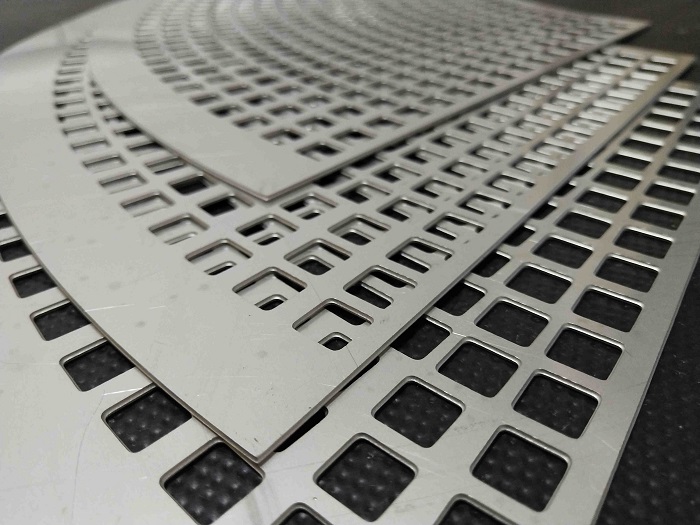

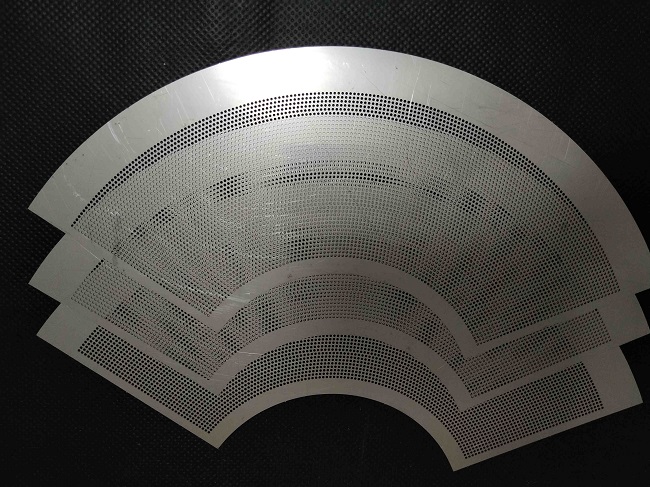

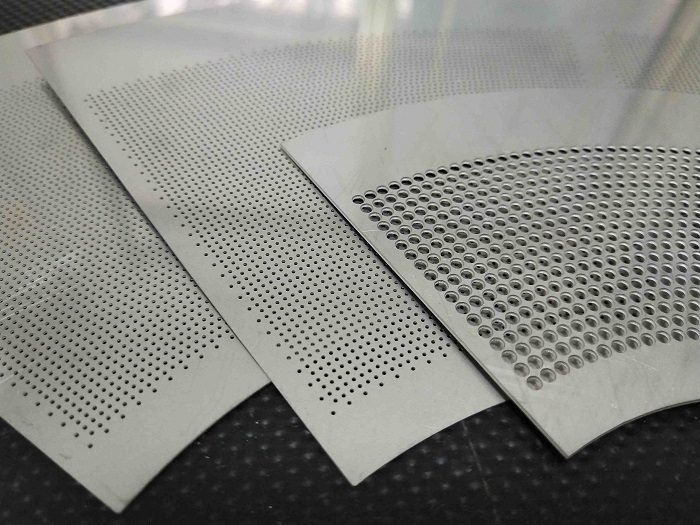

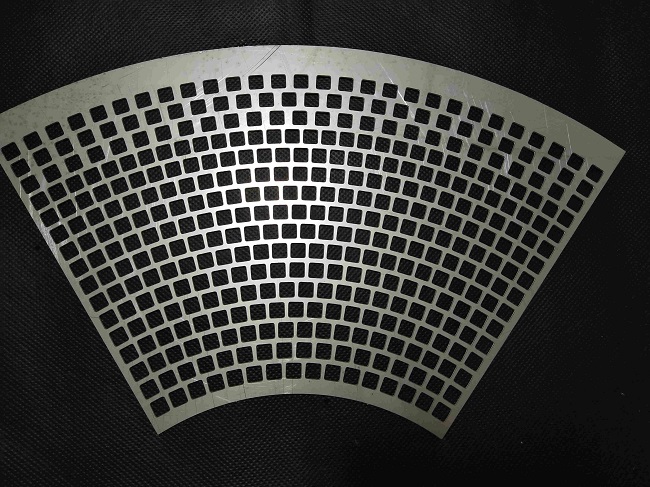

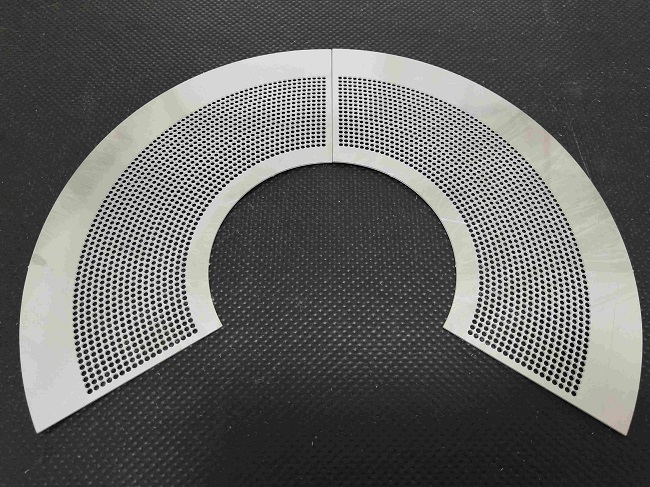

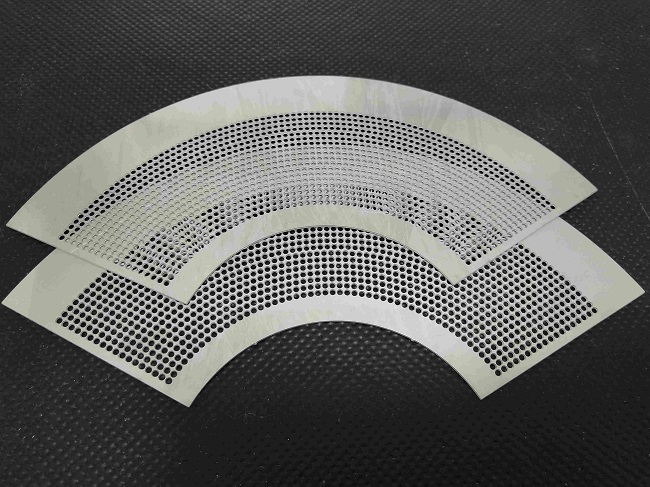

This perforated metal filter sector is made of stainless steel plates through precision photochemical etching technology.

These fan-shaped stainless filter screens are fully custom-made items based on your CAD format drawings.

The main material is food-grade stainless steel 304 and its higher-level marine grade 316L.

This screen sector is made burs-free to meet your high standard requirement for specific filtration.

The mesh sectors can be either used flat in a specific machine or rolled and welded into a cylinder after being received.

Application
