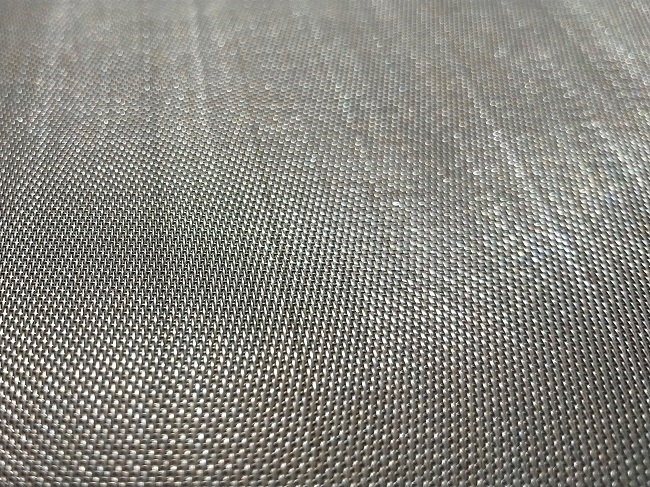

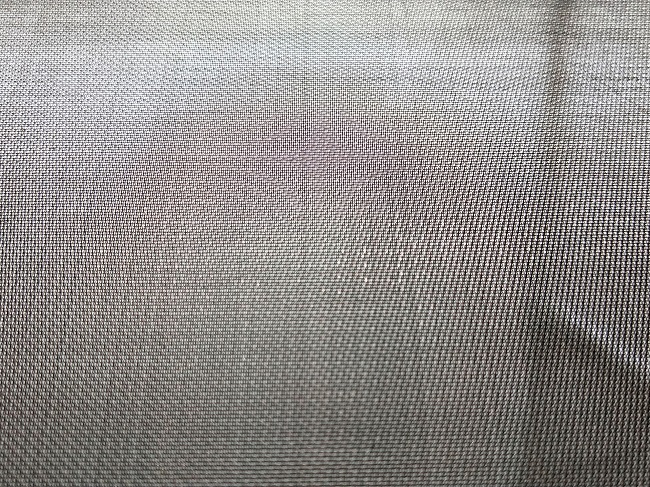

5 Heddle Weave Stainless Steel Mesh
Material: SS302,304, 304L, 316,316L,310S
Type: Industrial Woven Wire Mesh
Weave Pattern: Five shed twill weave
Mesh Count: 30-107
Wire Diameter: 0.14-0.9mm
Standard Width: 914mm, 1000mm, 1220mm and Custom sizes
Standard Length: 30M. (custom length accepted)
GET A QUOTEFive-heddle weave wire mesh is also known as 5 heddle atlas wire mesh, five shed wire mesh, five shed twill
weave wire mesh, five shed mesh, five heddle wire cloth, TELA wire mesh, etc. This mesh is made of stainless steel wires in a twill weave way.

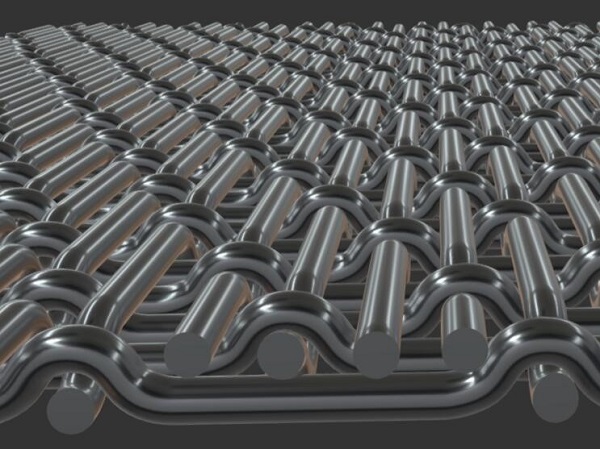

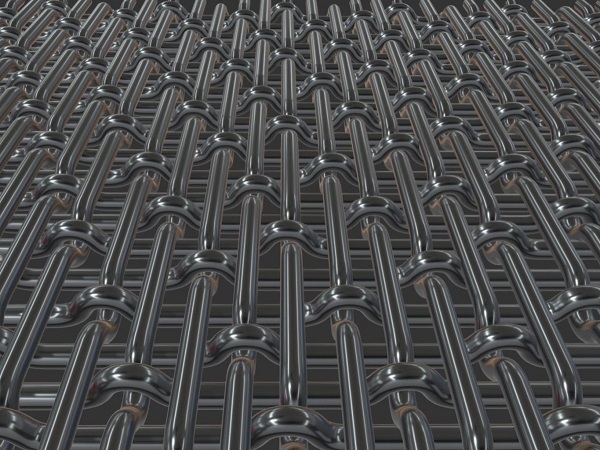

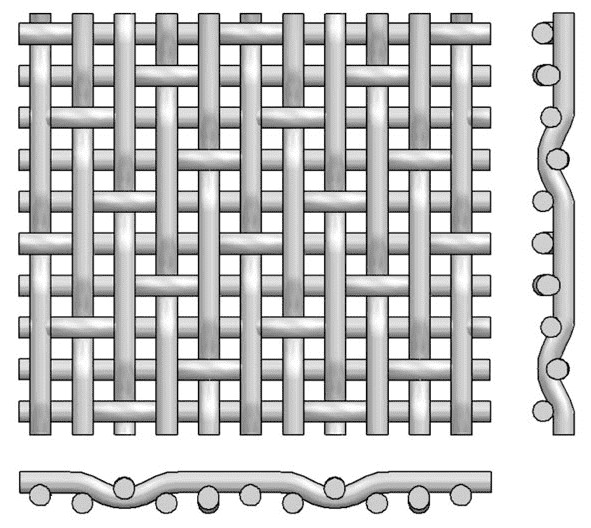

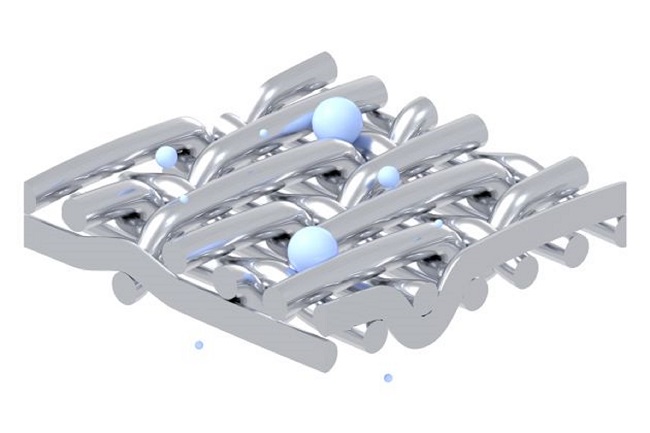

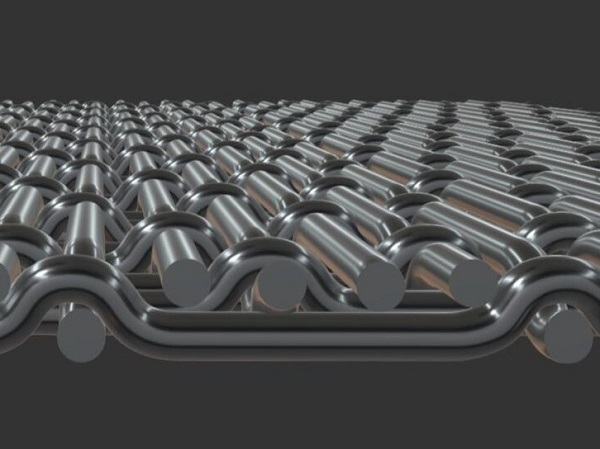

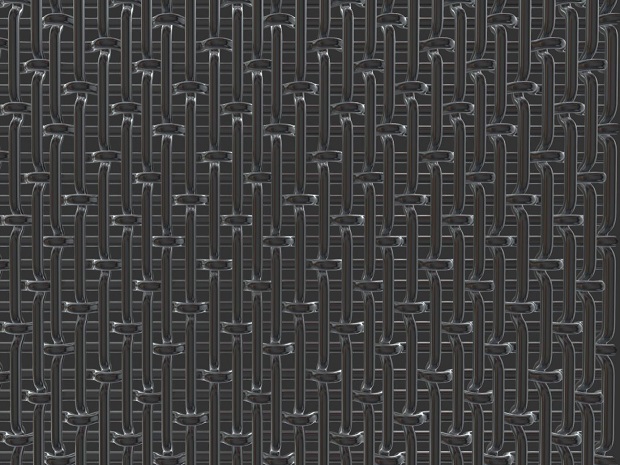

The weft wire passes over four warps at the same time and then goes under one warp wire and then up through another four wires repeatedly and vice versa. Using this weaving way, the wire fabric gets a very smooth surface on one side which increases the efficiency of filter cake removal.
Property: flat and smooth surface, easy to remove the filter media, high flow rates.
Packing: Inner kraft paper, outside plastic film, and then plywood case.
Lead time: 5 Days for items in stock. Custom-made items need to be negotiated.
Specification List
Mesh Count |
Wire Diameter (mm) |
Micro Retention |
Thickness |
Approx.Weight |
|||
Warp |
Weft |
Warp |
Weft |
abs. μm |
nom. Μm |
mm |
Kg/m2 |
30 |
18 |
0.5 |
0.5 |
0.60-0.65 |
0.37 |
1.48 |
3 |
28 |
17 |
0.47 |
0.47 |
0.75-0.80 |
0.46 |
1.41 |
2.53 |
24 |
20 |
0.6 |
0.6 |
0.65-0.75 |
0.49 |
1.7 |
3.96 |
15 |
13 |
0.9 |
0.9 |
1.15-1.20 |
0.85 |
2.6 |
5.67 |
80 |
60 |
0.2 |
0.2 |
0.20-0.22 |
0.127 |
0.55 |
1.4 |
77 |
40 |
0.24 |
0.24 |
0.38-0.40 |
0.095 |
0.68 |
1.65 |
65 |
36 |
0.3 |
0.3 |
0.26-0.29 |
0.1 |
0.84 |
2.27 |
55 |
36 |
0.3 |
0.3 |
0.25-0.28 |
0.175 |
0.84 |
2.05 |
132 |
85 |
0.14 |
0.2 |
0.09-0.11 |
0.052 |
0.44 |
1.47 |
107 |
132 |
0.16 |
0.14 |
0.055-0.065 |
0.055 |
0.44 |
1.3 |
107 |
125 |
0.16 |
0.14 |
0.065-0.08 |
0.07 |
0.45 |
1.27 |
107 |
59 |
0.16 |
0.16 |
0.16-0.18 |
0.077 |
0.45 |
1.09 |
•Wastewater filtration (mechanical wastewater cleaning)
•Water processing for industrial purposes.
•Mining (e.g. disc filtration systems)
•Exhaust gas filtration
•Distillation columns/purification columns
•Backwashing filtration
•Filter systems with continuous cleaning.
