Introduction

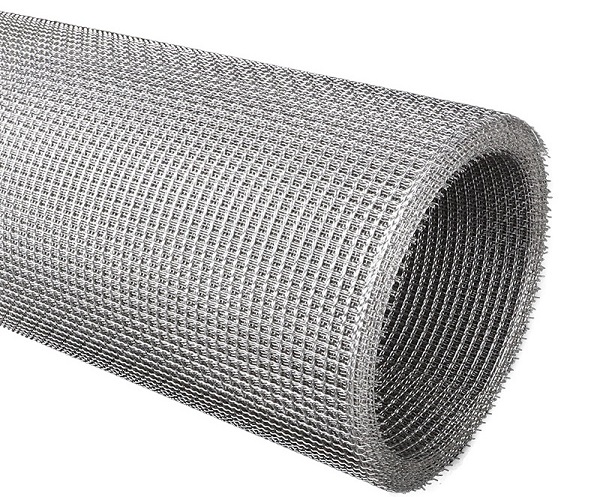

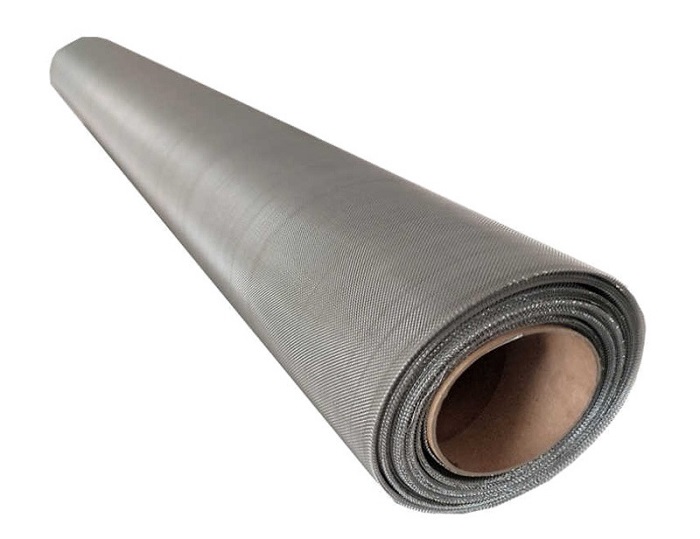

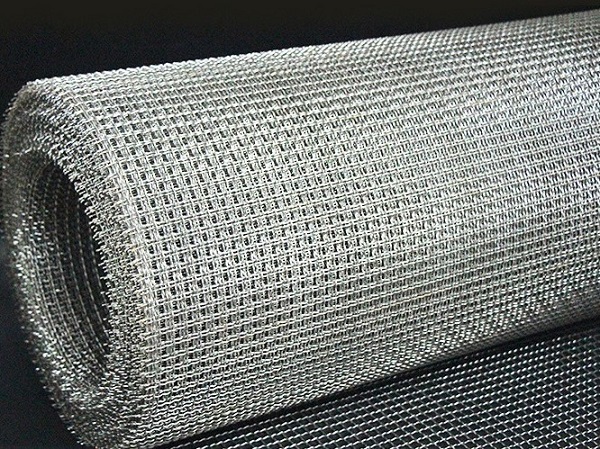

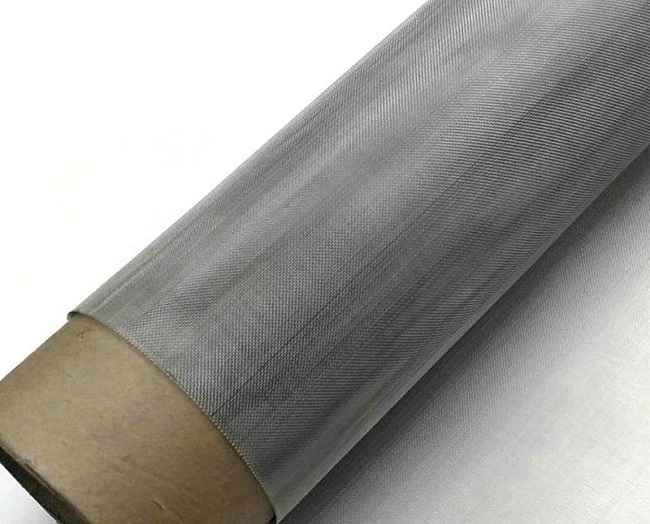

Nickel Alloy C-276 wire mesh, also sold as its brand name Hastelloy® C-276 wire mesh, UNS N10276 wire mesh and 2.4819 wire mesh, is a nickel-molybdenum-chromium supper alloy, with the addition of tungsten and extremely low content of carbon and silicon which will minimizes carbide precipitation during welding to maintain corrosion resistance in as-welded structures. Hastelloy C276 wire mesh performs excellent resistance in a wide variety of chemical process environments including those with ferric and cupric chlorides, hot contaminated organic and inorganic media, chlorine, formic and acetic acids, acetic anhydride, seawater, brine and hypochlorite and chlorine dioxide solutions.

Although there are several variations of the Hastelloy nickel alloy, Hastelloy C276 is by far the most widely used one.

EQUIVALENT STANDARDS

INDUSTEEL TRADEMARKS

UNS

ASTM

EURONORMS EN

SUS

N10276

EN 2.4819

NiMo16Cr15W

Chemical Composition of Nickel Alloy C-276 and Hastelloy® C276 wire mesh

Ni	Cr	Mo	Fe	W	Mn	Co	V	Si	C	S	P
57.0 Balance	14.5-16.5	15.0-17.0	4.0- 7.0	3.0- 4.5	1.0Max	2.5Max	0.35Max	.08Max	0.01Max	.03Max	.04Max

Physical Properties of Nickel Alloy C-276 and Hastelloy® C276 wire mesh.

Physical Property	British Units		Metric Units
Density	RT	0.321 lb/in³	RT	8.89 g/cm³
Electrical Resistivity	RT	48.4 μohm.in	RT	1.23 μohm.m
	200°F	48.7 μohm.in	100°C	1.24 μohm.m
	400°F	49.0 μohm.in	200°C	1.25 μohm.m
	600°F	49.5 μohm.in	300°C	1.26 μohm.m
	800°F	49.8 μohm.in	400°C	1.26 μohm.m
	1000°F	50.6 μohm.in	500°C	1.28 μohm.m
	-	-	600°C	1.30 μohm.m
Thermal Conductivity	100°F	71 Btu.in/h.ft².°F	50°C	10.5 W/m.°C
	200°F	77 Btu.in/h.ft².°F	100°C	11.2 W/m.°C
	400°F	90 Btu.in/h.ft².°F	200°C	12.9 W/m.°C
	600°F	104 Btu.in/h.ft².°F	300°C	14.7 W/m.°C
	800°F	117 Btu.in/h.ft².°F	400°C	16.5 W/m.°C
	1000°F	132 Btu.in/h.ft².°F	500°C	18.3 W/m.°C
Mean Coefficient of Thermal Expansion	75-200°F	6.2 μin/in.°F	24-100°C	11.2 μm/m.°C
	75-400°F	6.7 μin/in.°F	24-200°C	12.0 μm/m².°C
	77-600°F	7.1 μin/in.°F	24-300°C	12.7 μm/m.°C
	77-800°F	7.3 μin/in.°F	24-400°C	13.1 μm/m.°C
	77-1000°F	7.4 μin/in.°F	24-500°C	13.3 μm/m.°C
	77-1100°F	7.8 μin/in.°F	24-600°C	13.8 μm/m.°C
Magnetic Permeability	200 oersted	1.0002	15.9 kA/m	1.0002
Specific Heat	RT	0.102 Btu/lb.°F	RT	427 J/kg.°C
Dynamic Modulus of Elasticity	RT	29.8 x 10⁶psi	RT	205 GPa
	400°F	28.3 x 10⁶psi	200°C	195 GPa
	600°F	27.3 x 10⁶psi	300°C	189 GPa
	800°F	26.4 x 10⁶psi	400°C	183 GPa
	1000°F	25.5 x 10⁶psi	500°C	178 GPa
Melting Range	2415-2500°F	-	1323-1371°C	-
Poisson’s Ratio	-	-	RT	0.31

Specification List:

Mesh Count /Inch	Wire Diameter		Aperture		Open Area %	Weight (LB) /100 Square Foot
Mesh Count /Inch	Inch	MM	Inch	MM	Open Area %	Weight (LB) /100 Square Foot
1 × 1	.080	2.03	.920	23.37	84.6	41.1
2 × 2	.063	1.60	.437	11.10	76.4	51.2
3 × 3	.054	1.37	.279	7.09	70.1	56.7
4 × 4	.063	1.60	.187	4.75	56.0	104.8
4 × 4	.047	1.19	.203	5.16	65.9	57.6
5 × 5	.041	1.04	.159	4.04	63.2	54.9
6 × 6	.035	.89	.132	3.35	62.7	48.1
8 × 8	.028	.71	.097	2.46	60.2	41.1
10 × 10	.025	.64	.075	1.91	56.3	41.2
10 × 10	.020	.51	.080	2.03	64.0	26.1
12 × 12	.023	.584	.060	1.52	51.8	42.2
12 × 12	.020	.508	.063	1.60	57.2	31.6
14 × 14	.023	.584	.048	1.22	45.2	49.8
14 × 14	.020	.508	.051	1.30	51.0	37.2
16 × 16	.018	.457	.0445	1.13	50.7	34.5
18 × 18	.017	.432	.0386	.98	48.3	34.8
20 × 20	.020	.508	.0300	.76	36.0	55.2
20 × 20	.016	.406	.0340	.86	46.2	34.4
24 × 24	.014	.356	.0277	.70	44.2	31.8
30 × 30	.013	.330	.0203	.52	37.1	34.8
30 × 30	.012	.305	.0213	.54	40.8	29.4
30 × 30	.009	.229	.0243	.62	53.1	16.1
35 × 35	.011	.279	.0176	.45	37.9	29.0
40 × 40	.010	.254	.0150	.38	36.0	27.6
50 × 50	.009	.229	.0110	.28	30.3	28.4
50 × 50	.008	.203	.0120	.31	36.0	22.1
60 × 60	.0075	.191	.0092	.23	30.5	23.7
60 × 60	.007	.178	.0097	.25	33.9	20.4
70 × 70	.0065	.165	.0078	.20	29.8	20.8
80 × 80	.0065	.165	.0060	.15	23.0	23.2
80 × 80	.0055	.140	.0070	.18	31.4	16.9
80 × 80	.0047	.119	.0078	.198	39	11.39
90 × 90	.005	.127	.0061	.16	30.1	15.8
100 × 100	.0045	.114	.0055	.14	30.3	14.2
100 × 100	.004	.102	.0060	.15	36.0	11.0
100 × 100	.0035	.089	.0065	.17	42.3	8.3

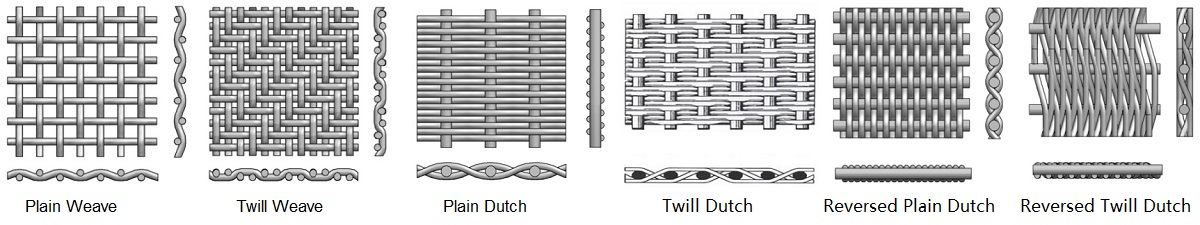

Mesh Count/ Inch	Wire Diameter				Type of Weave
	Warp wire dia.		Weft wire dia.
	inch	mm	inch	mm
12x64	0.023	0.58	0.0165	0.42	Plain
14x88	0.019	0.48	0.012	0.30	Plain
14x110	0.016	0.40	0.011	0.28	Plain
24x110	0.014	0.355	0.010	0.25	Plain

Application

-Almost anything used around sulfuric acid (heat exchangers, evaporators, filters, and mixers)
-Bleach plants and digesters for the manufacturing of paper and pulp
-Components used around sour gas
-Marine engineering
-Waste treatment
-Pollution control

GET A QUOTE

Known widely in the engineering sector, Inconel wire mesh shows excellent strength, resistance to oxidation, corrosion and even extreme foehn winds. It is used for aerospace, marine, chemical processing and power generation industries, allowing for efficacy and reliability in the most ghastly conditions. This article focuses on issues, purposes, and pros of Inconel wire mesh, while also stating Metart Building Tech as one of the leading suppliers of the product.

Inconel is designed nickel-chromium based superalloy that best operates in extreme conditions. Compared to other materials, Inconel wire mesh provides superior capabilities it does not get stressed or corroded and oxidation becomes several times easier. It is a requisite for sectors that require great filtering, structural soundness and durability.

Inconel Wire Mesh's crucial attributes.

1. High Temperature Sustainability to Function

It is able to withstand greater than 1000 degree celcius without fainting making it ideal for industrial and high heat purposes.

2. Corrosion Resistance of the Greatest Level

Incredibly resistant to oxidation, acidic environments, and chemicals in seawater making it extremely favourable in marine and chemical arenas.

3. Greater Toughness and Sturdiness

Extracts from the surface microclimate have been presented as markers which help indicate the stresses and temperatures under which crystals interact.

4. Flexible Weaving Patterns

These patterns can be supplied in basic, twill or Dutch style weaves to suit particular industrial needs.

Applications of Inconel Wire Mesh In The Industry

1. Aerospace Industry

Jet engines, turbines, exhaust parts and heat shields must withstand tremendous thermal stresses, which make this material essential.

2. Chemical Processing

Used for filtering, supporting catalysts, and heat exchangers in strong corrosive environments.

3. Marine and Offshore Operations

It has excellent resistance to saltwater which is useful in oil rigs, desalination stations, and other underwater constructions.

4. Power Generation

High performance Inconel 625 is widely used in nuclear reactors and steam generators, where high operational temperatures are normal.

5. Automotive And Gas Turbines

Inconel parts can be used in manifolds turbocharger turbines and other highly stressed and heated mobile components.

Why Metart Building Tech is the Best For Inconel Wire Mesh?

Metart Building Tech is one of the best manufacturers of Inconel wire mesh of any type, for practically any industry. Their Inconel wire mesh products made with Nickel Alloy 600 (Inconel 600) Wire Mesh is specially manufactured with great care and accuracy which makes them stand out from the rest of the market.

Benefits of Metart Building Tech’s Inconel Wire Mesh

Metart Being the Industry Leader, the weave patterns on their Inconel wire mesh products do not suffer from loosening or wearing off due to the use of more advanced weaving machinery.

• Custom Fabrication - Different sizes of the mesh, wire diameters, and weaving styles are available as per the needs of the application.

• Strict Quality Assurance - Compliance with international standards ensures superior performance and reliability.

• Industry Expertise – Many years of experience delivering specialized solutions for critical industries.

Conclusion

Inconel wire mesh is ideal for industries that need materials that can withstand very high temperatures, heat, and pressure. For extreme industrial applications where durability, heat resistance, and corrosion protection are of utmost importance, this is the most dependable option.

Metart Building Tech, as a manufacturer, provides the industry with the best Inconel 600 wire mesh that goes beyond set standards.

Check out Metart Building Tech’s collection of nickel alloy 600 wire mesh and find the perfect solution for your industrial application.
