METART-WWD02-Laminated Glass Brass Cable Mesh

Specification

Material: Real Brass Wires

Type: One way flexible cable mesh

Rod Dia. / Rod Pitch: 0.5mm / 2mm

Cable Diameter / Cable Pitch: 0.45mmx3 / 3.6mm

Max Screen Size: 6000MM width x 50M Roll

Finish: Mill Finish

GET A QUOTE

Introduction

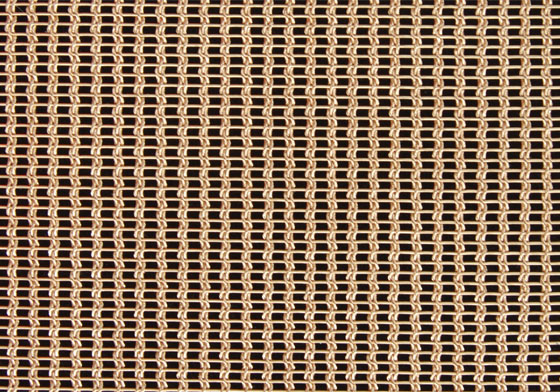

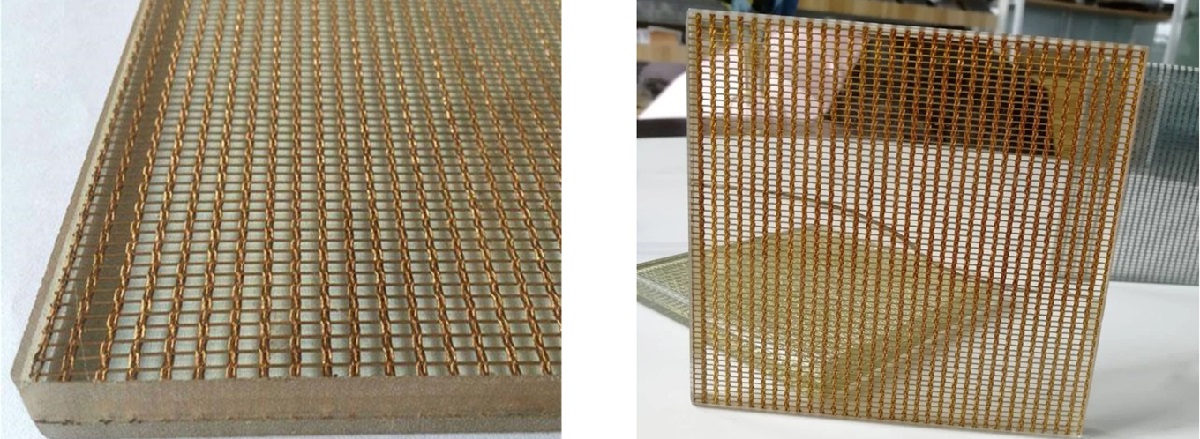

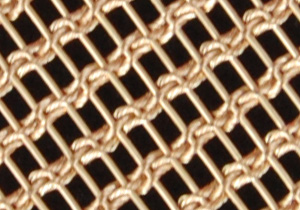

METART WWD-02 is a type of flexible fabric that is composed of both real brass rods and cables. This metal fabric offers a high level of aesthetic appeal, making it ideal for use in luxurious wall cladding and decorative laminated glass insert metal fabric applications. Here we will explore the properties and benefits of this material, as well as alternative materials that can be used in its place.

Properties and Benefits:

The use of real brass in METART WWD-02 provides a unique and luxurious appearance that is highly sought after in high-end architectural and design projects. The combination of brass rods and cables creates a flexible fabric that can be used in a variety of applications, including wall cladding and decorative laminated glass inserts.

Alternative Materials:

While the use of real brass in METART WWD-02 offers a high level of aesthetic appeal and durability, it can also be expensive and may not be suitable for all applications. As an alternative, brass-plated stainless steel or PVD Titanium plated stainless steel can be used to achieve a similar appearance while also providing added durability and resistance to oxidation. This is particularly useful in applications where the metal fabric will be exposed to outdoor elements or high levels of moisture.

Conclusion:

METART WWD-02 is a flexible fabric composed of real brass rods and cables that offers a high level of aesthetic appeal and durability. Its unique appearance makes it ideal for use in luxurious wall cladding and decorative laminated glass insert metal fabric applications. However, for applications where cost is a concern or where the metal fabric will be exposed to outdoor elements or high levels of moisture, brass-plated stainless steel can be used as a suitable alternative. Ultimately, the choice of material will depend on the specific requirements of the project and the desired aesthetic outcome.

Please refer to the following specification table.



Raw Material

Real Brass wire and cables

Wire Mesh Type

Single Way Flexible Architectural Cable Mesh

Width of the Screen

Within 6000MM ( 19.69 feet)

Length of the Screen

Within 50 Meters ( 164 feet)

Wire Rod Diameter

0.5mm

Wire Rod Centers

2mm

Cable Diameter and strands

0.45mm x 3 strands

Cable Centers

3.6mm

Overall thickness of the screen

1.2mm

Opening Rate

47%

Privacy Rate

53%

Approx Square Meter Weight

1.9KG/

Finishes

Mill Finish ( Natural Brass Finish)





Application
