METART-WW12-Balustrade Decorative Woven Wire Mesh for Interior Architecture

Specification

Material: Stainless Steel 304 / SS 316 / SS201 / Brass / Copper

Type: Rigid Decorative Woven Wire Mesh

Opening Area: 59%

Weight: Approx 8kg/Square Meter

Finishes: Mill, Copper & Brass Plated, Antique (copper/brass/bronze) Plated.

Other Finishes: PVD Titanium Plated. Painted, PVDF Painted.

Maximum Sheet Size: 2000MM x 4000MM

GET A QUOTE

Introduction

►Strengthening Design with Reinforced Decorative Woven Wire Mesh for Added Security

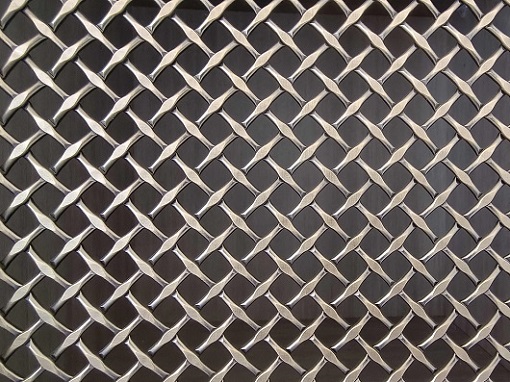

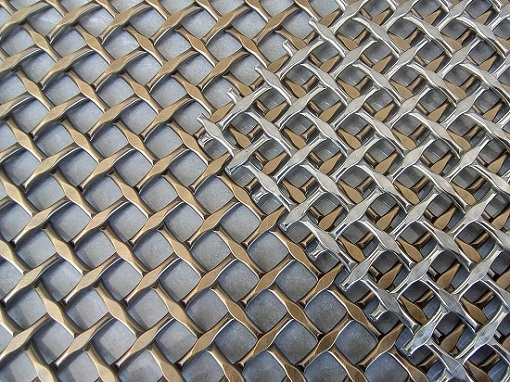

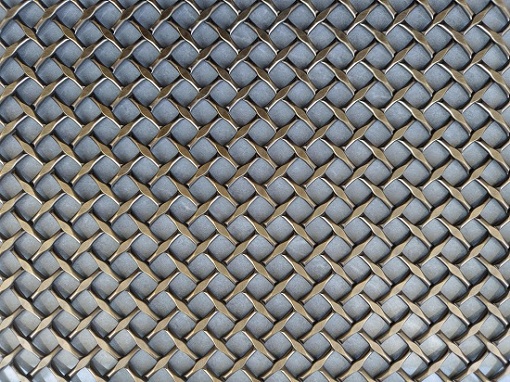

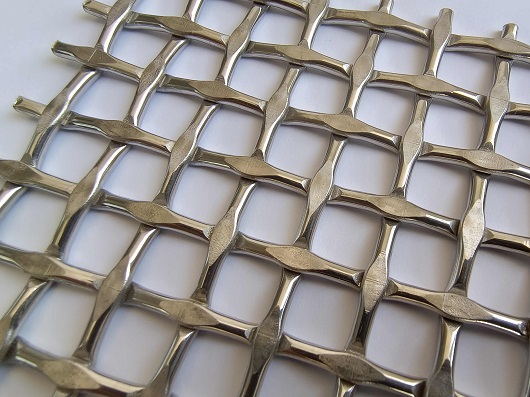

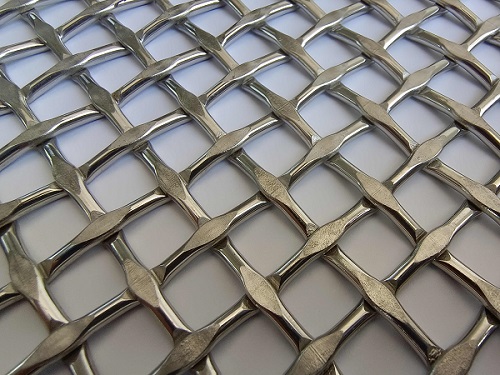

METART-WW12 Decorative Wire Mesh is a double-reinforced version of the popular WW10 and WW11 patterns. With a wire diameter of 2.75mm, the same as WW11, but an adjusted hole size of 9mm (down from 15.4mm), this decorative wire mesh offers enhanced strength and structure. The smaller aperture also lends a sense of weightiness and steadiness to the design, making it an ideal choice for architectural applications where security is a top priority.

Here you can watch our weaving process of this classic architectural decor wire mesh pattern in the following video.

 Please refer to the following specification table of this crimped wire mesh pattern.

Material

SS304, SS316, SS201, Brass, Copper.

Type

Rigid Crimped Woven Wire Mesh

Wire Diameter

2.75mm

Clear Hole Size

9mm

The total thickness of the fabric

3.3mm

Opening Area

59%

Block out

41%

Privacy Rate

41%

Weight

8kg/Square Meter

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel finish),

Copper Plated Finish, Brass Plated FInish,

Antique Copper Plated Finish, Antique Brass Plated Finish,
Antique Bronze plated, PVD titanium plated, Regular Painted, PVDF Coated.

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance.



►Made of Diverse & Quality Raw Material

The METART decorative wire mesh is available in a range of high-quality raw materials, including 304 and 316 stainless steel, copper, brass, and 201 stainless steel. These materials are carefully selected to meet specific design and functional requirements, ensuring that the finished product is not only aesthetically pleasing but also highly durable and resistant to wear and tear.

Stainless steel, a popular choice for architectural applications, offers excellent corrosion resistance, strength, and durability. While both 304 and 316 grades are resistant to corrosion, 316 is even more resistant to saltwater and acidic environments, making it an excellent choice for coastal areas and other exterior harsh environments.

Copper and brass, on the other hand, offer unique aesthetic qualities, such as a warm and rich color that can add a touch of elegance and luxury to any design. These materials are often used in high-end applications where aesthetics are a top priority.

However, it's important to note that 201 stainless steel, while less expensive than 304 and 316, is less resistant to corrosion and may require an extra protective coating layer to ensure longevity. Careful consideration of the specific requirements of the application is crucial when selecting the raw material for your decorative wire mesh.

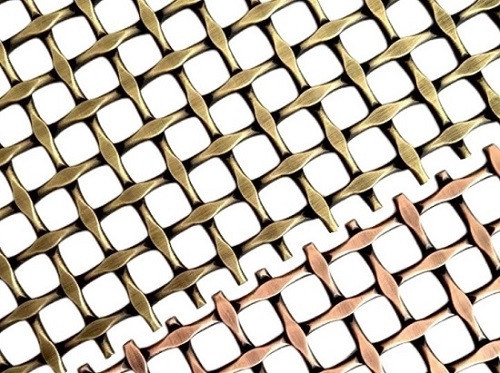

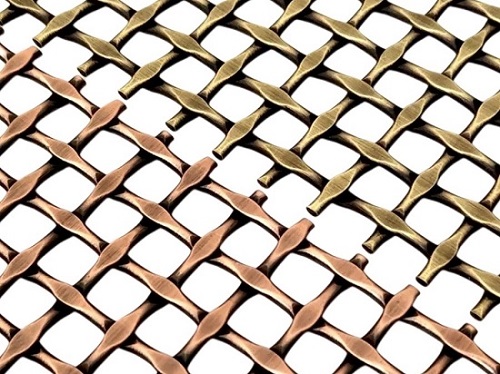

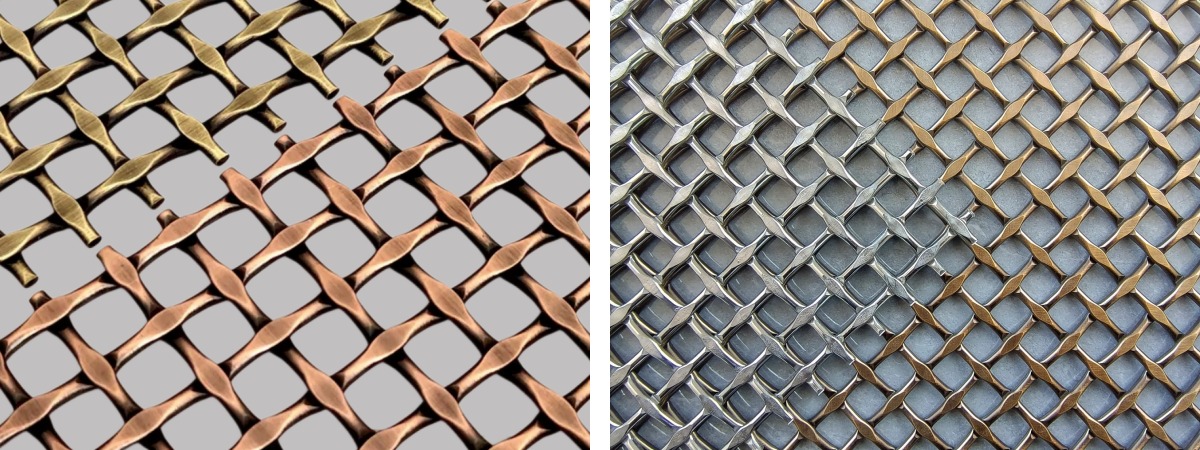

In addition to these raw materials, METART also offers custom finishes. Our most popular finishes include copper plating, brass plating, and its antique processed version, also known as an aged finish, which includes antique brass finish, antique copper finish, antique bronze finish, as well as PVD plating in gold, rose gold, champagne, and other custom colors. Other popular finishes including PVDF painting or powder coating are also available on the customer's requirement.

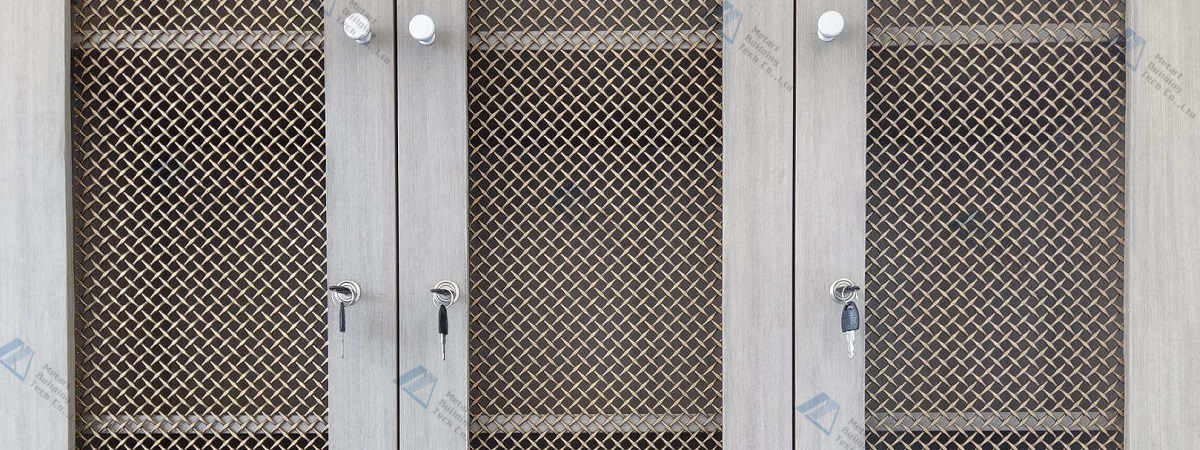

If you are in need of residential cabinet door insert wire grilles that don't require a high-end finish, METART offers something cheaper. In addition to our standard finishes, we also offer the option of a mill-finished product. This is the original finish of the material itself, which gives a raw, industrial look to the wire grilles. Additionally, we offer a budget-friendly painting finish, which is the most economical option for those who want a finished look without breaking the bank.

Ultimately, the choice of raw material and finish for the METART decorative wire mesh depends on the specific needs of the project, including aesthetic preferences, functionality, and budget constraints. The team at METART is committed to helping customers find the perfect combination of material and finish to meet their unique design and functional requirements.



►Wide range of applications

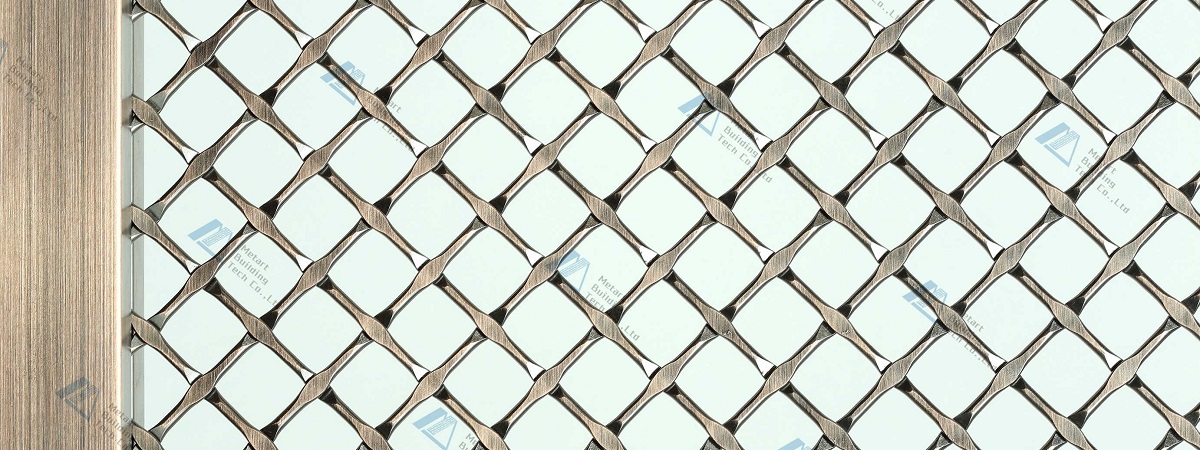

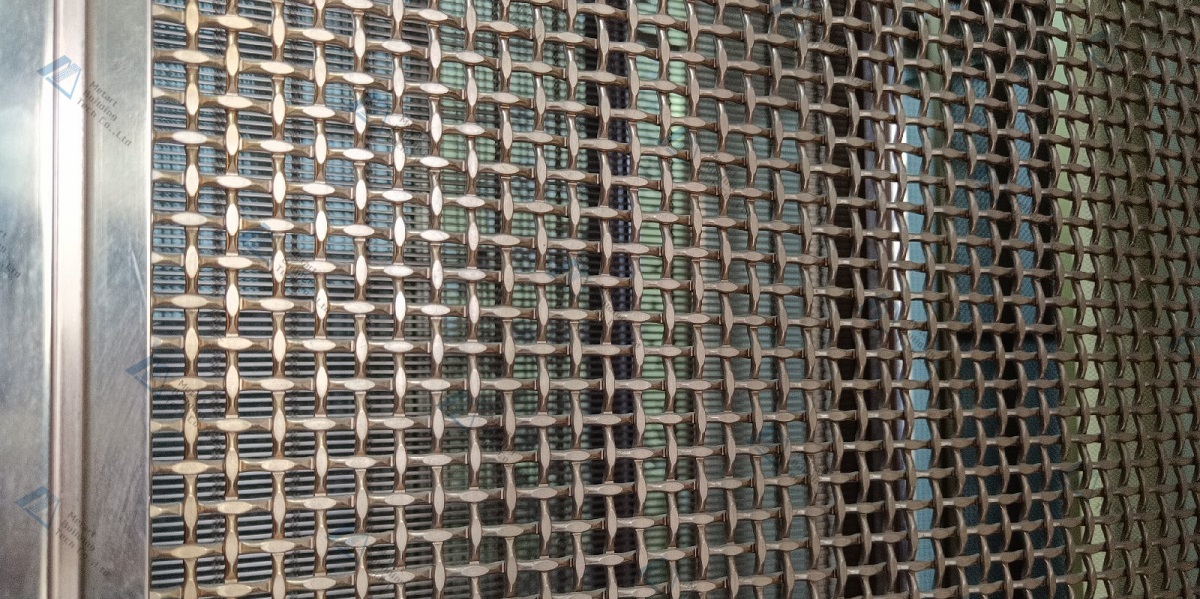

The METART-WW12 Decorative Wire Mesh is perfect for a range of applications, including security fencing, balustrade wire mesh panels, and building mesh facades. In addition, this versatile material can also be used for architectural decorative railing infill wire mesh, privacy divider screens, and even cabinetry wire grilles.

►Highly Customized Specifications and Frames

With endless possibilities for customization, including bespoke stainless steel screen frame options and adjustable wire gauges and hole sizes, the METART-WW12 Decorative Wire Mesh can be tailored to suit any project. Keeping the overall outlook of this pattern, we can create more variants like WW10 and WW11

Please check the following variant pattern METART-WW11 decorative partition wire mesh screen

Whether you're looking to enhance security, add privacy, or simply create a stunning visual impact, this decorative wire mesh is the perfect choice.
