METART-WW17HW Architectural Mesh for home and interiors

Specification

Pattern Code: METART-WW17HW

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Architectural Mesh

Opening Area: 30%

Weight: Approx 6.9kg/Square Meter

Finish: Mill Finish

Maximum Wire Mesh Panel Size:3M x 4M for mill finished product:

GET A QUOTE

Introduction

Architectural mesh pattern METART WW17HW is the Heavy-Weighted version of pattern #WW17.

As the most popular choice among ww17 series, It is made of horizontally 2.4x1.2mm grooved stainless steel strips and vertically 1.8mm pre-waved round wires. The angles of the waved wires are smaller than WW17MW, which means it gets more waves than WW17MW. And the waves look more obvious. At the meaning time, the density of weft wires is bigger than WW17MW, which offers more crimps and strength to the screen.
If it is used without any finish, the whole surface looks just like a quiet lake ruffled by the breeze, beautiful and shiny.
As it is the most heavy-duty one for this pattern, it is suitable for both industrial and residential building projects.

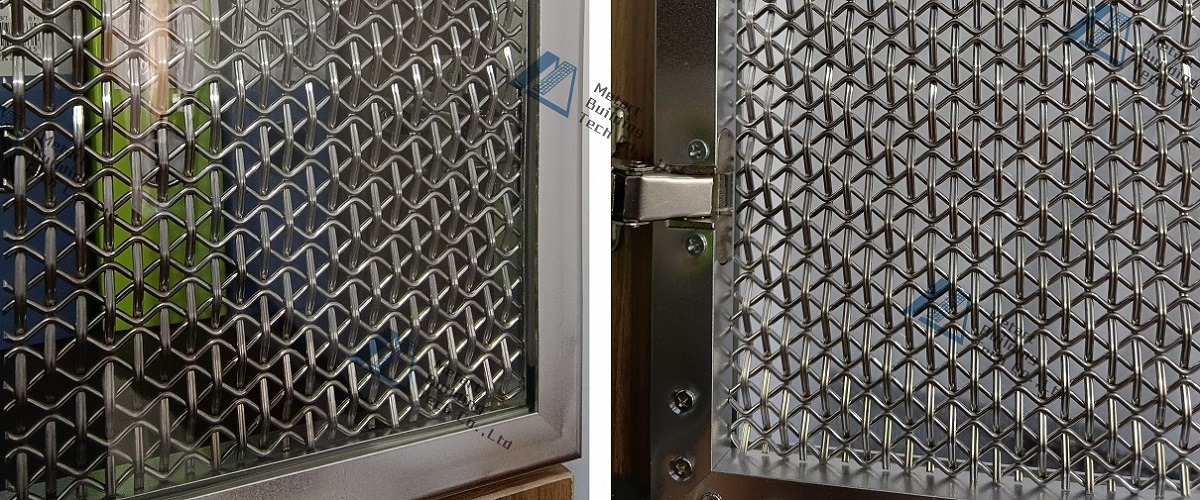

And it is preferred to be both interior and exterior decoration material and some environments need relatively higher security.



Please refer to the following specification.

Material

Stainless Steel 304 or 316, optional

Type

Rigid mesh

Round Wire Diameter (Single wire)

1.8mm

Flat Wire Strip:

2.4x1.2mm

Flat Wire Strip Pitch

6.4mm

Round Wire Hole Pitch

11m

The total thickness of the fabric

4.6mm

Opening Area

30%

Block out

70%

Privacy Rate

70%

Weight

6.9kg/Square Meter

Finish

Antique Copper Plated

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
