Material: Stainless steel 304 or Stainless Steel 316
Rod Diameter / Rod Pitch: 1.5mm/6.0mm
Rope Diameter / Rope Pitch: 1.65mm/3.2mm
Max Screen Size: 6M Width x 50M Roll.
Finishes: Mill Finish, (Antique) Brass-Plated, (Antique) Copper-Plated,
Optional Finishes: PVD Plated, PVDF Painted.

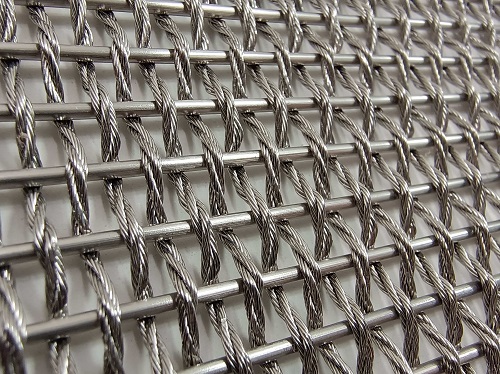

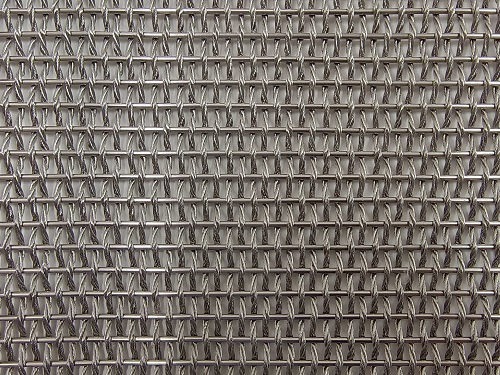

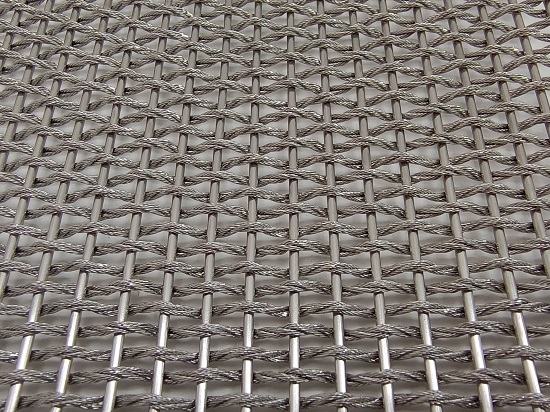

GET A QUOTEThe METART-WWD08 is a cost-effective and lightweight version of the popular METART-WWD07 architectural cable wire mesh.
This pattern features a small 1.5mm wire rod and a single strand of 1.65mm cable with a 3.2mm cable pitch and a 6mm rod pitch, offering excellent tensile strength and durability for a variety of interior design applications.

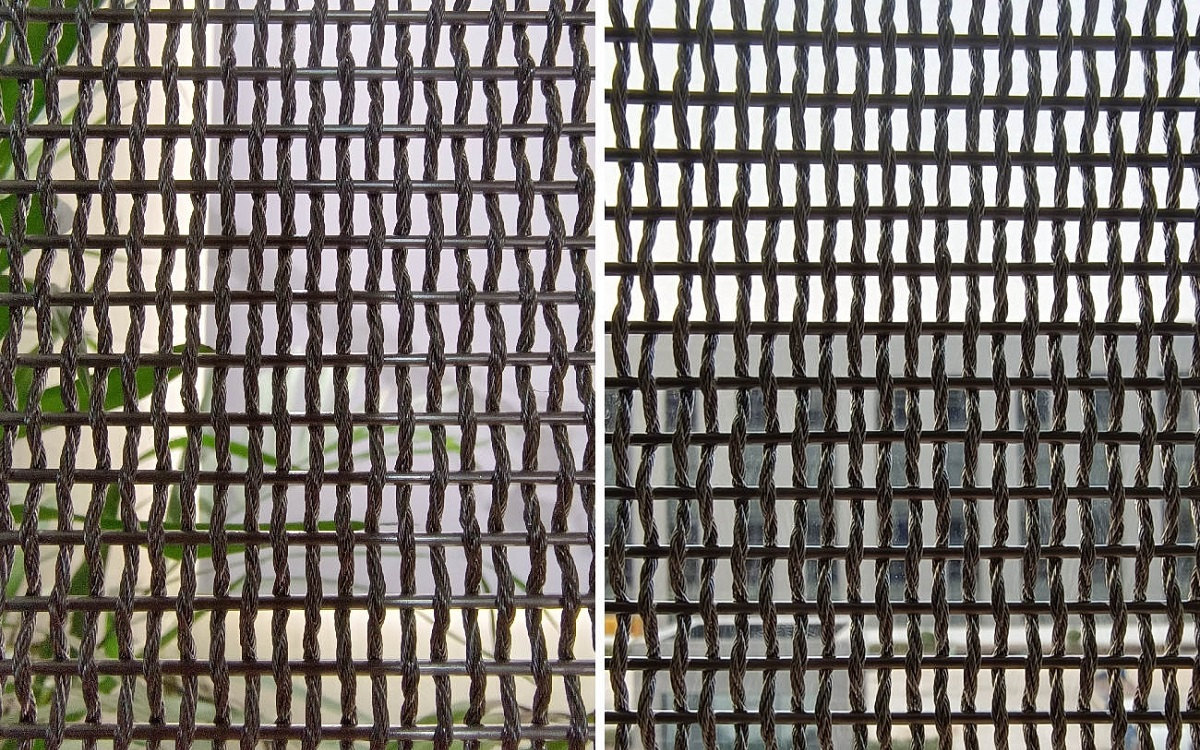

While the METART-WWD08 is not recommended for outdoor building facades without a frame due to its small wire rod diameter, it is a great choice for interior decoration. It can be used for privacy screens, interior partitions, and solar control screens, making it an excellent option for those looking to incorporate a high-quality architectural rope wire mesh pattern into their interior design projects without breaking the bank.
The METART-WWD08 is a practical and cost-effective solution for a wide range of interior design applications. Whether you're looking to create a stylish interior partition or a unique solar control screen, the METART-WWD08 is an affordable and reliable option that won't disappoint.
Please refer to the following specification table.
|
Raw Material |
Stainless steel 304,316, 201, and other alloys |
|
Wire Mesh Type |
Single Way Flexible Architectural Cable Mesh |
|
Width of the Screen |
Within 6000MM ( 19.69 feet) |
|
Length of the Screen |
Within 50 Meters ( 164 feet) |
|
Wire Rod Diameter |
1.5mm |
|
Wire Rod Centers |
6mm |
|
Cable Diameter and strands |
1.65mm |
|
Cable Centers |
3.2mm |
|
Overall Thickness of the Screen |
3.9mm |
|
Opening Rate |
36.3% |
|
Privacy Rate |
63.7% |
|
Approx Square Meter Weight |
5.2KG/㎡ |
|
Finishes |
Mill Finish ( Natural Stainless Steel Finish) |
