Introduction

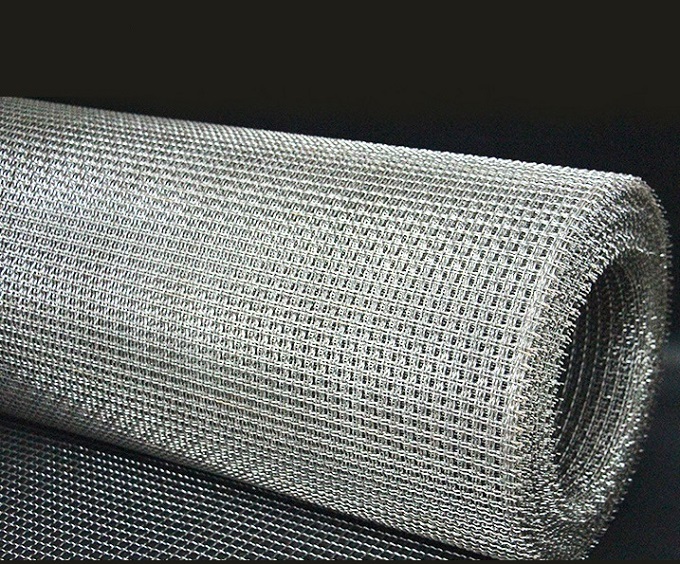

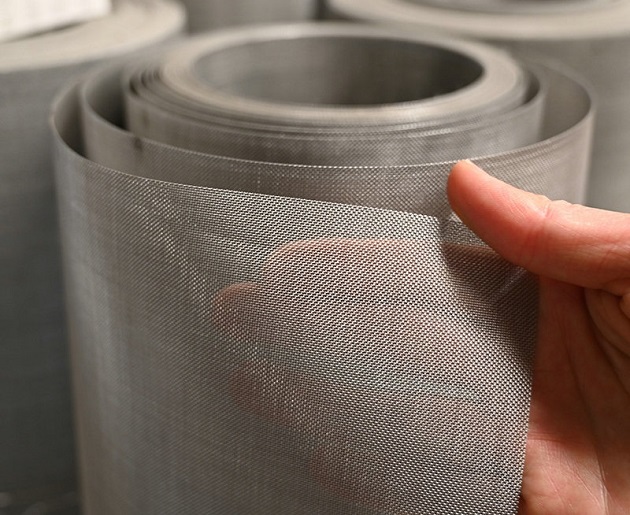

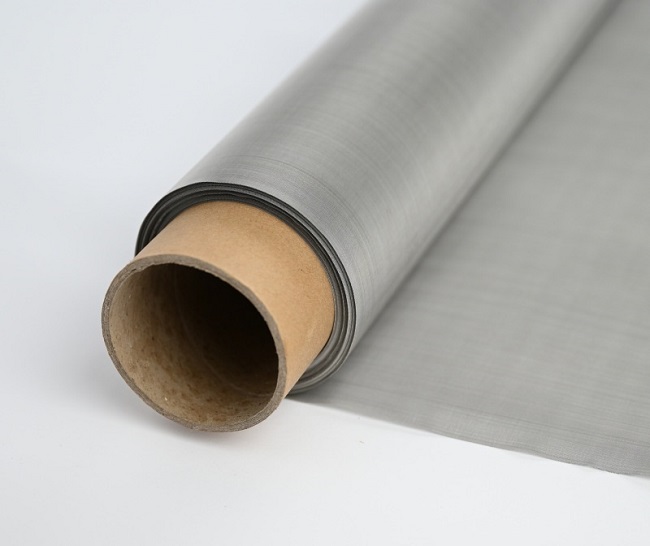

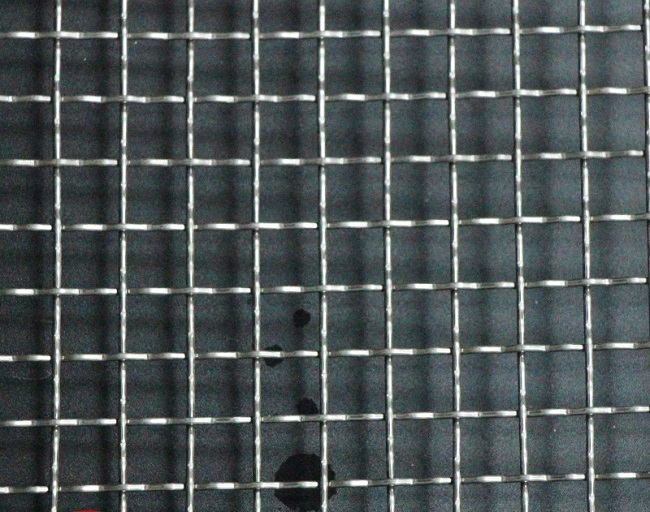

UNS. S08904 wire mesh also known as Alloy 904 stainless steel wire mesh, 904L wire mesh, DIN 1.4539 wire mesh.
Alloy 904 (N08904) stainless steel wire mesh is a high alloy austenitic product intended for use under severely corrosive conditions.
It offers good resistance to general corrosion, pitting & crevice corrosion, intergranular corrosion and stress corrosion cracking.
Grade 904L stainless steel mesh is made of a non-stabilized austenitic stainless steel with low carbon content. The addition of copper to this grade develops resistance to sulphuric acid and other reducing agents in both aggressive and mild conditions.
Grade 904L stainless steel wire mesh is non-magnetic, and offers excellent formability, toughness and weldability. Grade 904L wire mesh contains high amounts of expensive ingredients, such as molybdenum and nickel which offers itself excellent resistance to warm seawater and chloride attack.
Today, most of the applications that employ grade 904L are replaced by low-cost duplex stainless steel 2205.

GB/T		UNS	AISI/ASTM	ID	W.Nr
015Cr21Ni26Mo5Cu2		N08904	904L	F904L	1.4539
Chemical Composition:
Grade	%	Ni	Cr	Mo	Cu
904L	Min	23	19	4	1
	Max	28	23	5	2
	Fe	C	Mn	P	S
	Rest	-	-	-
		0.02	2	0.045	0.035
Physical Performance:
Density			7.95 g/cm3
Melting point			1300-1390
Grade 904L			T*S	Y*S	El
			Rm N/mm2	RP0.2N/mm2	A5 %
			490	215	35

Specification List:

Mesh Count /Inch	Wire Diameter		Aperture		Open Area %	Weight (LB) /100 Square Foot
Mesh Count /Inch	Inch	MM	Inch	MM	Open Area %	Weight (LB) /100 Square Foot
1 × 1	.080	2.03	.920	23.37	84.6	41.1
2 × 2	.063	1.60	.437	11.10	76.4	51.2
3 × 3	.054	1.37	.279	7.09	70.1	56.7
4 × 4	.063	1.60	.187	4.75	56.0	104.8
4 × 4	.047	1.19	.203	5.16	65.9	57.6
5 × 5	.041	1.04	.159	4.04	63.2	54.9
6 × 6	.035	.89	.132	3.35	62.7	48.1
8 × 8	.028	.71	.097	2.46	60.2	41.1
10 × 10	.025	.64	.075	1.91	56.3	41.2
10 × 10	.020	.51	.080	2.03	64.0	26.1
12 × 12	.023	.584	.060	1.52	51.8	42.2
12 × 12	.020	.508	.063	1.60	57.2	31.6
14 × 14	.023	.584	.048	1.22	45.2	49.8
14 × 14	.020	.508	.051	1.30	51.0	37.2
16 × 16	.018	.457	.0445	1.13	50.7	34.5
18 × 18	.017	.432	.0386	.98	48.3	34.8
20 × 20	.020	.508	.0300	.76	36.0	55.2
20 × 20	.016	.406	.0340	.86	46.2	34.4
24 × 24	.014	.356	.0277	.70	44.2	31.8
30 × 30	.013	.330	.0203	.52	37.1	34.8
30 × 30	.012	.305	.0213	.54	40.8	29.4
30 × 30	.009	.229	.0243	.62	53.1	16.1
35 × 35	.011	.279	.0176	.45	37.9	29.0
40 × 40	.010	.254	.0150	.38	36.0	27.6
50 × 50	.009	.229	.0110	.28	30.3	28.4
50 × 50	.008	.203	.0120	.31	36.0	22.1
60 × 60	.0075	.191	.0092	.23	30.5	23.7
60 × 60	.007	.178	.0097	.25	33.9	20.4
70 × 70	.0065	.165	.0078	.20	29.8	20.8
80 × 80	.0065	.165	.0060	.15	23.0	23.2
80 × 80	.0055	.140	.0070	.18	31.4	16.9
80 × 80	.0047	.119	.0078	.198	39	11.39
90 × 90	.005	.127	.0061	.16	30.1	15.8
100 × 100	.0045	.114	.0055	.14	30.3	14.2
100 × 100	.004	.102	.0060	.15	36.0	11.0
100 × 100	.0035	.089	.0065	.17	42.3	8.3

Mesh Count/ Inch	Wire Diameter				Type of Weave
	Warp wire dia.		Weft wire dia.
	inch	mm	inch	mm
12x64	0.023	0.58	0.0165	0.42	Plain
14x88	0.019	0.48	0.012	0.30	Plain
14x110	0.016	0.40	0.011	0.28	Plain
24x110	0.014	0.355	0.010	0.25	Plain

Application

-Petroleum, petrochemical equipment, such as petrochemical equipment in the reactor, Oil refinery components.

-sulfuric acid storage and transporting

-Seawater cooling devices.

-Pulp and paper processing industries.

-Flue gas desulfurization, absorption tower,

-Organic acid treatment system.
