Material: Mild Steel, Galvanized Steel, Aluminum, Stainless Steel
Type: Perforated Anti-slip Mesh

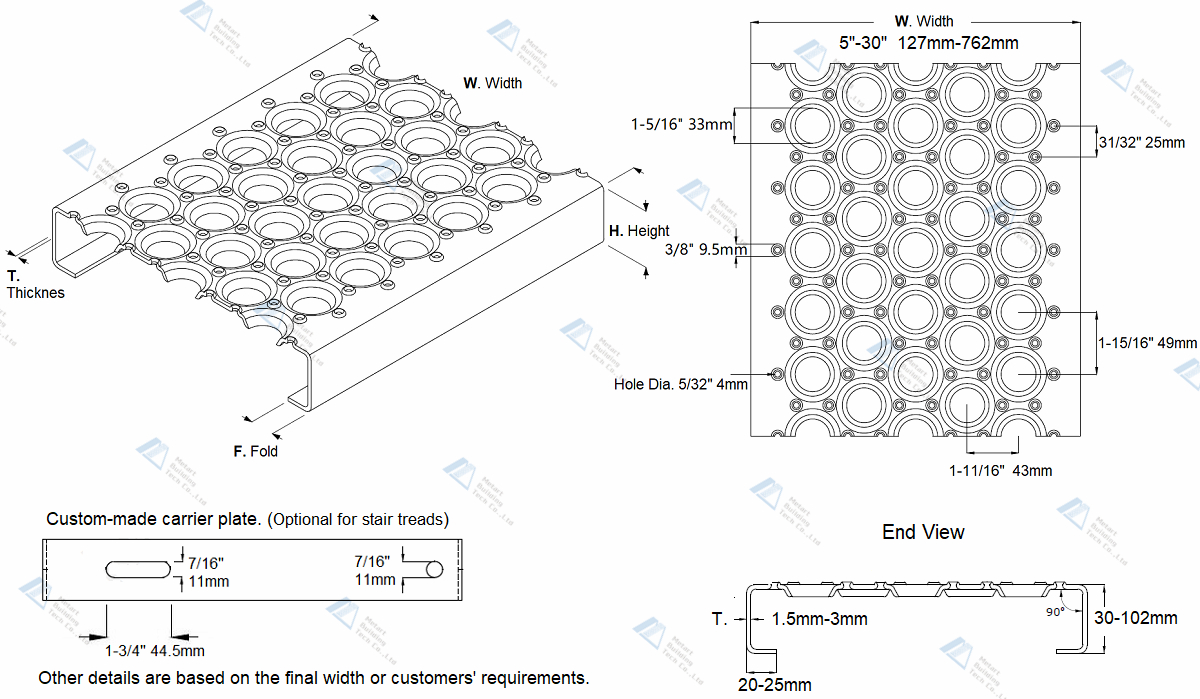

Regular Width: 5 to 30 inches, 127mm to 762mm,
Regular Length: Within 10 feet, 3048mm, (up to 12 feet, 3658mm)
Regular Height: 30mm to 102mm and other custom-made height.
Finish: Mill finish, Hot-dip galvanized, Electro-Galvanized, Powder Coated finish

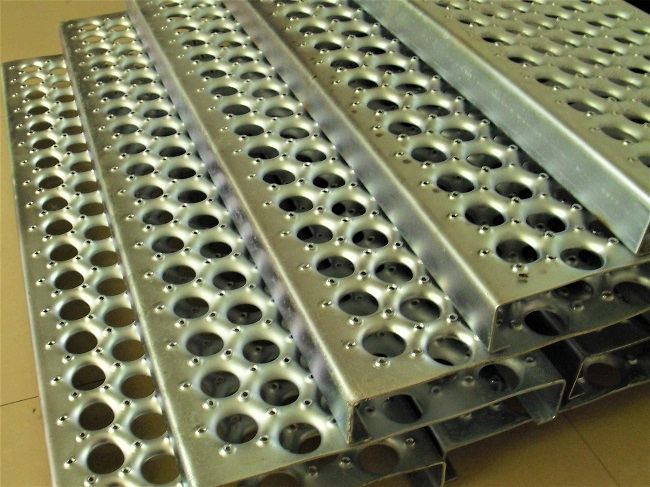

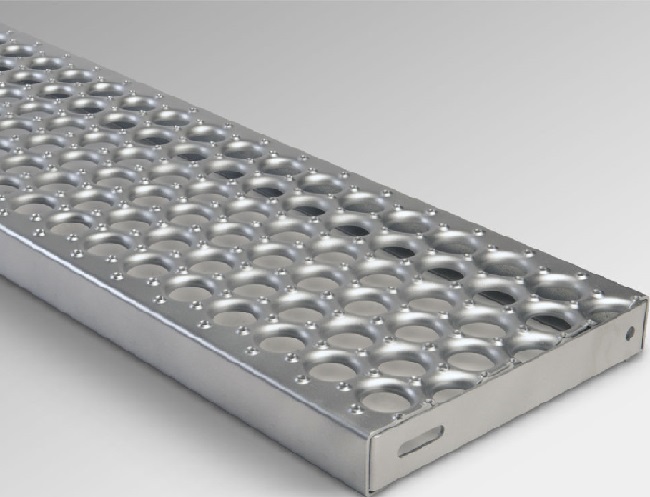

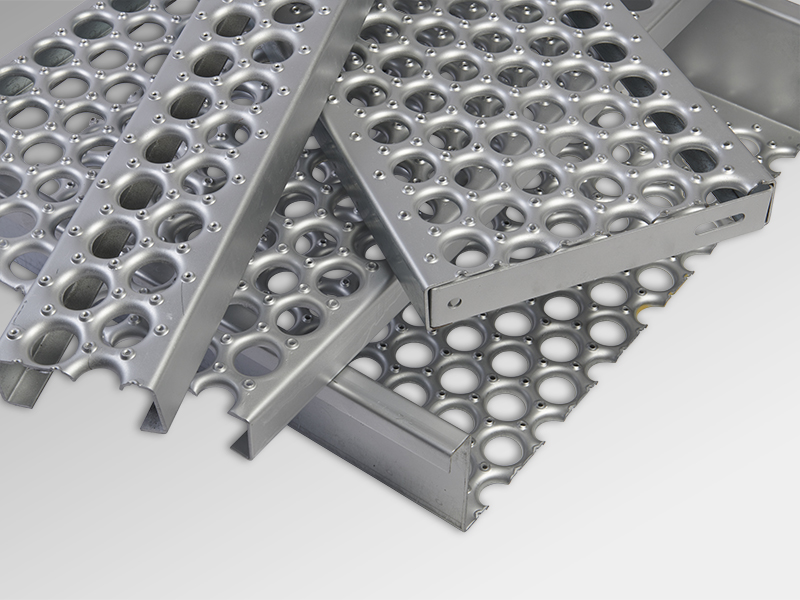

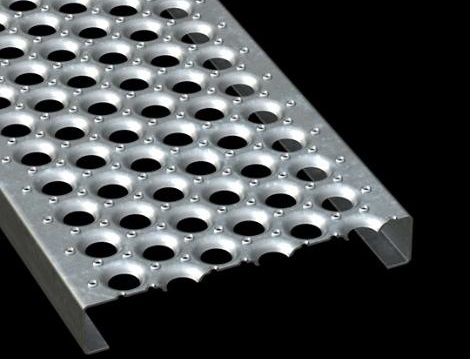

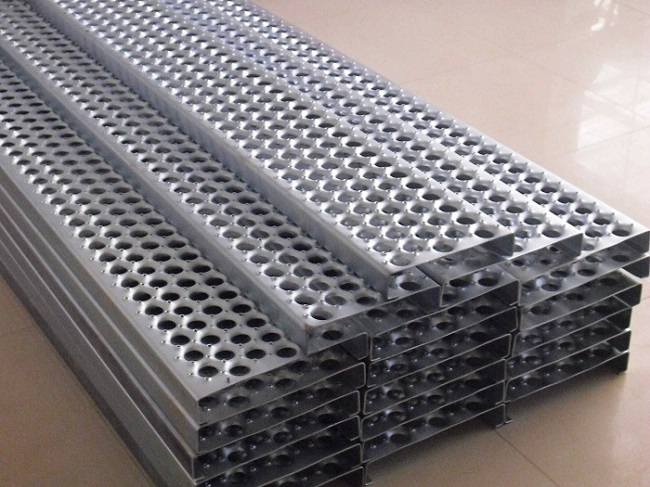

GET A QUOTEPerf-O6 Safety Grating is referred to as an O-shaped perforated metal plank or safety stair tread. It is a typical type of the Perf-O anti-slip grating series, composed of one big concave circular hole surrounded by 6 small convex round holes.
These 6 small bumps provide an excellent slip-resistant function and the big hole allows fluids, mud, and other debris to get through to keep a clean surface.

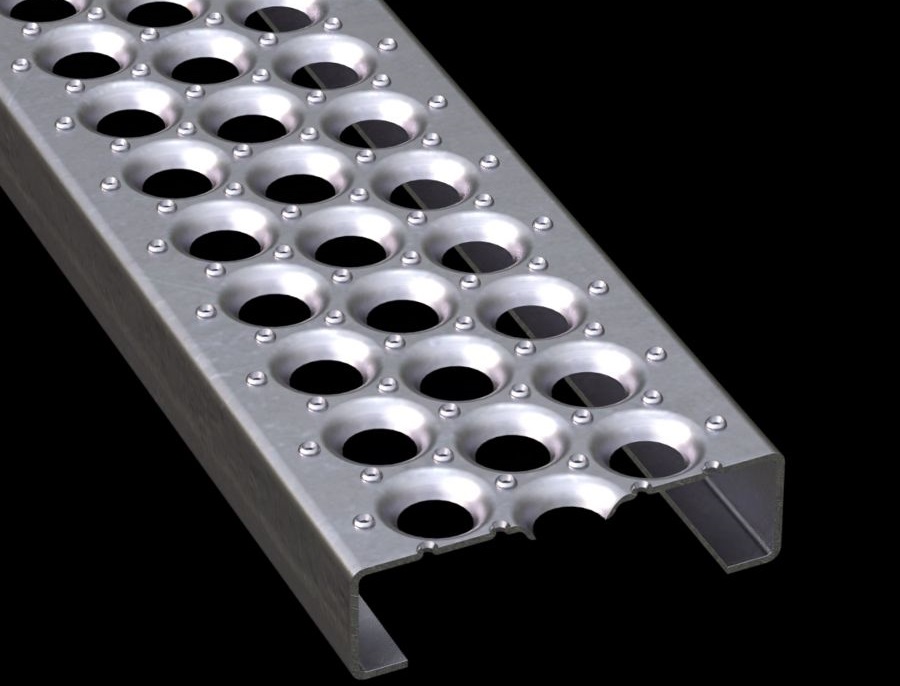

Just like grip strut safety grating, this Perf O6 grating can also be made into either open or closed ends.

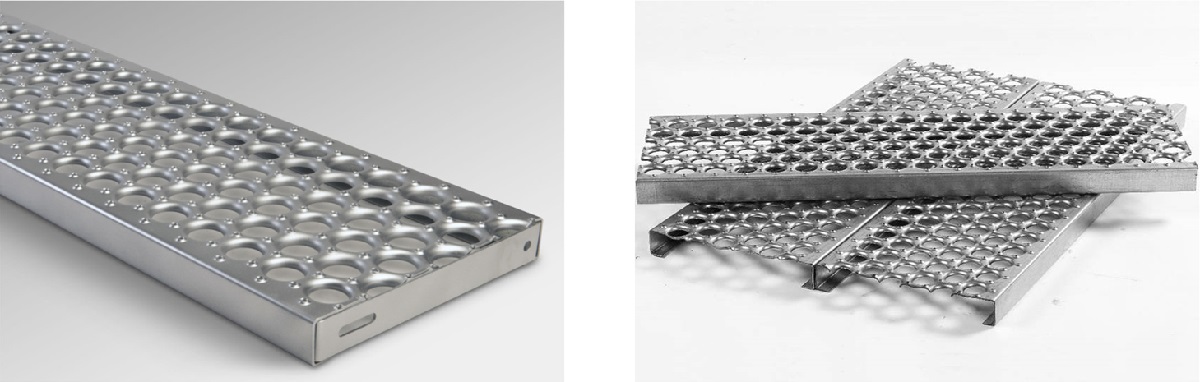

METART offers full custom-made services for open ends metal planks and safety stair treads.

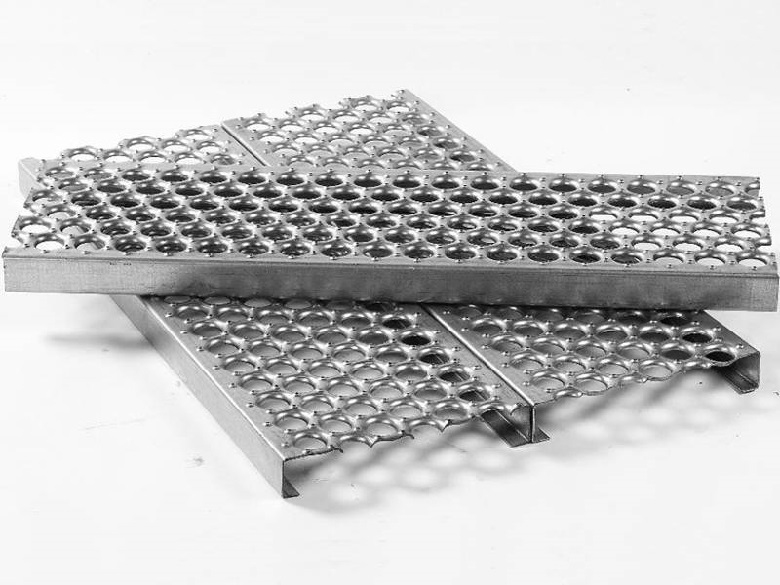

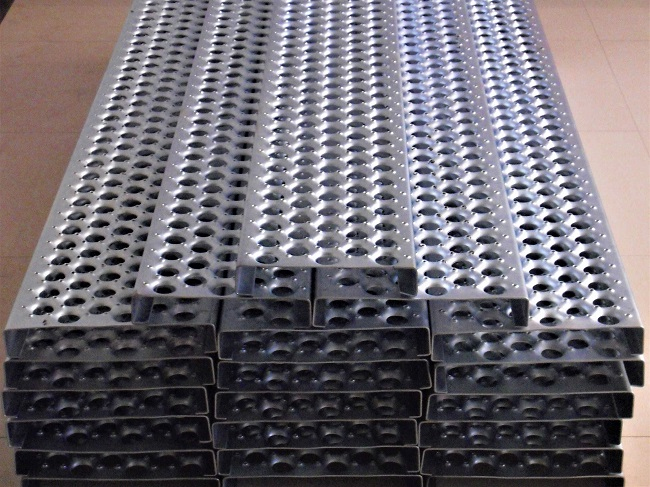

Pre-galvanized Steel and aluminum alloy are the most commonly used material for this grating. Besides these materials, we can also produce them in stainless steel, mill-finished mild steel, or have them electro-galvanized. We can’t supply a hot dip galvanized option for this pattern, as the small round hole is easy to be stuck by the zinc after coating.
For some custom-made exotic shape machine parts or truck stair treads, we can also provide a powder-coated service for this design of safety gratings.
Please refer to the following options and suggestions. METART offers custom-made specifications based on customers' requirements.
For flat perf plates without any folds, the size can be larger, please consult us for more details.
|
Pattern |
Regular |
Regular |
Regular |
Thickness Gauge |
Thickness Gauge |
Thickness Gauge |
|
Perf-O6-2 Hole |
5”+ |
Within 10' |
1.5" to 2" |
#16,#14,#13 |
0.08" or 0.1" |
#17 or #14 |
|
Perf-O6-3 Hole |
7”+ |
Within 10' |
1.5" to 3" |
#16,#14,#13 |
0.1" or 0.116" |
#17 or #14 |
|
Perf-O6-5 Hole |
10"+ |
Within 10' |
1.5" to 3" |
#14,#13,#12 |
0.1" or 0.116" |
#17 or #14 |
|
Perf-O6-6 Hole |
12"+ |
Within 10' |
1.5" to 3" |
#13,#12 |
0.1" or 0.116" |
#14 (1.9mm) |
|
Perf-O6-10Hole |
18"+ |
Within 10' |
1.5" to 3" |
#13,#12 |
0.116" (3mm) |
Not Recommended |
|
Perf-O6-13Hole |
24"+ |
Within 10' |
1.5" to 3" |
#12 (2.7mm) |
Not Recommended |
Not Recommended |
|
Perf-O6-16Hole |
30" |
Within 10' |
1.5" to 3" |
#12 (2.7mm) |
Not Recommended |
Not Recommended |
|
Note: The "+" sign means we could add some extra solid margins on each edge of the planks. Flat perforated slip-resistant plates can be made larger in size, but have to be based on standard steel width and within 3M long |
||||||
