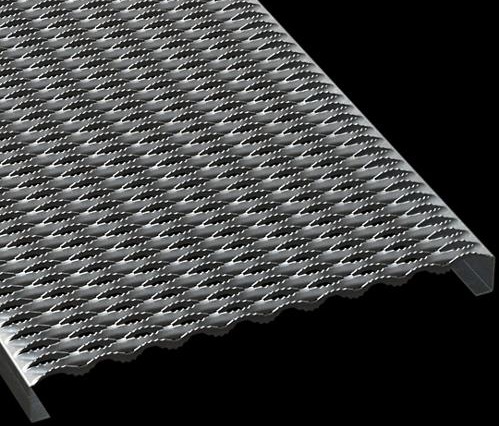

Serrated Perforated Diamond Plank Grip Strut Safety Grating
Material: Mild Steel, Galvanized Steel, Aluminum, Stainless Steel
Type: Perforated Anti-slip Mesh
Width: 4-3/4 to 36 inches, 121mm to 915mm and other custom-made sizes
Length: Within 10 inches,3048mm (up to 12 inches, 3658mm)
Height: 30-102mm and custom-made
Finish: Mill finish, Hot-dip galvanized, Electro-Galvanized, Powder Coated finish
GET A QUOTEPerforated serrated diamond safety grating is also referred to as grip strut safety grating or diamond perforated metal planks.

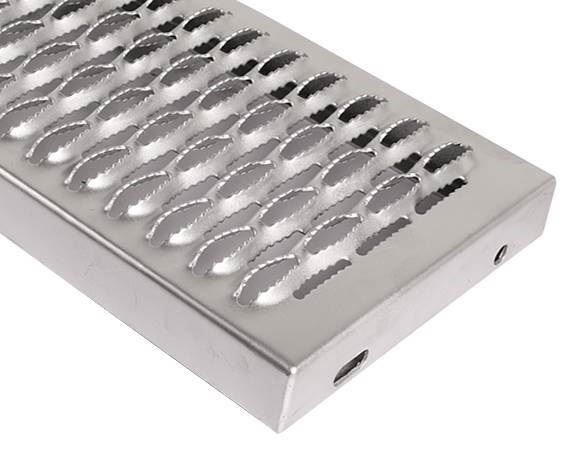

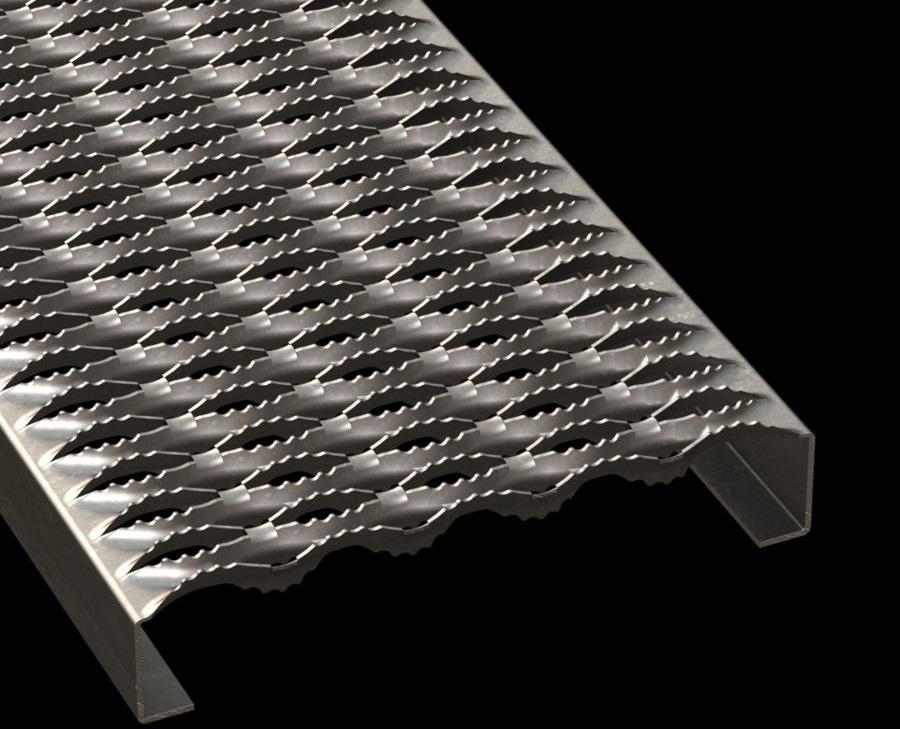

This type of grating is generally made of mild steel, hot-dip galvanized steel, aluminum alloy, and stainless steel sheets by punching and then expansion.
The special-made diamond-shaped opening is embossed to increase friction when people walk on or vehicles drive past. The serrated design offers extra force and enhances the anti-slipping features. The big opening and the sunken diamond holes allow the drainage of water, debris, mud, and chips, making it easy to be cleaned and maintained.
This pattern is the most widely used design among all the slip-resistant perforated safety grating products.

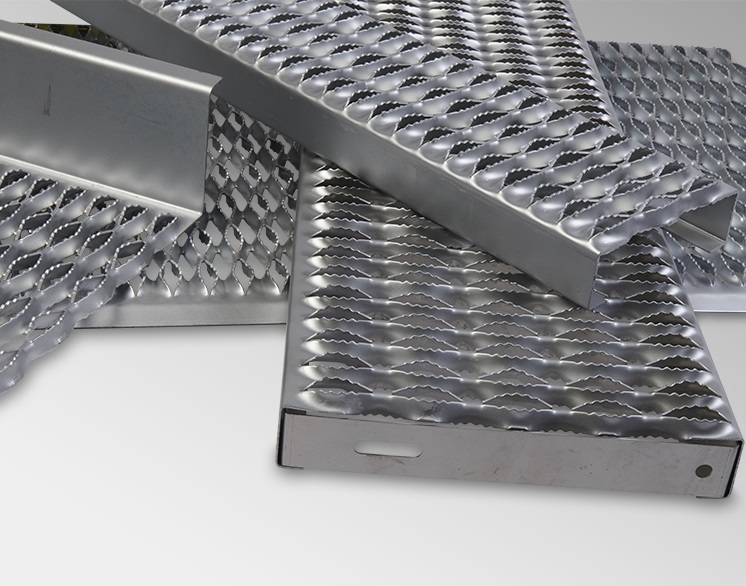

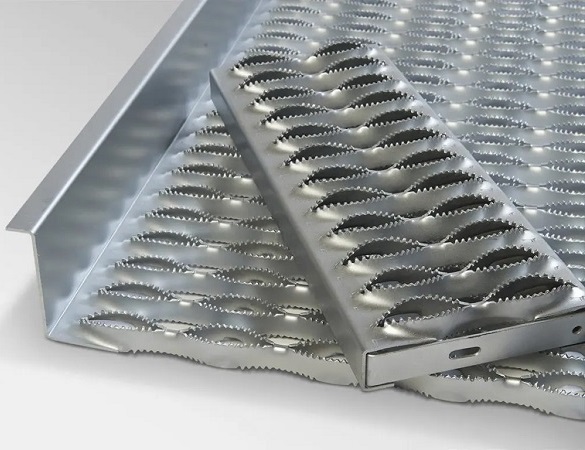

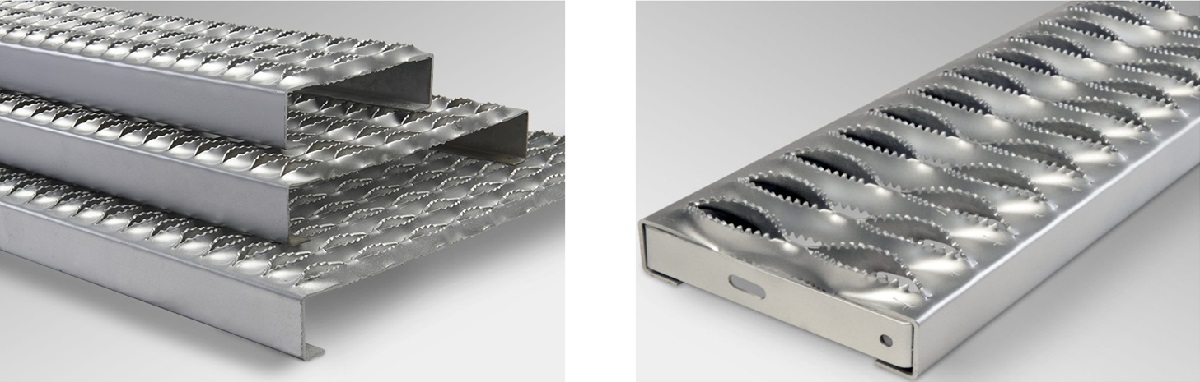

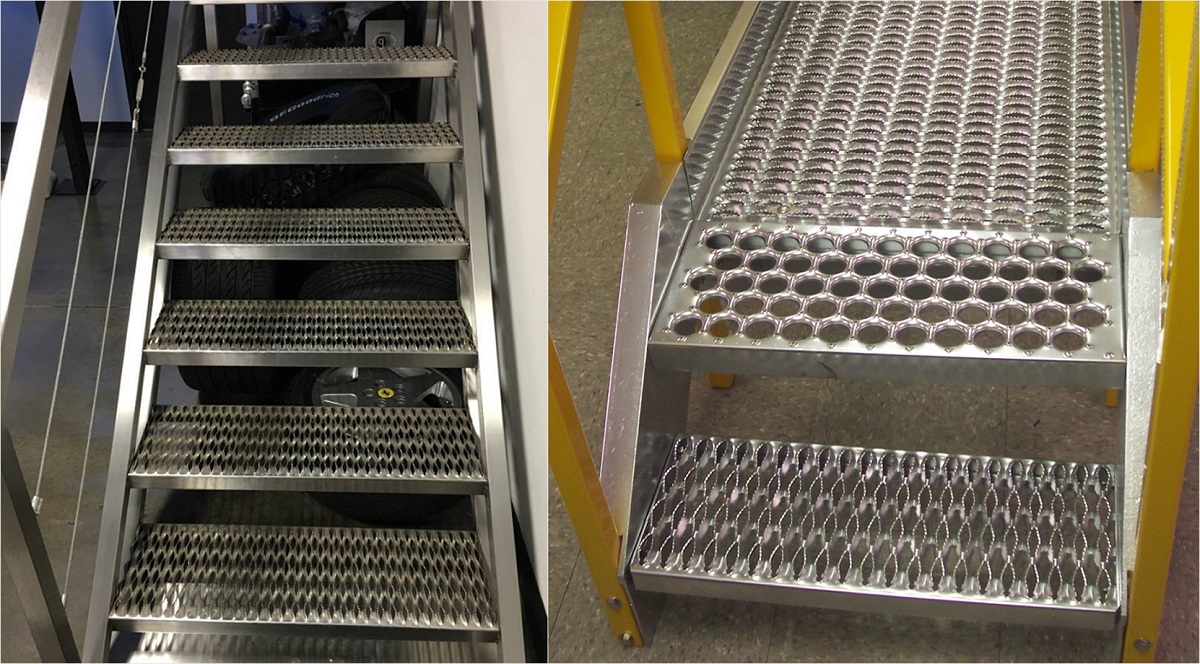

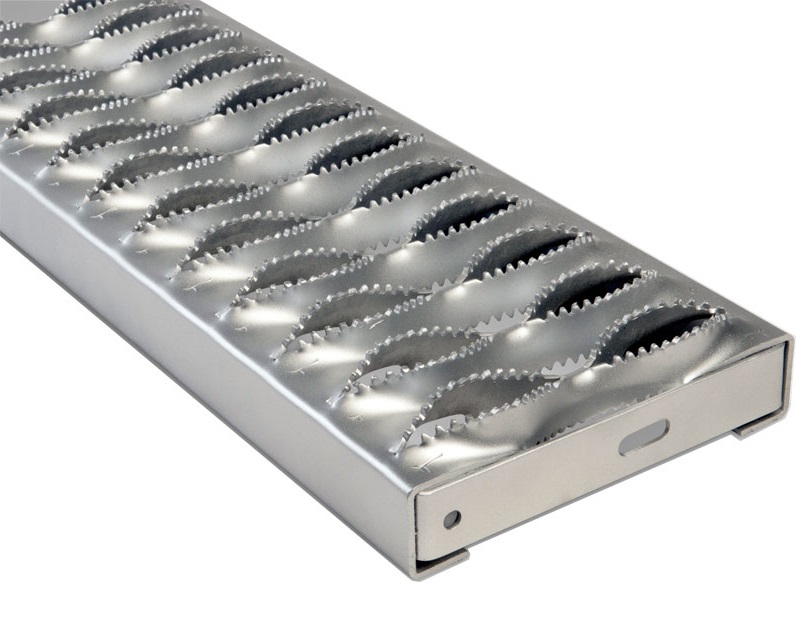

Based on different applications, the diamond serrated perforated metal can be either made into open-ended planks or with blocked ends for stair treats.

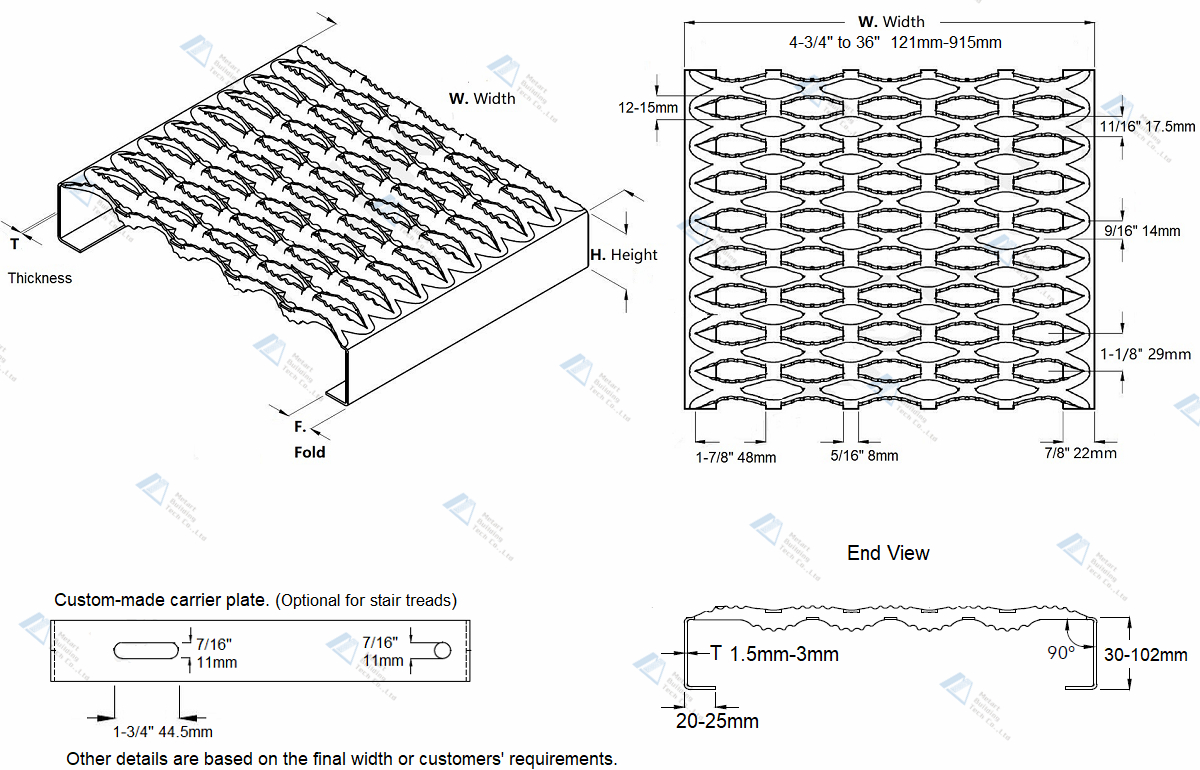

METART provides full custom-made specifications based on customers' needs. Please also refer to the following options and suggestions.
Pattern |
Regular |
Regular |
Regular |
Thickness Gauge |
Thickness Gauge |
Thickness Gauge |
Grip strut-2 Diamond |
4-3/4”+ |
Within 10' |
1.5" to 2.5" |
#16,#14,#13 |
0.08" or 0.1" |
#17 or #14 |
Grip Strut-3 Diamond |
7”+ |
Within 10' |
1.5" to 3" |
#16,#14,#13 |
0.08" or 0.1" |
#17 or #14 |
Grip Strut-4 Diamond |
9-1/2"+ |
Within 10' |
1.5" to 3" |
#14,#13 |
0.08" or 0.1" |
#17 or #14 |
Grip Strut-5 Diamond |
11-3/4"+ |
Within 10' |
1.5" to 3" |
#14,#13 |
0.08" or 0.1" |
#14 (1.9mm) |
Grip Strut-8 Diamond |
18-3/4"+ |
Within 10' |
1.5" to 3" |
#14,#13 |
0.08", 0.1", 0.116" |
#14 (1.9mm) |
Grip Strut-10Diamond |
24" |
Within 10' |
1.5" to 3" |
#14,#13,#12 |
0.08", 0.1", 0.116" |
#14 (1.9mm) |
Note: The "+" sign means we could add some extra solid margins on each edge of the planks. Flat perforated slip-resistant plates can be made larger in size, but have to be based on standard steel width and within 3M long |
