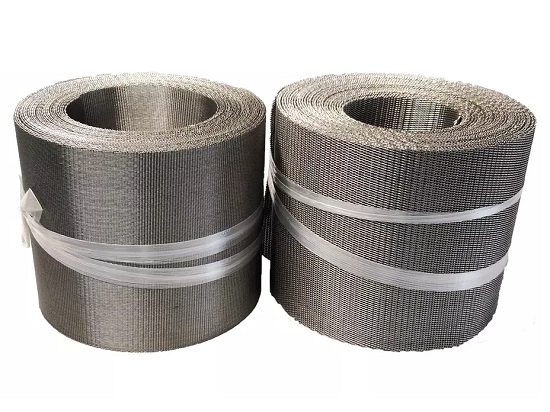

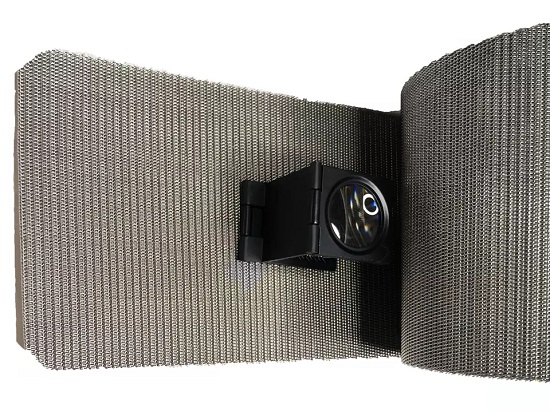

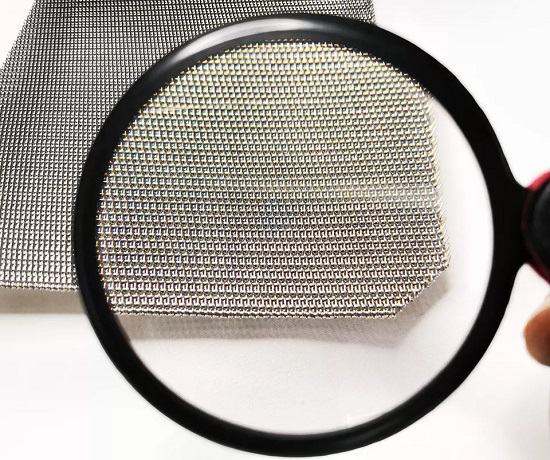

Reversed Dutch Weave Stainless Steel Mesh
Material: SS302,304, 304L. 316,316L,310S
Type: Industrial Woven Wire Mesh
Weave Pattern: Reversed Plain Dutch Weave & Reversed Twill Dutch Weave
Mesh Count: 72-350
Wire Diameter: 0.12-0.45
Standard Width: Max 400MM
Standard Length: With in 30M
GET A QUOTEReversed Dutch Weave is a pattern that is produced in reversed wire arrangement compared to its counterpart Dutch weave.
In this way, the finer wires are used as warp whereas the larger wires

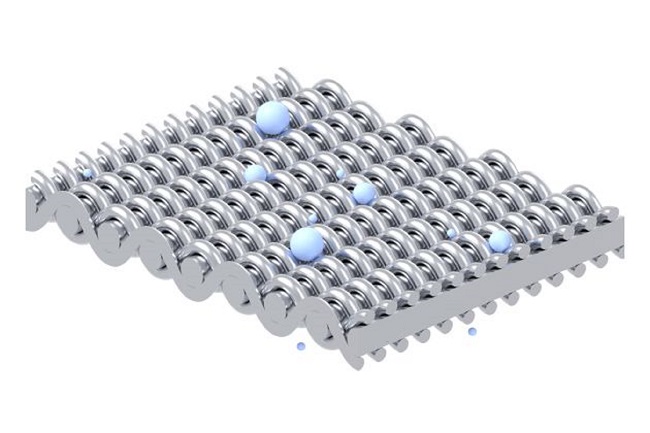

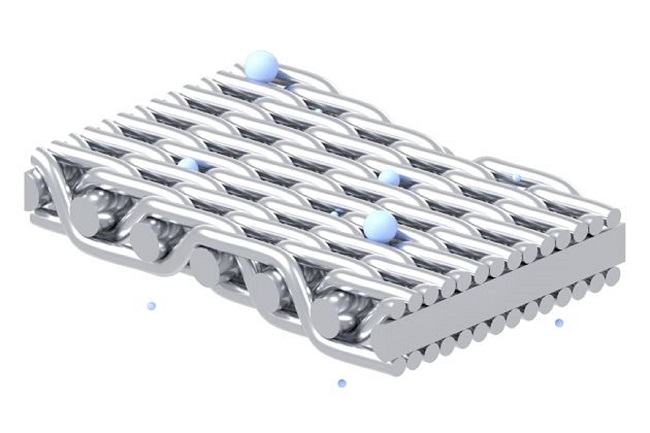

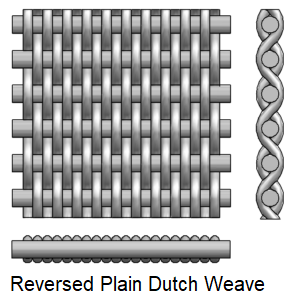

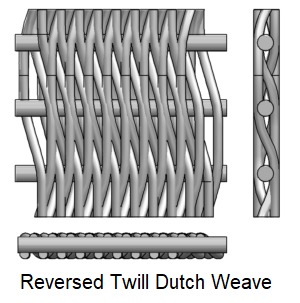

are used as weft. Same as Dutch Weave, the Reversed Dutch Weave also has two different types, which are reversed plain Dutch weave and reversed twill Dutch weave.
This woven wire cloth is widely used in solid-liquid filtration. It is proved outstandingly successful in all applications in which high demands are placed on the mechanical stability of the wire mesh due to backwashing, centrifugal filter cake removal, or the cleaning process.
Packing: Inner kraft paper, outside plastic film, and then plywood case.

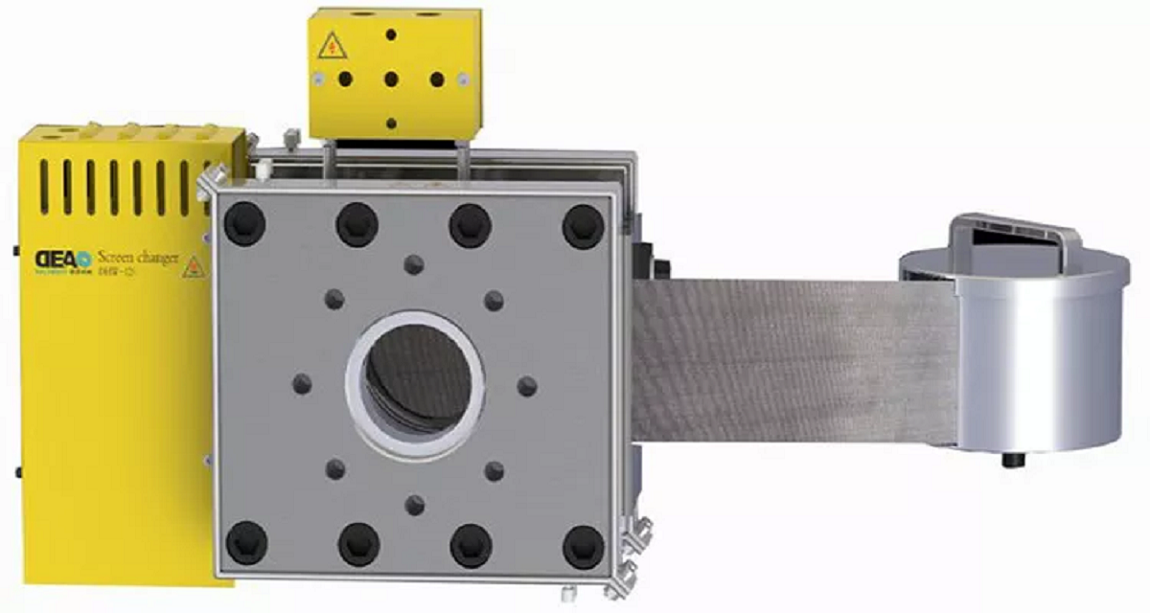

Applications: Sand control screens, Continuous polymer filters, Centrifuges, Precoat filtration, Vertical pressure leaf filters (Niagara filters), Horizontal pressure leaf filters, Backwashable cartridge filters
Lead time: 5 Days for items in stock. Custom-made items need to be negotiated.
Specification List.
Mesh Count |
Wire Diameter (in.) |
Wire Diameter (mm) |
|||
Warp |
Weft |
Warp |
Weft |
Warp |
Weft |
72 |
15 |
0.018 |
0.022 |
0.45 |
0.55 |
120 |
15 |
0.014 |
0.018 |
0.35 |
0.45 |
132 |
17 |
0.013 |
0.018 |
0.32 |
0.45 |
150 |
17 |
0.012 |
0.018 |
0.3 |
0.45 |
152 |
24 |
0.011 |
0.016 |
0.27 |
0.4 |
152 |
30 |
0.01 |
0.012 |
0.25 |
0.3 |
170 |
17 |
0.011 |
0.018 |
0.27 |
0.45 |
260 |
40 |
0.006 |
0.01 |
0.15 |
0.25 |
350 |
40 |
0.005 |
0.009 |
0.12 |
0.23 |
