Wire Mesh for Interior Design and Cladding

Pattern Code: METART-WW35-2

Type: Rigid Architectural Wire Mesh

Raw Material: Stainless Steel 304 or Stainless Steel 316

Opening Rate: 0%

Weight: Approx 17.2KG per square meter

Screen Size: Within 2000x4000MM ( for mill finish)

GET A QUOTE

Introduction

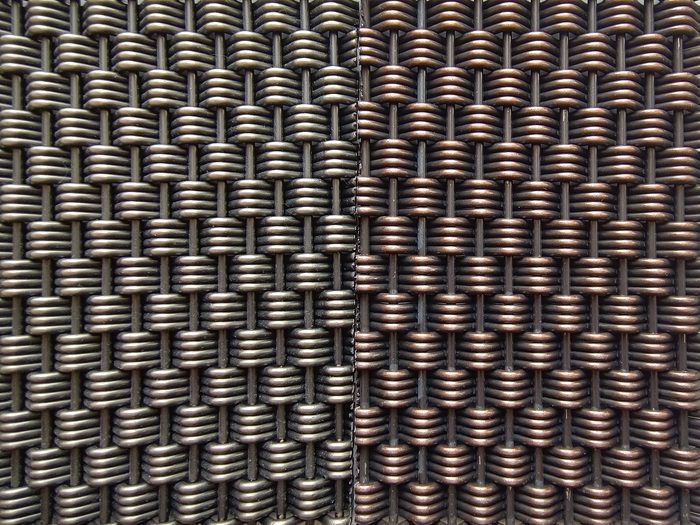

Introducing METART-WW35-2 Architectural Wire Mesh for Interior Design and Cladding

The METART-WW35-2 is a typical architectural wire mesh screen, primarily designed for commercial interior cladding and decoration.

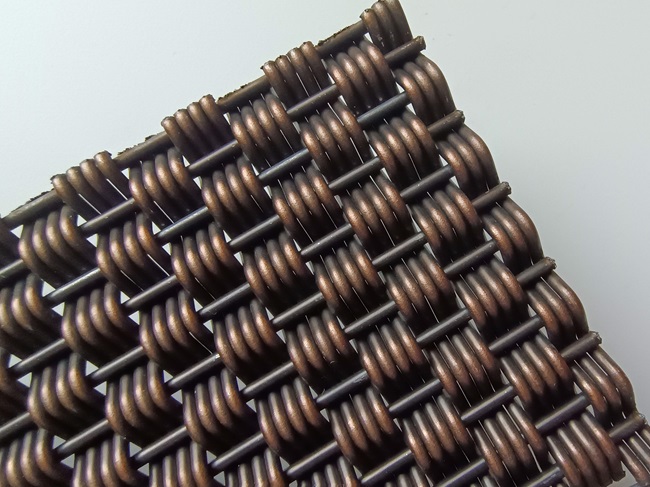

Similar to other decorative cladding wire meshes, this architectural metal mesh is an artistic fusion of crimped wires and straightened wire rods.

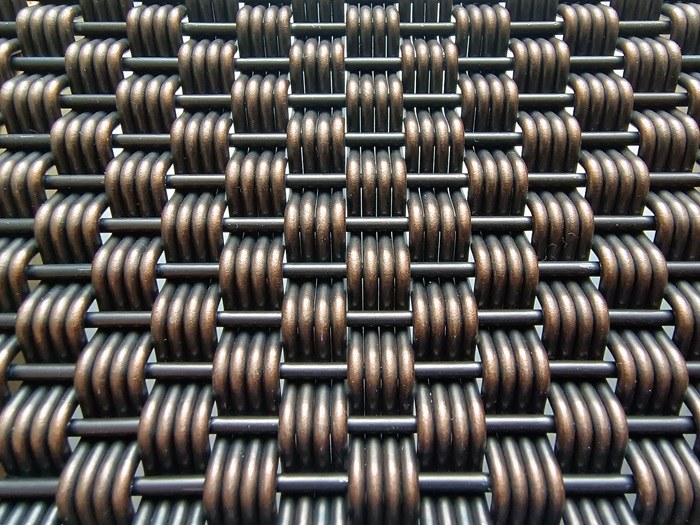

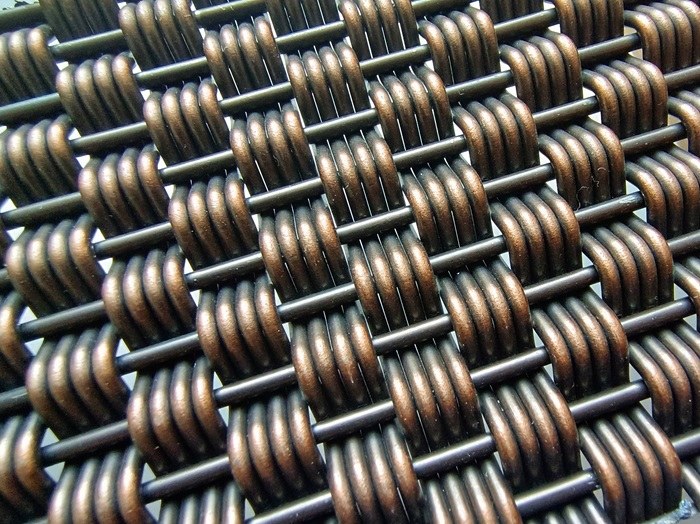

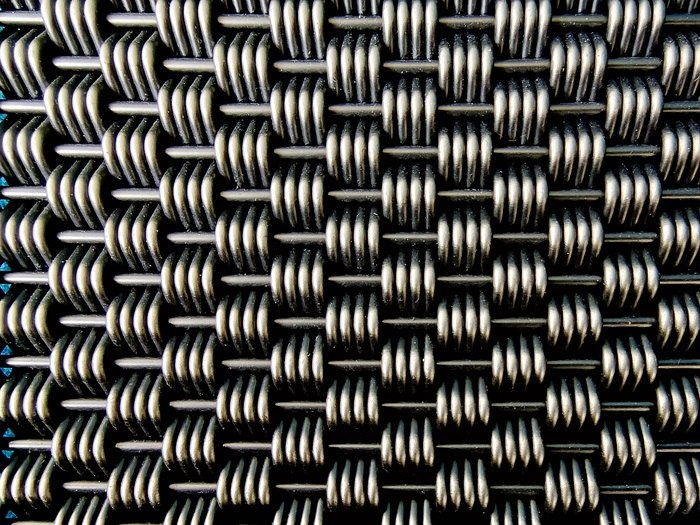

It features an innovative design where four crimped decorative wires form one group, with adjacent wire groups woven in the opposite direction.

This staggered weaving pattern enhances the visual appeal, offering a sophisticated aesthetic experience.

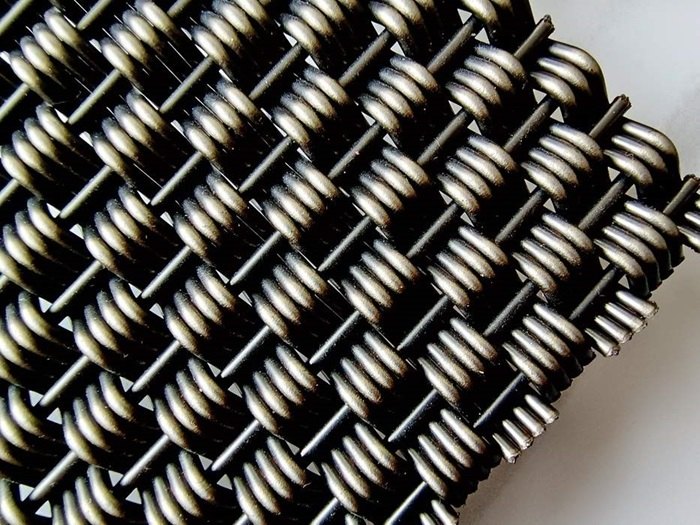

Explore the Weaving Structure

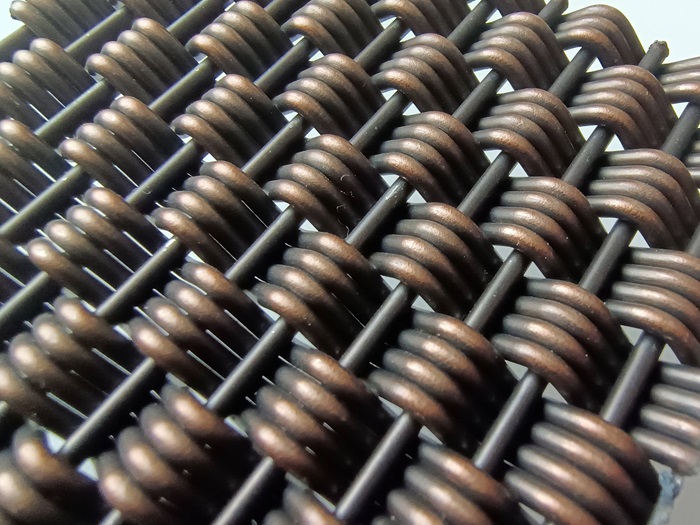

Both the warp and weft wires are crafted from nominal 2mm stainless steel wires, with an actual measurement of 1.95mm.

Warp Direction: Adopting 1.95mm roller-straightened stainless steel wire rods. Our default material is SS304-grade stainless steel.

Weft Direction: Consists of 1.95mm crimped wires, grouped in sets of four pieces.

Specification Overview

Materials	SS304, SS316, SS201, true brass, copper, bronze, etc.
Type of Wire Mesh	Rigid Architectural Wire Mesh
Wire Rod Diameter	1.95mm
Crimped Wires (4 wires)	1.95mm each wire
Wire Rod Pitch	6mm
Opening	0mm
The overall thickness of the wire mesh	5.6mm
Opening Area	0%

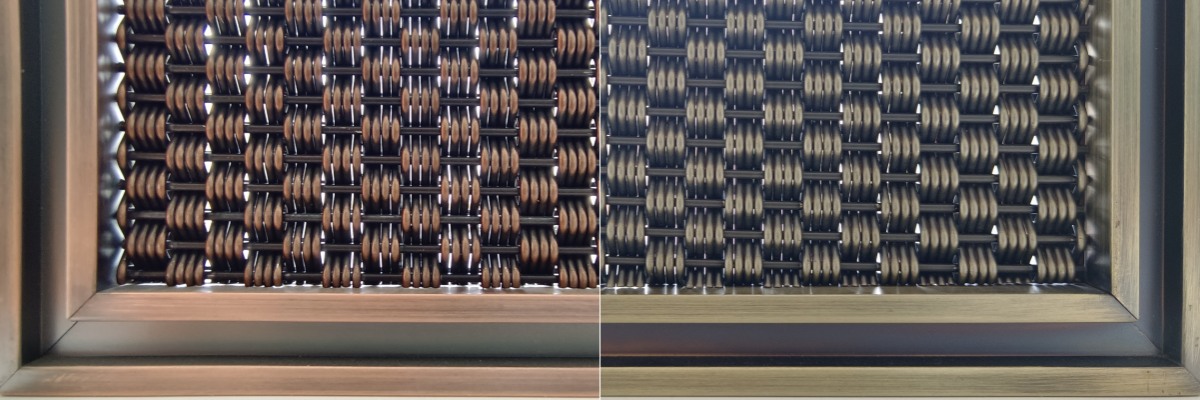

Privacy Rate	100%
Weight	17.2kg/Square Meter
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut

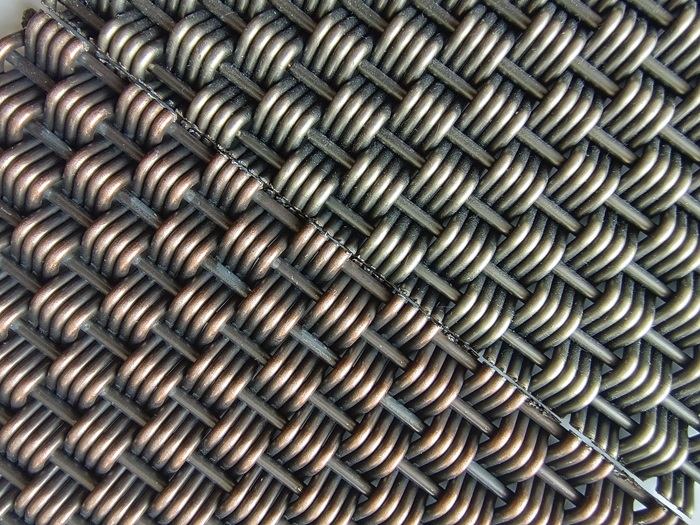

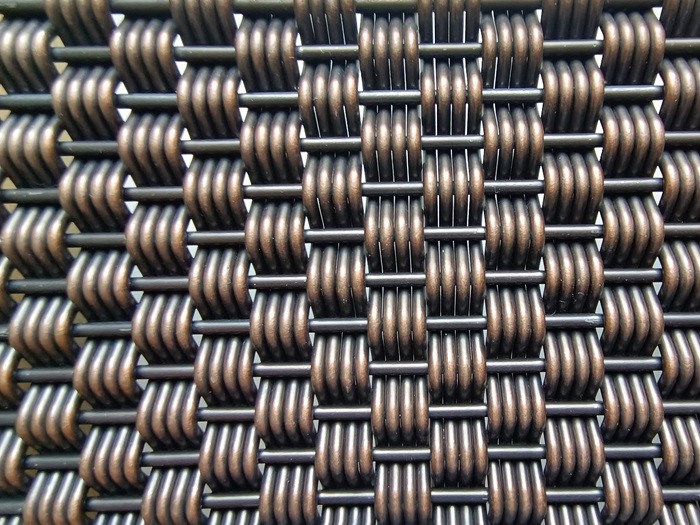

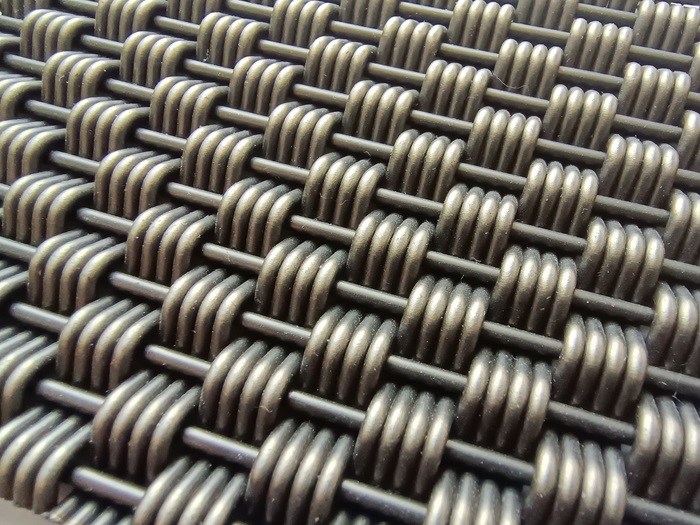

All optional Finishes	Mill Finish ( Original stainless steel finish）, Antique Bronze plated, Antique Copper plated, Antique Brass plated, PVD titanium plated
