INTRODUCING "METART-WW04C412" - A PERFECT WIRE MESH ELEVATOR CLADDING MATERIAL

"METART-WW04C412" architectural wire mesh is a perfect wire mesh for elevator cladding.

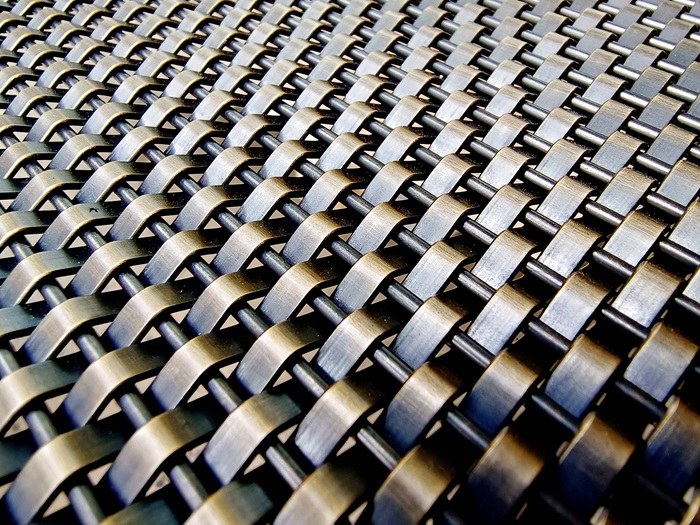

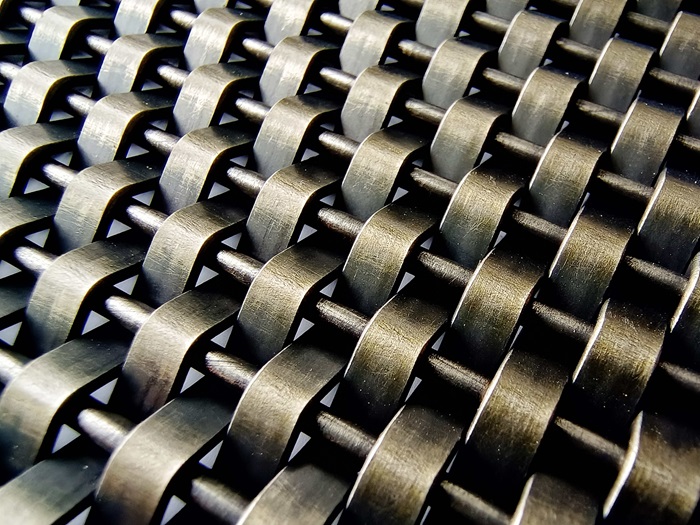

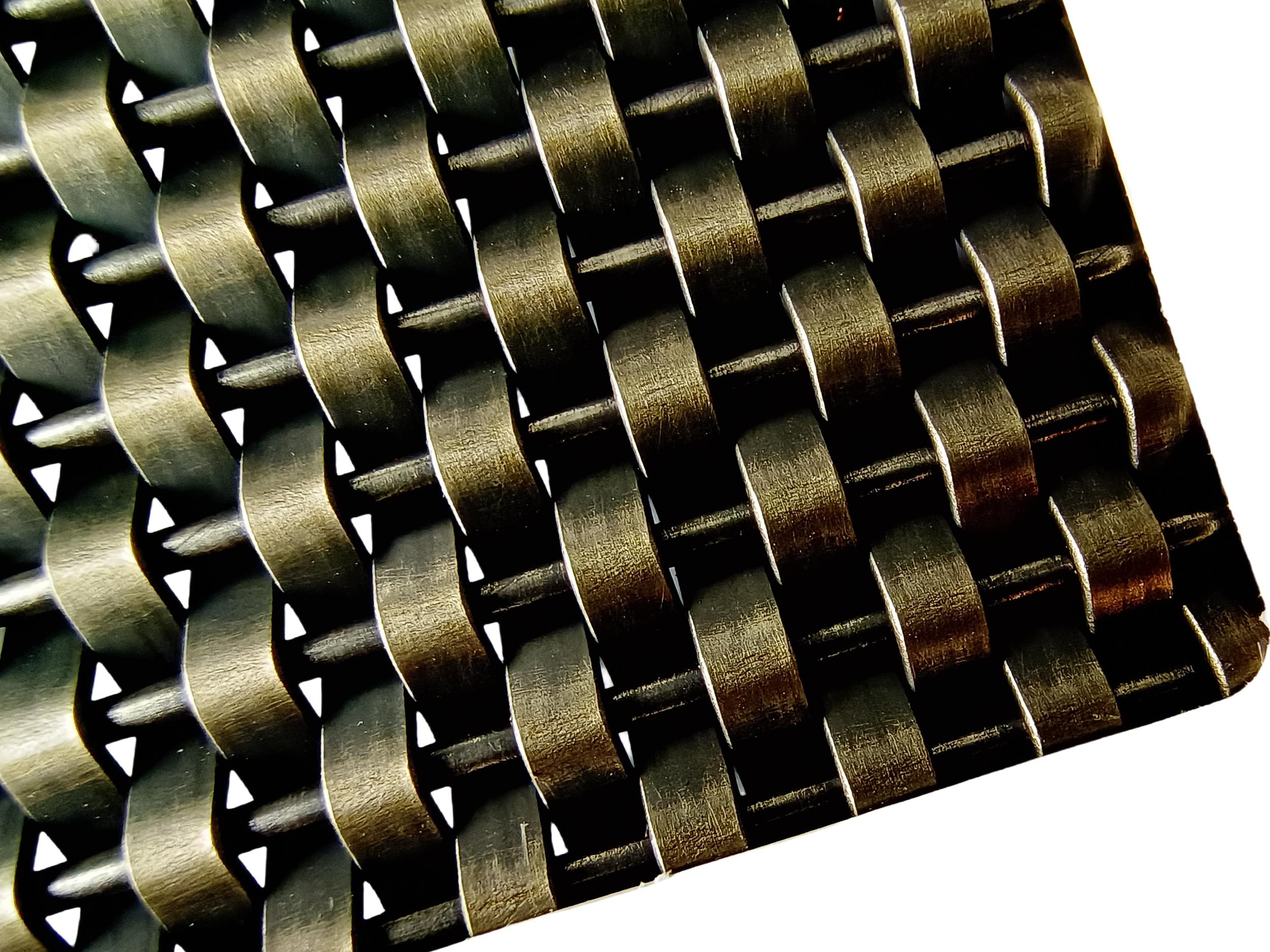

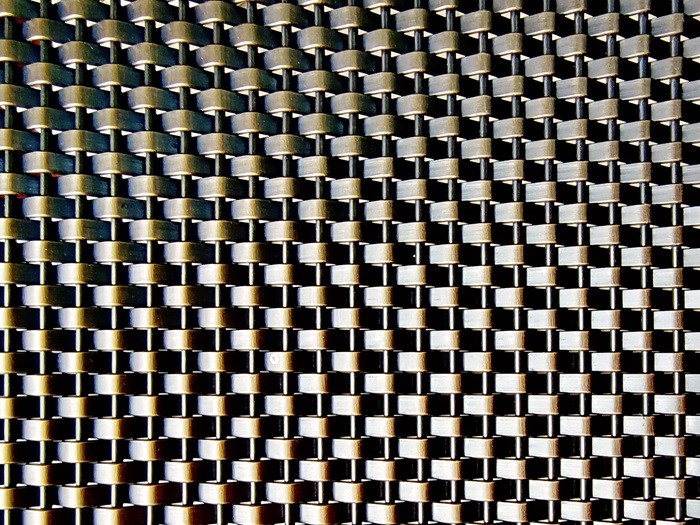

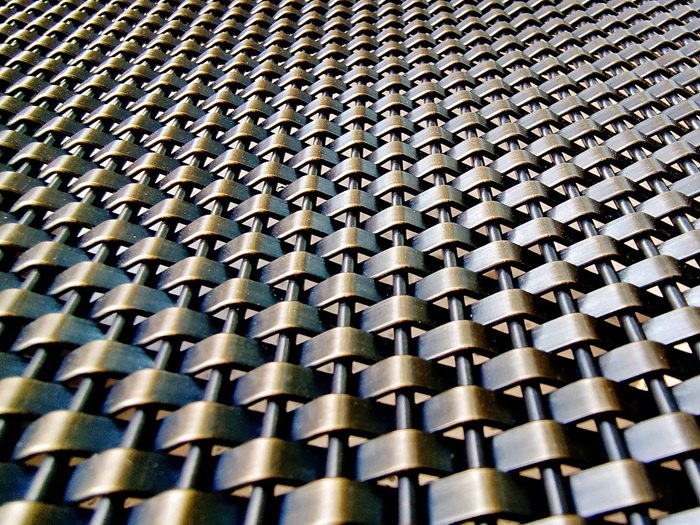

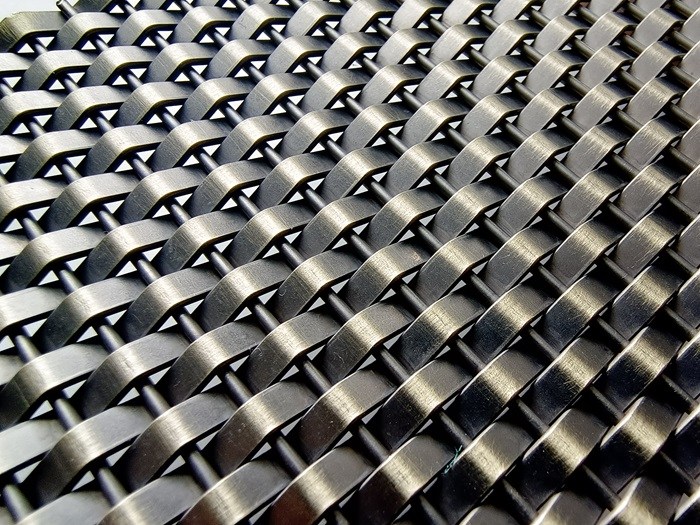

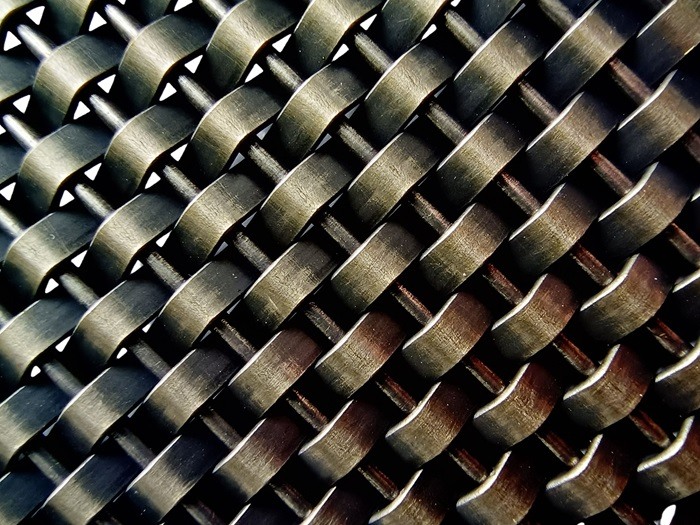

This decorative wire mesh panel is made of flat metal strips and straightened metal rods. The metal strips are 4mm wide and 1mm thick, while the wire rods are 2mm thick. They're tightly woven to form a sturdy, smooth decorative sheet metal-like wire mesh panel on both sides.

With no openings but a good ventilation rate from the tiny spaces created by the crimping of the metal strips, this architectural pattern is an ideal wire mesh elevator cladding metallic material.

EXPLANATION OF ARCHITECTURAL WIRE MESH PATTERN CODE METART-WW04C412

"METART" - Our business and brand name.

"WW04 - It is one of the variant patterns from the "METART-WW04" family.

"C" - Crimped. This decorative wire mesh is made of pre-crimped metal strips, it is also a kind of crimped wire mesh.

"4" - The width of the crimped metal strips is 4mm, with a reasonable tolerance, the actual measurement will range from 3.95mm - 4mm.

"1" - The thickness of the metal strips, 1mm is the nominal thickness of the metal strips. The actual thickness will range from 0.9mm to 0.95mm based on the regular availability in the Chinese stainless steel market.

"2"- The wire diameter of wire rods。 2mm is also the nominal diameter of the rods. The actual diameter is approx 1.95mm.

Specification Overview

BESPOKE WIRE MESH FABRICATION SERVICES.

As one of the leading architectural wire mesh manufacturers in China, our factory produces bespoke architectural metal mesh for your elevator cabin cladding projects.

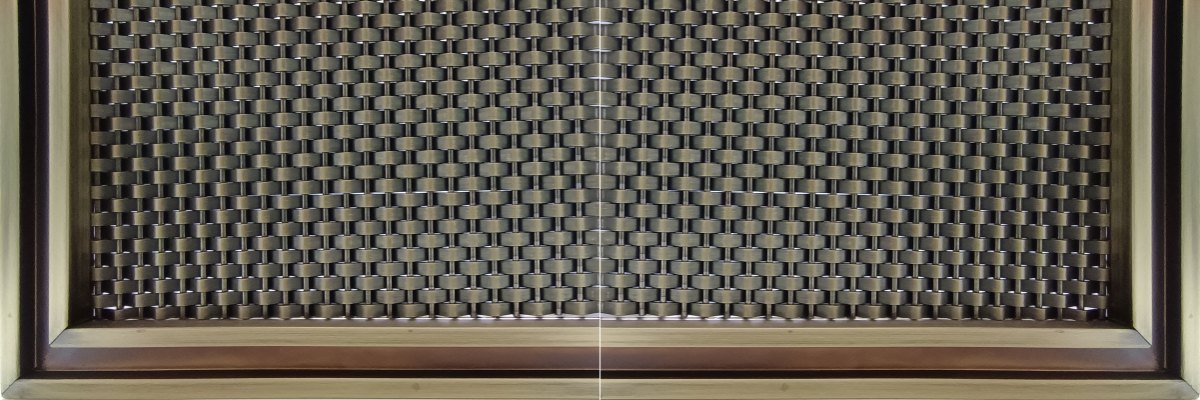

We offer precise laser cutting services to exotic shapes and various framing solutions. The infill wire mesh panels can be welded onto stainless steel angles or customized frames made by folding.

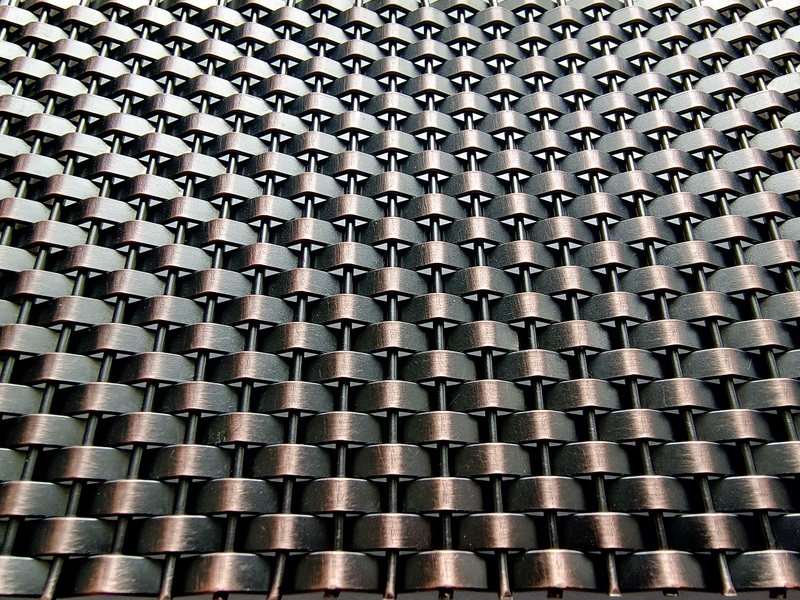

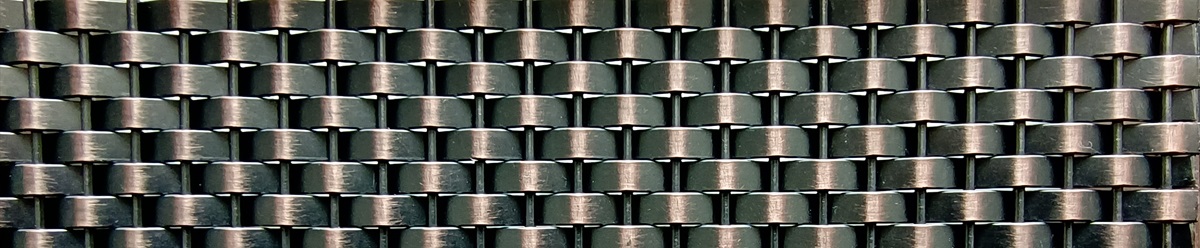

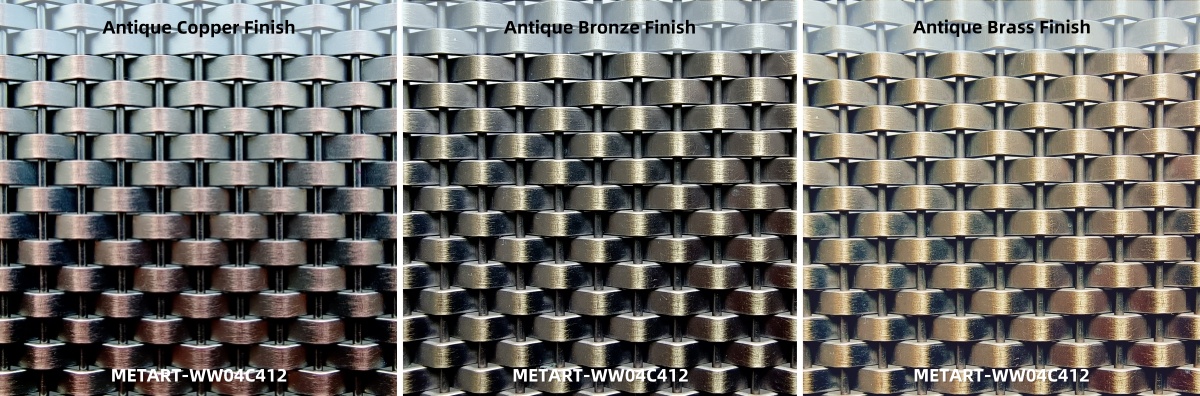

After the framing process is done, the overall screens can be either copper & copper alloy plated or PVD plated based on customers' requirements.

If you want a budget-friendly finish, you can also choose a regular baking-painted finish according to your needs, you can refer to an RAL color chart and quote the RAL number.
