Architectural Decor Wire Mesh / Budget Architectural Wire Mesh

Architectural Wire Mesh METART-WW26DB Budget friendly wire mesh for commercial cladding

Specification

Pattern Code: METART-WW26DB

Materials: SSS304 / SS316 / SS201, copper, brass, bronze and other alloy.

Type: Rigid Architectural Wire Mesh

Opening rate: 45%

Weight: Approx 6.4 kg per square meter

Sheet Size: Within 3M x 4M( for mill finish )

GET A QUOTE

Introduction



INTRODUCING ARCHITECTURAL WIRE MESH PATTERN "METART-WW26DB"

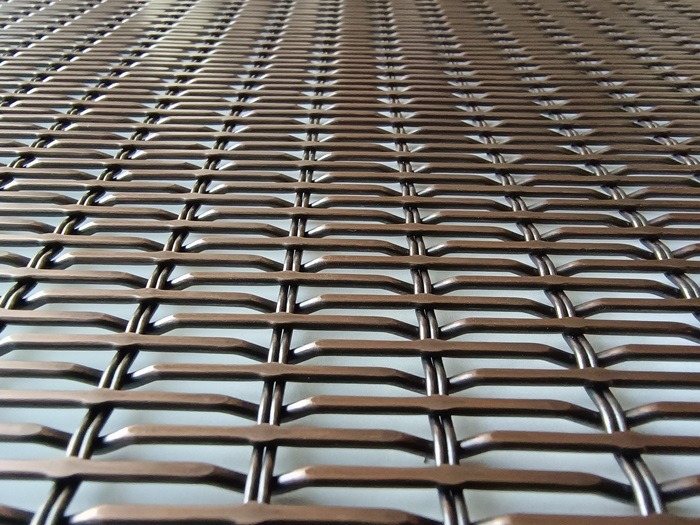

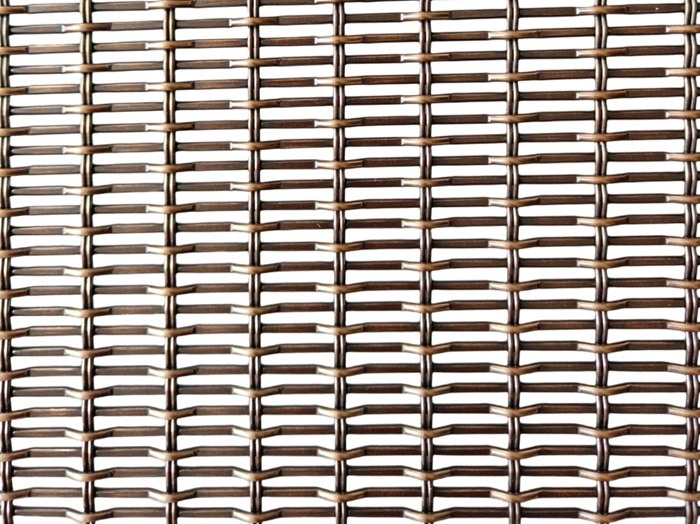

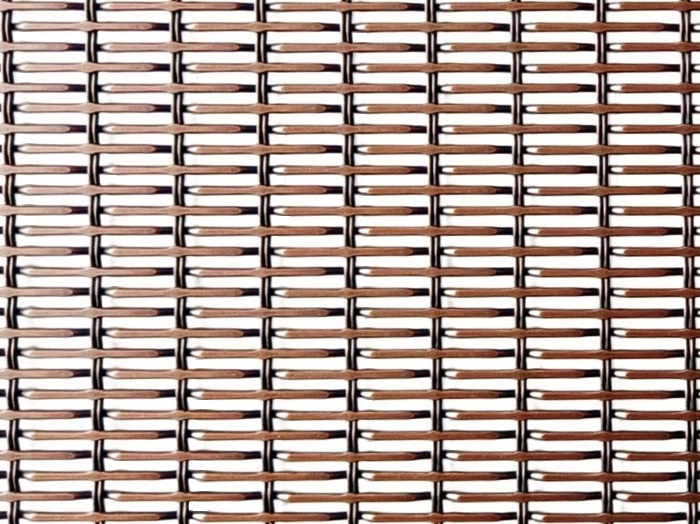

Architectural wire mesh METART-WW26DB is one of the fancy variants from the METART-WW26 series.

"DB" symbolizes double wires. This architectural wire mesh design keeps most of the features of "WW26".

But there are a few tweaks to the formation of wires, including the following;

1. The weft wires are made of two pieces of 1.2mm double wires instead of the original 1.5mm single wire in"WW26"

2. Since the double wires increase the width of the weft wires, the crimps of the warps wires are made a bit wider than their original design to make the double wires easily fit in.



Specification Overview.

Optional Materials

SS304, SS316, SS201, Aluminum, Copper, Brass, Bronze

Type

Rigid Architectural Wire Mesh

Wire Strip

2.2x1.5mm

Wire Rod Diameter

1.2mm x 2 wires

Clear Hole Size

2x15.3mm

Strip Pitch

4.2mm

Rod Pitch

16.6mm

The total thickness of the fabric

3.6mm

Opening Area

41%

Privacy Rate

59%

Weight

6.4kg/Square Meter

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish ( Original stainless steel finish）,
Antique Bronze plating,

Antique Copper plating,

Antique brass plating,

PVD titanium plated,

Regular Painted, PVDF Coated,



DUAL-SIDED DECORATIVE SURFACES

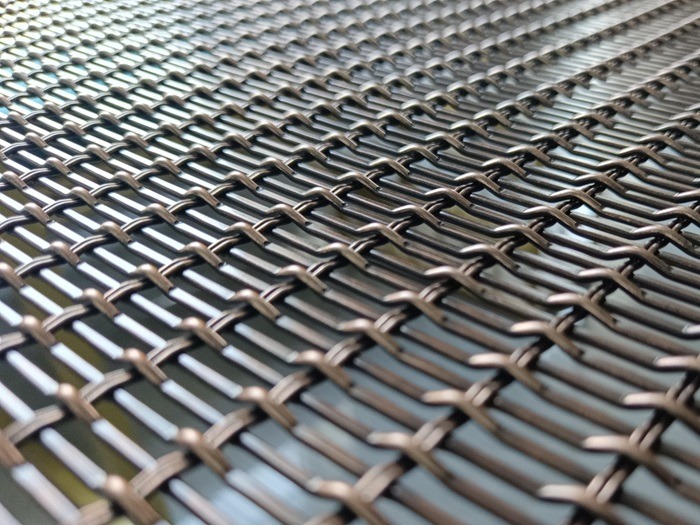

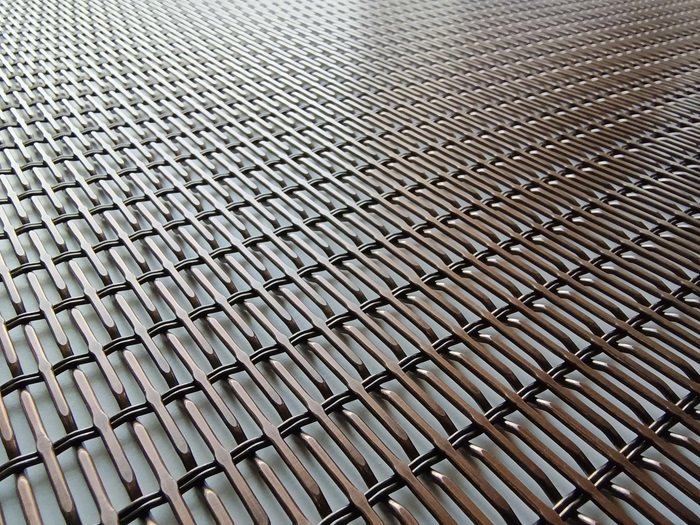

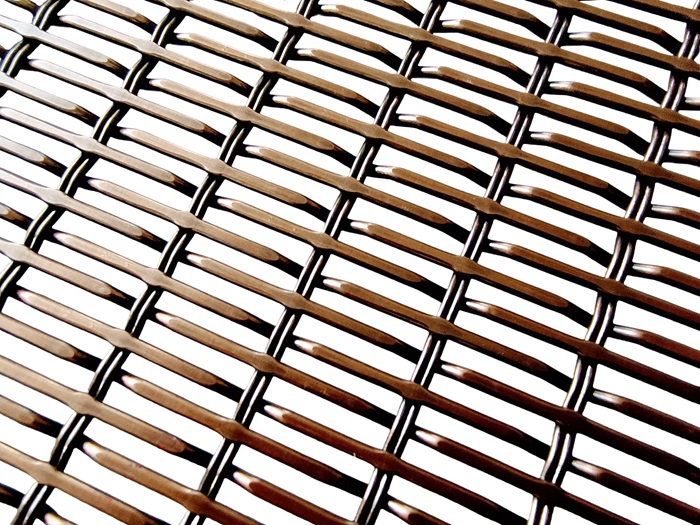

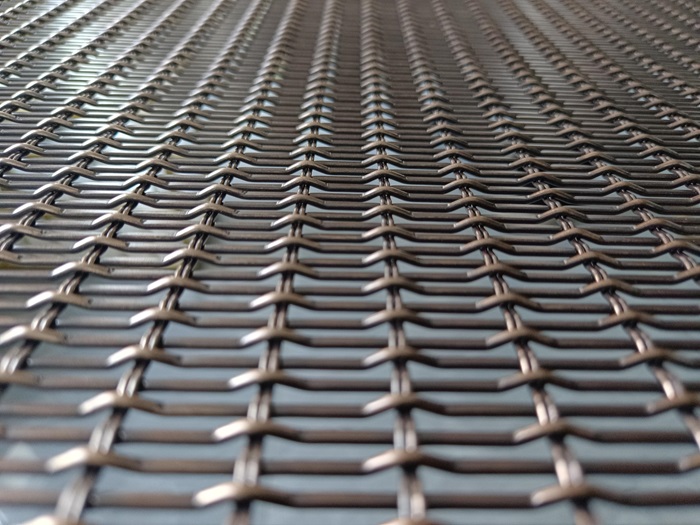

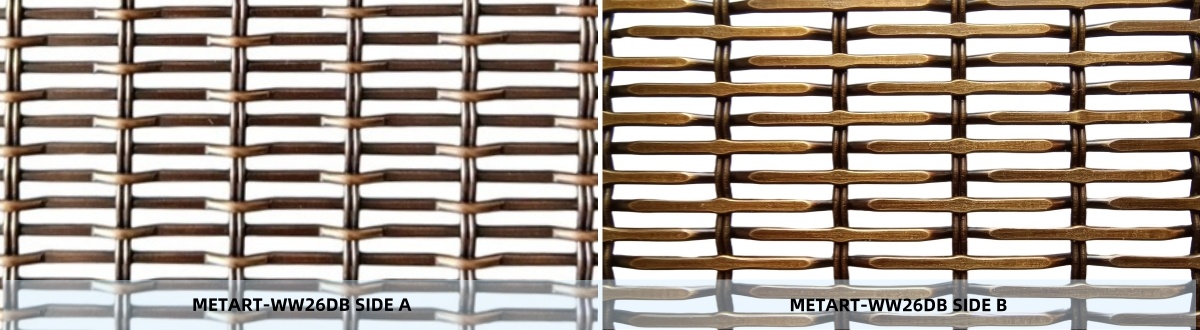

Like WW26, METART-WW26DB is also a dual-sided architectural metal mesh, side A features crimps, but side B features a relatively flat surface.

Both sides can be used for decorative sides.



CUSTOMIZABLE FINISHES

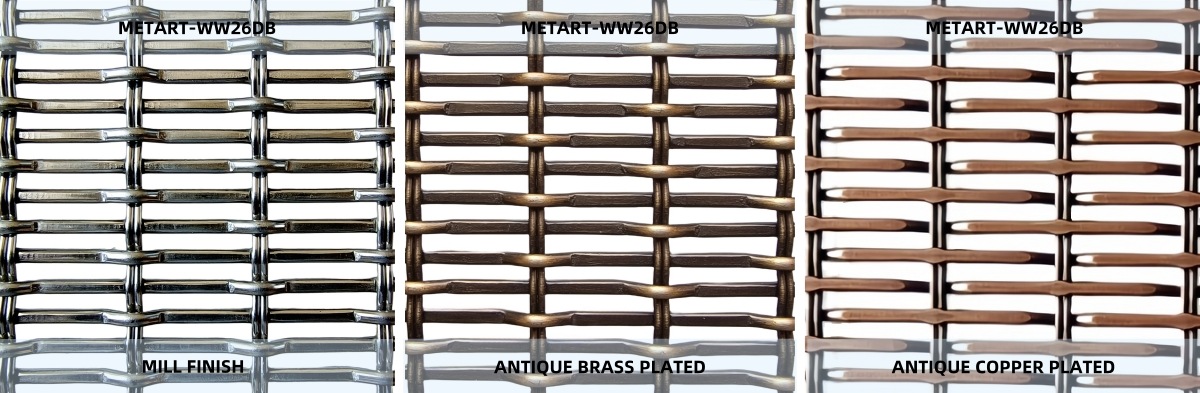

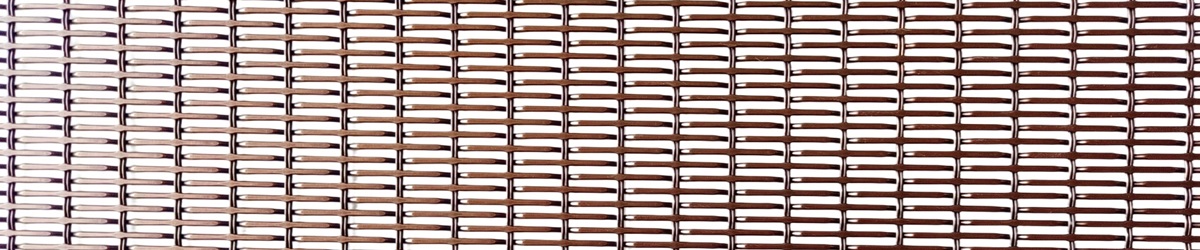

This architectural metal mesh is often made of stainless steel. Even though stainless steel has a natural gloss on its surface, it is not decorative enough for architectural decorations. The following picture will showcase 3 of our major finishes: mill finish ( the original stainless steel finish after it is produced), antique brass plated finish, and antique copper plated finish.




WIDE-RANGING APPLICATIONS

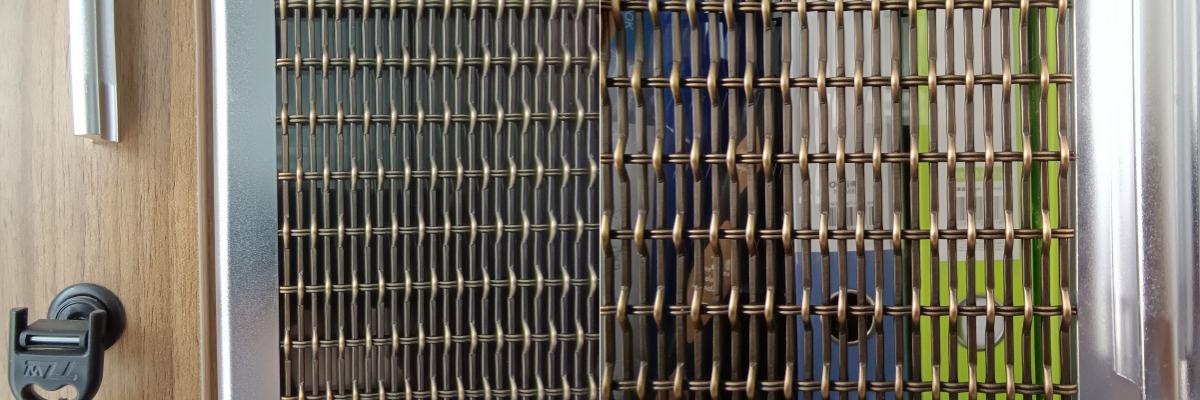

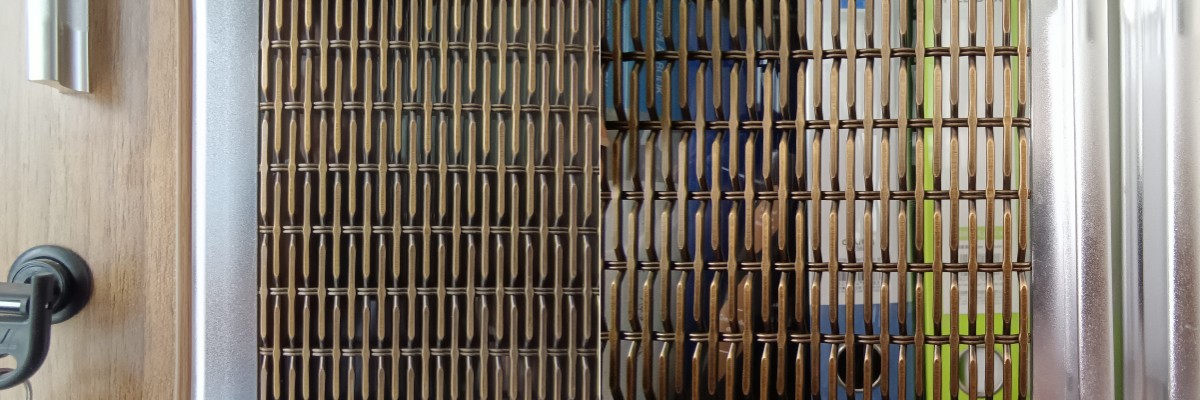

This architectural woven wire mesh is widely used for many different commercial cladding projects. It is a perfect infill panel for most cabinets, including modern kitchen, office, and wine cabinets.

The double-wire design enhanced the strength and rigidity of this architectural mesh. It can be used for commercial partition screen infills and railing infill wire mesh.
