METART-WW22-Stainless Steel Wire Mesh Grid - Good infill mesh panels for cabinet doors

Specification

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Wire Mesh Grid

Opening Area: 41.5%

Weight: Approx 6kg/Square Meter

Finish: Antique Brass Finish ( other finishes vailable)

Screen Width: Within 3000MM

Screen Length: Within 30Meters Roll (Mill Finish only)

GET A QUOTE

Introduction

METART-WW22 is a simple but stylish architectural woven wire mesh design.

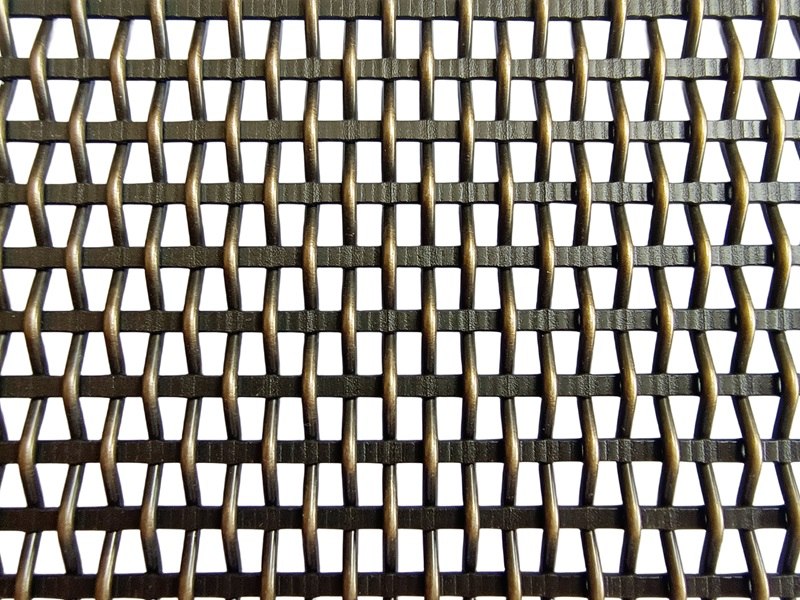

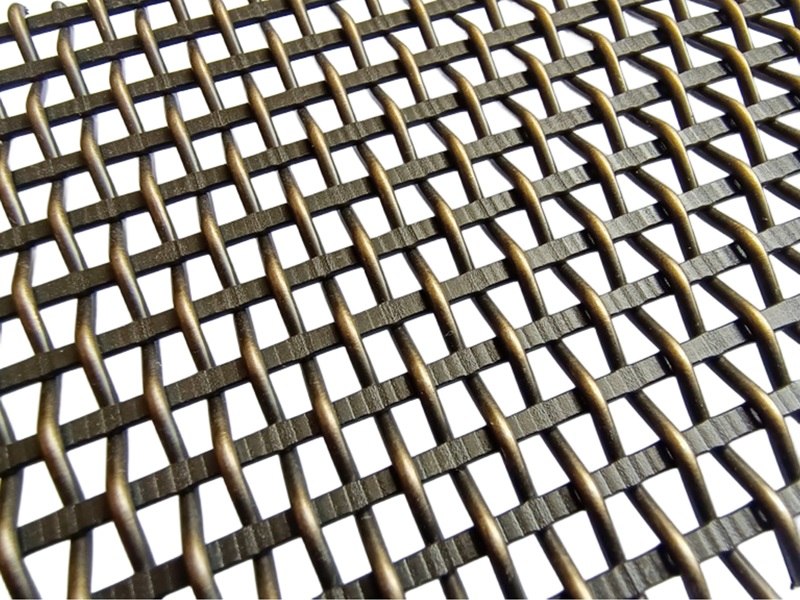

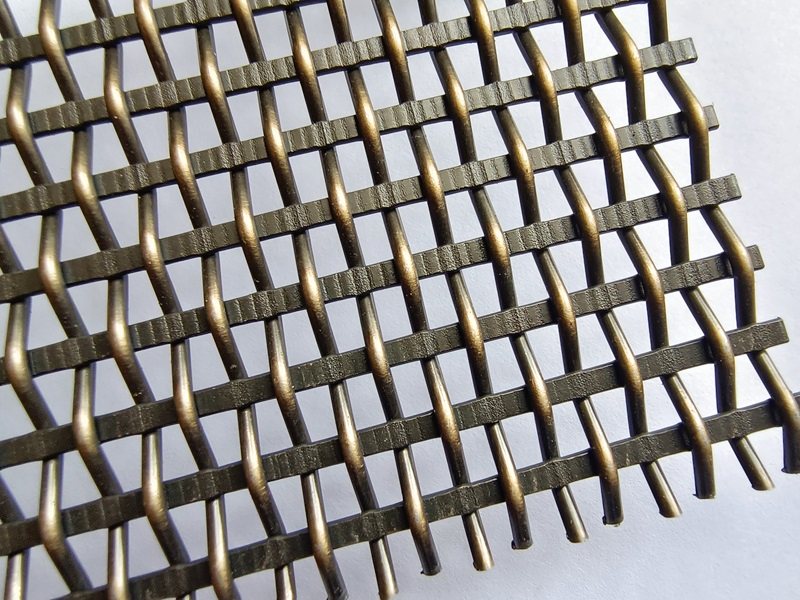

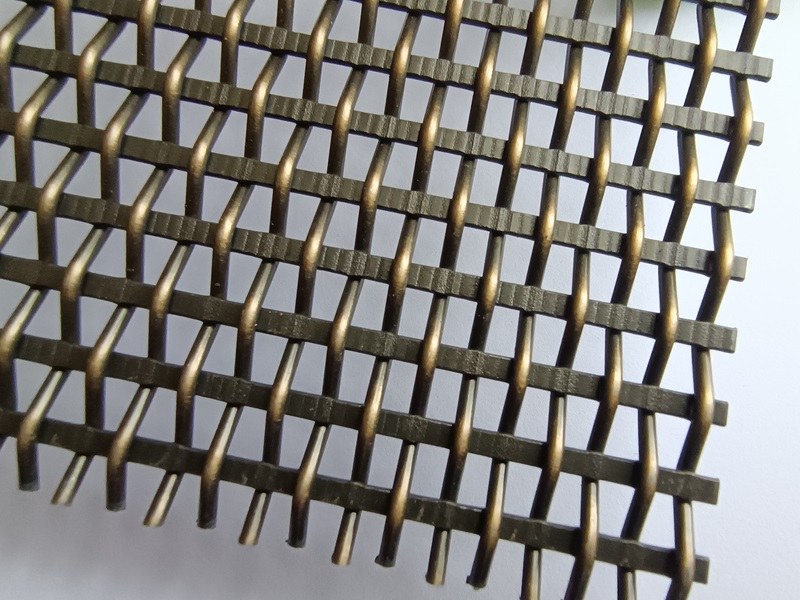

The exhibited sample is a stainless steel wire mesh grid that is plated into an antique brass finish.

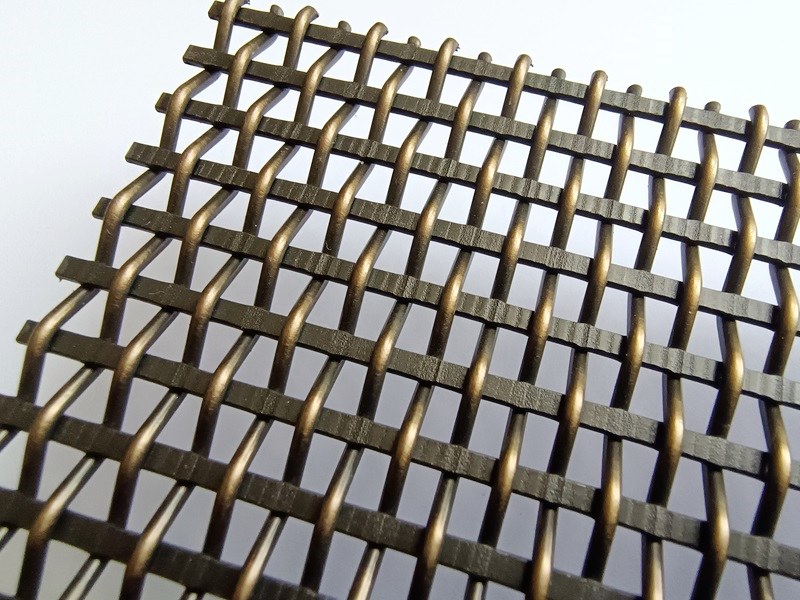

This designer woven wire mesh grid is a combination of small-sized pre-crimped flat strips with a textured finish and common round stainless steel wires.

The designer wire mesh is mainly made of stainless steel, you can choose to customize different surface treatments and different colors.

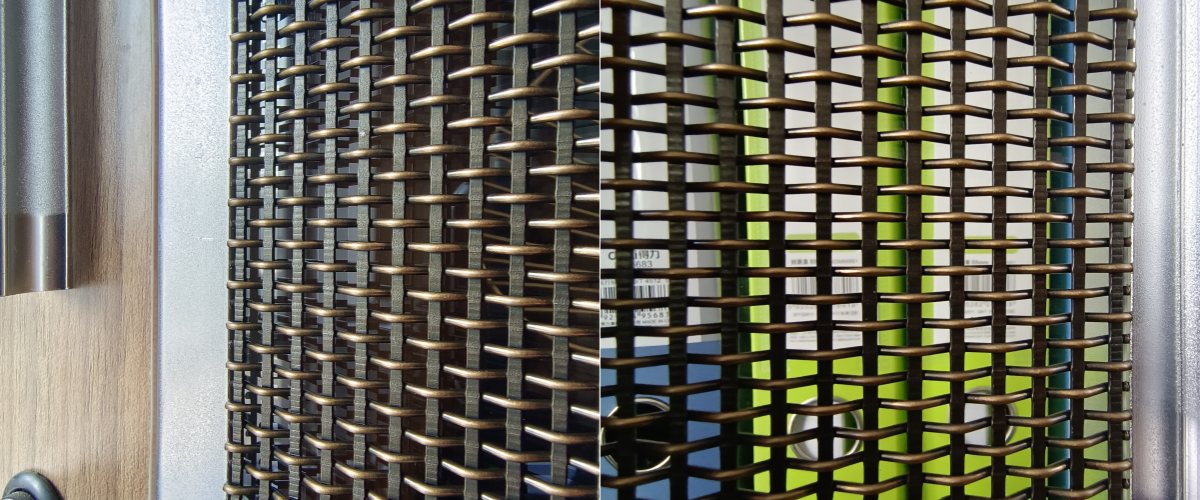

METART-WW22 stainless steel grid mesh pattern is suitable for both commercial and residential building projects, including partition screens, interior wall decoration, cabinet door mesh, decorative vents covers, ceiling metal mesh, etc.

Please refer to the following specifications.

Optional Raw Materials

Stainless Steel 304, 316, 201

Type of Mesh

Rigid Wire mesh

Wire Strip

2x1mm

Wire Rod Diameter

1.45mm

Clear Hole Size

2.4x4mm

The total thickness of the fabric

3mm

Opening Area

41.5%

Block out

58.5%

Privacy Rate

58.5%

Weight

6kg/Square Meter

Finish

Antique Brass Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

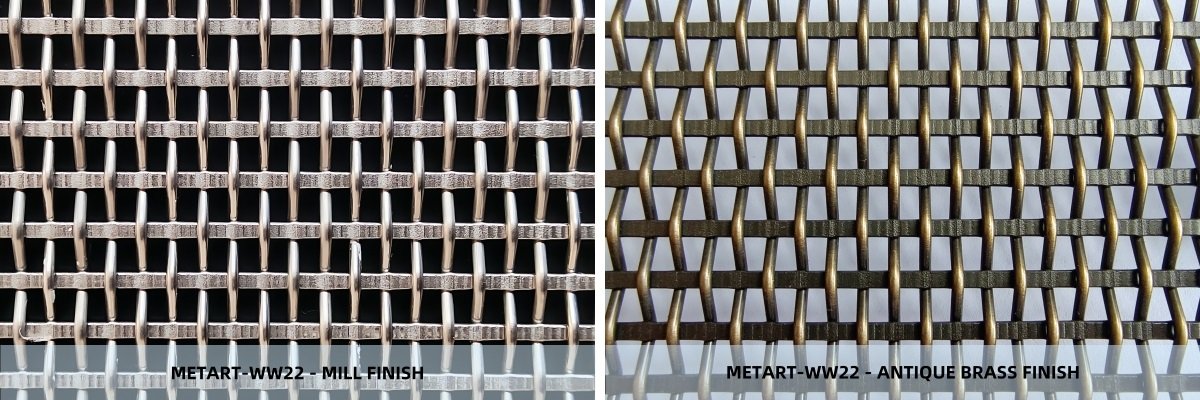

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate,

PVD plated,

Regular Painted,

PVDF Painted,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
