Decorative Wire Mesh Panels
Pattern Code: METART-WW54
Type: Rigid Decorative Mesh
Material: AISI 304 stainless steel, AISI316 stainless steel (Marine Grade), SS201
Opening Rate: 46%
Finish: Antique Copper Finish ( other finishes vailable)
Max Width: 4000MM (13 feet ) mill finish only
Max Length: 5000MM (16.4 feet) mill finish only.
GET A QUOTEDISCOVER HOW METART-WW54 DECORATIVE WIRE MESH PANELS MANUFACTURED.
METART-WW54 is one of our stylish rigid decorative wire mesh panels. This decorative wire mesh pattern features a combination of 3 different wires: 3x1.5mm wire strips, 2.95mm reinforced crimped wires, and 1.5mm decorative stainless steel wires.
The warp wire consists of pre-crimped stainless steel wire groups, comprising a sturdy nominal 3mm wire accompanied by two smaller 1.45mm crimped wires. This design not only enhances the structure but also serves ornamental purposes. These three wires are repeated at intervals of approximately 21mm and woven together by inserting 3x1.5mm wire strips at a pitch of about 26mm. This is how the decorative wire mesh panels is produced.
Specification overview.
|
Pattern Code |
METART-WW54 |
|
Raw Materials |
Stainless Steel Wires ( SS304, SS316, SS201) |
|
Type |
Rigid Decorative Wire Mesh |
|
Big Crimped Round Wire Diameter |
2.95mm |
|
Small Crimped Round Wire Diameter |
1.45mm |
|
Flat Wire Strips |
3x1.5mm |
|
Clear Openings ( between 2.95mm wires) |
18.2mm |
|
Clear Openings ( between 1.45mm wires) |
7mm |
|
Clear Openings ( between flat wire strips) |
23mm |
|
The overall thickness of the fabric |
4.9mm |
|
Opening Area |
56% |
|
Privacy Rate |
44% |
|
Weight |
Approx 5kg/Square Meter |
|
Finish |
Mill Finish Antique Copper/Brass/Bronze Finish PVD Gold Plated/ Rose Gold / Black / Grey Finish PVDF Painted Finish |
|
All optional ways of cut |
Straight Cut only. |
DUAL-SIDED DECORATIVE FEATURES

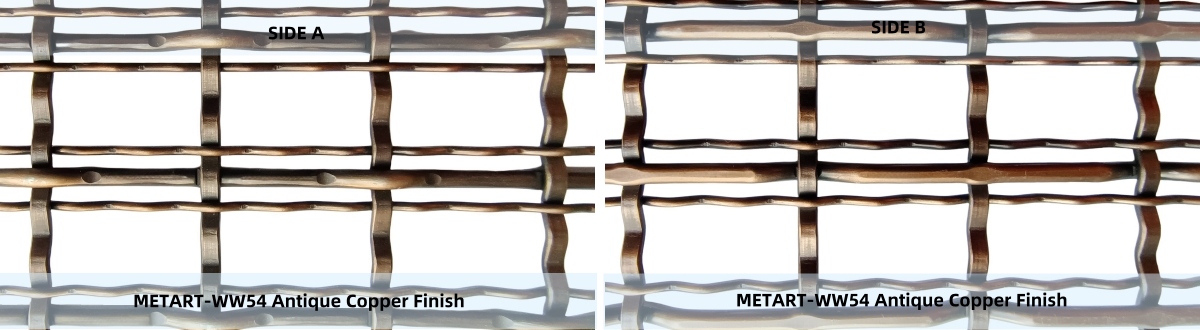

This decorative woven wire mesh features a slightly different appearance on both sides. The difference lies in the surface of the biggest crimped wires. The 3mm crimped wires are flat on one side and all the crimps lie on the other side of the screen.
Please refer to the following pictures, to observe the difference.
Generally, customers don't need to specify which side should be their decorative side. Unless the customer needs framed decorative wire mesh from our factory. In that case, it is important to let us know which side is the decorative surface.
VERSATILE APPLICATION
- Commercial and residential partition screen infill mesh
-Balustrade and Railing Infill Wire Mesh
-Decorative Wire Mesh Ceilings.
-Shop Fitting wire mesh.
