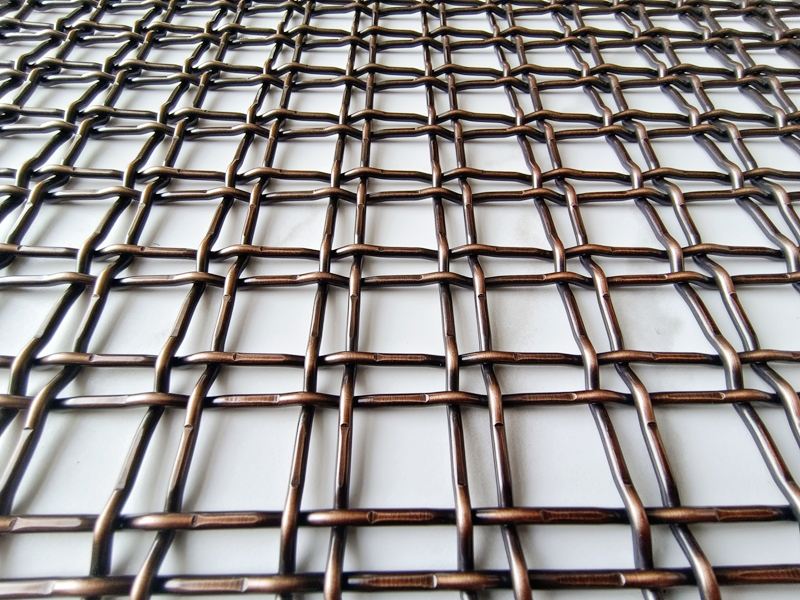

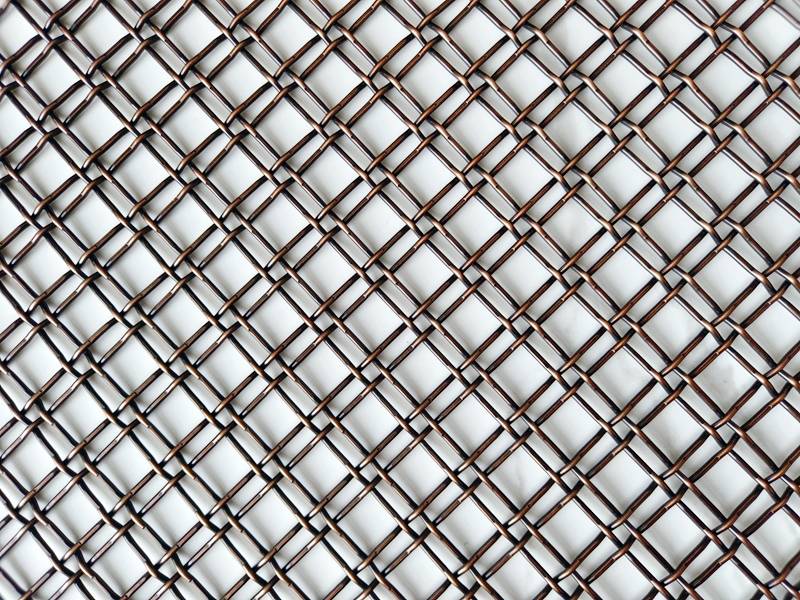

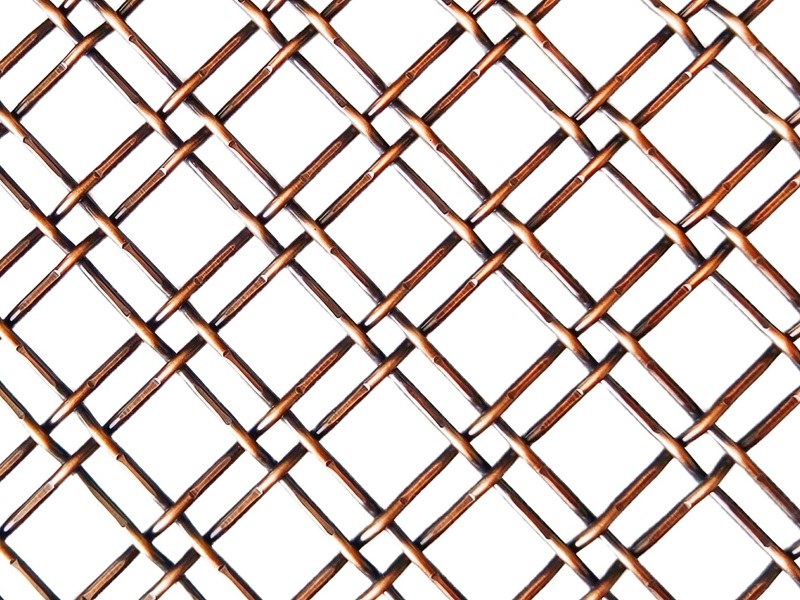

METART-WW40 Balustrade Infill Screen Mesh made of decorative stainless steel wires

Specification

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Decorative Woven Wire Mesh

Opening Area: 65%

Weight: Approx 6.6g/Square Meter

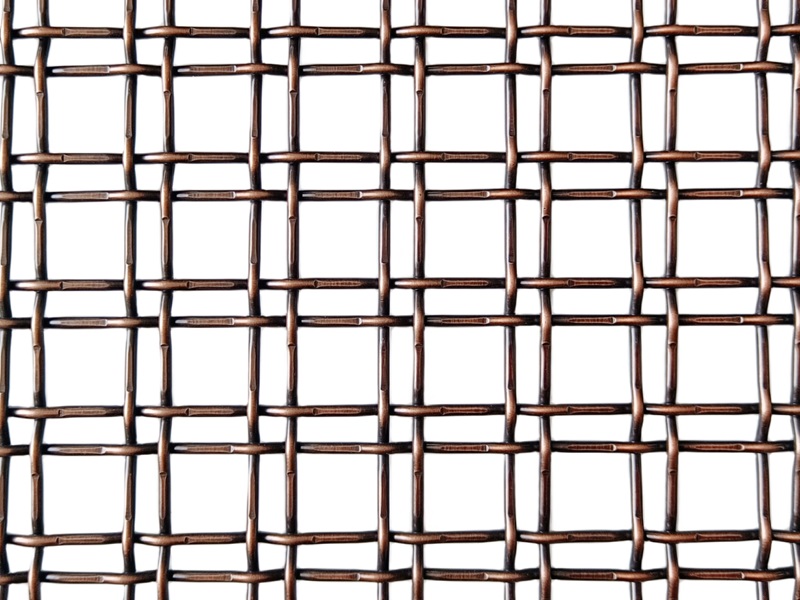

Finish: Antique Copper Plated Finish ( and other optional finishes )

Maximum Width: up to 4000MM for Mill finish only

Maximum Length: up to 20 Meters for mill finish only.

GET A QUOTE

Introduction

Decorative wire mesh panels are the perfect material for architectural balustrading and railing designs, as it can be made into different designs to cater different needs of customers.

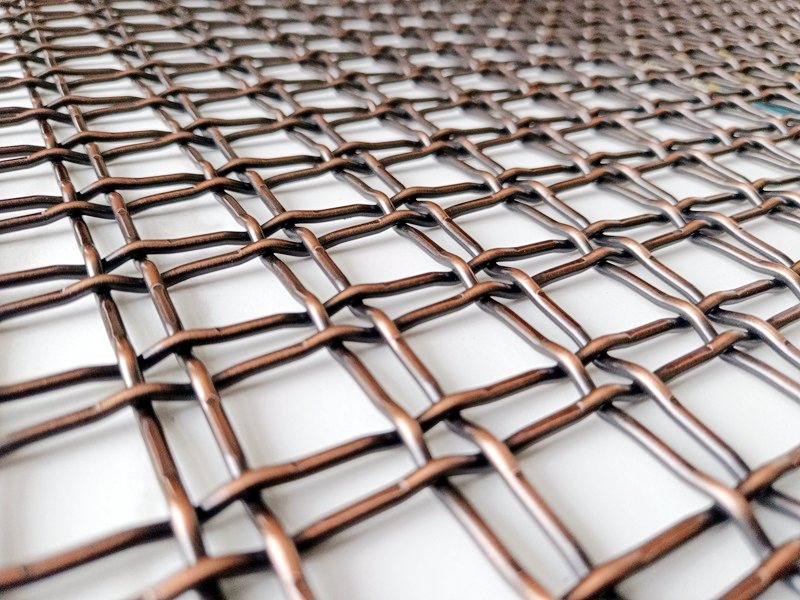

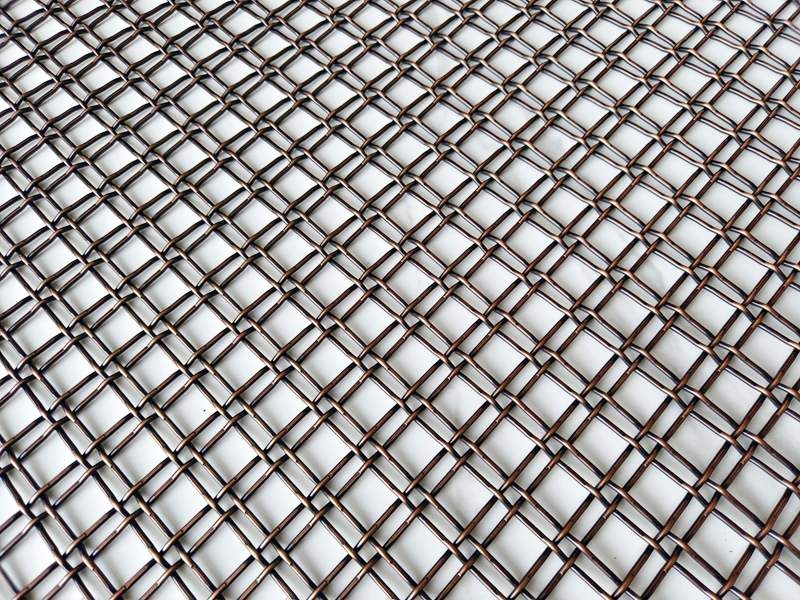

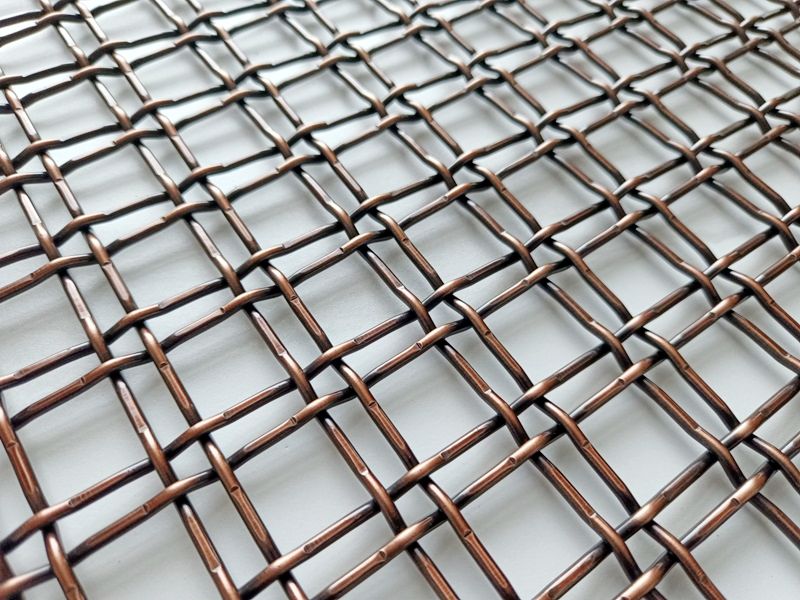

METART-WW40 decorative wire mesh is a classic crimped decorative mesh pattern that features its robustness and simplicity. This decorative wire mesh panel is made of a nominal 2.8mm stainless steel wires, forming approx 18x18mm and 5x5mm openings.

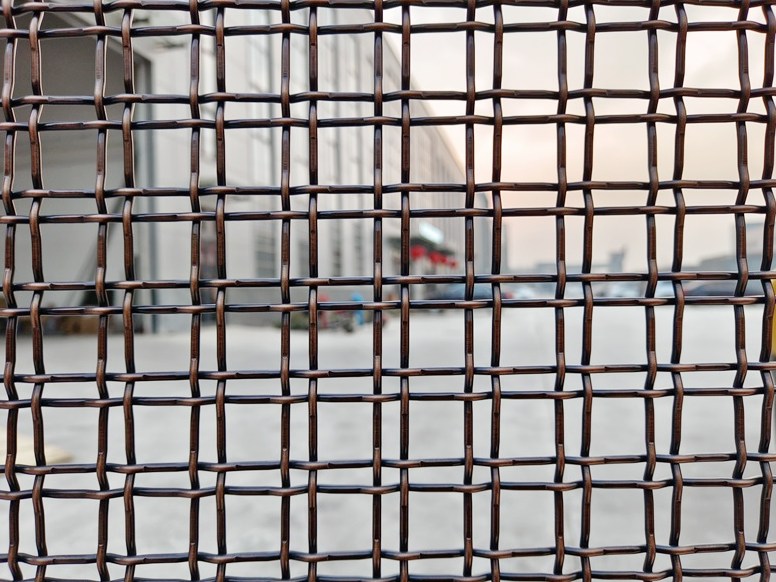

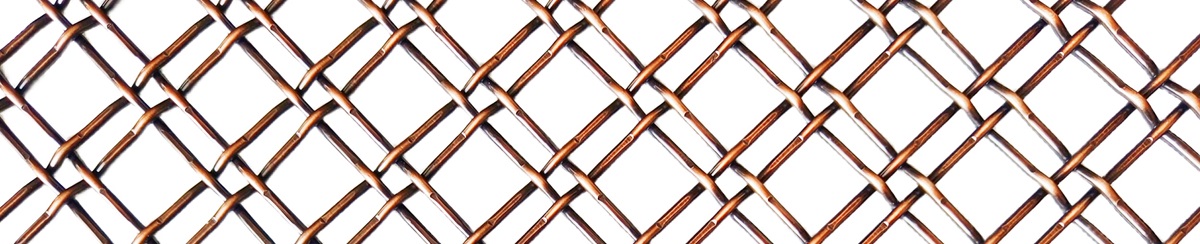

It is heavy duty and rigidity makes it a popular material as balustrade infill screen mesh. METART BUILDING TECH provides cut to size service for custom wire mesh fabrication. With the help of laser cutting machine, we can customize exotic shape for you to suit your projects.

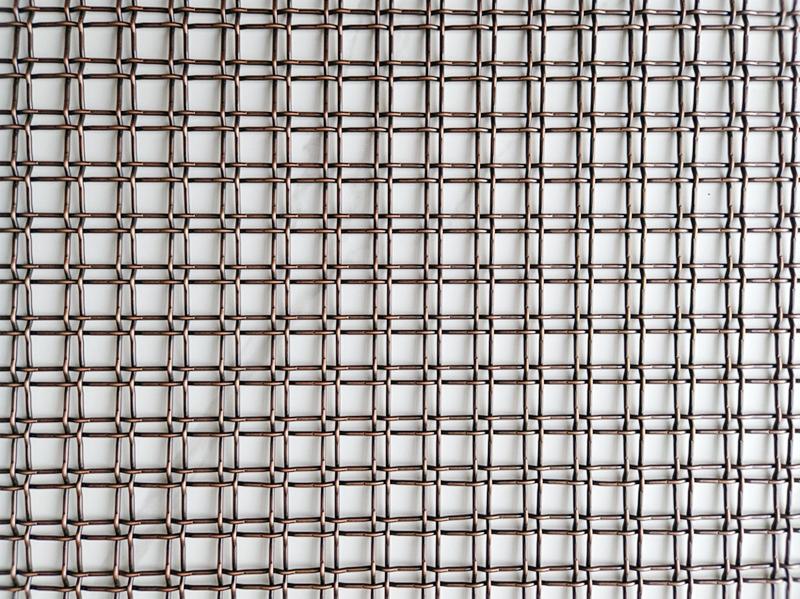

The decorative woven wire METART-WW 40 is not limited to balustrade infill screen mesh. It can be used as room divider mesh panels,  partition screen mesh, and architectural fence infills as well.

Please refer to the following specifications.

Material

Stainless Steel 304, 316, 201, optional

Type of screen

Rigid Decorative Metal Mesh

Wire Diameter

2.75mm

Biggest Hole Size

17.6mm

Smallest Hole Size

5.4x5.4mm

Slot Hole Size

5.4x17.6mm

The total thickness of the fabric

5.3mm

Opening Area

65%

Block out

35%

Privacy Rate

35%

Weight

6.6g/Square Meter

Finish

Stainless Steel Mill Finish

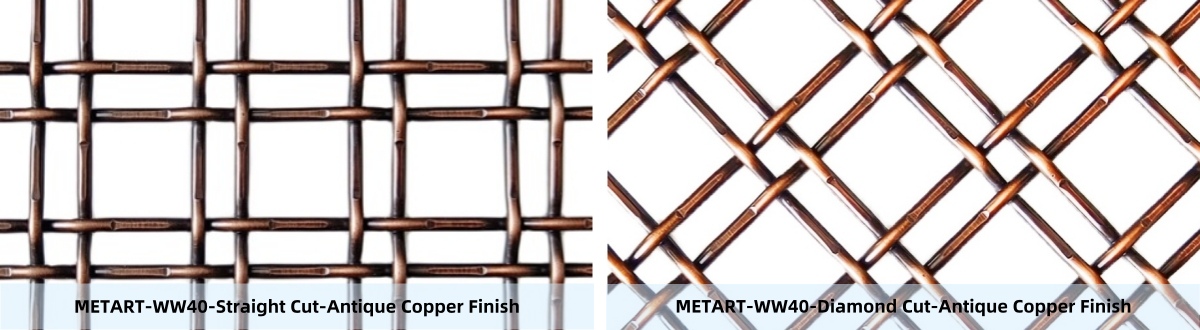

Optional ways of cutting

Straight Cut, Diamond Cut.

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate,

PVD titanium plated

Regular Paited,

PVDF painted.

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

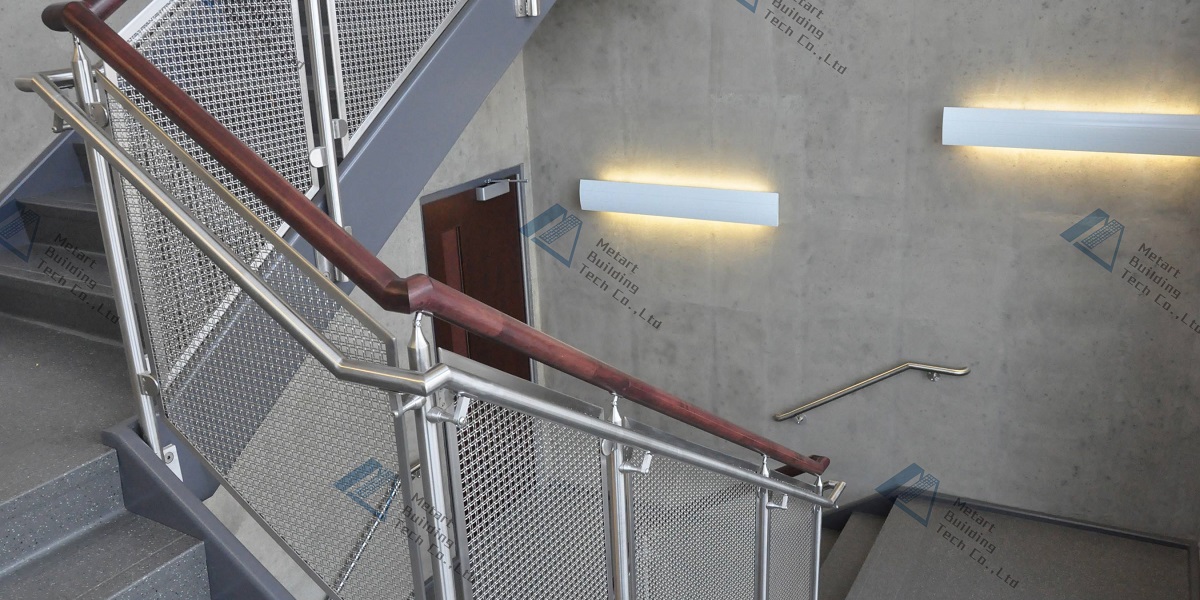

Application
