Architectural Designer Wire Mesh

Specification

Pattern Number: METART-WW27-32518

Material: SS201, SS304, SS316, Copper, Brass & Other Alloy Wires.

Type: Rigid Designer Wire Mesh

Opening Rate: 61%

Weight: Approx 6.1KG/Square Meter

Sheet Width: Within 3000MM

Sheet Length: 4000MM

GET A QUOTE

Introduction

METART-WW27-32518 Decorative Designer Wire Mesh is a premium and upgraded version derived from the renowned WW27 series. Crafted with meticulous attention to detail, this heavy-duty variant exemplifies enhanced strength and durability, making it an ideal choice for a wide range of architectural and building projects.

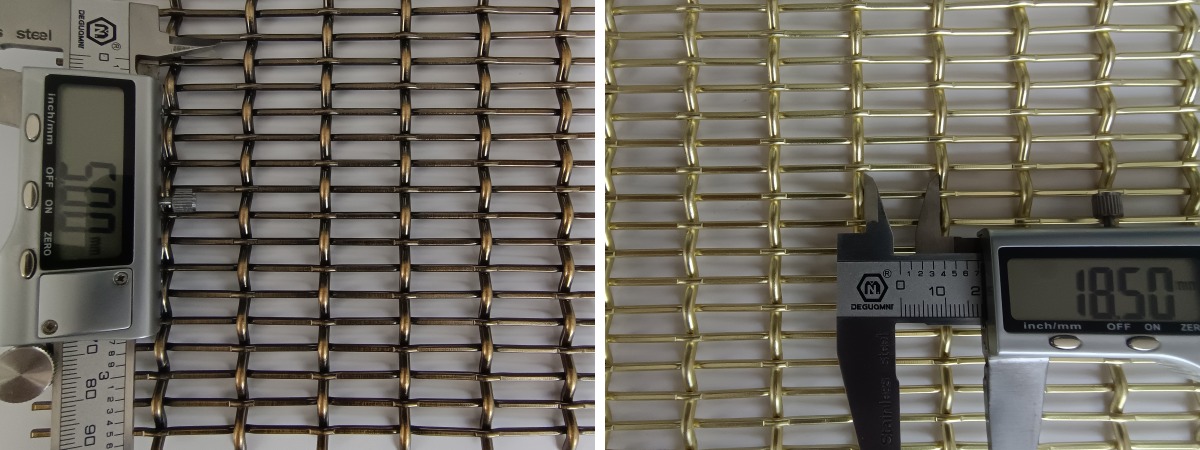

Constructed from a selection of high-quality materials, including the cheapest 201-grade stainless steel, default SS304 grade stainless steel, marine grade SS316 stainless steel, pure copper,  true brass, aluminum, and other special alloys, this rigid designer wire mesh offers exceptional versatility and performance. The wire diameter of 3 x 2mm (actual 2.95 x 1.95mm) ensures optimal structural integrity, while the 5mm x 18.5mm clear hole size and 7mm x 21.5mm wire pitch contribute to its distinctive aesthetic appeal.

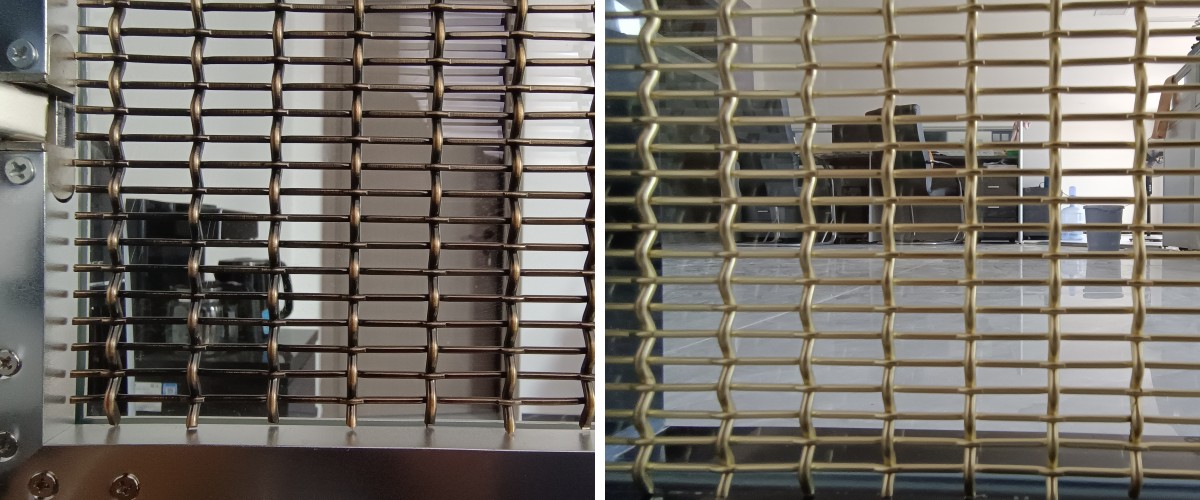

With a total thickness of 5.7mm, this fabric boasts a robust composition, providing unmatched rigidity and security. The opening area of 61% allows for excellent airflow and visibility, while the 39% block-out and privacy rate offer added seclusion and discretion. Weighing in at 6.1kg per square meter, this wire mesh is both substantial and practical.

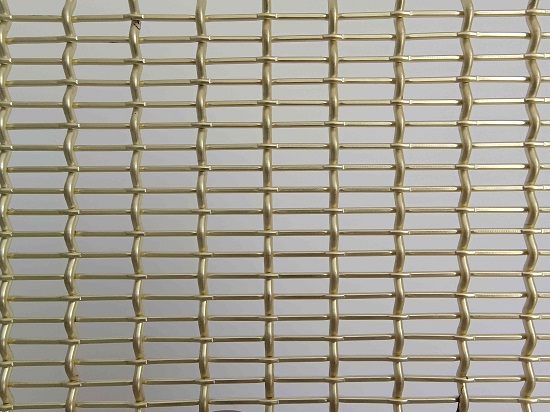

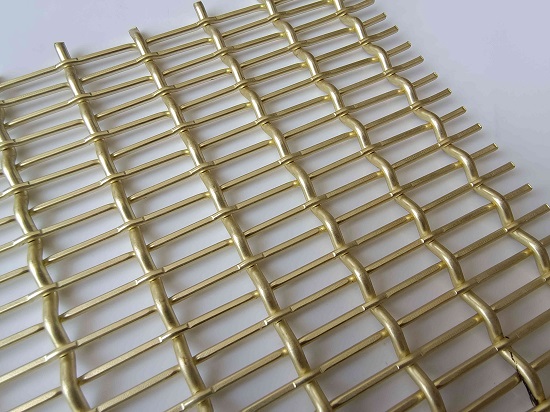

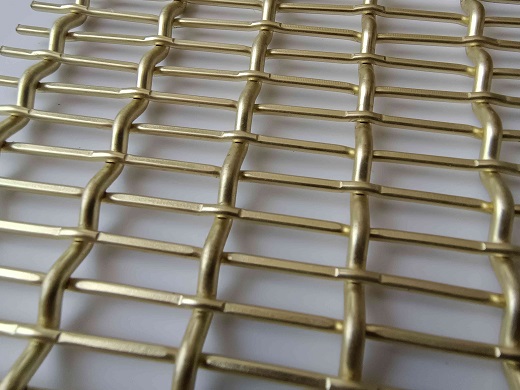

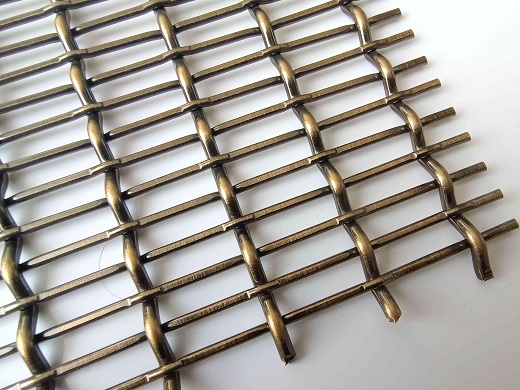

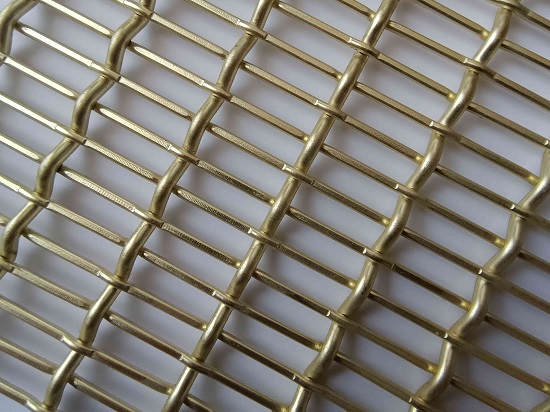

Featuring a captivating (Antique) Brass Finish, the METART-WW27-32518 mesh adds a touch of elegance to any architectural design. The straight cut method of cutting ensures precise and clean edges, while the optional finishes, such as Mill Finish, Antique Bronze plating, Antique Copper plating, Antique Brass plating, vacuum titanium plating, Painted, and PVDF Coated, provide endless possibilities for customization.

Embracing flexibility, this designer wire mesh accommodates customized specifications and welcomes mini orders. Whether used for architectural railing infill mesh, commercial partition screen infill mesh, or fashionable architectural fencing infill wire mesh, the METART-WW27-32518 Decorative Designer Wire Mesh stands as a testament to both its functionality and aesthetic appeal.

Elevate your architectural and building projects to new heights with this premium decorative wire mesh solution. Experience unparalleled strength, exquisite design, and the freedom to bring your creative visions to life.

Specification Table.

Material

SS201, SS304, SS316, Copper, Brass, Aluminum & other alloy

Type

Rigid Designer Wire Mesh

Wire Diameter (warp x weft)

3 x 2mm (actual 2.95 x 1.95mm)

Clear Hole Size

5mm x18.5mm

Wire Pitch

7mm x 21.5mm

The total thickness of the fabric

5.7mm

Opening Area

61%

Block out

39%

Privacy Rate

39%

Weight

6.1kg/Square Meter

Finish

(Antique) Brass Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini orders accepted.

Note:

The measurements, such as wire thickness, diameter, opening, and overall thickness, are nominal values.

The fabrication process may introduce slight tolerances to the actual specifications.
