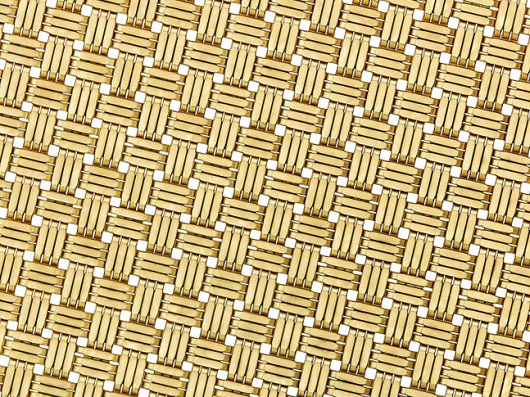

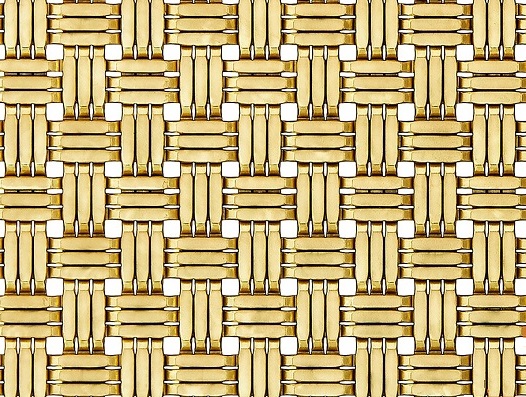

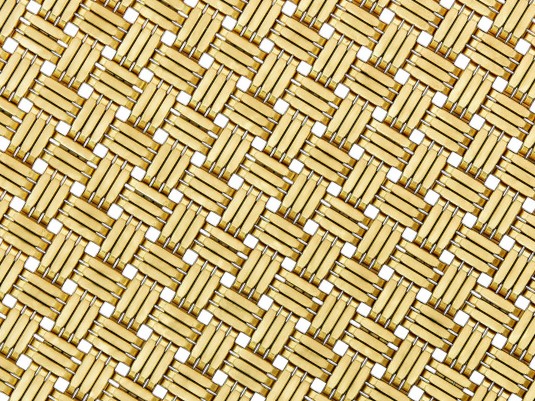

METART-WW34MSS Bright Brass Plated Metal Mesh for Commercial Cladding

Specification

Material: Stainless Steel 304 or Stainless Steel 316

Type: Rigid Wire Mesh

Opening Area: 10%

Weight: Approx 15.8kg/Square Meter

Finish: Bright brass plated color.

Screen Width: Customized.within 3000MM (10')

Screen Length: Customized. maxiumum within 4000MM (13')

GET A QUOTE

Introduction

This is a bright brass plated version of stainless steel woven wire pattern METAR WW34MSS, which is a relatively medium-sized version compared to its similar variant pattern WW34SSS (small-sized-stainless-steel)

Please refer to the following specifications.

Material

Stainless Steel 304 or 316, optional

Type

Rigid mesh

Single Wire Strip

2.7x1.4mm

Strip Group Width (3 wires)

9.1mm

Clear Hole Size

4x4mm

The total thickness of the fabric

2.8mm

Opening Area

10%

Block out

10%

Privacy Rate

90%

Weight

15.8kg/Square Meter

Finish

Bright Brass Plated Color

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),

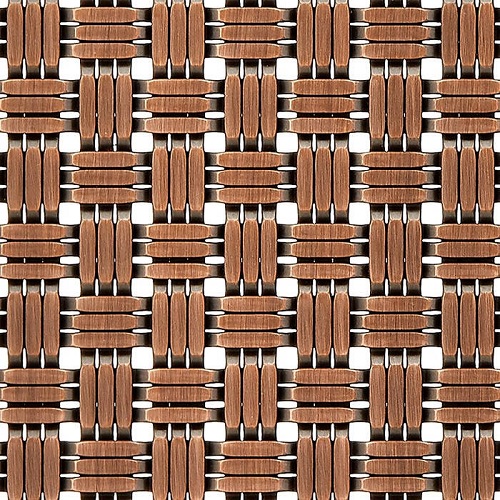

Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Custom specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
