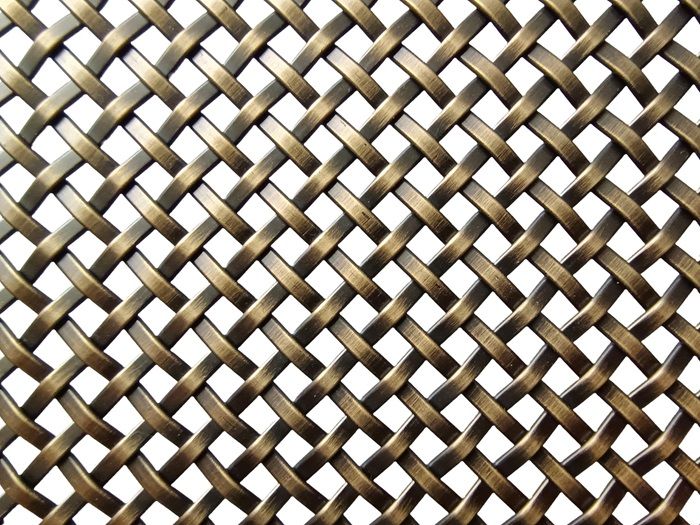

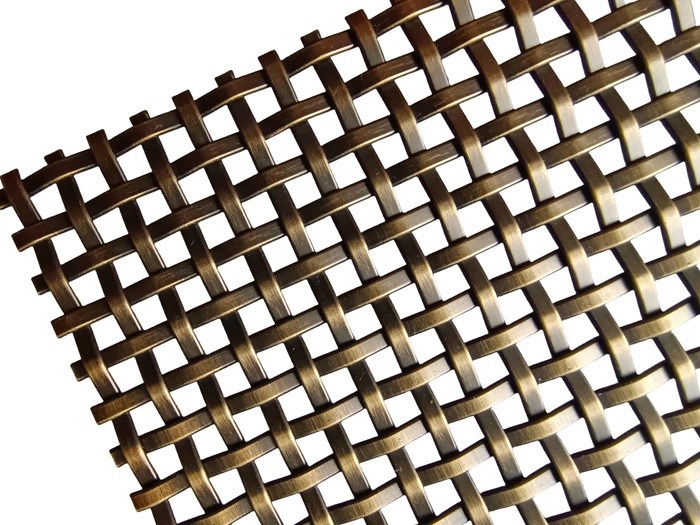

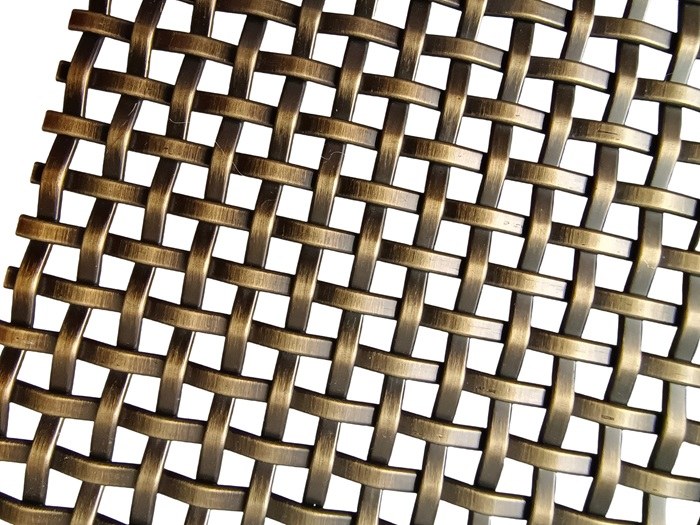

Decorative Mesh WW05-31204 made of stainless steel wire for architectural application
Material: SS304 / SS316 / SS201
Type: Rigid Decorative Wire Mesh
Opening Area: 33%
Weight: Approx 7.6kg/Square Meter

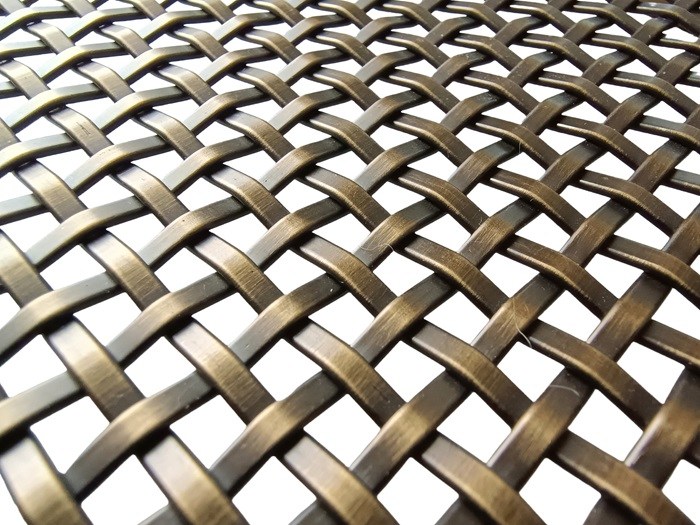

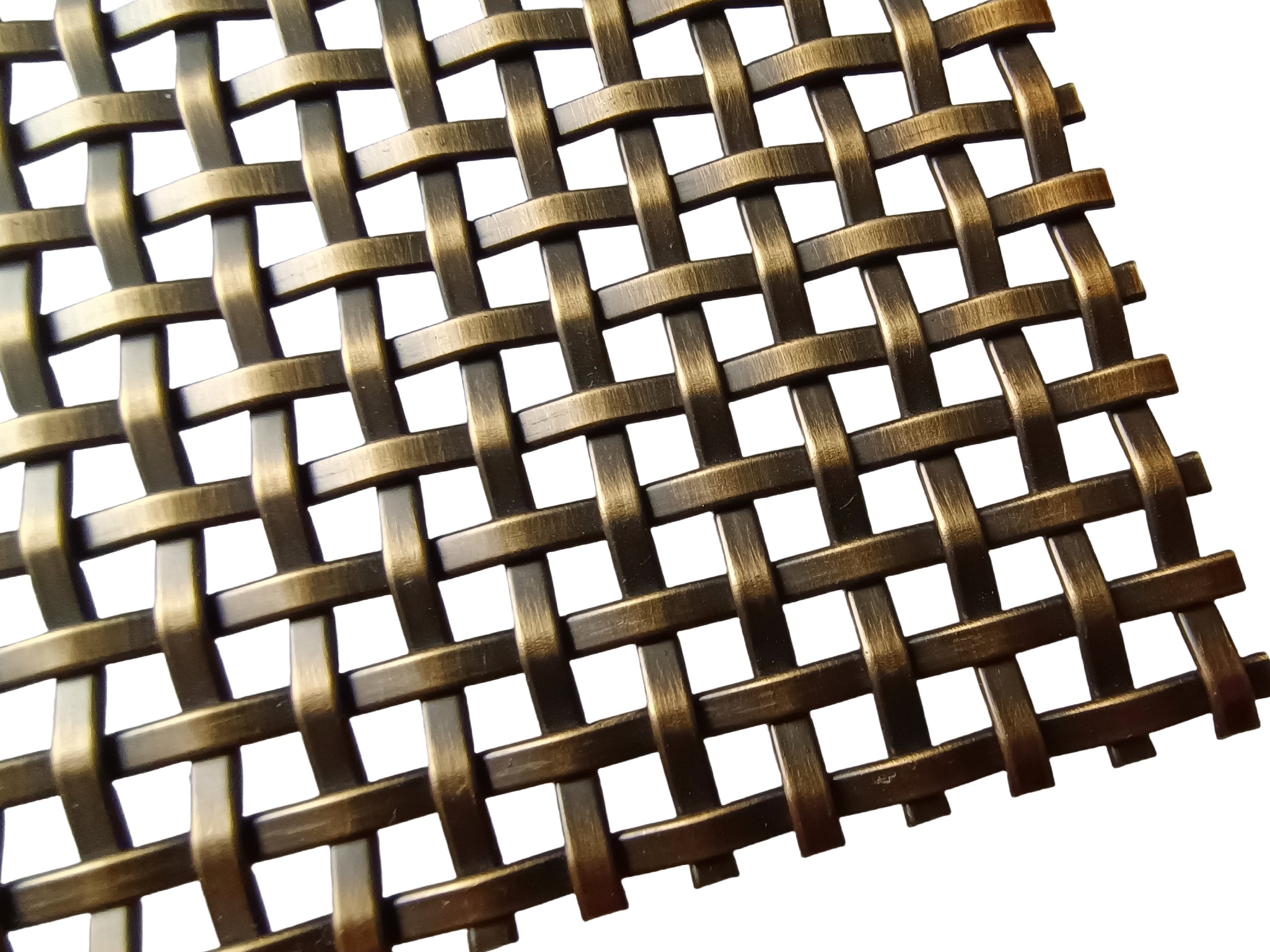

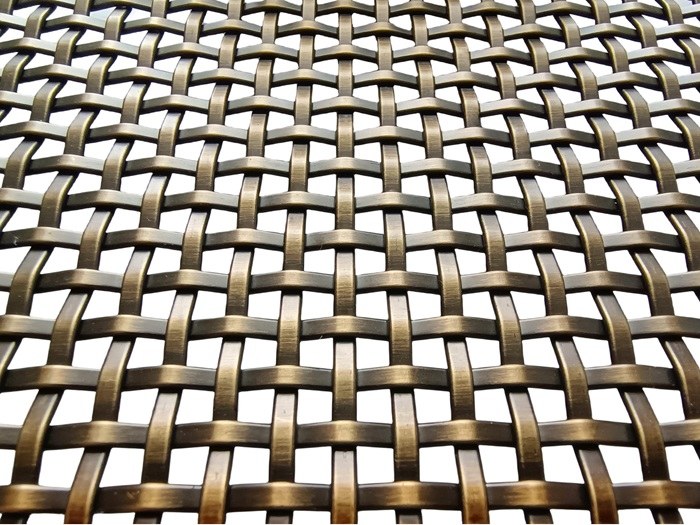

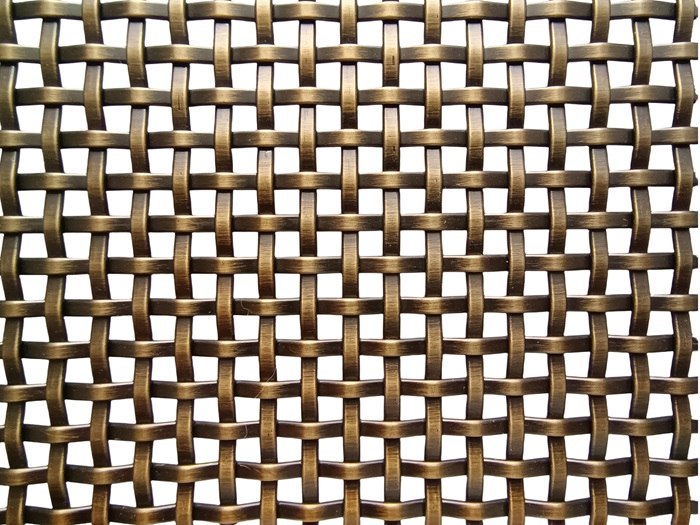

Finish: Antique Brass Plated Finish
Sheet Size: Within 4000MM
GET A QUOTEDecorative Mesh METART-WW05-31204 is also a regular pain weave flat wire mesh pattern.
#31204 means 3.0mm flat wire strip, 1.2 mm wire thickness, and 4mm clear hole size.
With a big wire density and 1.2mm wire thickness, this decorative wire mesh is robust enough to handle security applications.

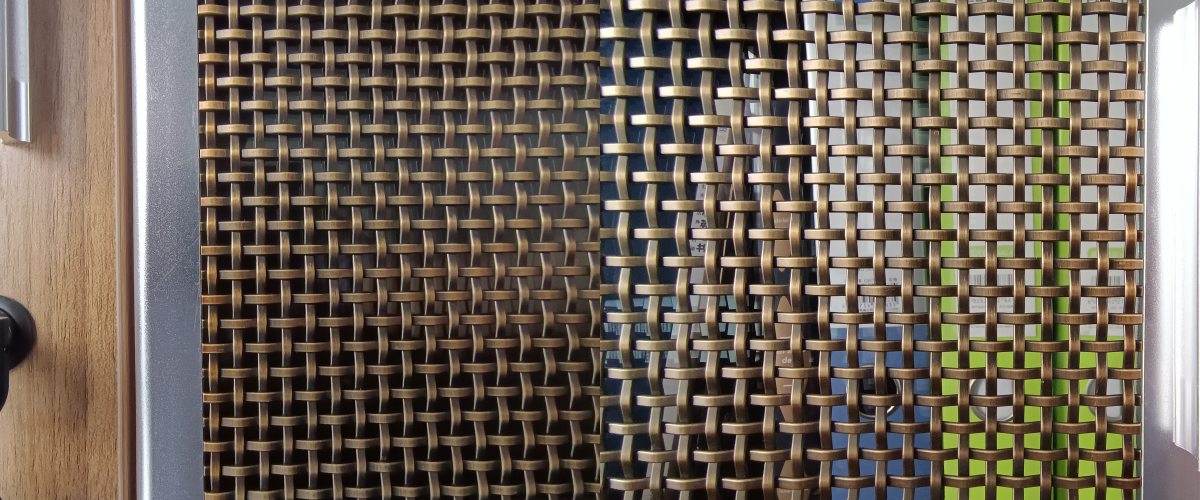

This wire mesh material is a good choice for your kitchen cabinet door wire mesh panel or wine cabinet door infill mesh.

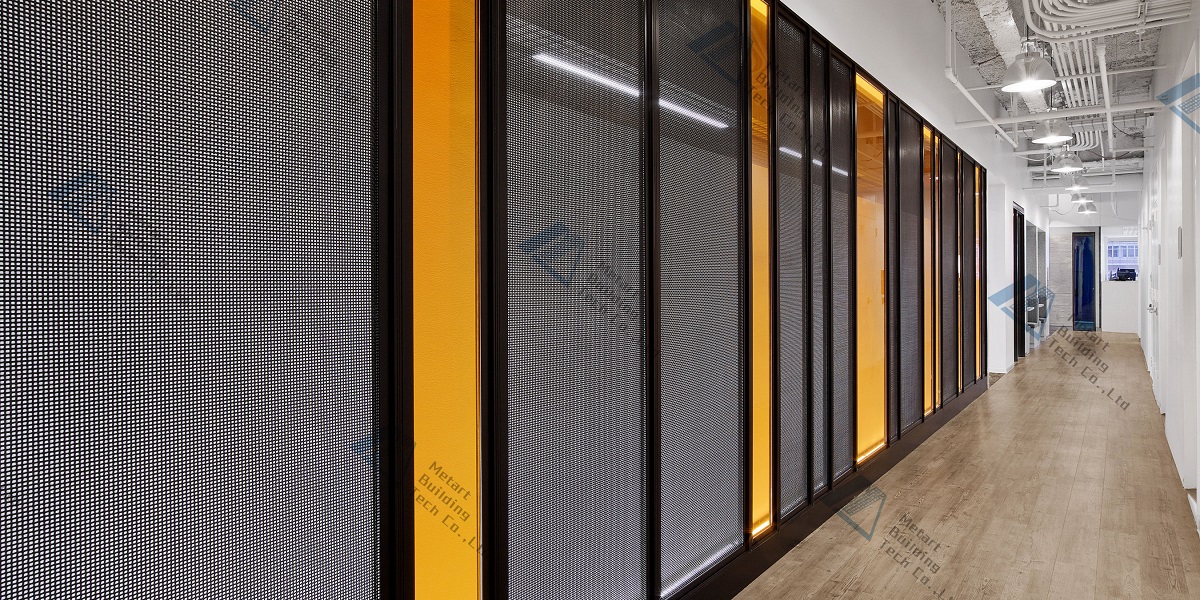

Also, it can be a nice infill material for partition screens and railing systems for decoration or security purposes.
METART BUILDING TECH can offer extra color plating services including copper plating and copper alloy plating, painting, PVD plating, etc based on your requirements for this pattern.
Please refer to the following specifications.
|
Materials |
Stainless Steel 304, 316, 201, Pure Copper, Brass, Bronze. |
|
Type |
Rigid Decorative Wire Mesh |
|
Flat Wire Strip: |
3x1.2mm |
|
Clear Hole Size |
4mm |
|
The total thickness of the fabric |
2.5mm |
|
Opening Area |
33% |
|
Block out |
67% |
|
Privacy Rate |
67% |
|
Weight |
7.6kg/Square Meter |
|
Finish |

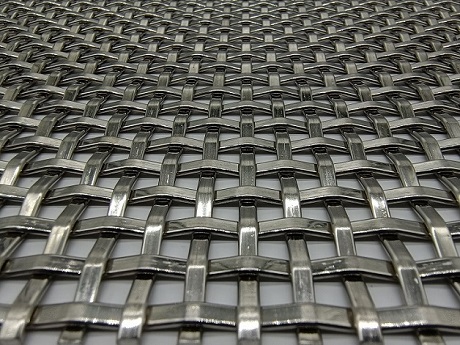

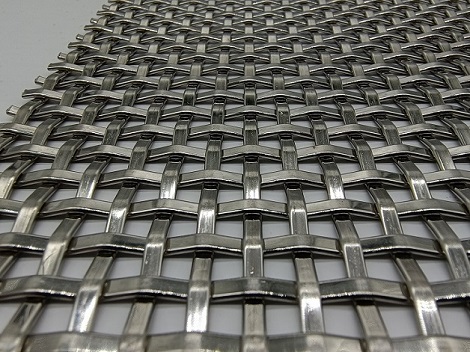

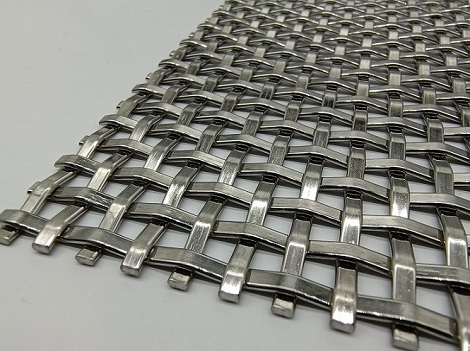

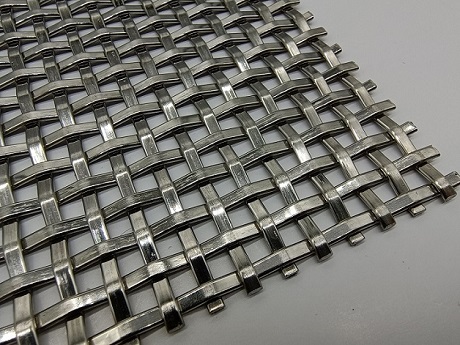

Stainless steel mill finish. |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut, Diamond Cut |
|
All optional Finish |
Mill Finish ( Original stainless steel bright finish）, |
Please refer to the following table for all the specifications of METART WW05 Decorative Wire Mesh
|
Item # |
Flat Strip |
Clear Hole Dia. |
Opening Area |
Privacy Rate |
Weight |
Overall Thickness |
|
Metart 05-61585 |
6x1.5mm |
8.5x8.5mm |
34% |
66% |
9.5KG / Square Meter |
3.4mm |
|
Metart 05-41022 |
4x1mm |
2.2x2.2mm |
11% |
89% |
9.2KG / Square Meter |
3.2mm |
|
Metart 05-31507 |
3x1.5mm |
7x7mm |
49% |
51% |
7.0 KG / Square Meter |
3.0mm |
|
Metart 05-31005 |
3x1.0mm |
5x5mm |
39% |
61% |
5.8 KG / Square Meter |
2.0mm |
|
Metart 05-31204 |
3x1.2mm |
4x4mm |
33% |
67% |
7.6KG / Square Meter |
2.5mm |
|
Metart 05-31205 |
3x1.2mm |
5x5mm |
39% |
61% |
7.0 KG / Square Meter |
2.4mm |
|
Metart 05-31207 |
3x1.2mm |
7x7mm |
49% |
51% |
5.6 KG / Square Meter |
2.4mm |
|
Metart 05-31210 |
3x1.2mm |
10x10mm |
59% |
41% |
4.3 KG / Square Meter |
2.4mm |
|
Metart 05-31510 |
3x1.5mm |
10x10mm |
59% |
41% |
5.4 KG / Square Meter |
3.0mm |
|
Metart 05-25103 |
2.5x1.0mm |
3x3mm |
29.7% |
70.3% |
7.1 KG / Square Meter |
2.0mm |
|
Metart 05-22134 |
2.2x1.0mm |
3.4x3.4mm |
36.8% |
63.2% |
6.1 KG / Square Meter |
2.0mm |
|
Metart 05-22834 |
2.2x0.8mm |
3.4x3.4mm |
36.8% |
63.2% |
4.9 KG / Square Meter |
1.6mm |
|
Metart 05-22084 |
2.2x0.8mm |
4x4mm |
37% |
63% |
4.0kg / Square Meter |
1.6mm |
|
Metart 05-18186 |
1.8x1.8mm |
6.2x6.2mm |
60% |
40% |
6.4KG / Square Meter |
3.6mm |
