Antique Copper Furniture Door Mesh Grilles for Architectural Interiors

Specification

Pattern Code: METART-WW09

Material: Stainless Steel 304,316 or 201

Type: Rigid Decoratived Wire Mesh

Opening Area: 74%

Weight: Approx 3.2kg/Square Meter

Finish: Copper Plated Finish

Screen Size: Within 3000MM width x Maximum 30Meters Roll (for mill finish only)

GET A QUOTE

Introduction

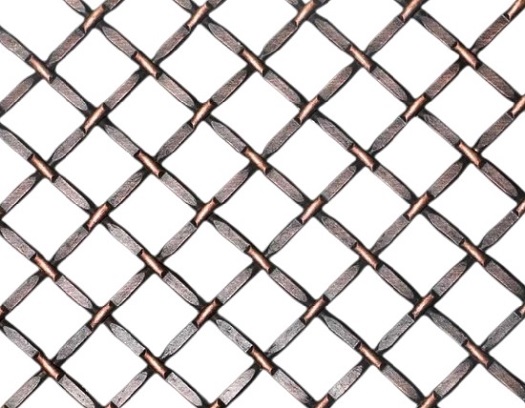

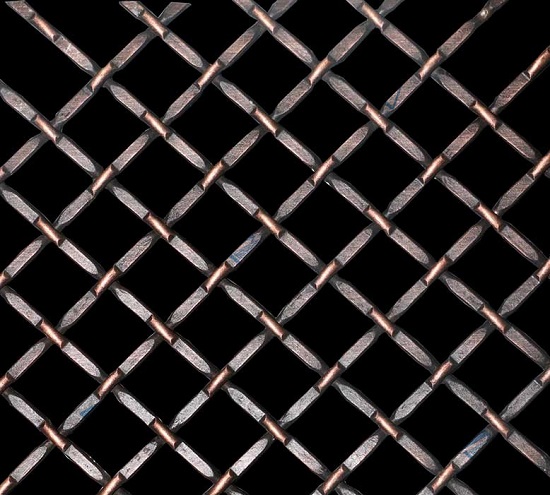

This is the diamond-cut antique copper-plated woven wire pattern METART-WW09, which is cut diagonally from a regular WW09 pattern.

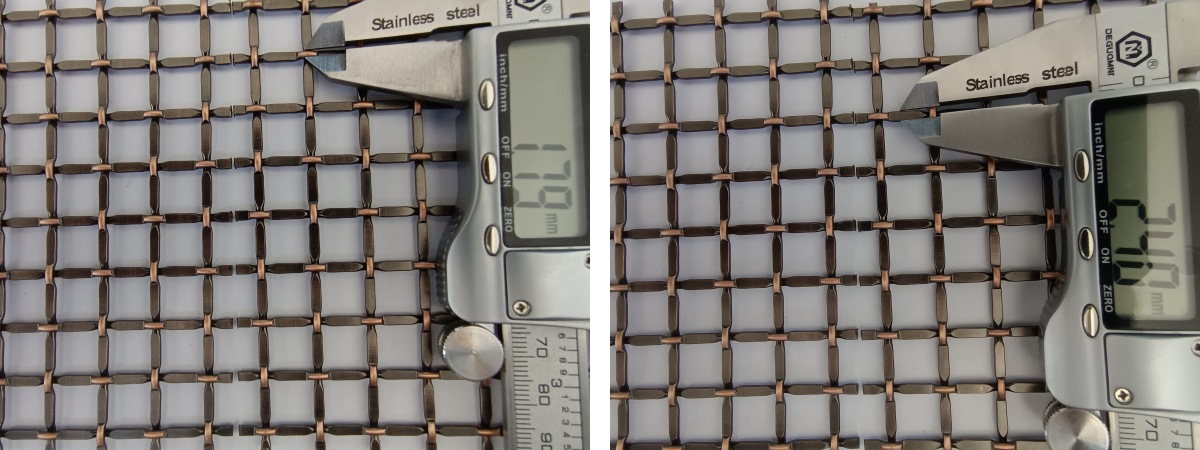

This architecture is with a simple design made of 1.8mm flattened stainless steel wires. After being flattened, the decorative flat top becomes approx 2.4mm wide which also enhances the strength and rigidity of this architectural wire grille.

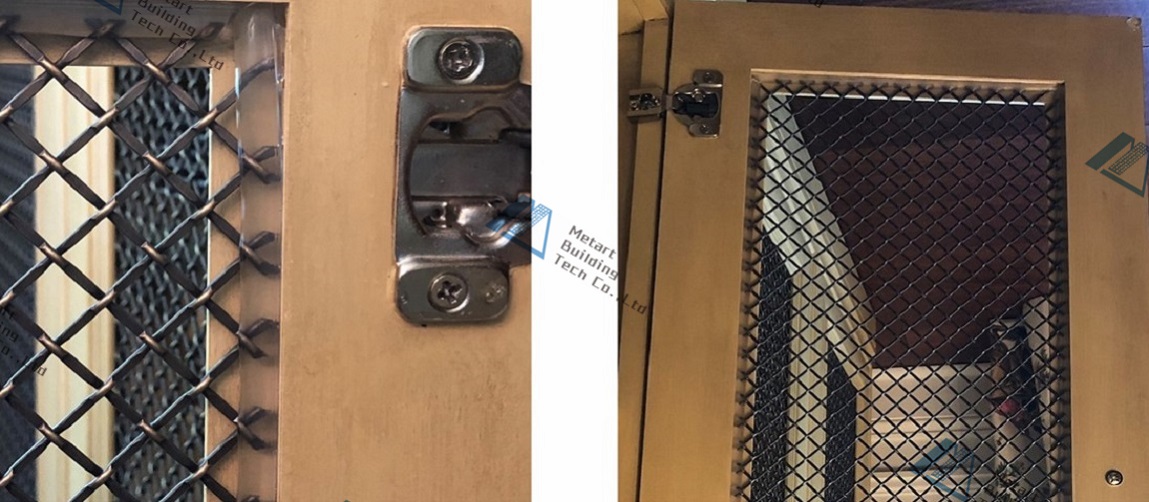

With an approx 3.2kg square meter weight, this mesh is a light-weighted mesh that is suitable for cabinets infill screen mesh, and ceiling wire mesh as well as an excellent infill material for commercial interior partitions and shopfitting decorative material.

This pattern is simple but favored by many architects and designers, especially after it is copper or brass plated into a stylish decorative finish.

Among all the decorative woven wire patterns, this antique copper finish METART-WW09 wire mesh could be a pretty good and cost-effective choice for your architectural projects.

The beauty of the diamond-cut METART-WW09 wire mesh pattern is truly breathtaking. The diagonal cut adds a unique element of sophistication and elegance to the wire mesh, creating a stunning visual effect that captures the eye and transforms any space. The intricate diamond pattern adds depth and dimension to the wire mesh, resulting in a dynamic and captivating design. Its simplicity and sophistication make it a perfect addition to any architectural or design project, elevating the aesthetic and creating a one-of-a-kind look that is sure to impress.

The diamond-Cut way is always more expensive as it wastes more materials.

Please refer to the following specification.

Material

Stainless Steel 201,304 or 316, optional

Type

Rigid Decor Wire Mesh

Wire Diameter Before Flattened

1.8mm

Clear Hole Size

10.4mm  (15.4mm Optional)

The total thickness of the fabric

2.6mm

Opening Area

74%

Block out

26%

Privacy Rate

26%

Weight

3.2kg/Square Meter

Finish

Antique Copper Plated

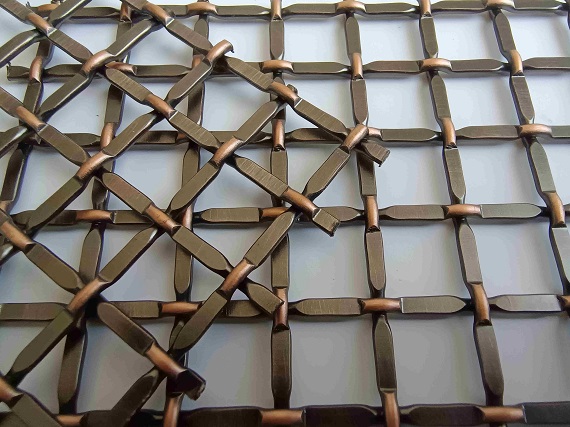

The way of cutting

Diamond Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate,
Vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
