METART-WW17MW Stainless Steel Architectural Mesh for cabinetry, partitions and commercial cladding

Specification

Pattern Code: METART-WW17MW

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Architectural Mesh

Opening Area: 35%

Weight: Approx 6.3kg/Square Meter

Finish: Mill Finish

Maximum Sheet Dimention: 3000x4000MM (10x13 feet) for mill finish.

GET A QUOTE

Introduction

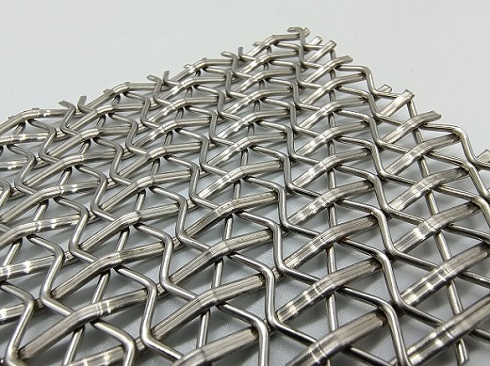

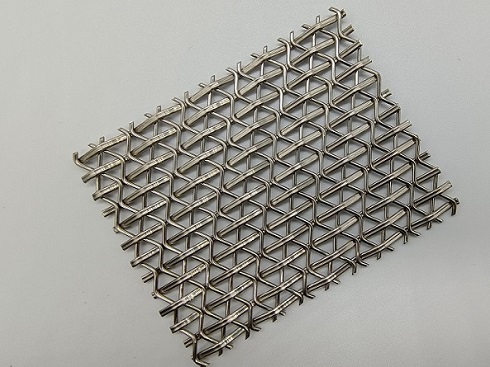

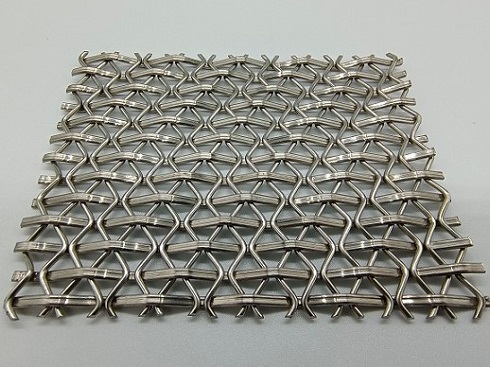

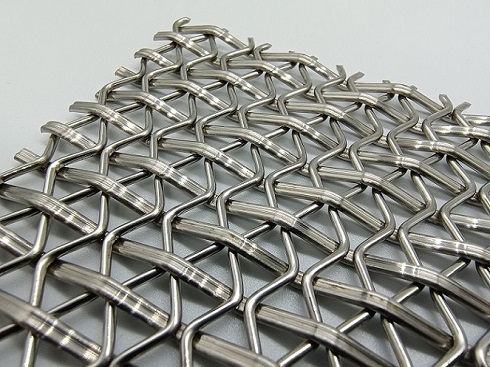

METART WW17MW is the Medium-Weighted version of pattern #WW17. Compared to its original version, the only difference is that the waved round wire is smaller. The weight is reduced, but this architectural stainless steel wire mesh is still very rigid and commonly used in the building and decoration industry.

Please refer to the following specification.

Material

Stainless Steel 304 or 316, optional

Type

Rigid mesh

Round Wire Diameter (Single wire)

1.45mm

Flat Wire Strip:

2.4x1.2mm

Flat Wire Strip Pitch

6.5mm

Round Wire Hole Pitch

10.5m

The total thickness of the fabric

3.8mm

Opening Area

35%

Block out

65%

Privacy Rate

65%

Weight

6.3kg/Square Meter

Finish

Stainless Steel Mill Finish.

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
