METART-WW17LW Antique Copper Architectural Mesh for home and decor

Specification

Pattern Code:

Material: Stainless Steel 304 / Stainless Steel 316

Type: Rigid Architectural Wire Mesh

Opening Area: 40%

Weight: Approx 6.1kg/Square Meter

Finish: Antique Copper Plated

Maximum Dimention: 3000x4000MM (10x13

GET A QUOTE

Introduction

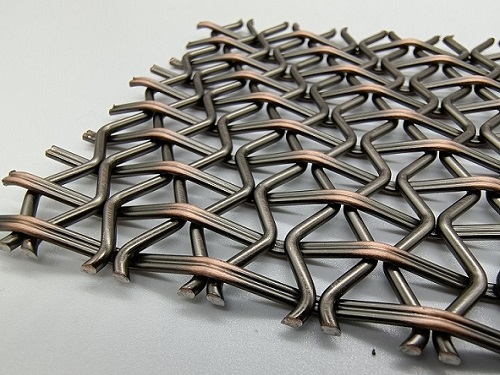

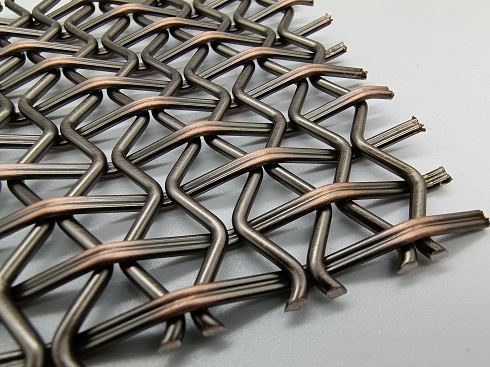

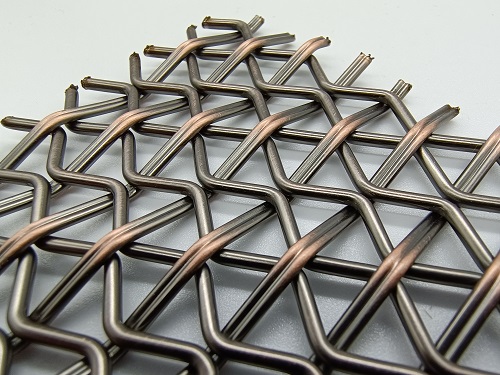

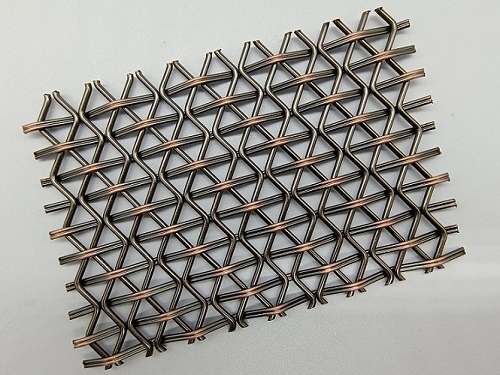

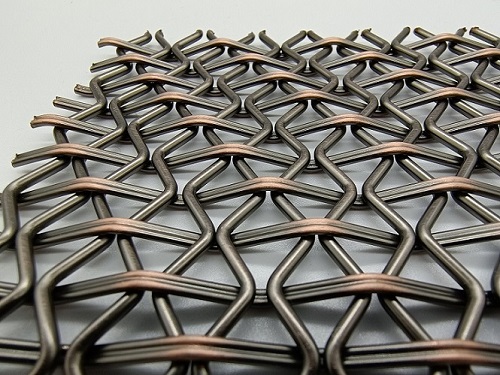

METART WW17LW is the light-weighted version of pattern #WW17. This is a sample of an antique copper plated finish.

It is woven by 2.4x1.2mm grooved weft wire strips and 1.8mm waved warp wire. The warp wires are less waved than WW17HW. And the density of the weft strip is smaller than WW17HW, which makes the mesh lighter than WW17HW.

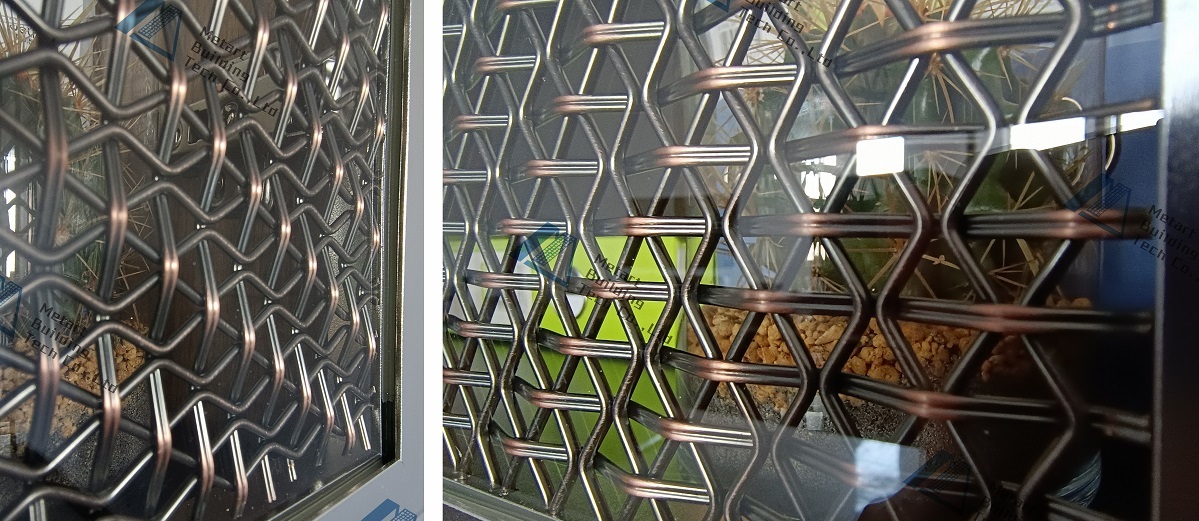

This antique style of architectural mesh is widely used in furniture door panels, closet door metal grilles, living room metal screen dividers, office screening, hotel lobby partition metal screens, and wall cladding mesh panels.




Please refer to the following specification.

Material

Stainless Steel 304 or 316, optional

Type

Rigid mesh

Round Wire Diameter (Single wire)

1.8mm

Flat Wire Strip:

2.4x1.2mm

Flat Wire Strip Pitch

8mm

Round Wire Hole Pitch

12.5mm

The total thickness of the fabric

3.3mm

Opening Area

40%

Block out

60%

Privacy Rate

60%

Weight

6.1kg/Square Meter

Finish

Antique Copper Plated

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
