METART-WW19M-Coffee Brown Painted Architectural Mesh for Interior Decoration

Specification

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Mesh

Opening Area: 36%

Weight: Approx 4.8kg/Square Meter

Finish: Coffee Brown Painted

Screen Width: Within 4000MM

Screen Length: Within 30Meters ( Mill Finish Only)

GET A QUOTE

Introduction

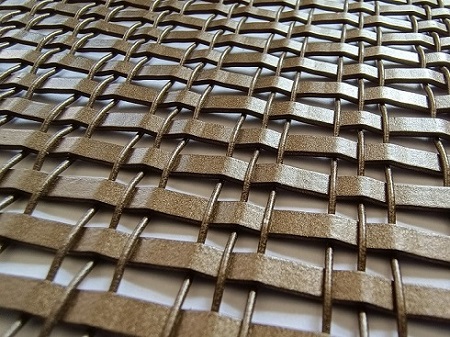

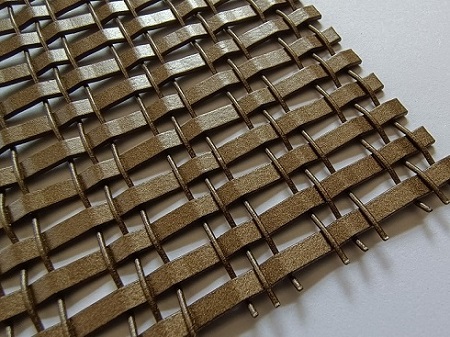

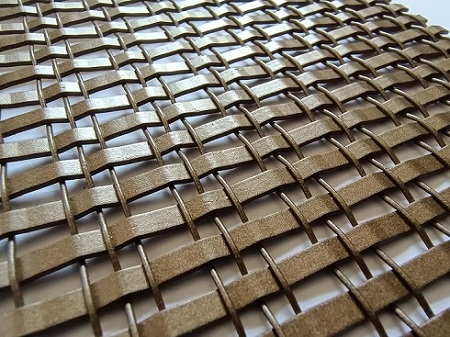

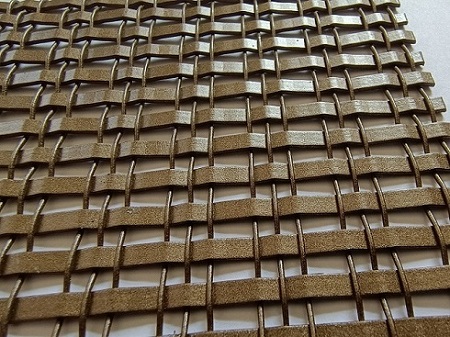

This is a coffee brown color matte painted version of the woven pattern METART WW19M.

You are welcome to customize different colors for regular orders. This metal fabric can be painted, brass plated, copper plated, titanium plated and PVDF painted.

The painted decorative wire mesh screen is preferred to be used for indoor decorative furnishing applications.


Please refer to the following specification.

Material

Stainless Steel 304 or 316, optional

Type

Half Rigid mesh

Wire Strip

4x1mm

Wire Rod Diameter

0.95mm

Wire Strip Pitch

8mm

Wire Rod Pitch

4.4mm

Wire Rod Group Pitch

15.8

The total thickness of the fabric

2.4mm

Opening Area

36%

Block out

64%

Privacy Rate

64%

Weight

4.8kg/Square Meter

Finish

Coffee Color Painted Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut,

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
