METART-WW29F-Brass Plated Fancy Cladding Mesh made of architectural crimped stainless steel wires

Specification

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Architectural Wire Mesh

Opening Area: 45%

Weight: Approx 5.2kg/Square Meter

Finish: Brass Plated

Screen Width: Customized, within 3000mm, (10 feet)

Screen Length: Customized, within 4000MM, (13 feet)

GET A QUOTE

Introduction

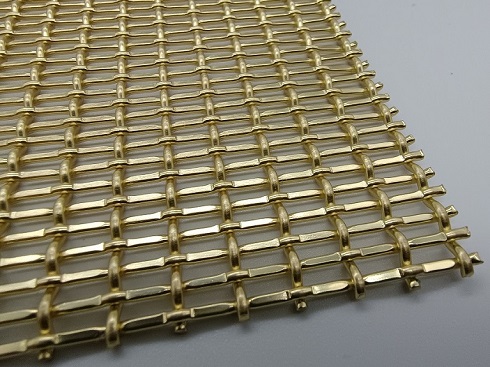

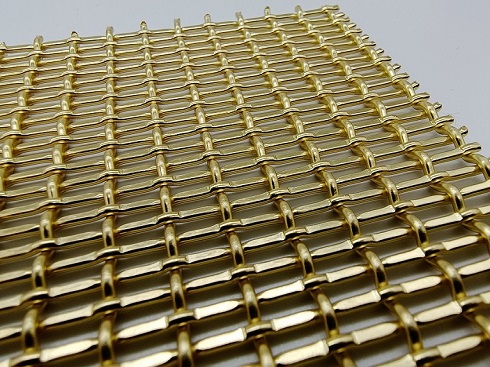

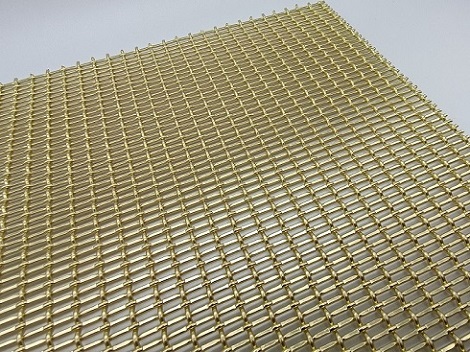

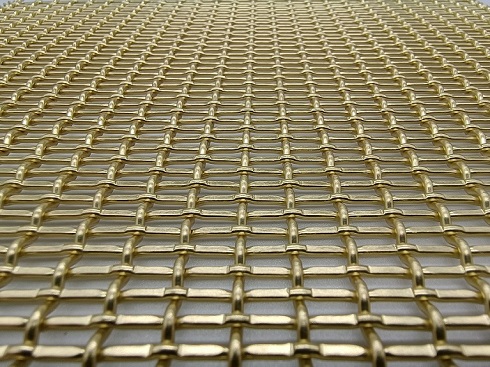

METART WW29F is a slot hole partially flattened woven wire mesh. This is the brass plated version of this pattern.
Adopting 1.45mm stainless steel wire for both directions, this pattern is heavier and more rigid than WW29.
Please refer to the following specifications.

Material

Stainless Steel 304 or 316, Brass, Copper, optional

Type

Rigid mesh

Wire Diameter

1.45mm

Clear Hole Size

2x6.5mm

Wire Pitch

3.6x8mm

The total thickness of the fabric

3.1mm

Opening Area

45%

Block out

55%

Privacy Rate

55%

Weight

5.2kg/Square Meter

Finish

Brass Plated.

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finish

Mill Finish ( Original stainless steel bright finish),

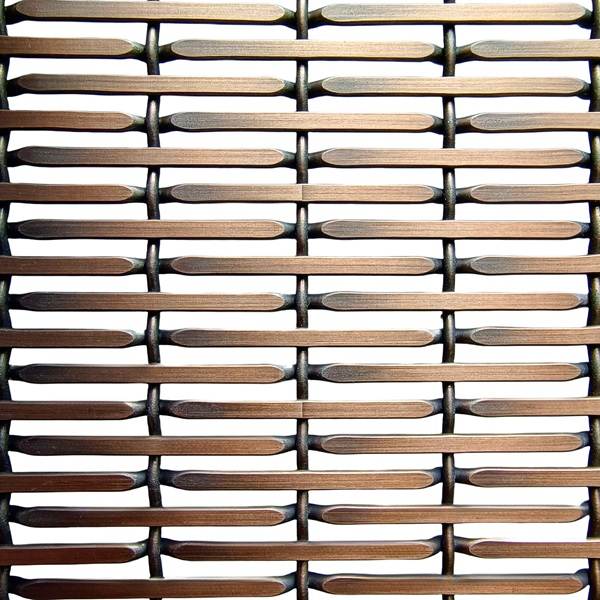

Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

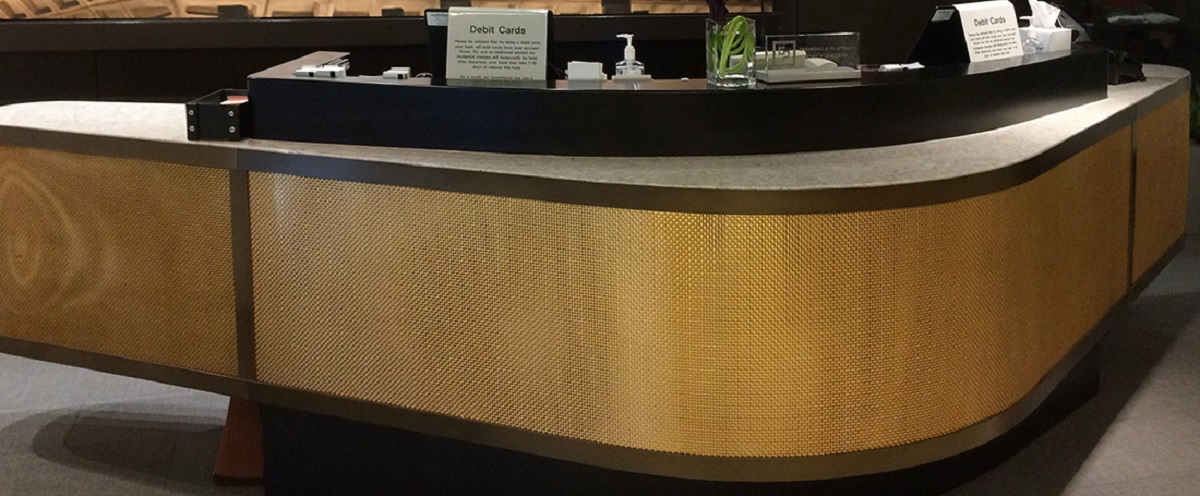

Application
