METART-WW26-Wall Cladding Metal Mesh for Architecture and Decoration

Specification

Material: Stainless Steel 304 / Stainless Steel 316 / Stainless Steel 201

Type: Rigid Cladding Metal Mesh

Opening Area: 46%

Weight: Approx 6kg/Square Meter

Finish: Mill Finish

Screen Width: 4000Mm maximum Mill Finish

Screen Length: up to 30 Meters in rolls. Mill Finish

GET A QUOTE

Introduction

The architectural metal mesh pattern METART-WW26 is a stylish and durable wall cladding wire mesh that is suitable for both interior and exterior decoration purposes. Made of stainless steel, it is available in either 304 or 316 grades, with an optional aluminum alloy material.

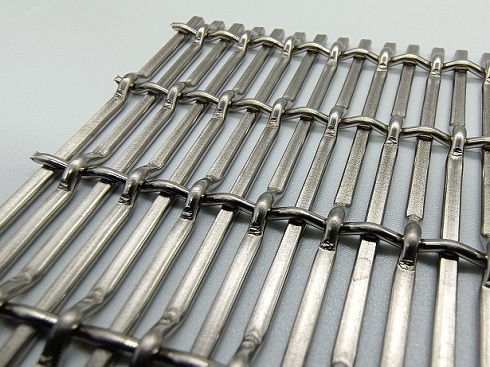

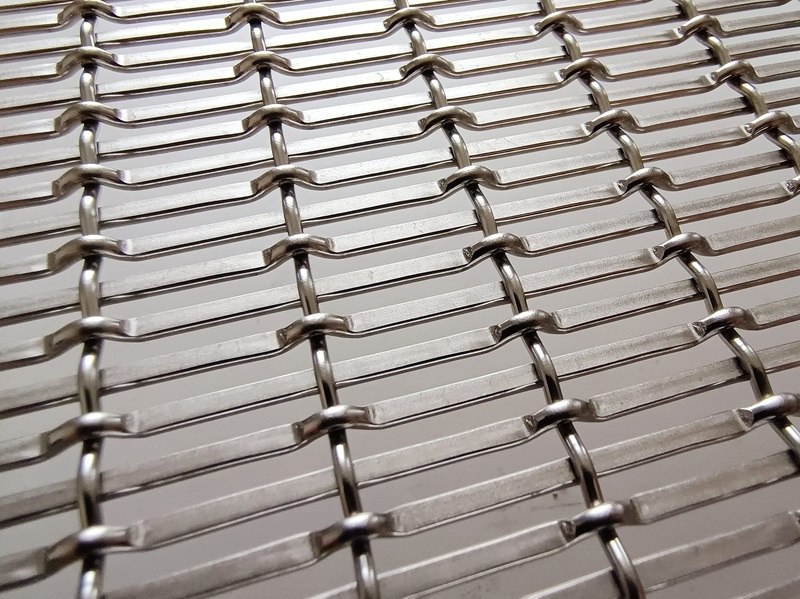

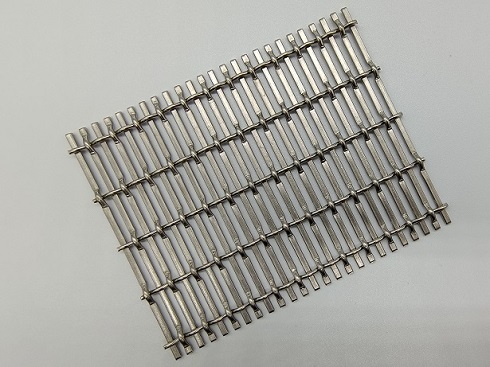

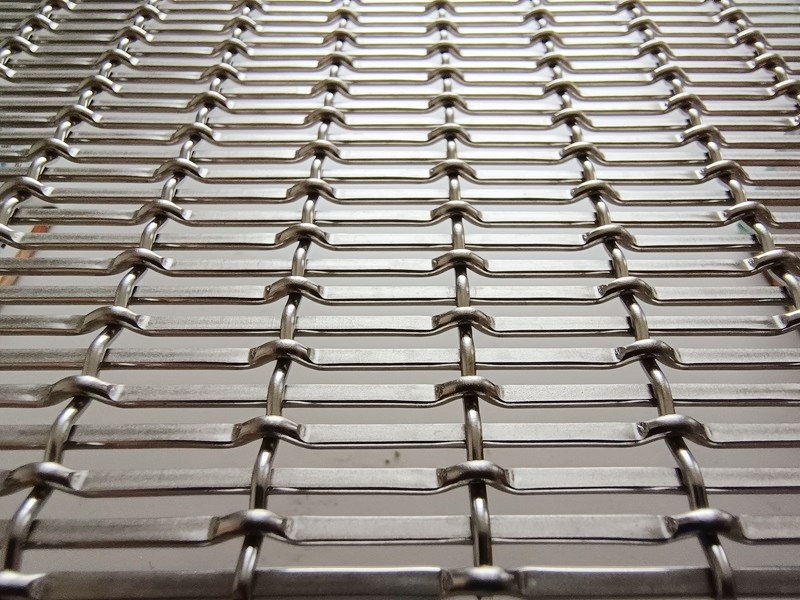

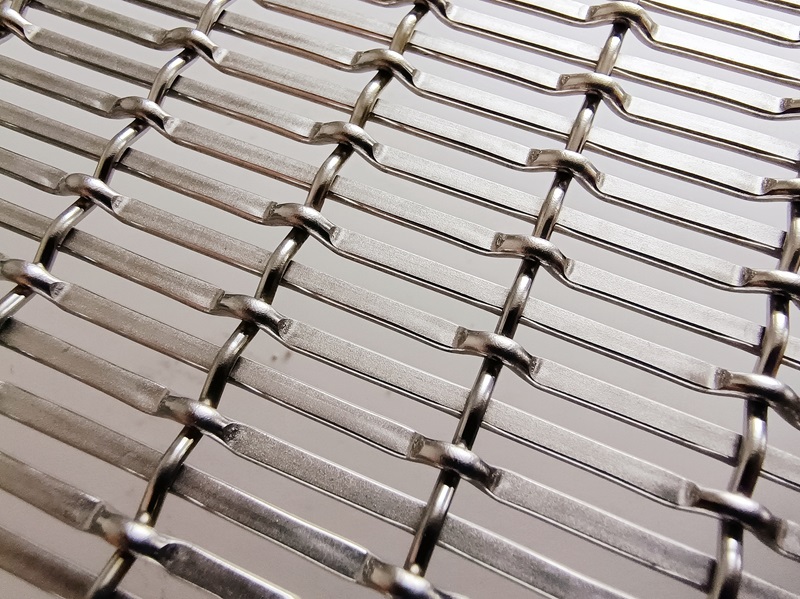

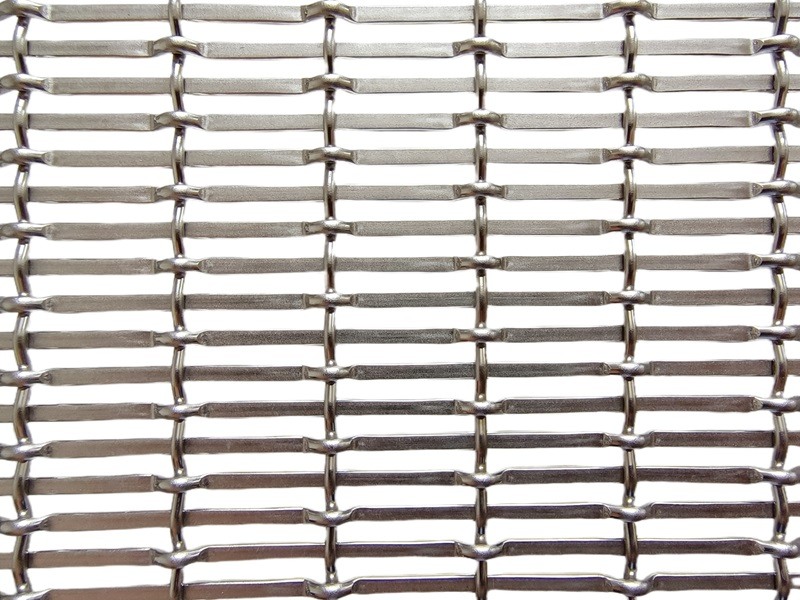

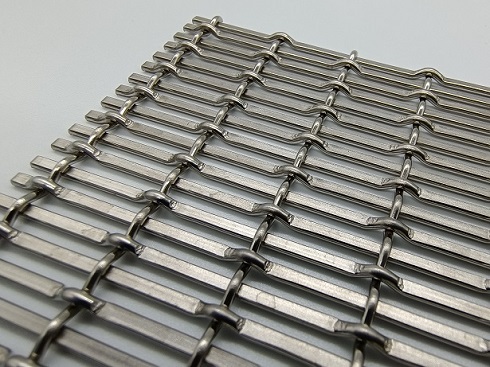

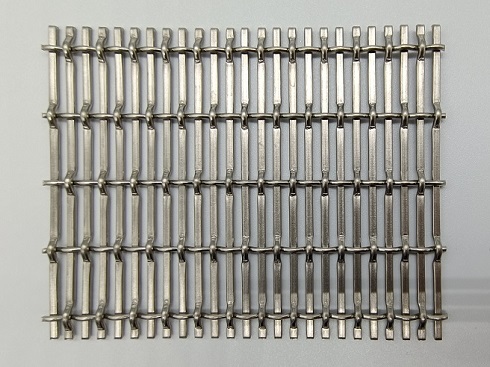

The wire mesh features a unique strip and rod configuration that adds depth and texture to any surface it is used on. With a clear hole size of 2x16mm, it is suitable for a variety of applications such as wall cladding, ceilings, and facade systems. The wire strip size is 2.2x1.2mm, with a wire rod diameter of 1.5mm. The strip pitch is 4.2mm, while the rod pitch is 17.5mm. The total thickness of the fabric is 3.1mm, with an opening area of 46% and a block-out rate of 54%.

The METART WW26 is a long-lasting product that can withstand harsh weather conditions, making it ideal for both indoor and outdoor applications. The block out rate of 54% makes it suitable for areas where privacy is a concern, such as hotel lobbies, office buildings, and other public spaces.

Overall, the METART WW26 cladding wire mesh is a versatile and stylish option for anyone looking to add a unique texture and depth to their space. It is suitable for a variety of applications and is sure to make any project stand out.

\Please refer to the following specifications.

Material

Stainless Steel 304 or 316, Aluminum Alloy optional

Type

Rigid Architectural Wire Mesh

Wire Strip

2.2x1.2mm

Wire Rod Diameter

1.5mm

Clear Hole Size

2x16mm

Strip Pitch

4.2mm

Rod Pitch

17.5mm

The total thickness of the fabric

3.1mm

Opening Area

46%

Block out

54%

Privacy Rate

54%

Weight

6kg/Square Meter

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finish

Mill Finish ( Original stainless steel bright finish),

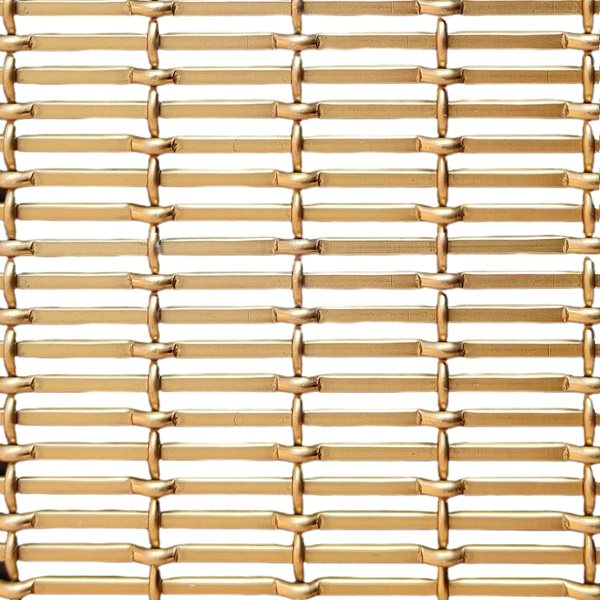

Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

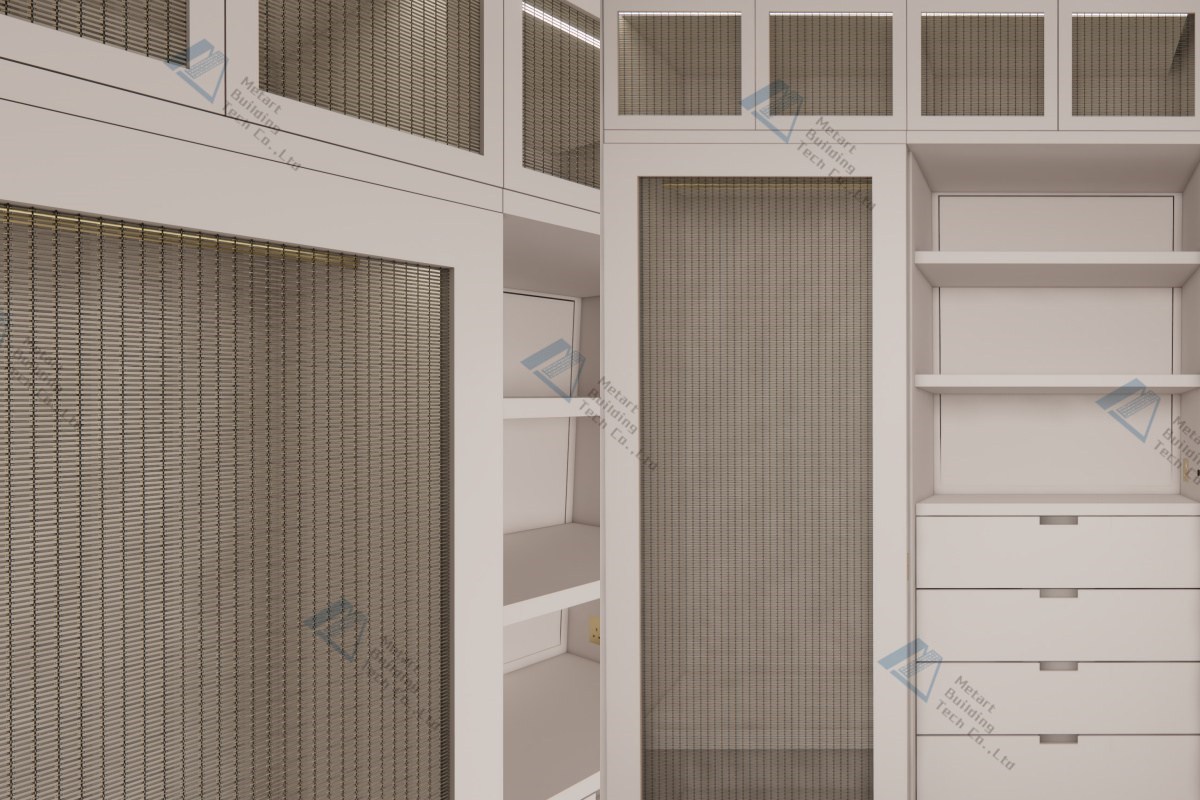

Application
