METART-WW33SSRB-B-Elevator Decorative Screen Mesh

Specification

Material: Stainless Steel 304 / Stainless Steel 316

Type: Rigid Decorative Wire Mesh

Opening Area: 0%

Weight: Approx 14kg/Square Meter

Finish: Mill Finish

Screen Width: Customized. within 3M (10')

Screen Length: Customized. maxiumum within 4000MM (13 feet)

GET A QUOTE

Introduction

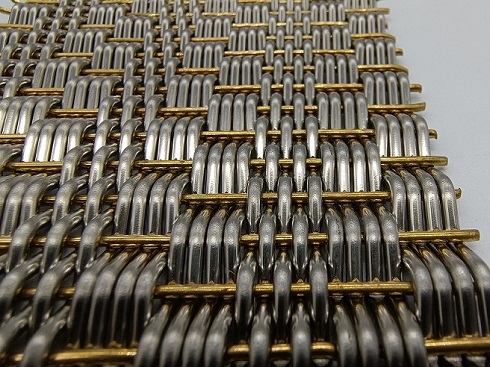

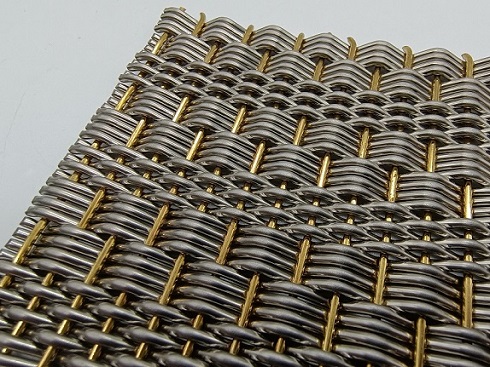

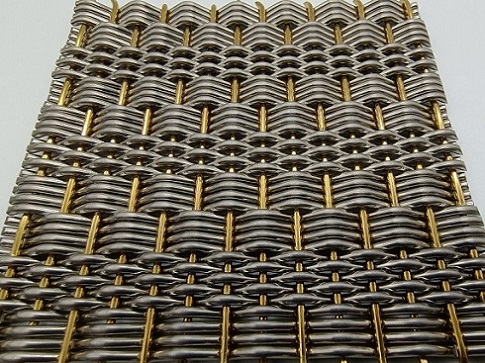

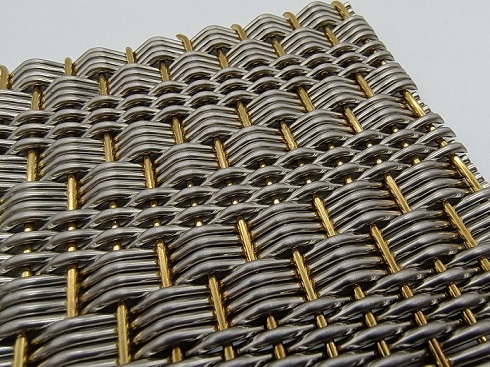

METART WW33SSRB-B is the opposite side of WW33SSRB. The two sides look a bit different due to the woven style.
Please refer to the following specifications.

Material	Stainless Steel 304 / 316 + Real Brass
Type	Rigid mesh
Crimped Warp Wire Diameter：	1.95mm
Brass Weft Wire Diameter	1.45mm
Brass Wire Rod Pitch	6.8mm
Clear Hole Size	0mm
The total thickness of the fabric	4.5mm
Opening Area	0%
Block out	100%
Privacy Rate	100%
Weight	14kg/Square Meter
Finish	Mill Finish.
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut
All optional Finish	Mill Finish
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
