METART-WW36-Lift Wall Creative Wire Mesh for Cladding

Specification

Material: Stainless Steel 304 / Stainless Steel 316

Type: Rigid Architectural Mesh

Opening Area: 0%

Weight: Approx 8.3kg/Square Meter

Finish: Mill Finish

Screen Width: Customized, up to 2000MM = 2M = 6.6 feet

Screen Length: Customized, up to 4000MM = 4M = 13.1 feet

GET A QUOTE

Introduction

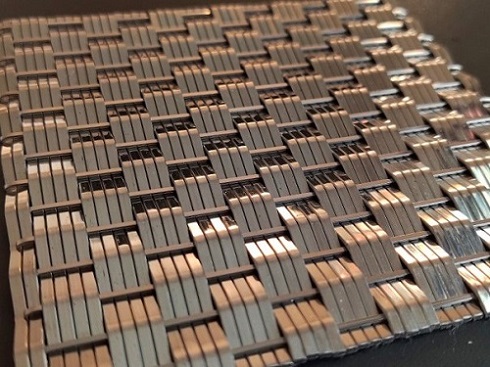

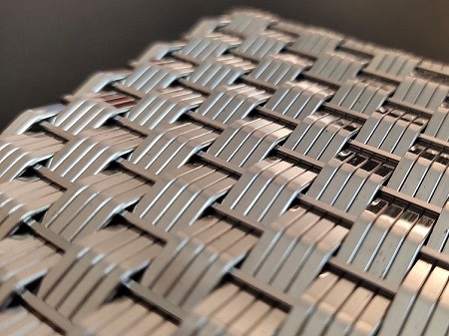

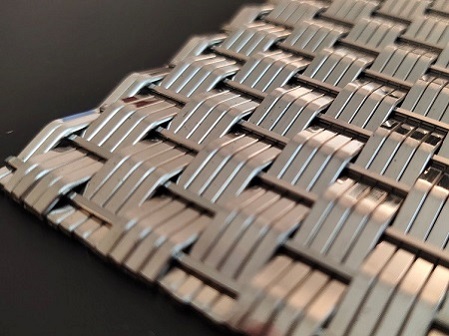

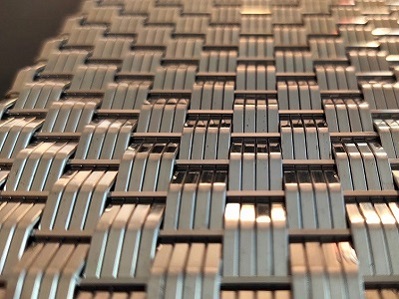

METART WW36 is made of stainless steel strips in both directions. Vertically 4 strips as a strand, staggered woven, this pattern also has no openings at all. You will have a 100% privacy rate for this woven pattern.
Please refer to the following specifications.

Material	Stainless Steel 304 or 316, optional
Type	Rigid mesh
Weft Wire Strip Diameter	1.5x0.7mm
Warp Wire Strips (4 wires)	2x1mm each wire
Clear Hole Size	0mm
The total thickness of the fabric	1.9mm
Opening Area	0%
Block out	100%
Privacy Rate	100%
Weight	8.3kg/Square Meter
Finish	Stainless Steel Mill Finish
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
