Architectural Hybrid Woven Decor Wire Mesh for Interior Wall Cladding

Specification

Pattern Code: METART-WW34MSSRBZ

Material: Stainless Steel 304 or 316 + Real Bronze Wire

Type: Rigid Architectural Wire Mesh

Opening Area: 10%

Weight: Approx 16.6 kg/Square Meter

Finish: Mill Finish (original stainless steel and bronze color)

Shee Size: Maximum 3000x4000MM for mill finished wire mesh panels.

GET A QUOTE

Introduction

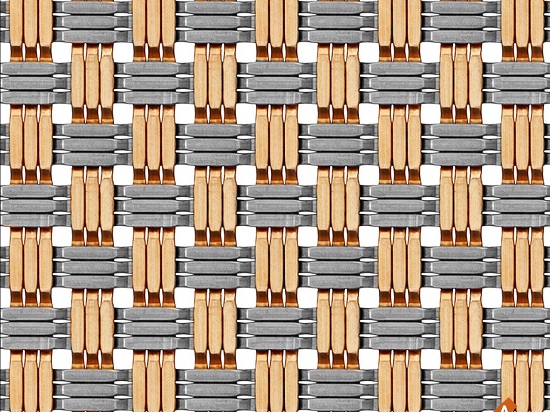

METART-WW34MSSRBZ is the medium-sized version of the woven wire pattern series WW34.

Made of a hybrid of stainless steel wires and real bronze wires in different directions, this decorative wire mesh is just another color variant similar to its brass hybrid woven pattern WW34MSSRB.

This décor mesh is always used as decorative wall cladding mesh, fancy restaurant space partition metal screen infill mesh, decorative balustrade infill mesh, balcony creative railing mesh, etc.

Please refer to the following specifications.

Material

Stainless Steel 304 or 316 + Real Bronze Wires

Type

Rigid mesh

Single Wire Strip

2.7x1.4mm

Strip Group Width (3 wires)

9.1mm

Clear Hole Size

4x4mm

The total thickness of the fabric

2.8mm

Opening Area

10%

Block out

10%

Privacy Rate

90%

Weight

16.6kg/Square Meter

Finish

Mill Finish(Original Stainless Steel and bronze color)

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Custom specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
