METART-WW39-3514 Laminated Glass Mesh made of Architectural Stainless Steel Wire

Specification

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Architectural Mesh

Opening Area: 60%

Weight: Approx 2.9 kg/Square Meter

Screen Width: Customized.

Screen Length: Customized.

GET A QUOTE

Introduction

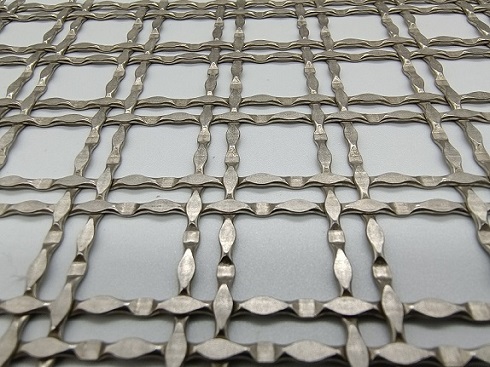

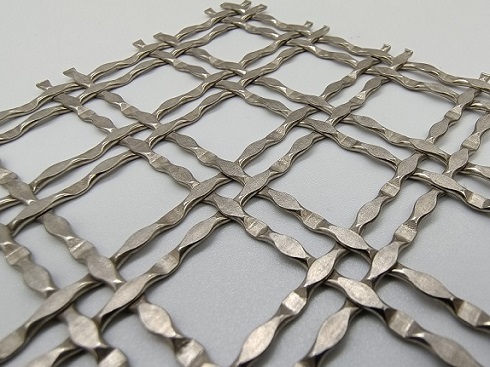

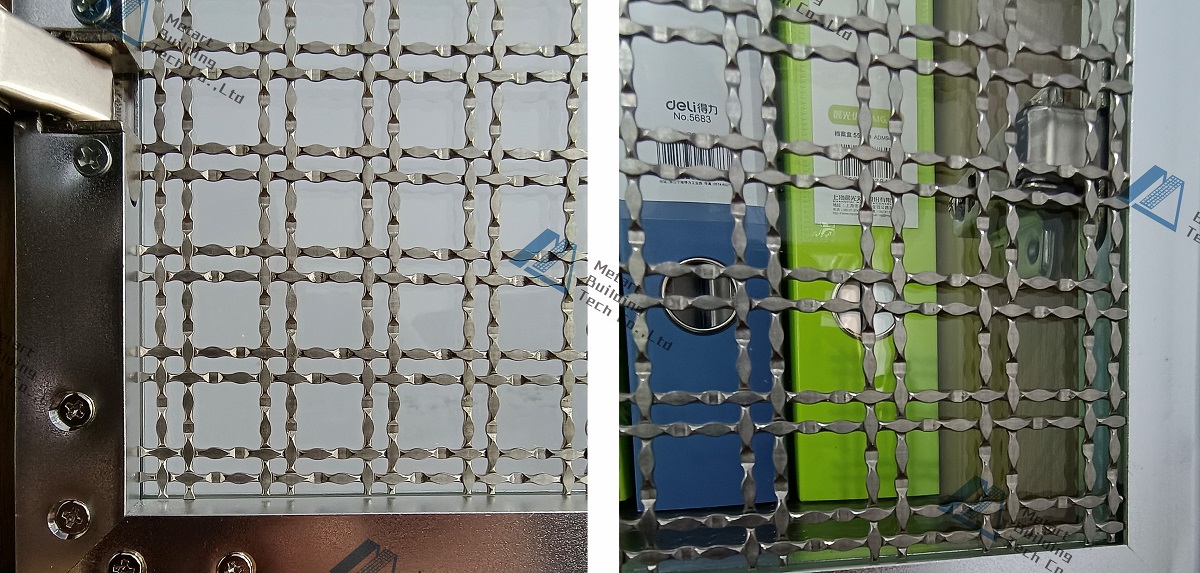

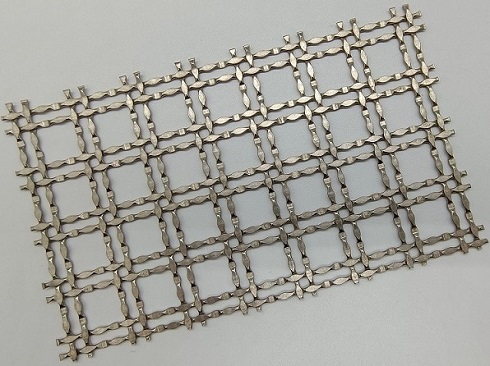

Made of deep crimped flattened stainless steel wire, METART WW39-3514 looks very similar to WW39-3585. The only difference is that the hole size of WW39-3514 is bigger. With its lightweight and thin structure, this pattern is also suitable for laminated glass inserts, and cabinet screens.
Please refer to the following specifications.

Material	Stainless Steel 304 or 316, optional
Type	Rigid mesh
Wire Diameter Before Flattened	1.55mm
Biggest Hole Size	13.7x13.7mm
Smallest Hole Size	3.5x3.5mm
Slot Hole Size	3.5x13.7mm
The total thickness of the fabric	1.4mm
Opening Area	60%
Block out	40%
Privacy Rate	40%
Weight	2.9 kg/Square Meter
Finish	Stainless Steel Mill Finish
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut, Diamond Cut.
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
