METART-WW39-3585 Architectural Glass Insert Mesh made of decorative crimped wires

Specification

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Architectural Mesh

Opening Area: 62%

Weight: Approx 3.8 kg/Square Meter

Finish: Antique Brass Plated Finish

Screen Width: Maximum 3000MM (10 feet)

Screen Length: Maximum 4000MM ( 13 feet)

GET A QUOTE

Introduction

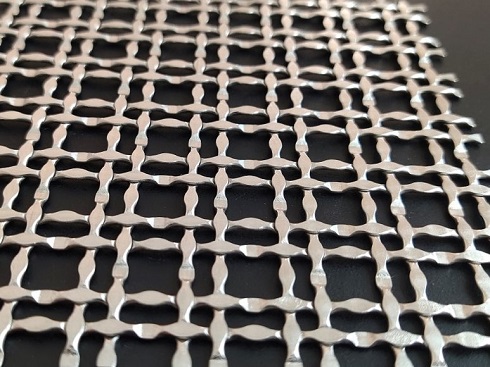

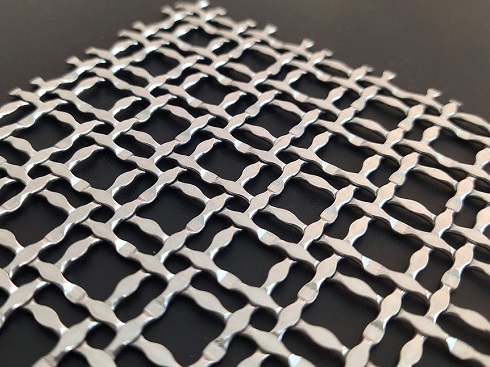

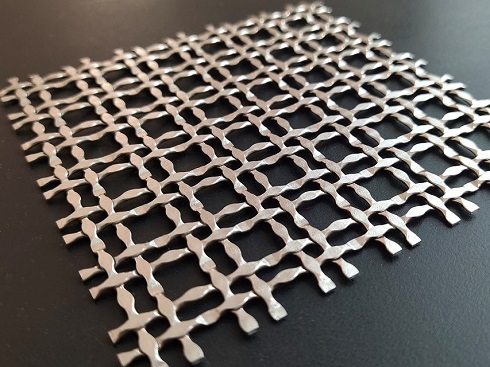

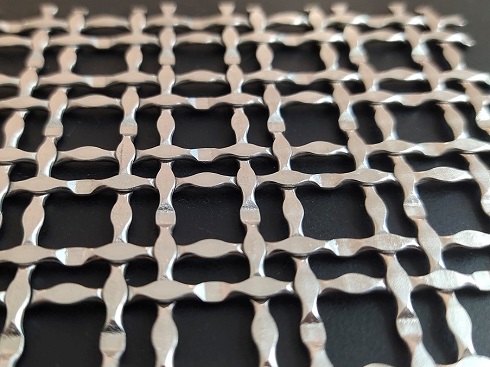

METAR WW39-3585 is made of deep-crimped, flattened stainless steel wire. As it is very thin and light-weighted, this woven wire mesh is suitable for laminated glass wire mesh and architectural screens.
Please refer to the following specifications:

Material

Stainless Steel 304,316, or SS201 optional

Type

Rigid mesh

Wire Diameter Before Flattened

1.55mm

Biggest Hole Size

8.5x8.5mm

Smallest Hole Size

3.5x3.5mm

Slot Hole Size

3.5x8.5mm

The total thickness of the fabric

1.4mm

Opening Area

62%

Block out

38%

Privacy Rate

38%

Weight

3.8 kg/Square Meter

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut.

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
