METART-WW44 Showcase Decorative Metal Grilles for cabinets and furniture

Specification

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Decorative Mesh

Opening Area: 62.8%

Weight: Approx 5.6kg/Square Meter

Finish: Antique Brass Finish ( other finishes vailable)

Max Width: 4000MM (13 feet) for mill finish only

Max Length: 20 Meters (66 feet) for mill finish only.

GET A QUOTE

Introduction

Decorative Metal Grilles are just another name people usually use for decorative metal meshes. It mainly refers to the decorative woven wire mesh grilles. But other architectural mesh that is visually appealing can be also classified as decorative metal grilles, including expanded mesh grilles, perforated mesh grilles.



INTRODUCING DECORATIVE METAL GRILLES PATTERN "METART-WW44"

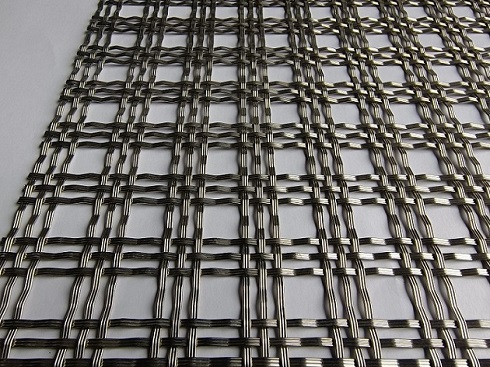

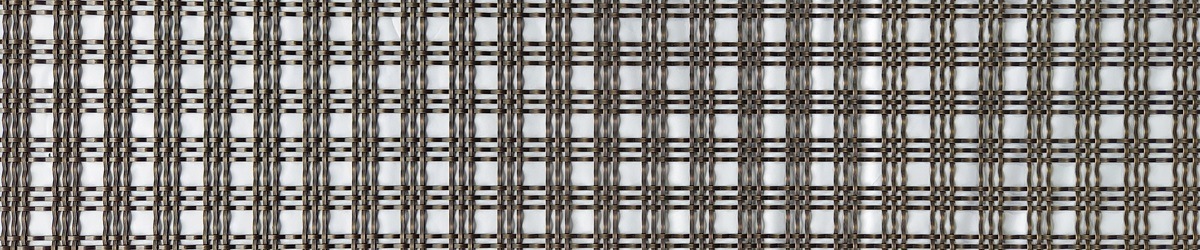

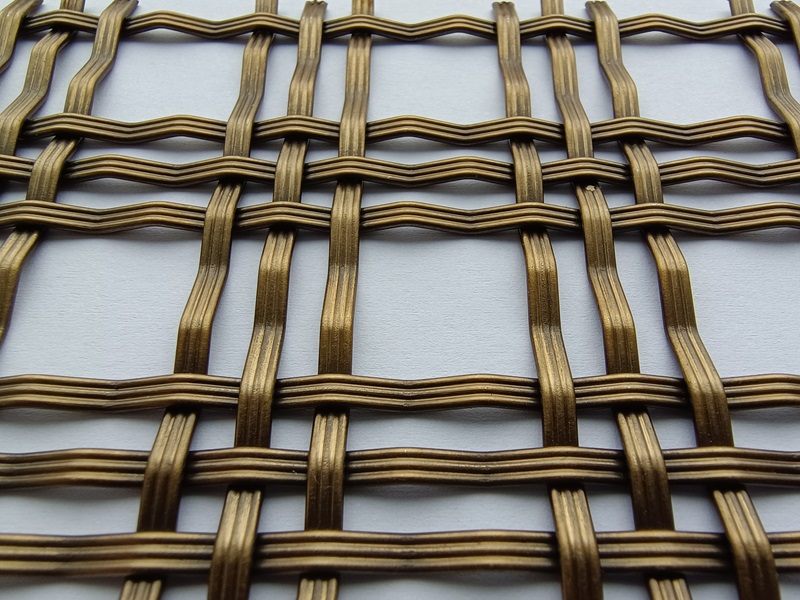

Woven decorative wire pattern METART-WW44 is made of 2.9x1mm grooved double flat wires both vertically and horizontally. The weaving involves in reapting 3 wire strips at a certain interval to create a this simple but elegent design.

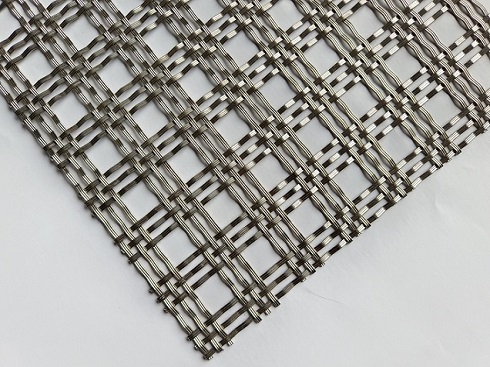

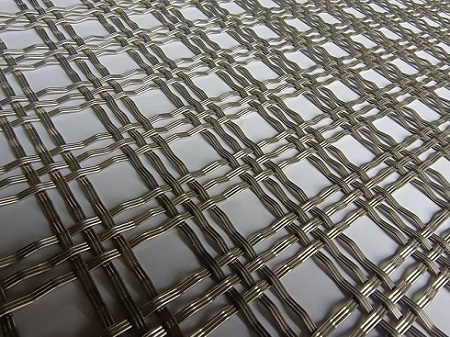

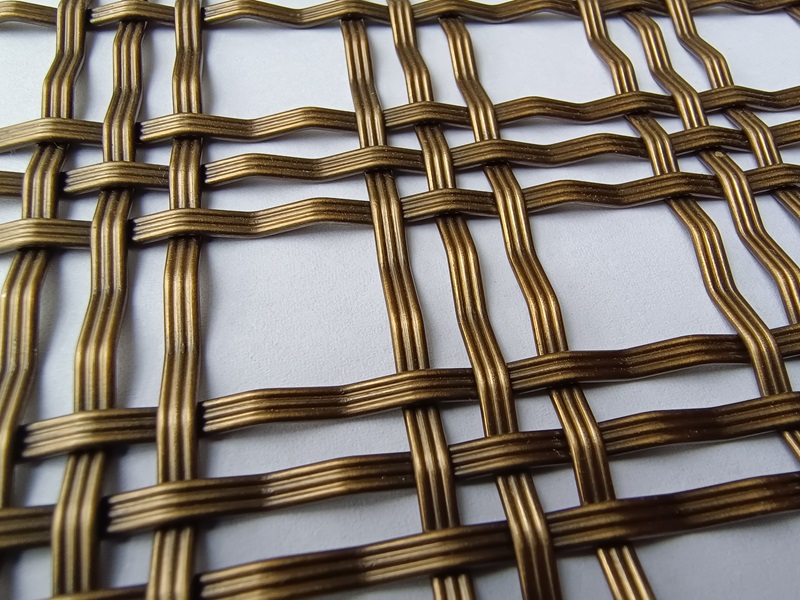

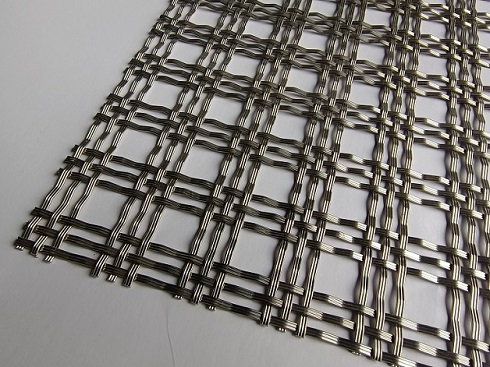

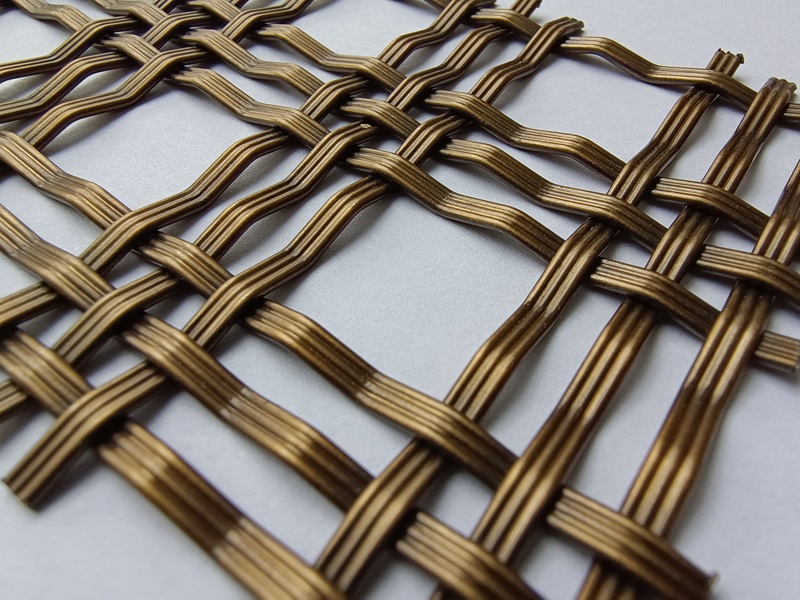

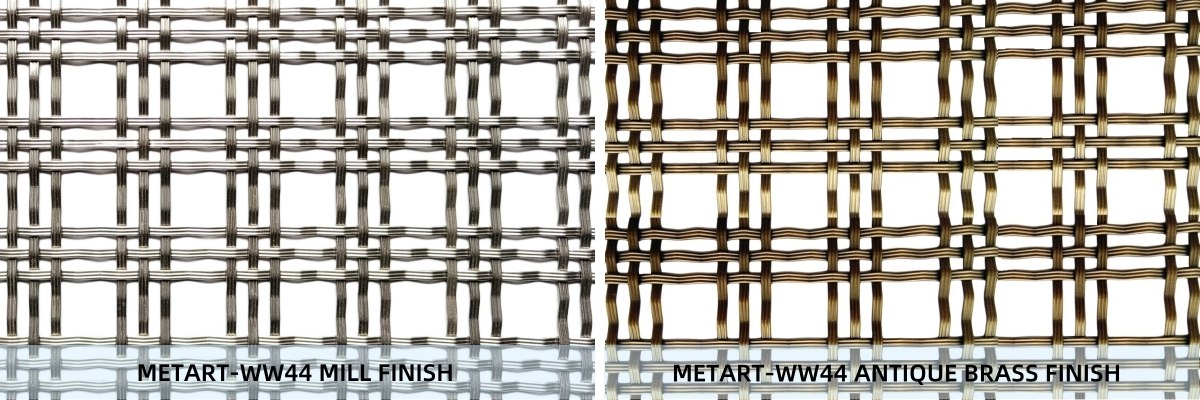

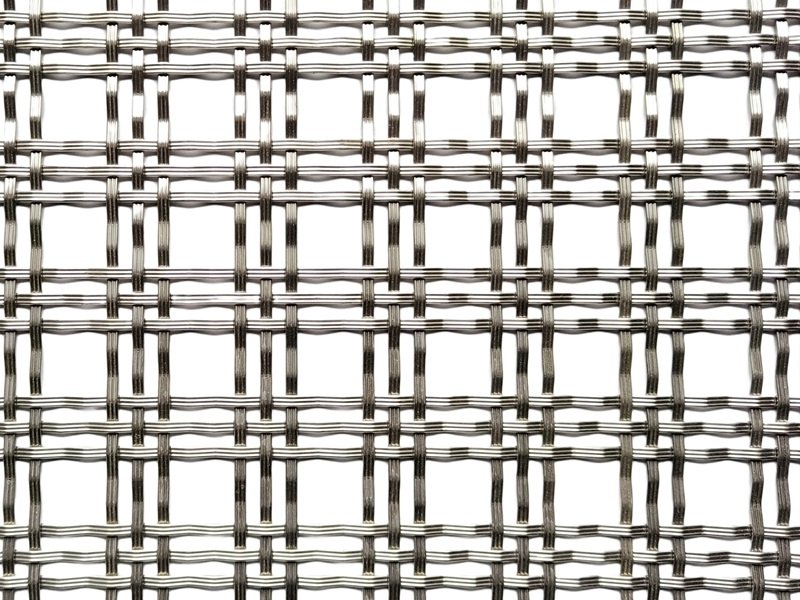

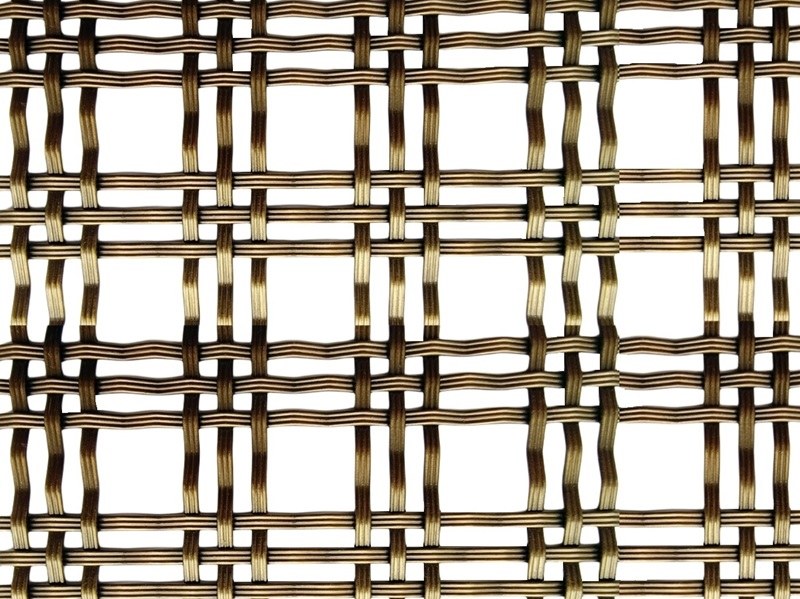

Please refer to the following pictures, the left one is original finish of stainless steel, the right one is Antique Brass Plated Finish.

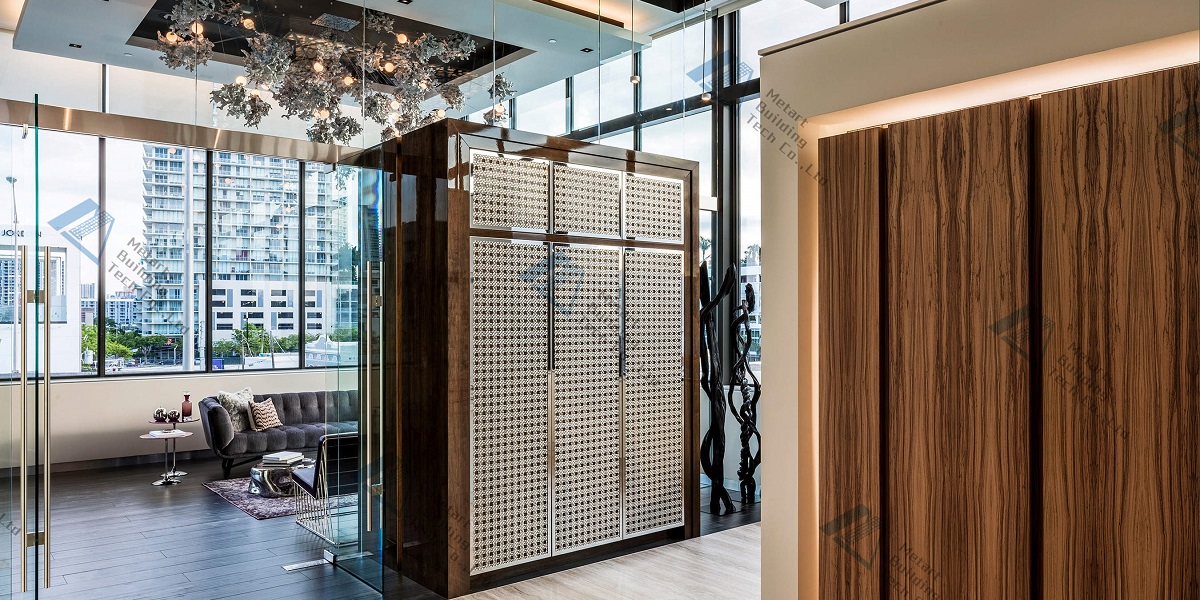

This architectural woven wire mesh pattern is widely used in both interior and exterior decoration projects including hotel wall cladding, hotel decorative partition screening, shopfitting decorative wire mesh, showcase decorative door inserts, laminated glass wire mesh, decorative ceiling mesh, etc.

Custom colors and specifications are accepted.

Please refer to the following specifications.

Raw Material Options

Stainless Steel 304,316, 201

Type

Rigid Decorative Mesh

Flattened Wire Strip

2.9x1mm

Biggest Hole Size

15.5x15.5mm

Smallest Hole Size

3.3x3.3mm

Slot Hole Size

3.3x15.5mm

The total thickness of the fabric

2.2mm

Opening Area

62.8%

Block out

37.2%

Privacy Rate

37.2%

Weight

5.6kg/Square Meter

Finish

Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut.

All optional Finish

Mill Finish ( Original stainless steel finish),
Antique Bronze plated,
Antique Copper plated, Antique brass plated,

PVD Plated Gold ColorPVD Plated Rose GoldPVD Plated Black,

PVD Plated Grey,

Regular Painted to any color.

PVDF Painted.

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
