Specification

Material: Stainless steel 304 or Stainless Steel 316

Rod Diameter / Rod Pitch: 2.0mm/8.0mm

Cable Diameter / Cable Pitch: 2.5mm / 6.0mm

Max Screen Size: 6M width x 50M Roll

Finishes: Mill Finish, (Antique) Brass-Plated, (Antique) Copper-Plated,

Optional Finieshes: Titanium Plated, PVDF Painted.

GET A QUOTE

Introduction

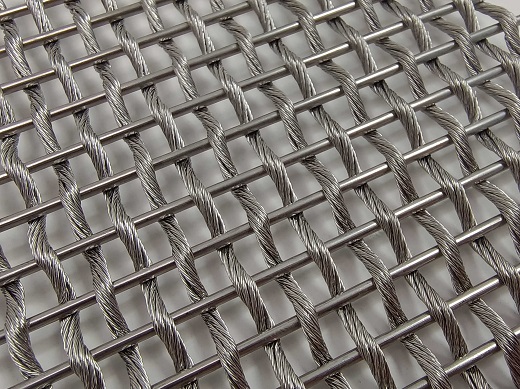

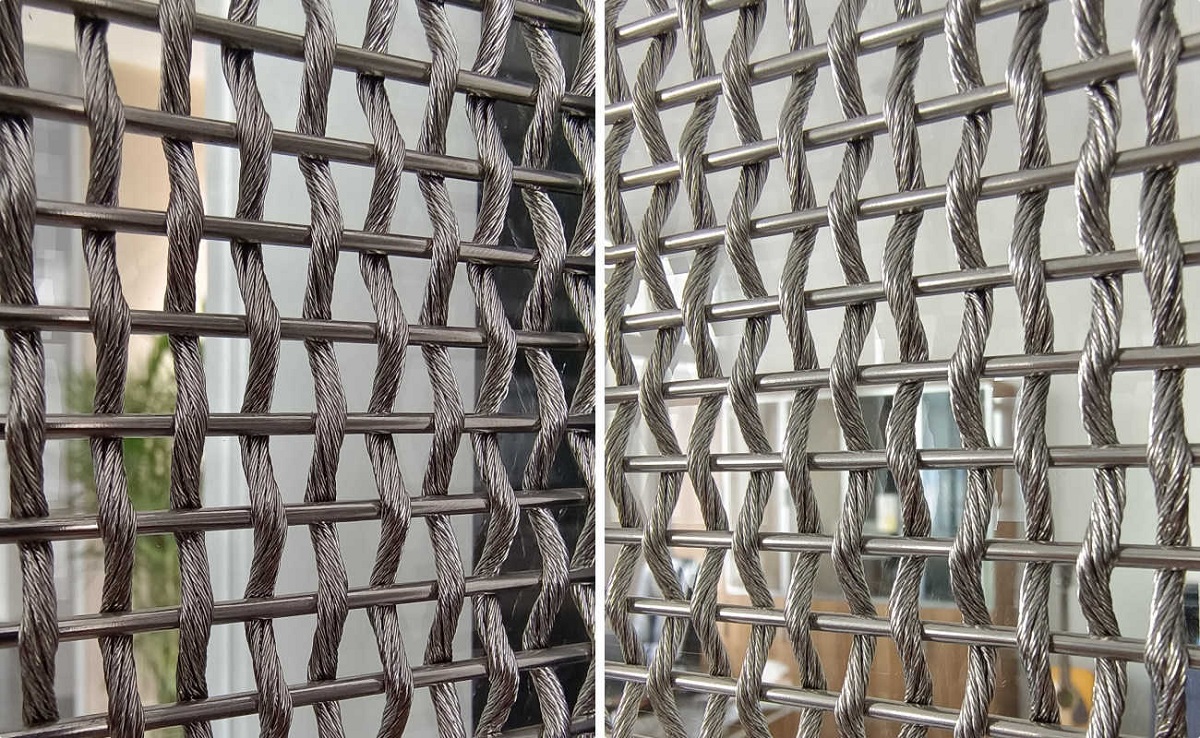

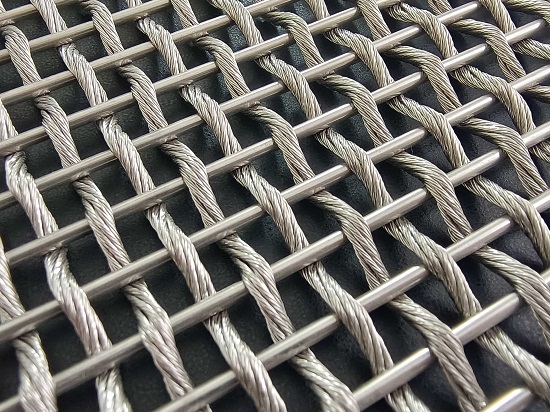

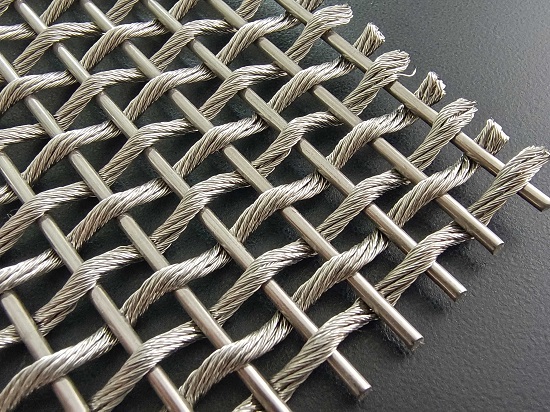

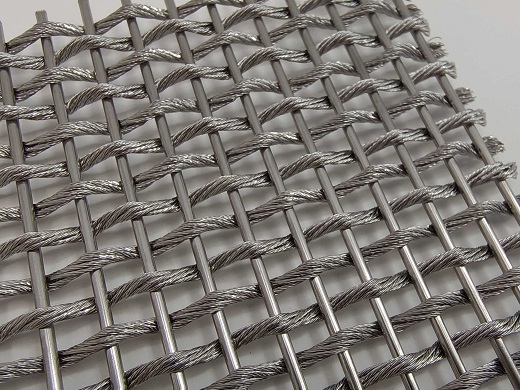

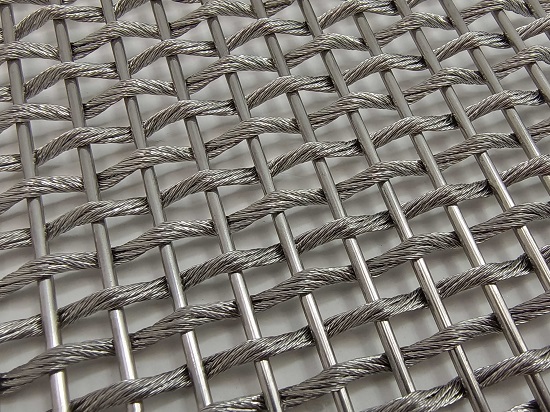

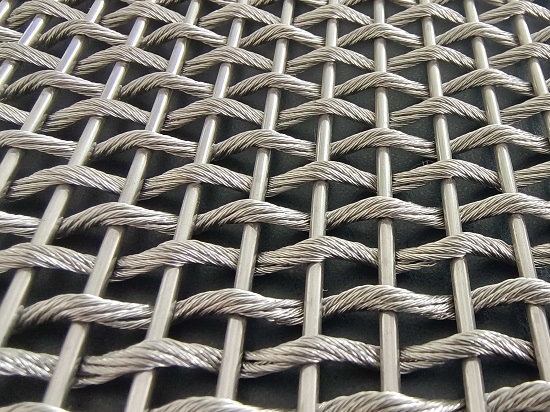

METART-WWD07 is a unique type of architectural cable wire mesh that is made of 2mm stainless steel wire rods and a single strand of 2.5mm cables. This composition provides several key benefits that make it a versatile and durable option for a range of applications.

Firstly, the high density of stainless steel cable in the vertical direction provides excellent tensile strength, making the mesh suitable for applications where it will be exposed to high stress or tension.

Secondly, the small rectangular holes in the mesh offer a better visual experience compared to larger or irregularly shaped holes found in other types of mesh. The more crimps created by the stainless steel cables provide a 3D visual impact and increase the overall quality of the mesh, making it suitable for applications where aesthetics are important.

Thirdly, the moderate opening rate of 43.8% strikes a balance between privacy and ventilation, making it suitable for both interior partition privacy screens and exterior shading screens.

The METART-WWD07 architectural cable wire mesh is a versatile option that can be used for a range of applications where strength, aesthetics, and functionality are important. Its unique composition and specifications make it a durable and reliable choice that is sure to meet your needs.

Please refer to the following specification table.

Raw Material	Stainless steel 304,316, 201, and other alloys
Wire Mesh Type	Single Way Flexible Architectural Cable Mesh
Width of the Screen	Within 6000MM ( 19.69 feet)
Length of the Screen	Within 50 Meters ( 164 feet)
Wire Rod Diameter	2mm
Wire Rod Centers	8mm
Cable Diameter and strands	2.5mm
Cable Centers	6mm
Overall Thickness of the Screen	5mm
Opening Rate	43.75%
Privacy Rate	56.25%
Approx Square Meter Weight	7.2KG/㎡
Finishes	Mill Finish ( Natural Stainless Steel Finish) Gold PVD Plated, Black PVD Plated Copper Plated, Brass Plated Antique Copper Plated, Antique Brass Plated
