METART-WW05-31210-Cabinet Metal Mesh Inserts

Specification

Material: SS201/ SS304 / SS316 and other alloys

Type: Rigid Decor Wire Mesh for Cabinets

Opening Area: 59%

Weight: Approx 4.3kg/Square Meter

Finish: Antique Brass / Bronze Plated

Screen Width: Within 3000MM ( for mill finish only)

Screen Length: Within 40000MM (for mill finish only)

GET A QUOTE

Introduction

The METART WW05-31210 pattern stands as a cost-effective choice within the "METART-WW05" cabinet metal mesh insert series, skillfully crafted from stainless steel of 304-grade quality. This decorative mesh offers versatility and sophistication at an accessible price point.



Stainless Steel 201 is also an option, offering cost savings, and is particularly suitable for larger projects with budget constraints. However, it's important to note that an additional plated finish is required for this material.



This flat wire strip pattern features a precise hole size of 10x10mm and a thickness of 3x1.2mm. The mesh has an overall thickness of 2.4mm, providing an opening area of 59%, with a blackout and privacy rate of 41%.





Customers can choose from antique brass-plated finishes, bright brass-plated colors, or copper-plated finishes based on their specific application requirements.



This versatile and affordable decorative metal mesh pattern finds its place in various commercial and residential applications. It can be used to replace aging vent covers, transform traditional cabinet doors into stylish metal mesh alternatives, or create elegant partition screens in living spaces.



Here are some additional creative applications:

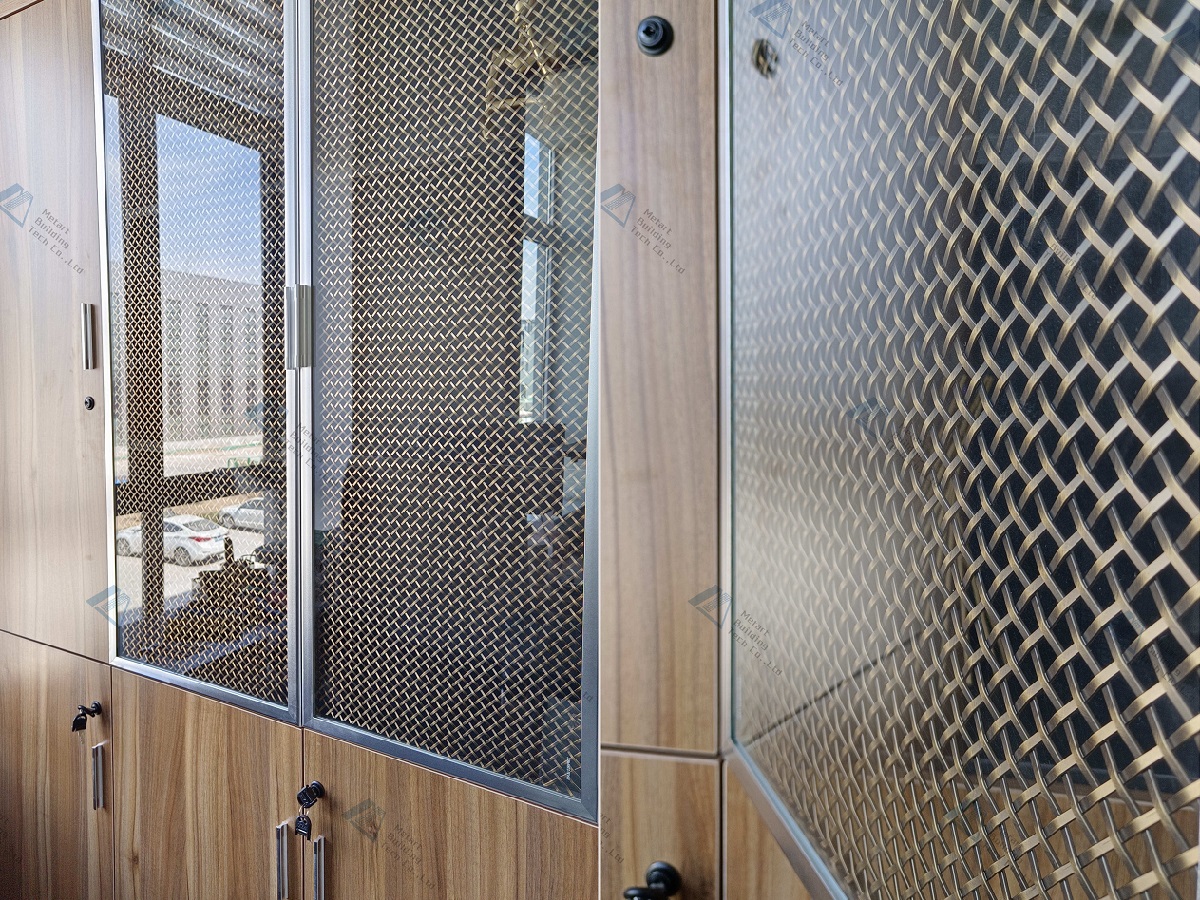

Cabinet Door Inserts:

Replace conventional cabinet doors with METART WW05-31210 wire mesh to infuse a sleek, industrial aesthetic into your kitchen, bathroom, or living room cabinets.



Room Dividers:

Utilize this wire mesh as a room divider to introduce a unique and modern partition while allowing light to filter through, creating an open and airy ambiance with a touch of privacy.



Window Coverings:

Employ the wire mesh as a contemporary window covering that admits natural light while providing privacy.

Retail Displays: Craft eye-catching retail displays that showcase products in a modern and appealing manner using this wire mesh.



With METART WW05-31210 flat decorative wire mesh, the possibilities are endless. It finds application in various spaces, both residential and commercial, adding a contemporary and sophisticated touch to any environment.



Please refer to the following specifications

Material

Stainless Steel 304 or 316, optional

Type

Rigid mesh

Flat Wire Strip:

3x1.2mm

Clear Hole Size

10mm

The total thickness of the fabric

2.4mm

Opening Area

59%

Block out

41%

Privacy Rate

41%

Weight

4.3kg/Square Meter

Finish

Antique Brass Plated

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, Vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication



Item #

Flat Strip

Clear Hole Dia.
mm

Opening Area

Privacy Rate

Weight

Overall Thickness

METART 05-61585

6x1.5mm

8.5x8.5mm

34%

66%

9.5KG / Square Meter

3.4mm

METART 05-41022

4x1mm

2.2x2.2mm

11%

89%

9.2KG / Square Meter

3.2mm

METART 05-31507

3x1.5mm

7x7mm

49%

51%

7.0 KG / Square Meter

3.0mm

METART 05-31005

3x1.0mm

5x5mm

39%

61%

5.8 KG / Square Meter

2.0mm

METART 05-31204

3x1.2mm

4x4mm

33%

67%

7.6KG / Square Meter

2.5mm

METART 05-31205

3x1.2mm

5x5mm

39%

61%

7.0 KG / Square Meter

2.4mm

METART 05-31207

3x1.2mm

7x7mm

49%

51%

5.6 KG / Square Meter

2.4mm

METART 05-31210

3x1.2mm

10x10mm

59%

41%

4.3 KG / Square Meter

2.4mm

METART 05-31510

3x1.5mm

10x10mm

59%

41%

5.4 KG / Square Meter

3.0mm

METART 05-25103

2.5x1.0mm

3x3mm

29.7%

70.3%

7.1 KG / Square Meter

2.0mm

METART 05-22134

2.2x1.0mm

3.4x3.4mm

36.8%

63.2%

6.1 KG / Square Meter

2.0mm

METART 05-22834

2.2x0.8mm

3.4x3.4mm

36.8%

63.2%

4.9 KG / Square Meter

1.6mm

METART 05-22084

2.2x0.8mm

4x4mm

37%

63%

4.0kg / Square Meter

1.6mmm

METART 05-18186

1.8x1.8mm

6.2x6.2mm

60%

40%

6.4KG / Square Meter

3.6mm



Application
