Architectural Cladding Flat Metal Mesh for Interior Decoration

Specification

Pattern Code: METART-WW06-31053

Material: SS304 / SS316 / SS201 / True Copper, Brass, Bronze etc.

Type: Rigid Achitectural Metal Mesh

Opening Area: 41%

Weight: Approx 5.1kg/Square Meter

Finish: Baking Painted to Copper Color.

Screen Size: Within 4000MM

GET A QUOTE

Introduction

METART-WW06-31053 is the most popular architectural wire mesh patterns among the WW06 series.

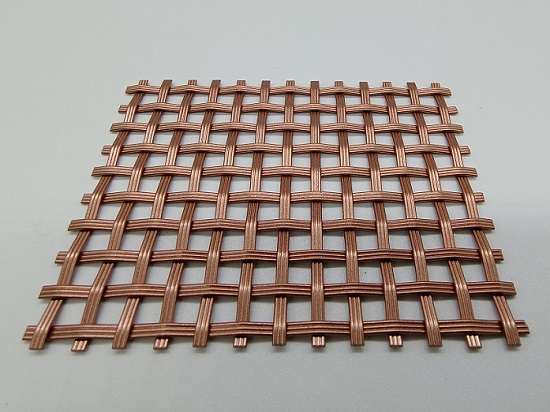

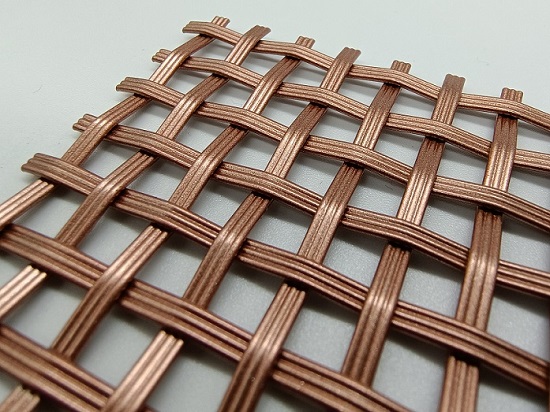

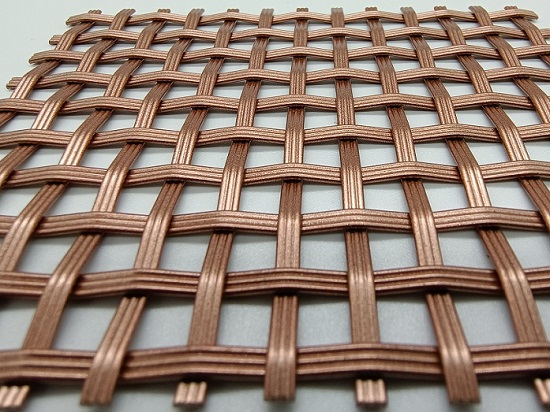

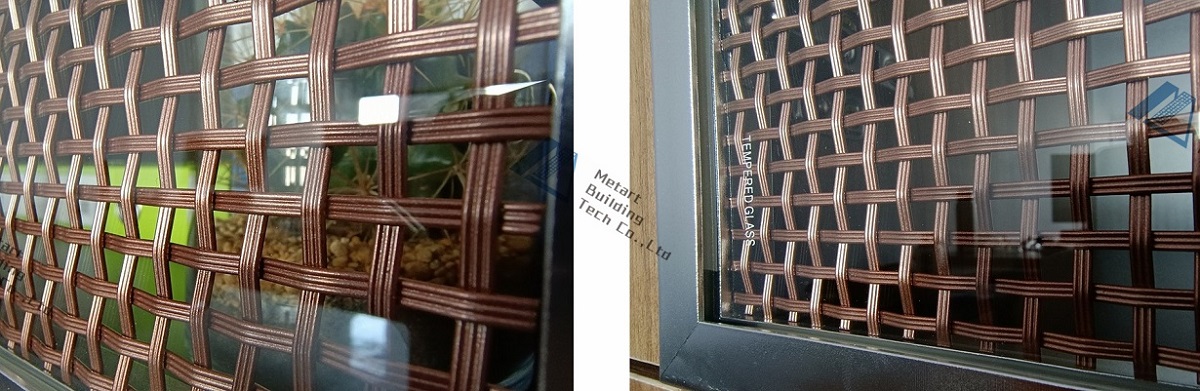

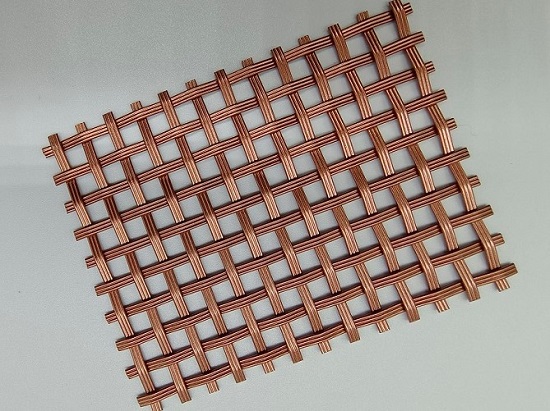

#31053 represents a 2.9mm wide wire strip, 1mm wire thickness, and about 5.3mm aperture size. This is a diamond cut mill finished sample. Other colors or finishes can be customized. This mesh pattern is suitable for cabinet insert mesh and wall decorations. It can be also used for interior decorative screens and balustrade mesh panels.

Please refer to the following specifications.

Material

Stainless Steel 304 or 316, optional

Type

Rigid Mesh

Flat Wire Strip:

2.9x1.0mm

Clear Hole Size

5.3mm

The total thickness of the fabric

2mm

Opening Area

41%

Block out

59%

Privacy Rate

59%

Weight

5.1kg/Square Meter

Finish

Stainless Steel Mill Finish

The way of cutting

Diamond Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate,
Vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
