Wine Cabinet Door Wire Mesh - Adding untique decorative touch to your wine cabinets

Specification

Pattern Code: METART-WW23-22083

Material: Stainless steel 304, stainless steel 316 or SS201

Type: Rigid Cabinet Wire Mesh

Opening Area: 43%

Weight: Approx 4.4kg/Square Meter

Finish: Antique copper plated

Screen Size: Max 3M width x 30M roll, for Mill Finish only

GET A QUOTE

Introduction

METART WW23-22083 is a light-weighted decorative cabinet door metal grille.

The number 22083 after the pattern number represents the specification of the wire mesh which is 2.2x0.8mm wire strip and 3mm slot.

Similar to its variant pattern WW22, both of these two wire mesh patterns are slot hole grille mesh, but mesh pattern WW23 has an opposite hole direction.

Meantime, WW23 has a smooth gloss textured surface, however, WW22 has a matte crimped texture strip finish.

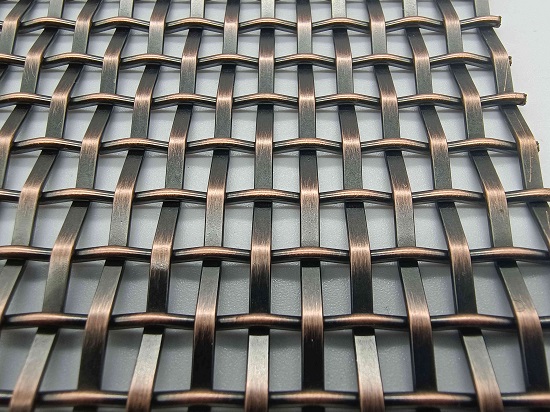

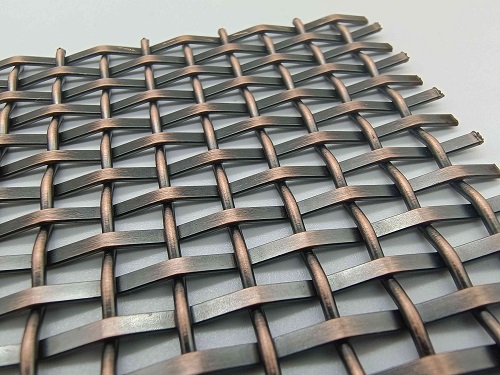

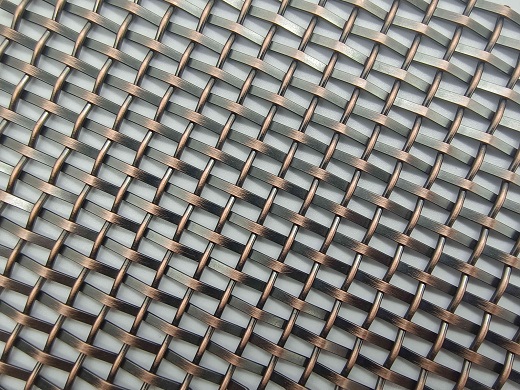

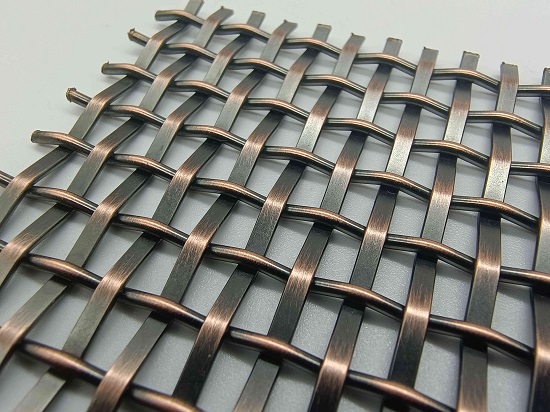

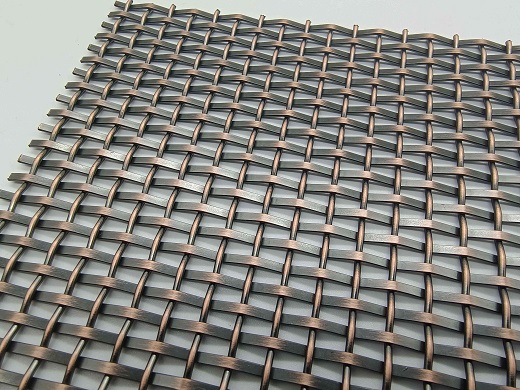

After being antique copper plated, this architectural stainless steel wire mesh pattern looks extremely stunning.

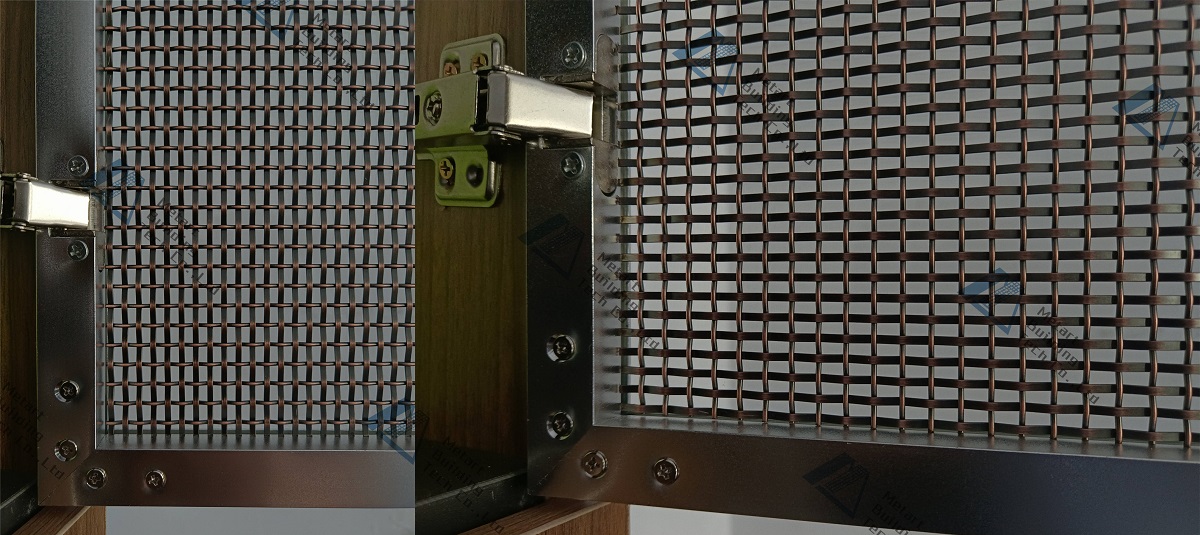

It is preferred to be used as wine cabinet door infill décor mesh, antique furniture decorative mesh, or some wall cladding projects.





Please refer to the following specifications.

Material

Stainless Steel 304 or 316, optional

Type

Rigid mesh

Wire Strip

2.2x0.8mm

Wire Rod Diameter

1.45mm

Clear Hole Size

3x5.6mm

Strip Pitch

5.2mm

Rod Pitch

7.1mm

The total thickness of the fabric

2.45mm

Opening Area

43%

Block out

57%

Privacy Rate

57%

Weight

4.4kg/Square Meter

Finish

Antique Copper Plate

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Custom specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
