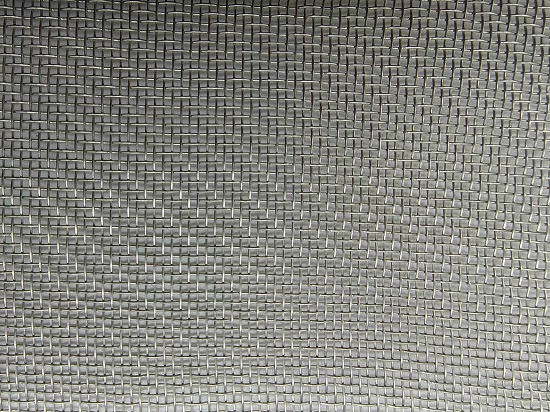

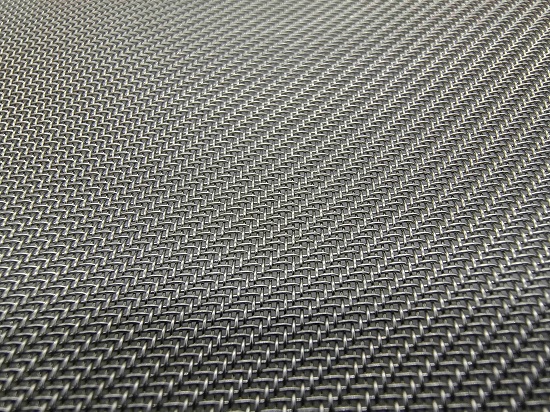

Twill Weave Stainless Steel Wire Mesh
Material: SS201,302,304, 304L. 316,316L,309,310S, 430
Type: Industrial Woven Wire Mesh
Weave Pattern: Twill Weave
Mesh Count: According to customer's requirements.
Wire Diameter: According to customer's requirements.
Standard Width: 914, 1000, 1220mm (Max 6000mm, according to specifications)
Standard Length: 30M. (custom length accepted)
GET A QUOTETwill weave is the second most widely used woven wire mesh pattern in the sieving and filtration industry.
To form a twill weave mesh pattern, the weft wire goes up across two warp wires at the same time and then down through another pair of warp wires alternatively and vice versa. This woven wire pattern offers a possibility for certain mesh counts that need a greater wire gauge but can’t be achieved by a plain weave.
Thus, twill weave wire mesh provides a higher load and finer aperture that can’t be done in plain weave wire mesh.
Besides the wire mesh rolls, we can also provide services like slitting, cleaning, disc punching, welding, etc.

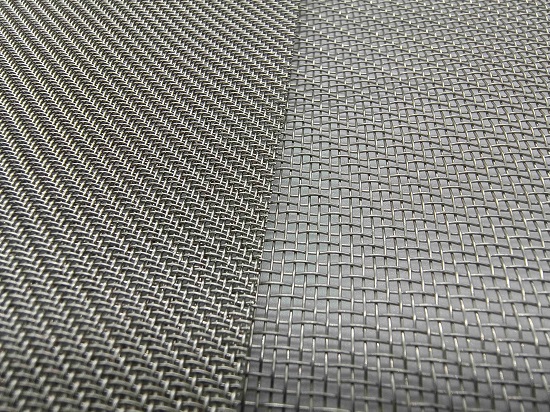

Twill weave is normally adopted for those fine wire cloth, but sometimes it is also used by coarse wire mesh according to different requirements, such as Mesh22x0.3mm, Mesh30x0.4mm, Mesh40x0.3mm, etc.
Please inquire us for availability and custom specification.
Packing: Inner kraft paper, outside plastic film, and then plywood case.
Applications: Petroleum Industry, Chemical industry, food processing industry, mine industry etc.
Lead time: 5 Days for items in stock. Custom-made items need to be negotiated.
Specification List.
/Inch |
Wire Diameter Inch / mm |
Aperture Inch / mm |
Open Area % |
Weight (LB) /100 Square Foot |
||
250 × 250 |
.0016 |
.0406 |
.0024 |
.0610 |
36.0 |
4.4 |
270 × 270 |
.0016 |
.0406 |
.0021 |
.0533 |
32.2 |
4.7 |
300 × 300 |
.0051 |
.0381 |
.0018 |
.0457 |
29.7 |
3.04 |
325 × 325 |
.0014 |
.0356 |
.0017 |
.0432 |
30.0 |
4.40 |
400 × 400 |
.0010 |
.0254 |
.0015 |
.370 |
36.0 |
3.3 |
500 × 500 |
.0010 |
.0254 |
.0010 |
.0254 |
25.0 |
3.8 |
635 × 635 |
.0008 |
.0203 |
.0008 |
.0203 |
25.0 |
2.63 |
•Petroleum Industry
•Chemical industry
•Food processing industry
•Mining industry
