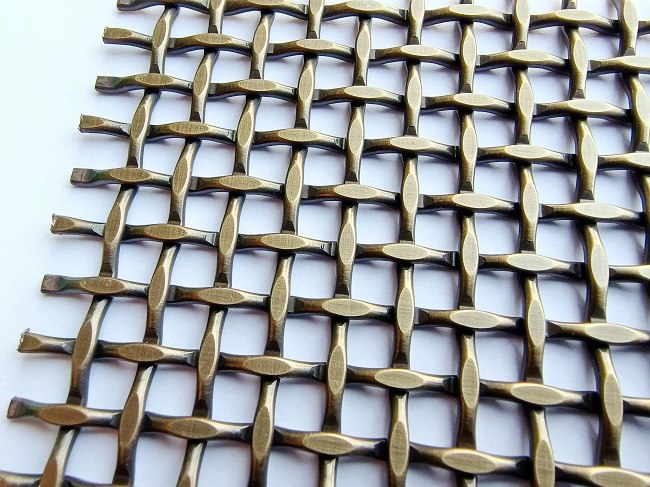

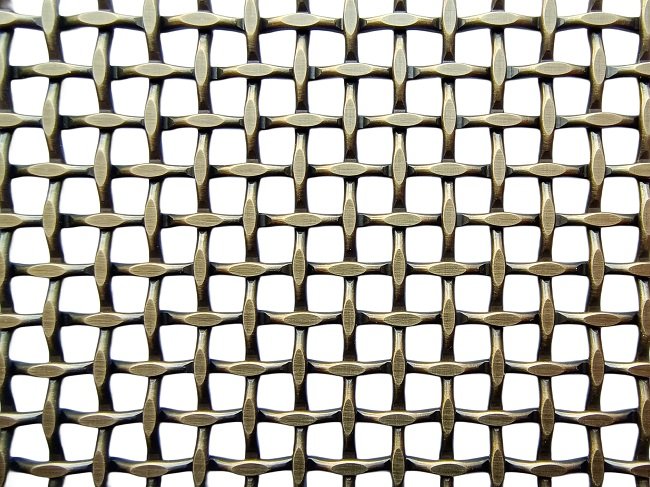

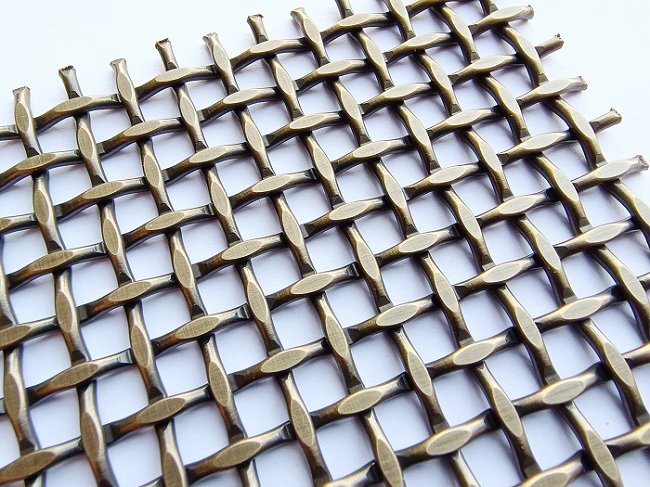

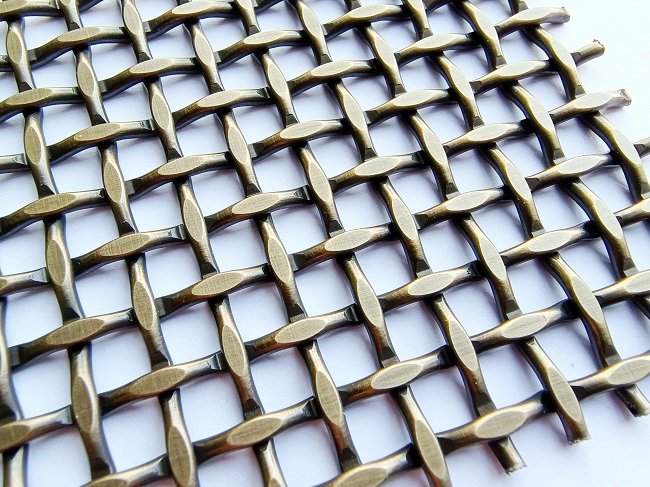

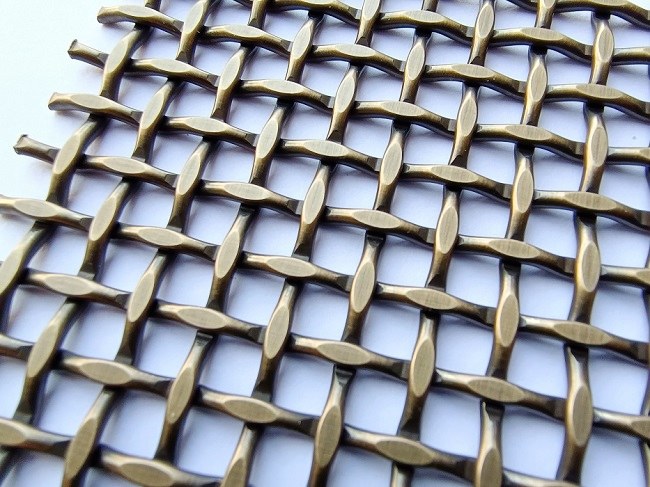

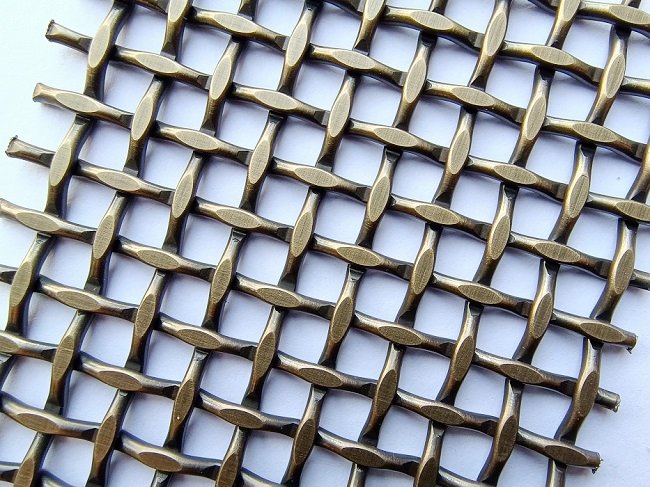

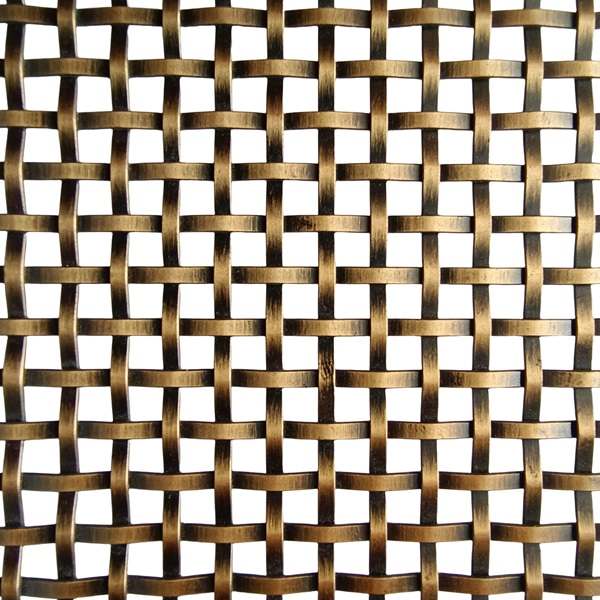

Decorative Wire Mesh for Cabinet
Pattern Code: METART-WW12S
Material: SS304, SS316, SS201, Copper, Brass, Bronze
Type of Mesh: Rigid Woven Wire Mesh
Opening Rate: 52%
Weight: About 6.7KG per square meter
Finish: Antique Bronze Finish (other finishes plz refer to the specification table)
Sheet Size: Within 2000x3000MM
GET A QUOTE"METART-WW12S," an economical decorative wire mesh for cabinet.
Derived from the vibrant pattern of its predecessor, "METART-WW12," "WW12S" offers a compact version of the original design, featuring thinner wires and a smaller opening size.

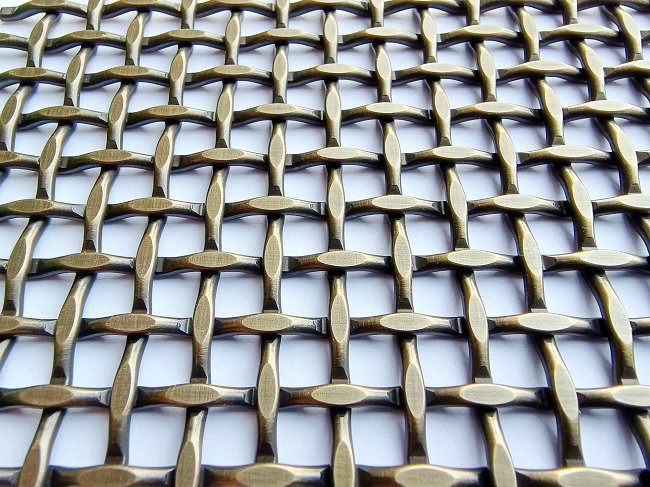

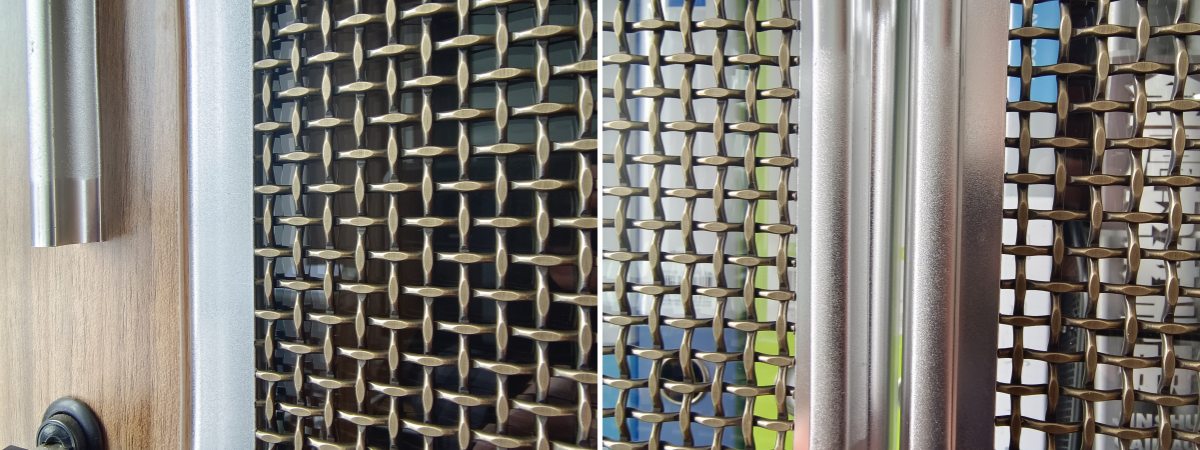

Made from 2mm decorative crimped wires in both directions, with an actual diameter of 1.95mm (within a tolerance of minus 0.05mm), this wire mesh presents a refined aesthetic for cabinet doors and furniture. The moderate 5x5mm aperture size ensures approximately 52% ventilation once installed.
Despite the reduction in wire diameters, "METART-WW12S" maintains impressive rigidity and robustness, making it well-suited for various architectural applications. Its versatility extends to serving as partition wire mesh, enhancing shop front decorations, contributing to interior architectural ceiling designs, and serving as partition infill wires to cater to diverse needs."
Specification overview.
|
Raw Material |
SS304, SS316, SS201, Copper, Brass, Bronze and other alloy type |
|
e of Mesh |
Rigid decorative mesh |
|
Wire Diameter |
1.95mm |
|
Clear Hole Size |
5x5mm |
|
Over thickness of the wire mesh |
2.7mm |
|
Opening Area |
52% |
|
Privacy Rate |
48% |
|
Weight |
6.7kg/Square Meter |
|
All optional ways of cut |
Straight Cut, Diamond Cut |
|
All optional finishes |
Mill Finish ( Original stainless steel finish), PVD titanium-plated gold, rose gold, black, and grey. Regular painted finish. PVDF-painted finish. |
